MAGNAT Quantum "505" kaiutinsarja kotiteatteriin, 2 x 505 lattikaiuttimet, 2 x 503 takakaiuttimet ja 513 keskikaiutin
Sijainti Hyvinkää, vain nouto, väri ruusupuu

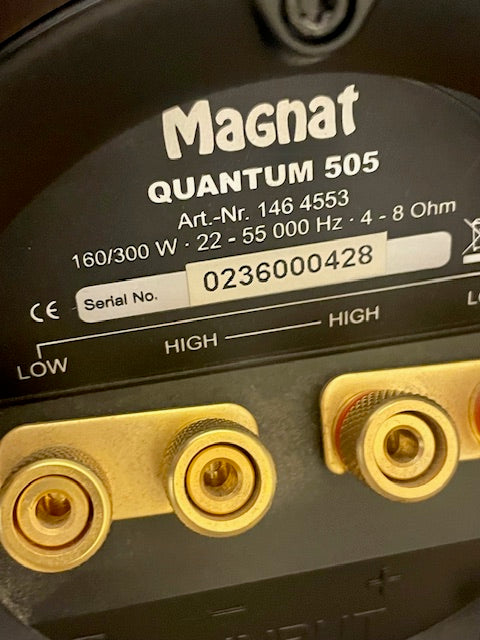

Quantum 505:
Technical Data
- Type: 3-way bass reflex, floorstanding speaker
- Chassis:
- bass-midrange speaker: 2x 170 mm cone
Tweeter: 1x 25 mm dome tweeter
- Power handling (nominal/music): 180 / 320 Watt
- Efficiency: 92 dB/1W/1m
- Frequency response: 22 - 55,000 Hz
- crossover frequencies: 320 / 3,200 Hz
- Impedance: 4 - 8 Ohm

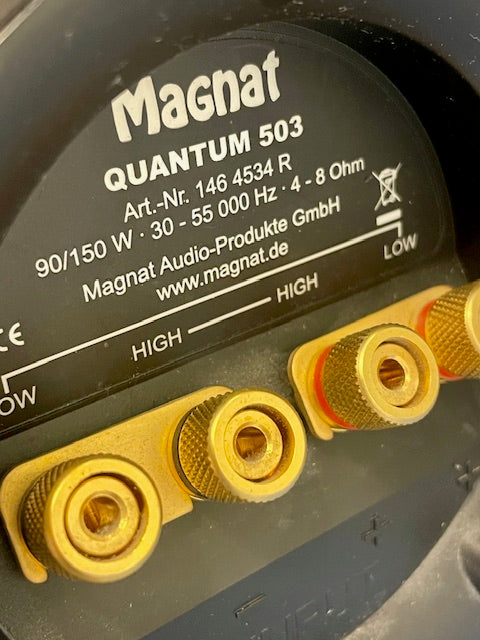

Quantum 503:
2-tie bassorefleksi.
Elementit 170 mm TT + 25 mm HT.
Herkkyys 90 dB
Max. 150 Wattia
Impedanssi 4-8 Ohmia.
Lower cut-off frequency 30 Hz
Upper cut-off frequency 55000 Hz
Crossover frequencies 3200
Mitat: L200 x K350 x S280 mm
Quantum 513 keskikaiutin:
Technical Data
- Type: 2-way bass reflex, center speaker.
- Chassis:
- bass-midrange speaker: 2x 130 mm cone
Tweeter: 1x 25 mm cone
- Power handling (nominal/music): 90 / 150 Watt
- Efficiency: 91 dB/1W/1m
- Frequency response: 34 - 55,000 Hz
- Crossover frequencies: 3,200 Hz
- Impedance: 4 - 8 Ohm
