DSPeaker Anti-Mode X2D

X2D on edullinen ja suorituskykyinen huonekorjain/etuvahvistin automaattiseen huone- ja kaiutinoptimointiin.

FEATURES

• Connect up to 3+1 digital and analog audio sources
• Supports stereo systems with an optional subwoofer
• Anti-Mode™ 3 algorithm
• USB type C connector for audio input
• Very small size, fits anywhere
• Plug and play: no expertise required to calibrate and use
• X2D with digital outputs (optical & coaxial S/PDIF) for external DACs

The latest addition to the DSPeaker product family, the Anti-Mode™ X2, is a versatile DSP powerhouse. It features an all new Anti-Mode 3 algorithm which will automatically optimize the combination of main speakers and an optional subwoofer with the acoustic environment.

A fully customizable tone control functionality is available, in addition to a state of the art digital crossover and a subsonic filter. Most of the functionality is adjustable in real time using the supplied sturdy remote controller. Multiple sound profiles are supported that allow quick access to previously stored sonic configurations.

Anti-Mode X2D replaces the analog stereo output with a S/PDIF digital stereo output in coaxial and optical Toslink formats, but keeps the analog subwoofer output for the 2.1 speakers + subwoofer configuration. This makes it possible to use an external DAC for the main channels.

Firmware Highlights

• Anti-Mode™ 3 correction
• Cross-over for speakers and sub
• Automatic channel balance
• Tone controls

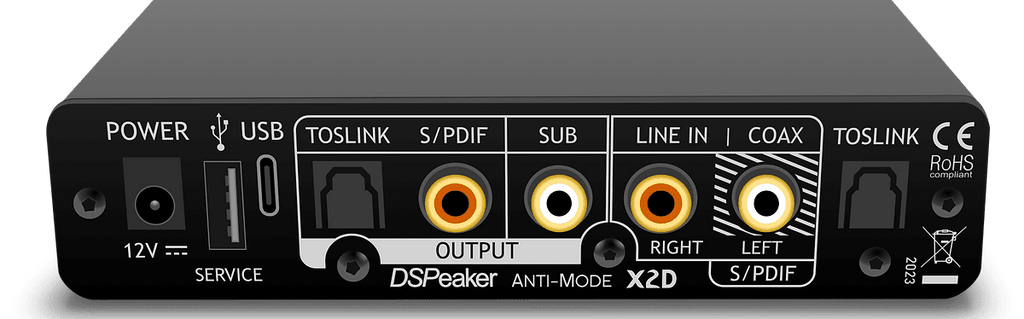

Interfaces

• Analog Stereo or 1 coaxial S/PDIF digital input (mutually exclusive)
• 1 optical S/PDIF digital input
• S/PDIF: 16 to 24 bits PCM, 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
• USB Audio input
• USB Type-C connector
• USB Audio 1.0 Stereo 24-bit up to 96kHz PCM (no drivers required)
• Toslink optical and coaxial S/PDIF digital stereo output (Anti-Mode X2D)
• Analog subwoofer RCA output
• Microphone input

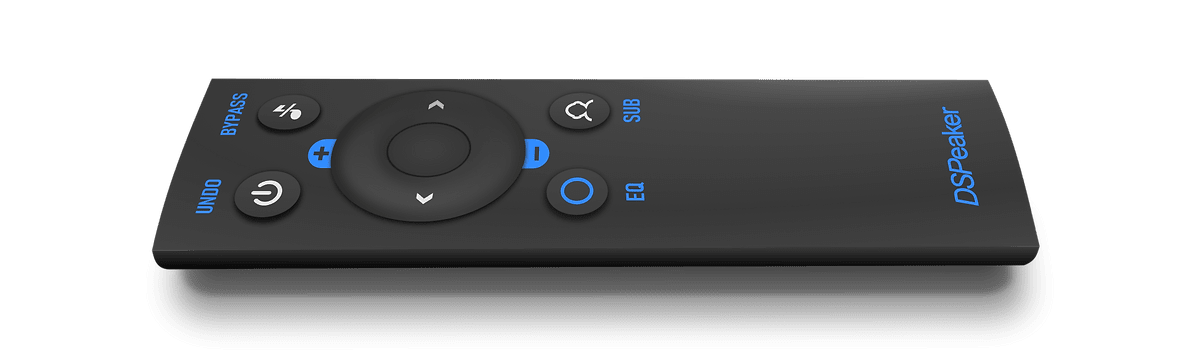

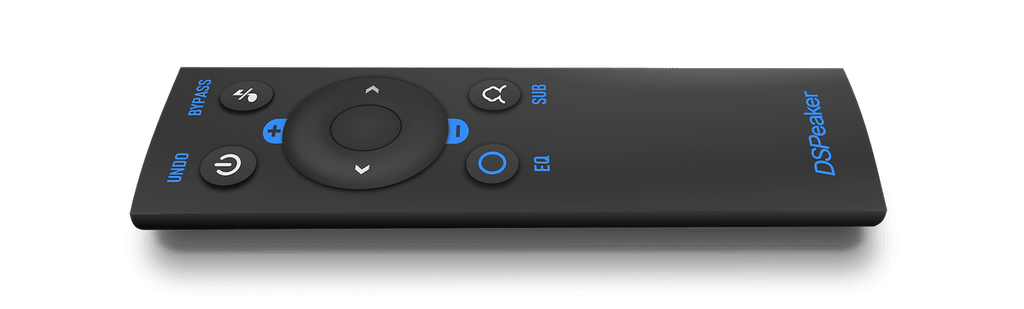

• IR remote control (controller included)
• Service USB port for firmware update (USB memory stick required)

Analog / Digital specifications (typical)

• Frequency Range (analog to analog): 5Hz to 22kHz
• Analog Input: 2.3 Vrms (max), SNR 100 dB, THD (-6 dB level) < 0.002 %
• Coaxial and Toslink optical S/PDIF output (X2D): 96 kHz, 24 bits
• Subwoofer output: 2.3 Vrms (max), SNR 100 dB, THD (-6 dB level) < 0.03 %
• Power consumption: active 1.5W, stand-by: 0.1W

Mechanical

• Unit Weight: 0.3 kg
• Unit Dimensions: 126mm (width) x 80mm (depth, without cables) x 28mm (height)
• Measurement microphone and remote controller included
