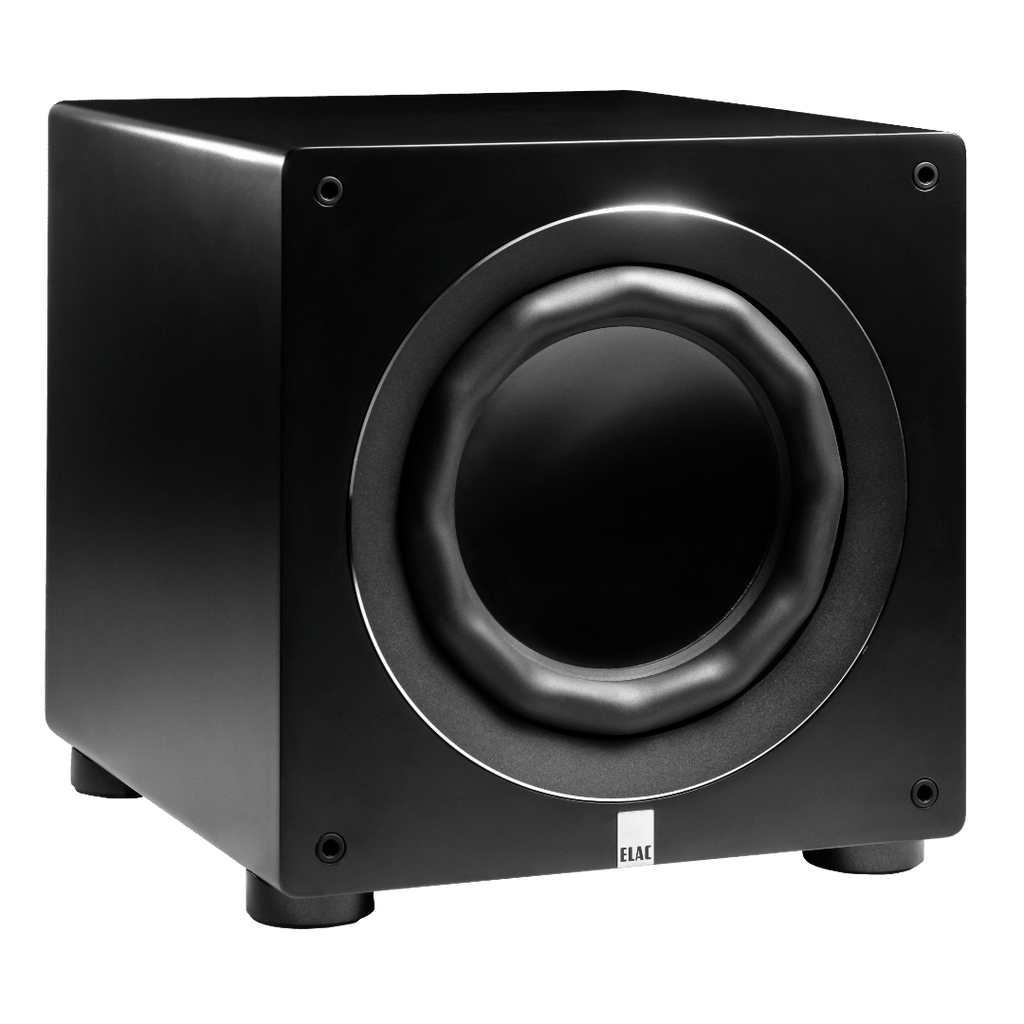

Elac RS700 12″ Subwoofer
Varro Reference RS700 12" Subwoofer
Powerful. Bold. DynamicVarro Reference Series Subwoofers: Total Performance Begins With Design
This powerful subwoofer series features an advanced 2-Layer High Excursion (HEX) design, providing a dynamic low-end response and room-filling sound. The high-quality amplification technology delivers incredible power with professional-grade audio clarity, so you get every punch and beat with maximum impact. Crafted with carefully selected materials, this subwoofer is engineered for remarkable sound quality and excellent durability. A stylish and modern design makes it a beautiful addition to any home. Get ready to experience music and movies like never before!
Advanced Woofer DesignTotal Performance Begins With Design
Our High Excursion (HEX) surround technology allows for greater extrusion and less distortion.
However, to facilitate the extra movement, longer voice coils were required. Meaning our Aluminum Sandwich technology was too heavy.
To improve efficiency, our drivers were designed with cutouts arranged in the paper cone prior to gluing to the aluminum cone.
The Die Cast backrest ensures strength under load, and a large magnet completes the custom driver.
Custom Designed BASH AmplifierAll seven models utilize BASH technology.
The discrete implementation of these tracking amplifiers allows for maximum voltage swing, providing all the power that is needed and additional dynamic power throughout the entire operating range of the woofers.
Auto EQ and Advanced App ControlPlacement of a subwoofer can be challenging. This is because typically they are placed in corners or hidden next to couches causing reflection, peaks or valleys.
The principle of ELAC’s Auto EQ, is to remove the effect of the room by making a near-field measurement and comparing it to a far-field (listening position) measurement.
This allows a greater degree of freedom for placing the subwoofer where it meets all requirements.
As the pioneer of APP-controlled subwoofers, all seven Varro subwoofers include our 3rd generation Sub Control 3.0 App with Auto EQ room correction and easy setup of multiple subwoofers.
Product Specifications
- Speaker Type Sealed
- Woofer 12” HEX Surround
- Frequency Response 17Hz—150Hz (Anechoic) 14Hz—150Hz (In-Room)
- Maximum Output Level, SPL dB/1m anechoic 111 dB
- Low Pass Crossover 40Hz to 150Hz
- Amplifier Power 700/1400 Watts
- App Controlled (BLE) iOS and Android
- Amplifier Topology BASH
- Standby Power Consumption< 2.0 Watts

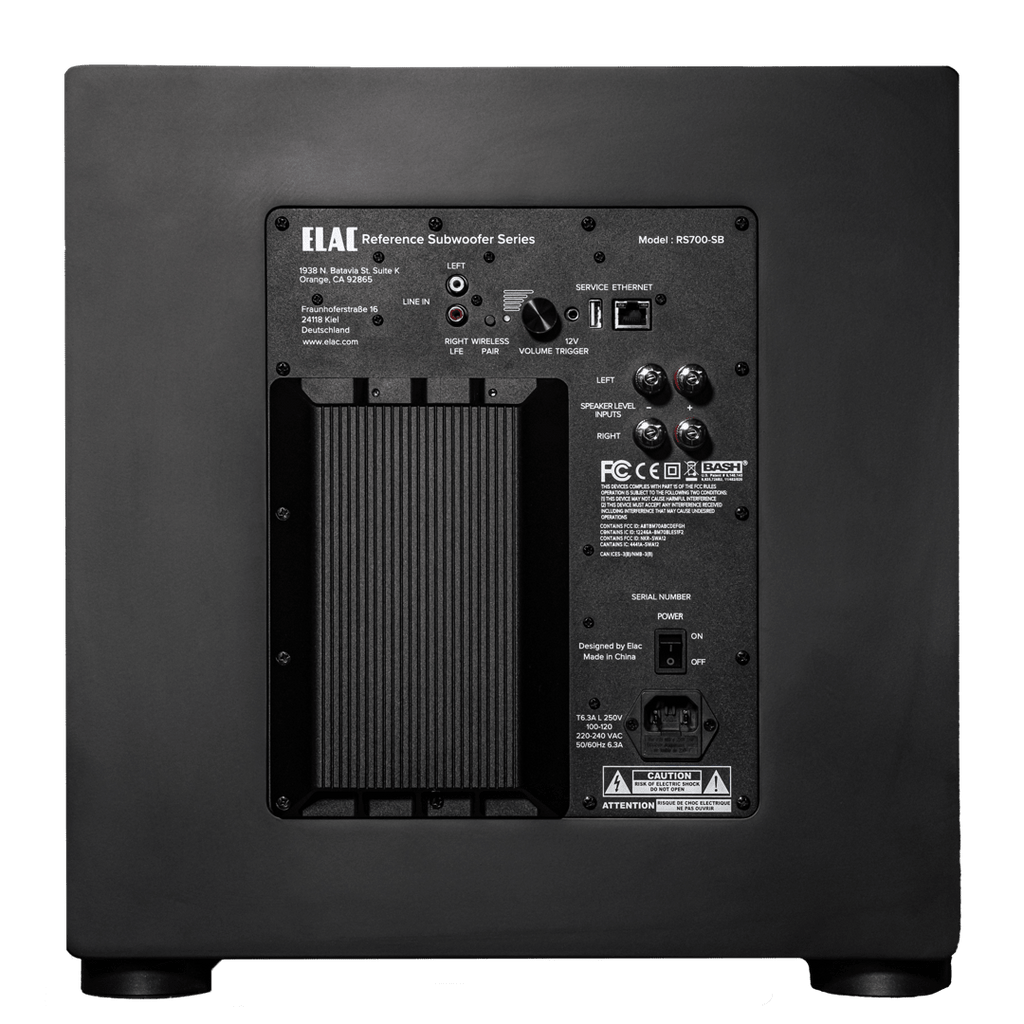

- Inputs RCA Line Level, Speaker Level
- 12 Volt Input 12 Volt Trigger
- Data Connection USB (Firmware Update)
- Ethernet Third-Party Control
- Cabinet Finish Satin Black
- Included Accessories Grille, AC Power Cord, Spikes
- Dimensions (H x W x D) 437 x 416 x 418 mm
- Net Weight 25.3 kg
