ESB Audio 8.165 6.5"/165 mm Woofer (pair)
Main Features
The Y35 ferrite magnet motor is optimized with FEA simulation to ensure a perfectly symmetrical magnetic flux in both directions of cone’s run. Motor metal parts are CNC machined from solid, refined material for maximum magnetic flux linearity and minimum magnetic loss. This reduces distortion at high power levels.
The 32.4 mm double layer voice coil is wound on an aluminum former for exceptional power handling and compression-free reproduction, even for the most demanding musical passages.

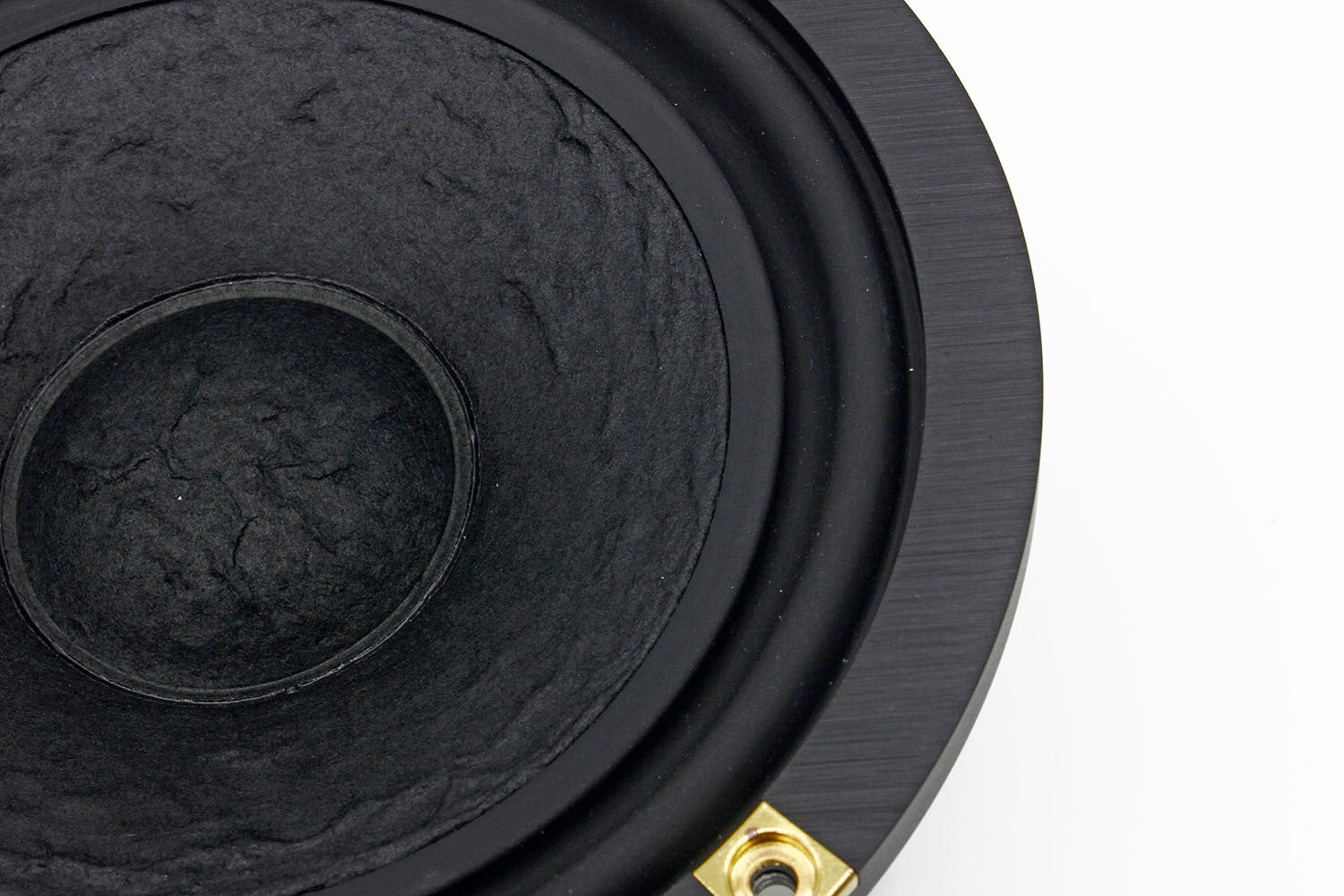

Non pressed cellulose pulp exponential cone with a vinylester resin coating ensures a perfect balance between rigidity, weight, and self-damping. The cellulose pulp guarantees an extremely natural and linear reproduction in all musical passages with an excellent extension at high frequencies without audible break-up. An aluminum dust cup fixed directly on the voice coil former increases and linearizes the extreme top of the bandwidth.
The CNC (LE model only) aluminum basket ensures a drastic reduction of the cone’s back reflections and a greater torsional rigidity. High structural and torsional rigidity for perfect parts alignment requires very tight tolerances in the construction and assembling system. This results in better efficiency, more power handling and less distortion.
The exclusive TSW (Twin Symmetrical Wave) rubber surround offers maximum linearity of travel and high reliability in extreme conditions.
The axial ventilation system ensures high thermal dissipation capacity, power handling and reliability.
The large Conex™ spider allows a smooth and gentle run at low excursions and gently holds the cone at high excursions, thus increasing its useful range of use.
The exclusive terminal connection design accepts very large gauge cables.
Technical Specifications
Nominal Impedance: 3 Ohm
Nominal Power: 160 Watt
Transient Power: 320 Watt
Frequency Response: 45 Hz ~ 4 KHz
Sensitivity: 92 dB 2.83v/1m
