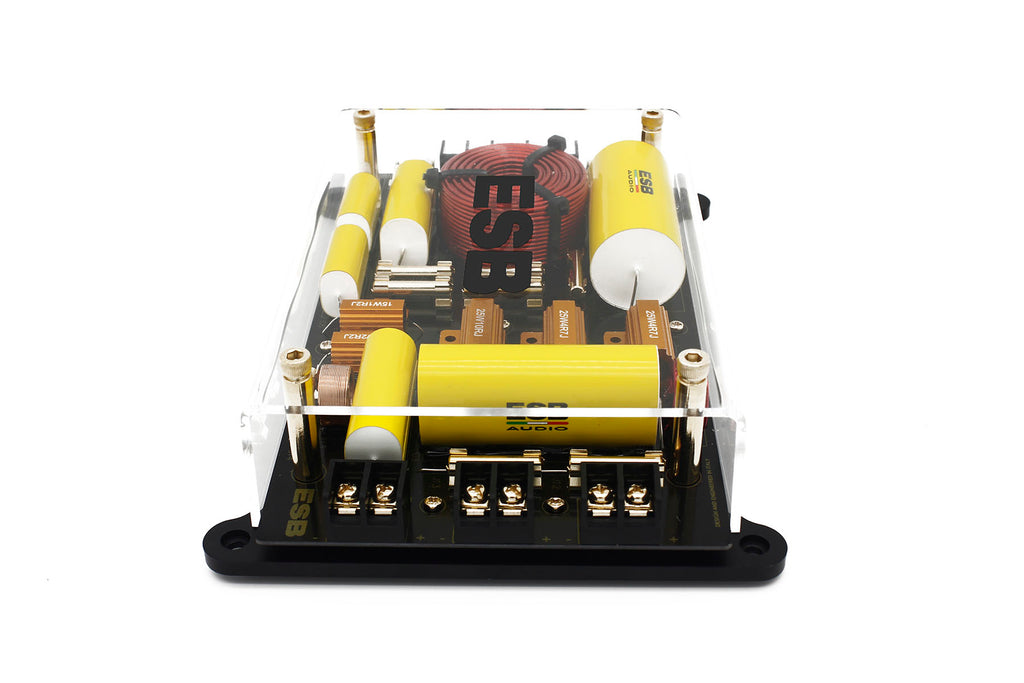

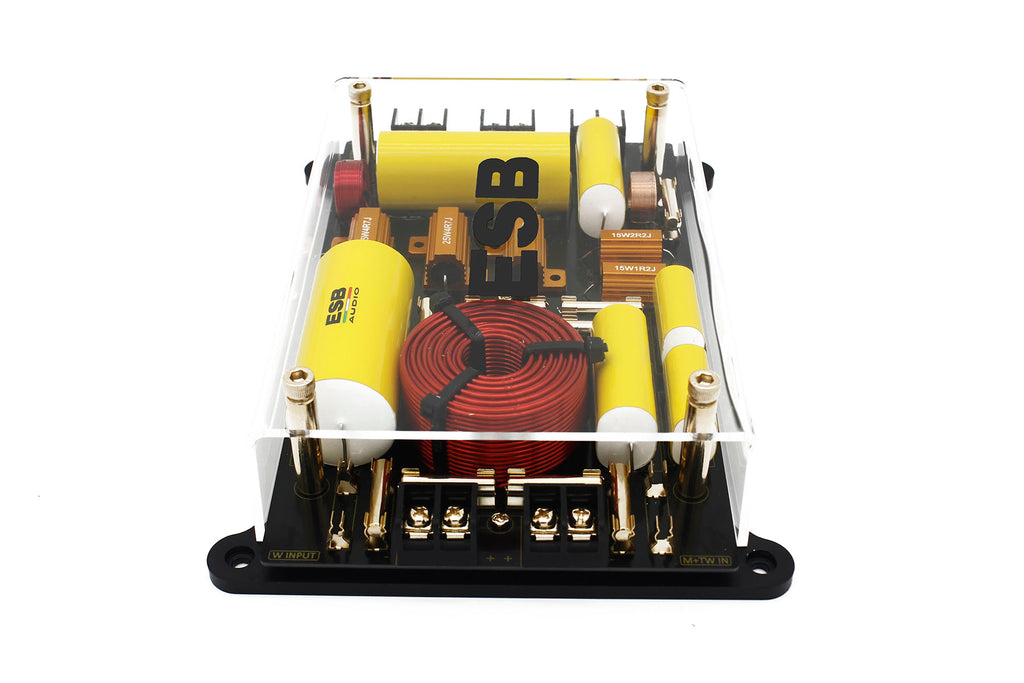

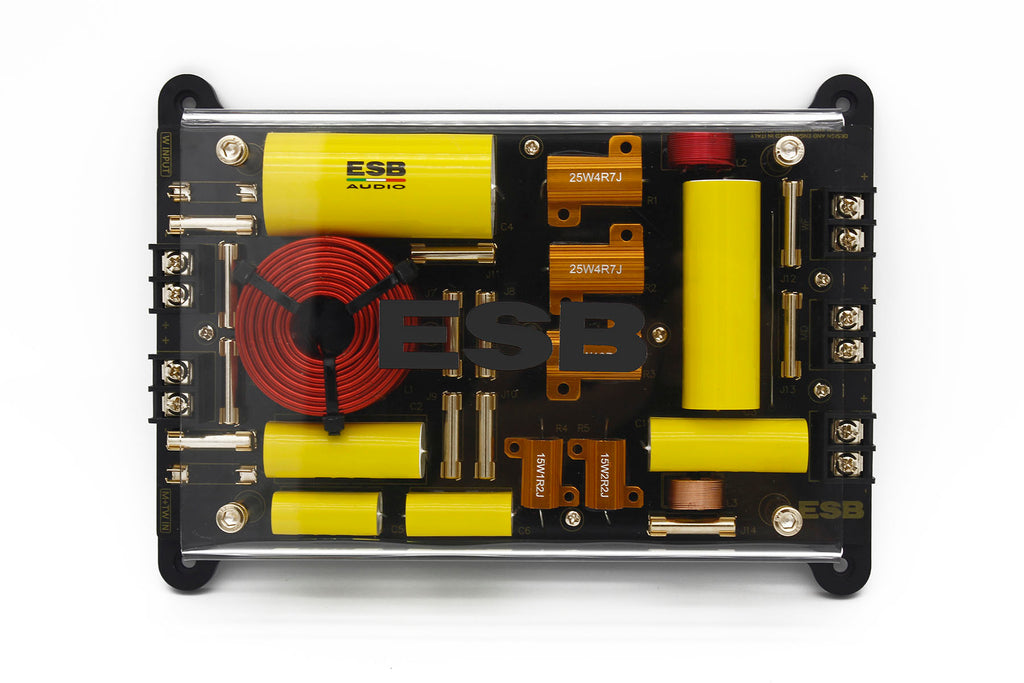

ESB Audio 8.6K3 CX 3-Way Passive Crossover (pair)

Name: ESB Audio 8.6K3 CX 3-Way Passive Crossover (pair)
Brand: ESB Audio
SKU: 8.6K3 CX
Price: 899.00 EUR
Availability: InStock

Hinta:

€899,00

Varasto:

Tilattavissa

Määrä:

Jaa tämä tuote

This crossover has been specifically designed for the 8000 Series components, in particular, the 8.165/LE woofer, 8075 midrange; 8028/S tweeter; and the 8.003UMA mid-high unit.
Multi-amplification connection options.
Aluminum structure machined from solid aluminum with CNC machines.
Clear acrylic cover for improved ventilation and component protection.
Gold-plated spacers and screws.
Gold-plated, large diameter parameter adjustment jumpers for zero resistance and ultra-high load capacity.

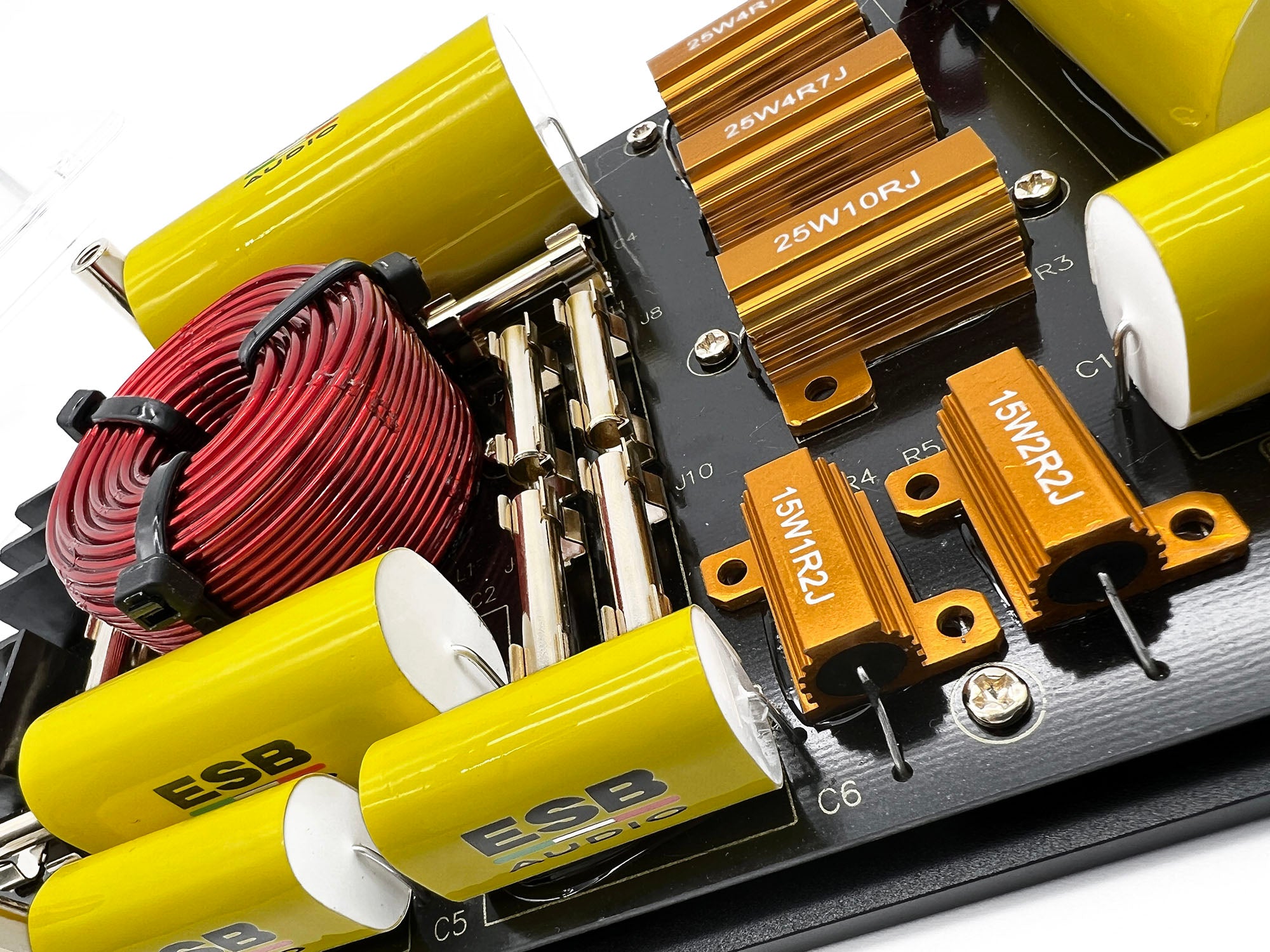

All coils are wound in air to minimize distortion.
Large diameter coil wire (1.5mm) made from 99.9% pure copper.
Anti-inductive resistors with dissipating aluminum body, helps to manage very high powers in order to remain relatively cool and maintaining a constant resistance.
Very high quality bi-metallized capacitors for maximum transparency of details in the medium and high frequencies. To increase the response speed, the tweeter uses a configuration of smaller capacitors in parallel.
Compact size with a sturdy, 4 screw mounting system.
4 tweeter attenuation levels: 0; -2; -4; -6 dB.
4 midrange attenuation levels: 0; -3; -6; -9 dB.
3 midrange high pass frequencies.
2 different cutting slopes for the tweeter and midrange.
4 levels of adjustment for the woofer/midrange transition zone.

8000-installation.pdf
Data_Sheet_8.6K3_CX.pdf
