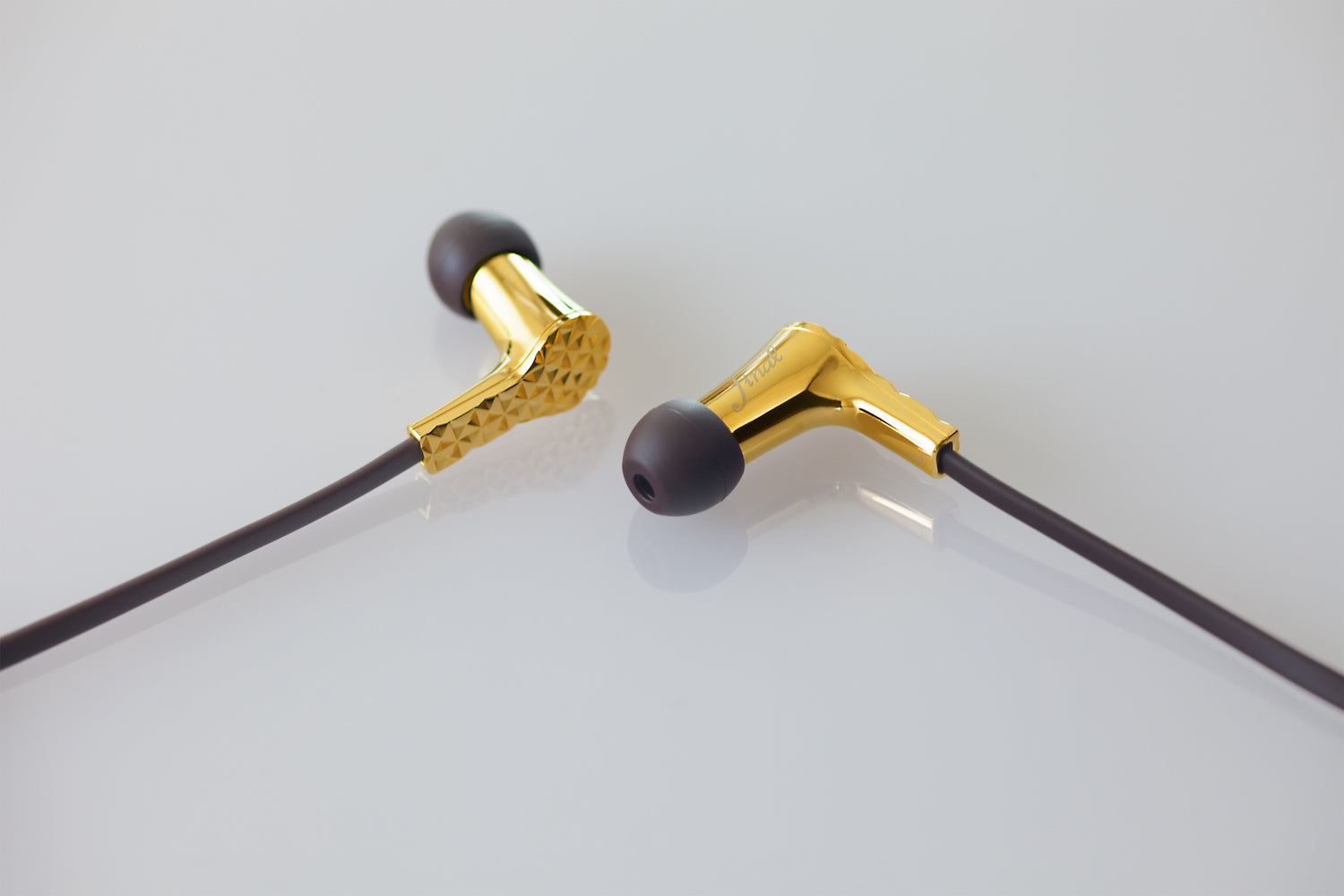

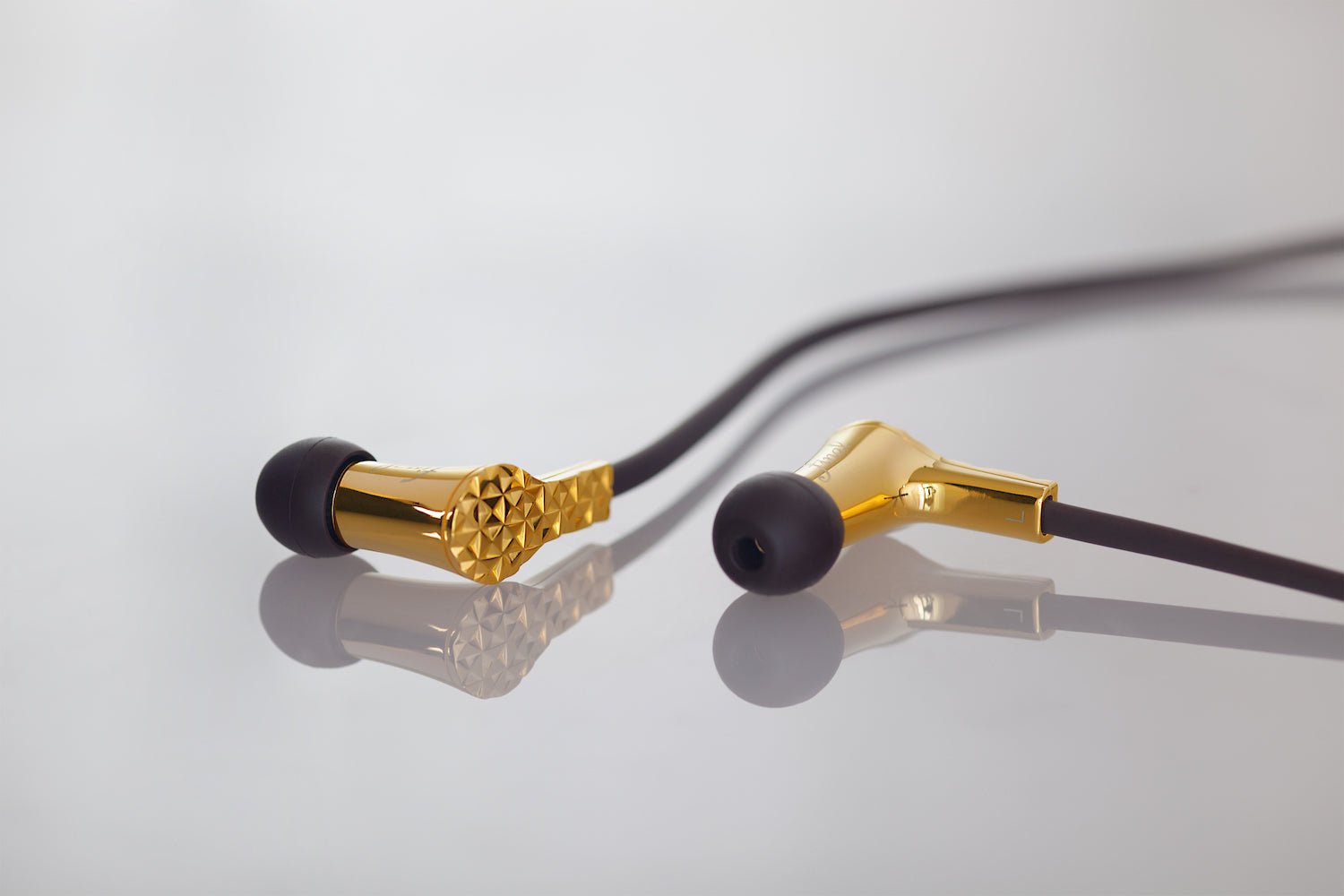

Final Heaven VIII

In-Ear kuuloke, joka on kuin koru, Metal Injection Molding, kiillotettua ruostumatonta terästä, joka on 24 k kultapinnoitettu. Luonnollinen ääni, joka todella yllättää.

Balanced Armature Driver / Canal Type

With MIM, a powder metallurgy manufacturing method, natural sound bursting with realism that you could listen to forever is achieved.

Delivers natural sound teeming with realism that you could listen to forever through the metal powder injection molding method MIM.

Along with the special attribute of final audio design products - a vast sound stage - Heaven VIII has succeeded in the reproduction of the vivid yet lyrical bass tones radiating from musical instruments. Usually, increasing the range of bass tones results in a dull resonance across the full sound range. Here, owing to the employment of MIM (Metal Injection Molding), a special metal working process, a housing that optimizes acoustics not possible through regular machining is achieved; coupled with a newly specified single driver unit, it has been possible to heighten bass reproduction while preserving clarity. With a never before experienced volume of sounds and sense of depth, you can experience an overwhelming sense of realism. The back design is not merely for decoration either. Resonance dispersion has been factored into the design, making for a high-level balance between beauty and function.

* MIM (Metal Injection Molding)

Fine metal powder is mixed with a binder, and after molding this with a die as is done with resin, the form is sintered in a furnace at an exceedingly high temperature. Freedom of form and precision are high with this method, but it is difficult to finish the surface, and hence the process is not often used for parts whose external appearance is displayed.

BAM mechanism produces bass sounds and stereo spatial interpretations

With balanced armature driver units, iron is driven to produce sound, and as such, these drivers face a number of problems, amongst which are "proving tiring to listen to" , "having sound that is subtle and beautiful, but lacking in depth and being flat" and "lacking bass interval". At final, we decided to focus on developing technology for the reproduction of bass tones and three-dimensional space with the full-range reproduction of a theoretically unproblematic single driver unit, rather than taking things in a multiway direction. We went back to the beginning and reviewed the performance of the balanced armature driver, focusing our attention on something we had previously overlooked ? airflow inside the housing. We developed BAM (Balancing Air Movement), a mechanism that optimizes airflow inside the housing through the creation of an aperture in the driver unit, which is usually sealed.

While achieving bass tones and deep, three-dimensional spatial representation, which proved difficult with single driver full-range reproduction, we achieved a BA type that at the same time made for natural listening the user doesn't tire of.

Full-range balanced armature driver

Compared to other products in the Heaven series, the driver unit employed here is superior in terms of bass tone reproduction. In principle, this makes for ideal full range reproduction with a single driver.

Stainless steel housing utilizing MIM (Metal Injection Molding)

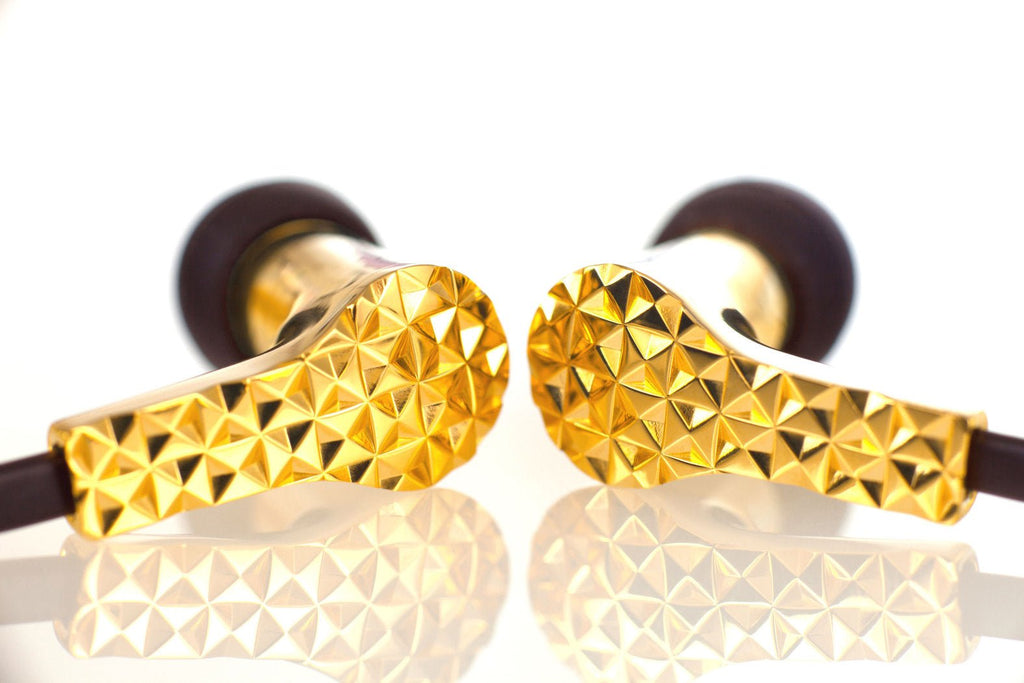

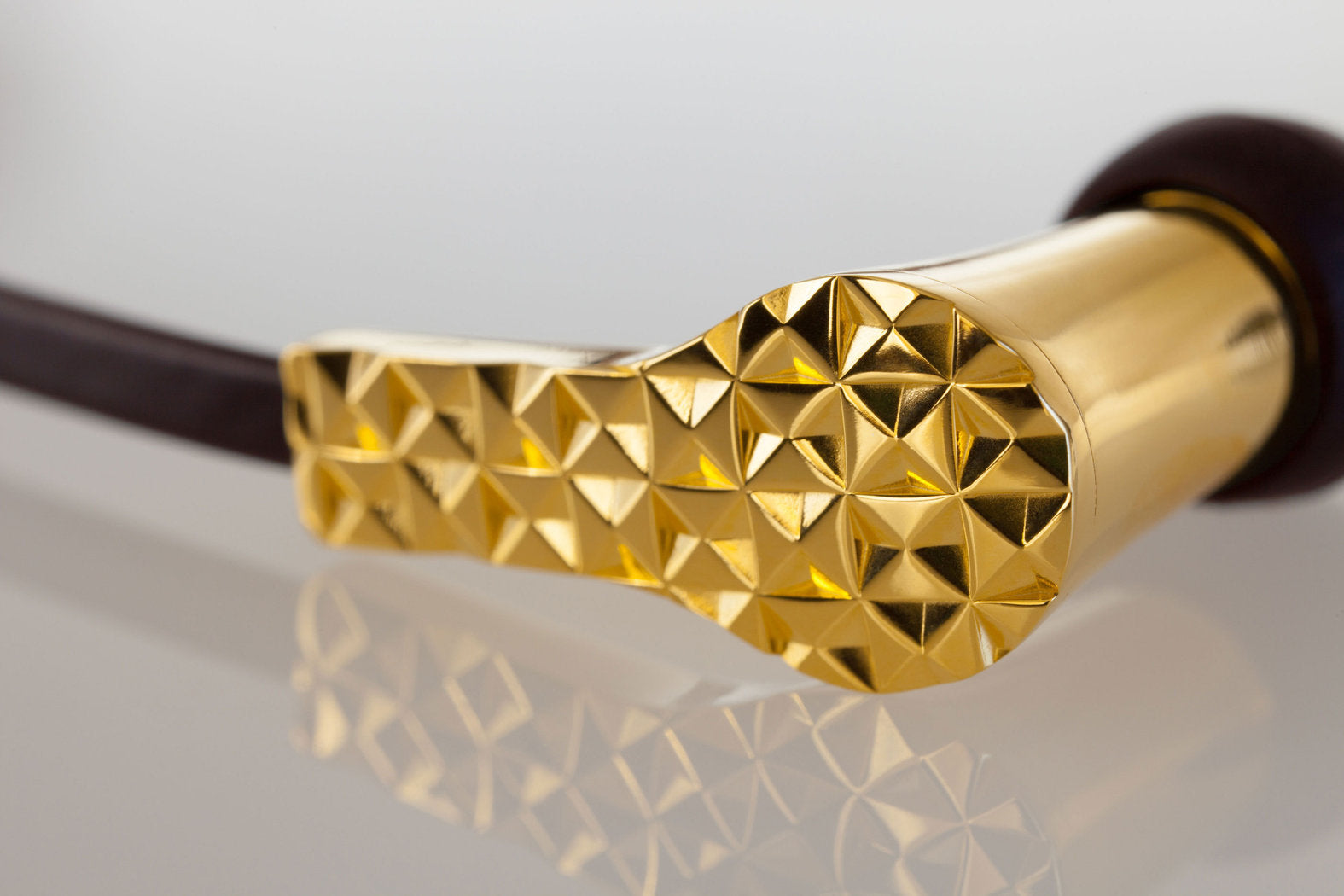

MIM is a method whereby fine metal powder is mixed with a binder, and after molding this with a die as is done with resin, the form is sintered in a furnace at an exceedingly high temperature and the shape is reconciled. As with molded plastic products, there is a great deal of freedom of form with this method, although it was necessary to solve problems arising with the method such as precision control owing to the 20-30% degree of shrinkage that occurs and the difficulties involved with achieving a surface finish at a level acceptable for outer casings. We solved the problems related to MIM using technology we cultivated during the development of titanium earphones using a 3D printer. By making the housing two simple parts, we were able to control the resonance of the housing to the utmost. The back design is not merely for decoration ? it is a form that works to disperse resonance.

• Original ear pieces - five size to choose from

Two silicone materials of different hardness are employed in the sound conduit tube and the section coming into contact with the user's ear. With the sound conduit tube, extremely hard silicone has had grooves scored into it, making for both strength and flexibility. They can be fitted to the aural canal while maintaining their shape. Soft silicone is employed with section that comes into contact with the ear, and a comfortable fit along with a high level of sound insulation has been achieved. Five sizes are included with the product, SS/S/M/L/LL. Please choose the size that best suits you.

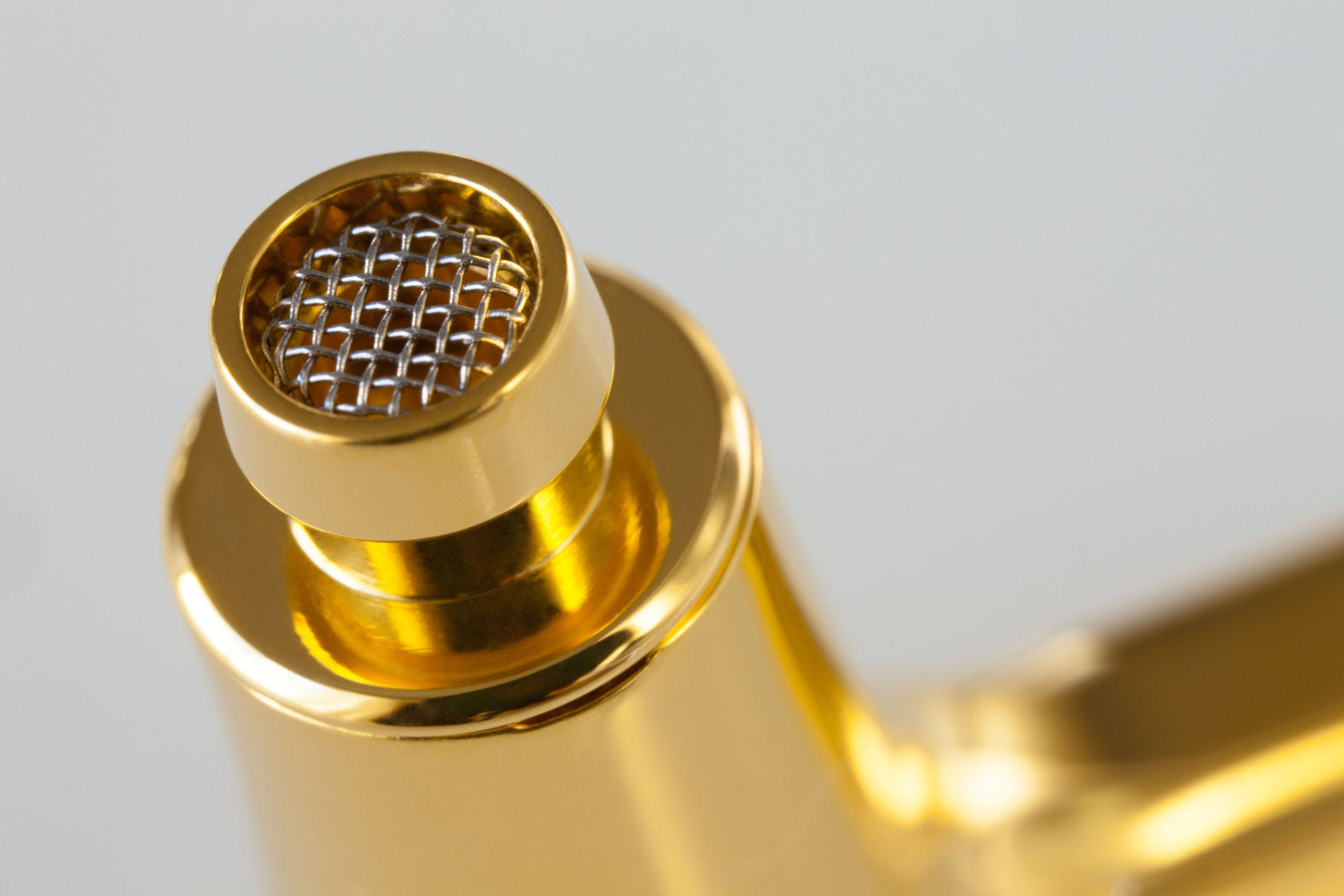

• Stainless mesh filter + acoustic resistor

With stainless steel mesh and an acoustic resistor, balance is achieved between medium and high tones.

• Original elastic cable eliminates "touch noise".

Enhancing the flexibility of the cable and increasing its thickness results in a decrease in touch noise.

Tekniset tiedot:

• Housing: Machined stainless steel
• Connector: MMCX
• Driver. Balanced armature
• Sensitivity: 106 dB/mW
• Impedance: 24 ohm
• Weight: 29 g
• Cord length: 1.2 m
