-High Resolution DSP
-12-kanavaa
-32 bittinen ACO platform
-ADEP.3 piiri
-2 x 64 bittistä audio signaali prosessoria
Technical data
Inputs 8 x RCA / Cinch
8 x Highlevel speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x Coax SPDIF (12 - 192 kHz)
1 x Remote In
Input sensitivity RCA / Cinch 1 - 8 Volts
Highlevel 4 - 32 Volts
Outputs 12 x RCA / Cinch
1 x Remote Out
Output voltage 8 Volts
Frequency response 10 Hz - 44,000 Hz
DSP resolution 64 Bit
DSP power 2 x 295 MHz (2.4 billion MAC operations/second)
Sampling rate 96 kHz
DSP type 2 x Audio signal processor
Signal converters A/D: Asahi Kasei 32 Bit
D/A: Asahi Kasei 32 Bit
Signal-to-noise ratio digital input 117 dB (A-weighted)
Signal-to-noise ratio analog input 111 dB (A-weighted)
Total harmonic distortion (THD+N) digital input 0.0004 %
Total harmonic distortion (THD+N) analog input 0.0008 %
IM distortion (IMD) digital input 0.0015 %
IM distortion (IMD) analog input 0.003 %
Crosstalk 90 dB
Operating voltage 9.6 - 17 Volts (max. 5 sec. down to 6 Volts)
Power rating DC 12 V ⎓ 1.1 A max.
Current draw 550 mA
Max. remote output current 500 mA
Operating temperature range -40°C to +70°C
Additional features HEC slot, Ground lift switch, Smart Control Port, 32 Bit CoProcessor, ADEP.3 circuit, Auto Remote switch
Dimensions (H x W x D) 40 x 177 x 170 mm /
1.58 x 6.97 x 6.69“
Scope of delivery

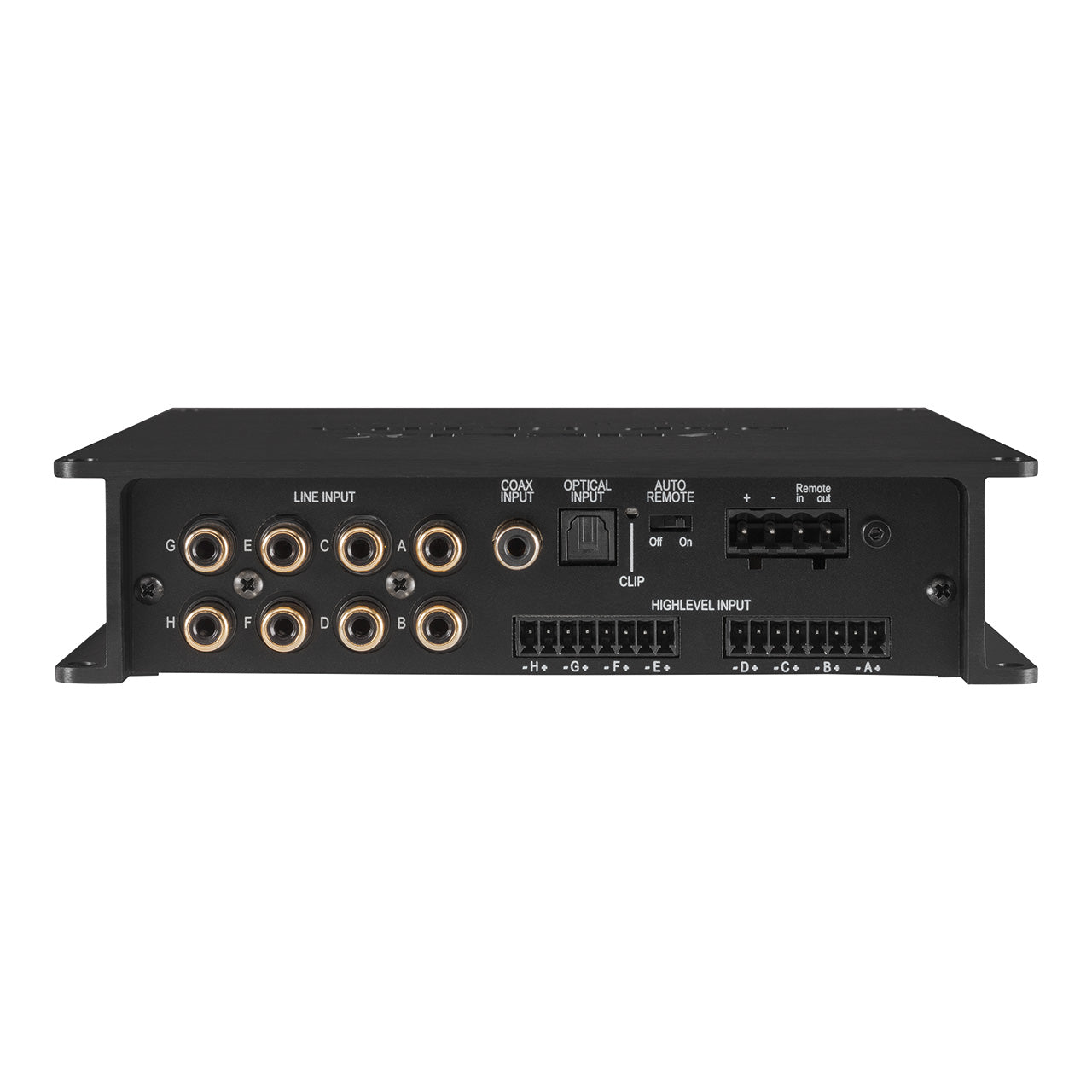

1 x Signal processor HELIX DSP ULTRA S
1 x USB cable
1 x Mounting material
1 x Instruction manual
