Lyngdorf TDAI-2210 verkkovahvistin + HDMI 2.1 input/output module

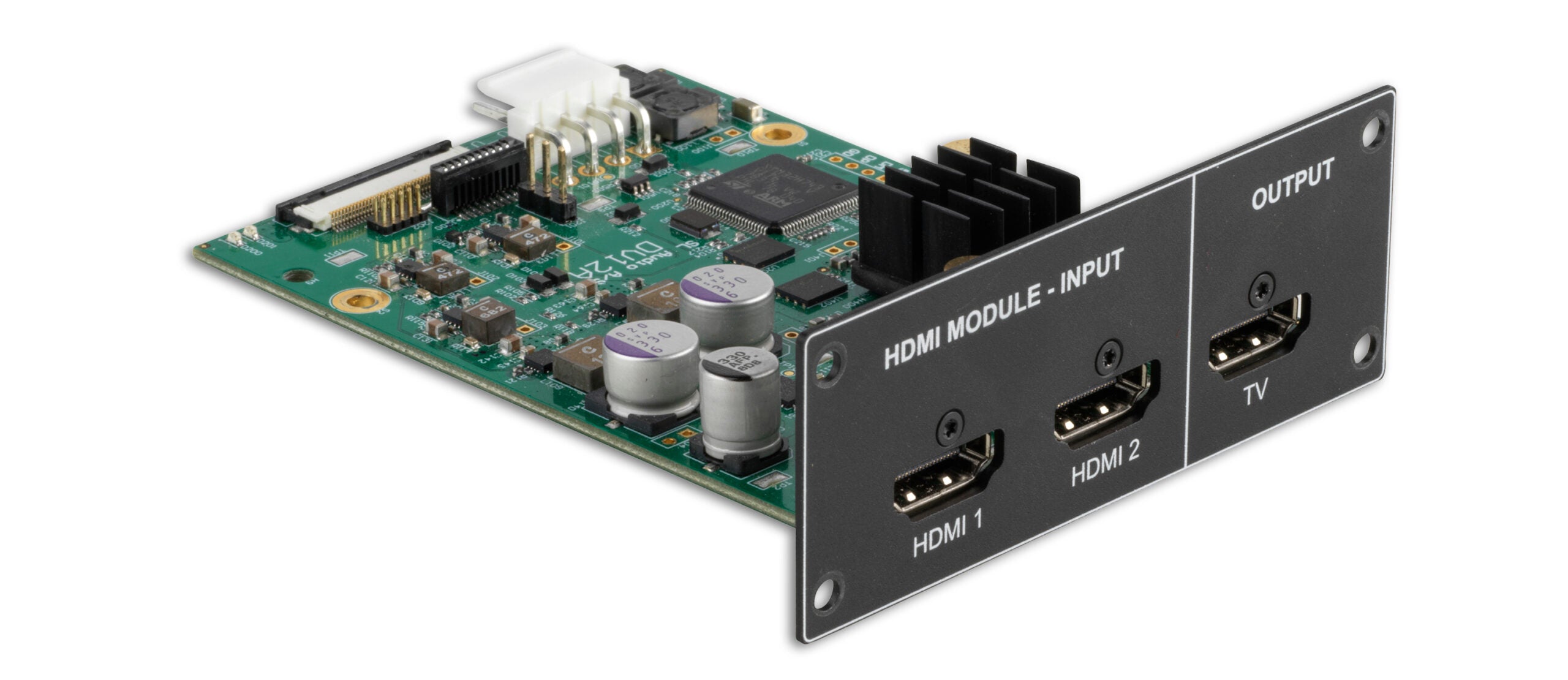

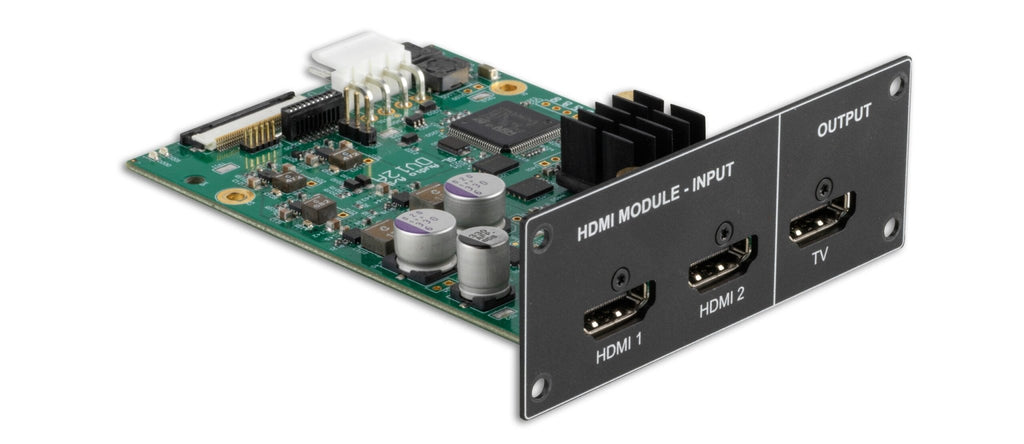

HDMI 2.1 input/output module
The HDMI 2.1 module allows pass through of the higher contrast and greater detail resolution that HDMI 2.1 supports, up to 8K 50/60Hz and 4K 100/120Hz. It also supports TVs with the latest Enhanced Audio Return Channel (eARC) and CEC. The HDMI 2.1 module can be ordered with a new TDAI-2210 or fitted to an existing TDAI-2210. It provides two HDMI inputs supporting audio up to 192kHz/24 bit and one HDMI in/out with eARC/ARC.
Lyngdorf Audio’s newest streaming amplifier
The TDAI-2210 is the newest integrated streaming amplifier by Lyngdorf Audio, featuring the company’s unique digital amplifier technology, best-in-class volume control, and a color touchscreen. With various digital inputs including HDMI 2.1 and USB-C, analog inputs, an integrated music streaming player, and the unique RoomPerfect™ room calibration, the TDAI-2210 is ready for any kind of audio system and room. The amplifier delivers 2 x 210 watts to drive even the most demanding loudspeakers effortlessly.

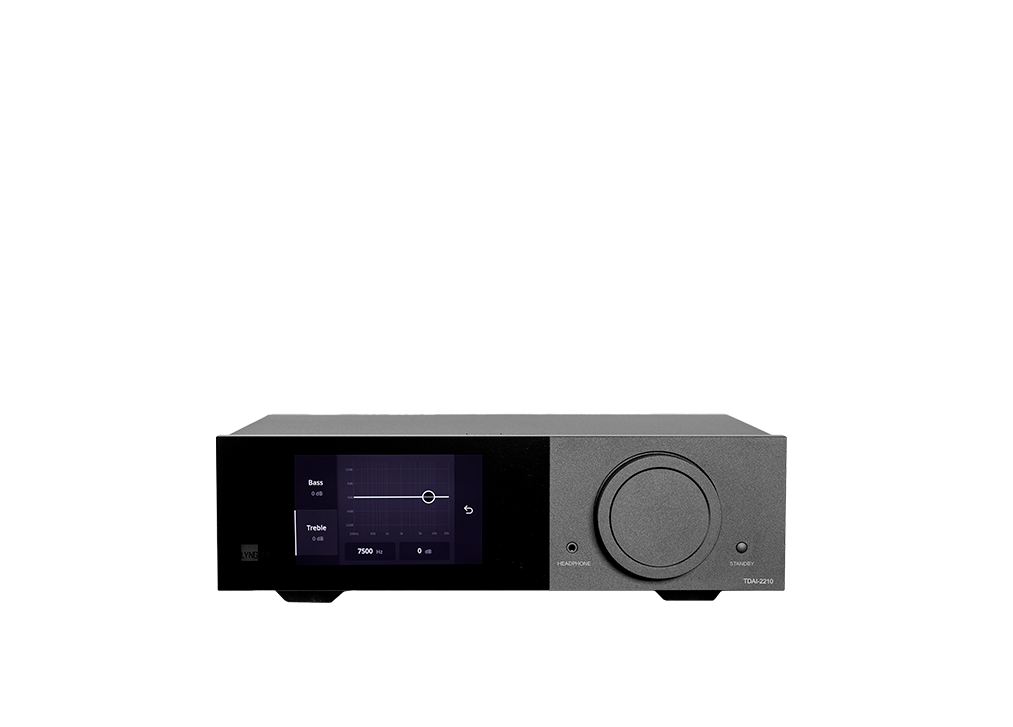

Color touchscreen with smooth glass surface
The touchscreen makes it easier than ever to control a Lyngdorf amplifier. With its icon-based interface and intuitive touch, tap, and slide functions, the screen guides first-time setup, helps to explore all features, allows customization, and makes music streaming more convenient. The Lyngdorf engineers took particular care to select the best screen: a silky-smooth real glass surface for the best fingertip feel, less visible fingerprints, and a vivid picture.
Digital amplifier technology and best-in-class volume control
TDAI stands for True Digital Amplifier Integrated. The amplification is 100% digital, with no analog conversion to degrade the sound right until the speaker outputs. The digital signal powers the speakers directly, while the volume wheel adjusts the gain in the output stage. This unique solution eliminates several analog components and signal paths, which are a source of noise, hiss, crosstalk, and distortion. This ensures the best sound quality at all volume levels and the most uncolored sound you have ever experienced.
Better sound performance at home with RoomPerfect™
RoomPerfect™ is the most sophisticated solution for adapting loudspeakers to the room. The calibration addresses room acoustic issues like exaggerated bass, lack of bass, uneven bass, or diffuse imaging and sound staging. RoomPerfect™ removes these issues in the digital domain and allows your speakers to perform at their best, without linearizing the sound. It is also very easy to use with the Lyngdorf app or directly on the TDAI-2210 screen – no computer, software, or calibration knowledge required.
Designed, assembled and 24h-tested at Lyngdorf Audio, Denmark
The TDAI-2210 is assembled to the highest quality standards at Lyngdorf Audio in Denmark. Each unit must pass a 24-hour test with all inputs and outputs used, and both amp channels driven under load, measured to meet all specifications. This ensures the highest performance, quality, and reliability.

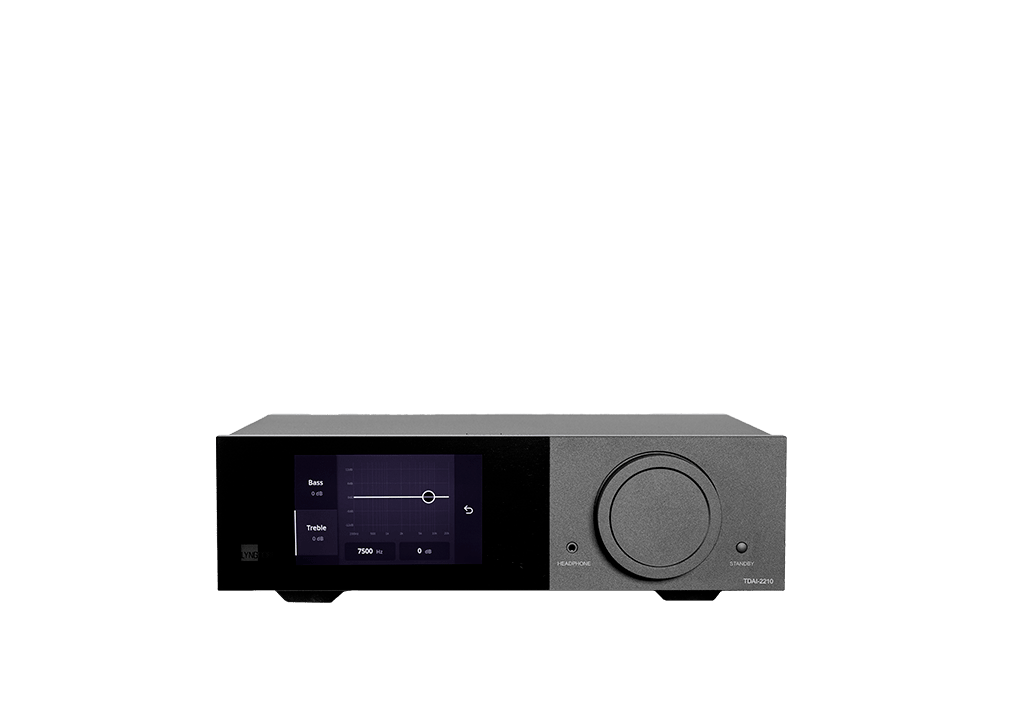

Smooth glass surface display
Lyngdorf engineers took particular care to select the best screen: a silky-smooth real glass surface for the best fingertip feel and less visible fingerprints. Even when not used to control the TDAI-2210 the screen provides a vivid picture to display current settings, volume level, and cover artwork.

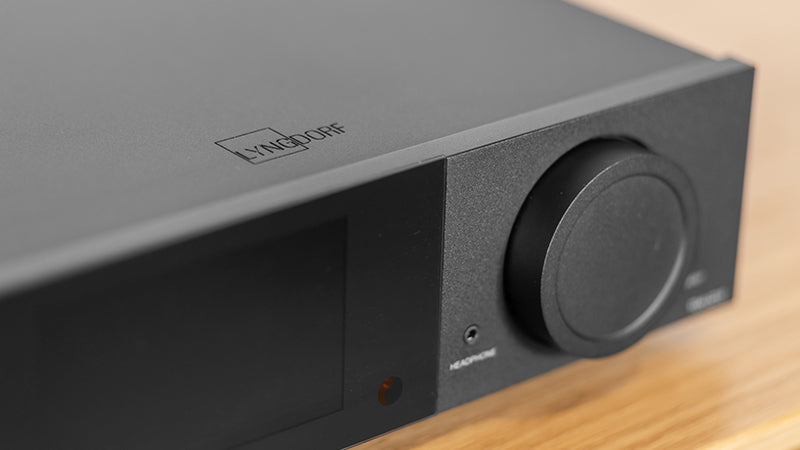

Best-in-class volume control and volume wheel
The distinct Lyngdorf volume wheel allows finetuning the level and underlines the unique TDAI amplification and volume control. The music signal is not attenuated in the input stage, but the volume wheel adjusts the gain in the output stage. This unique solution ensures the best sound quality at all volume levels.

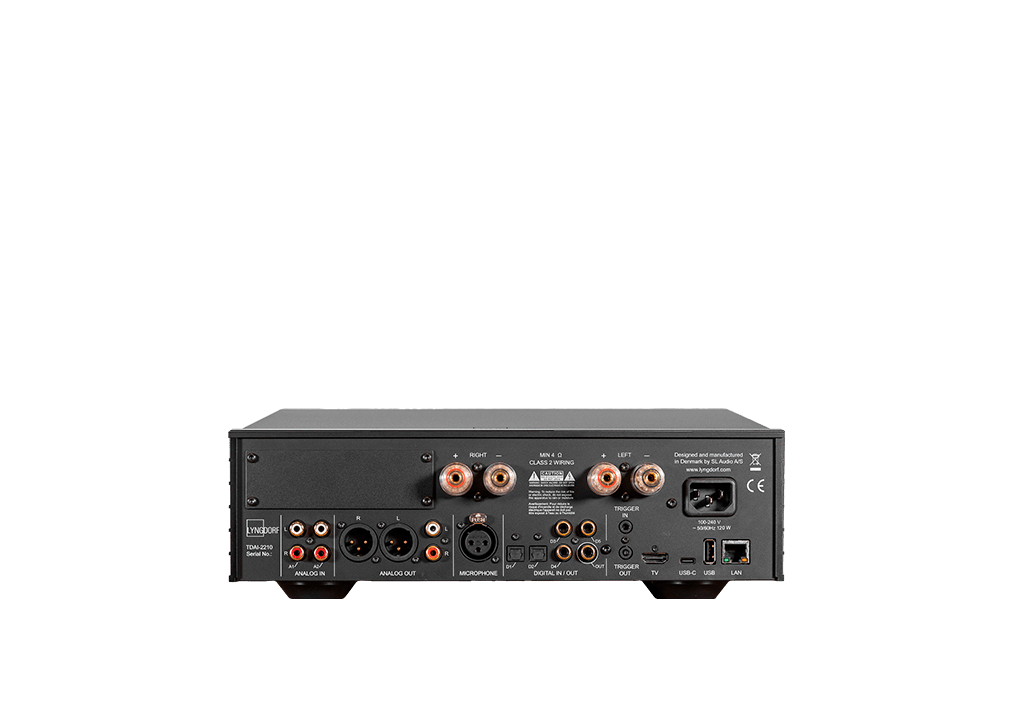

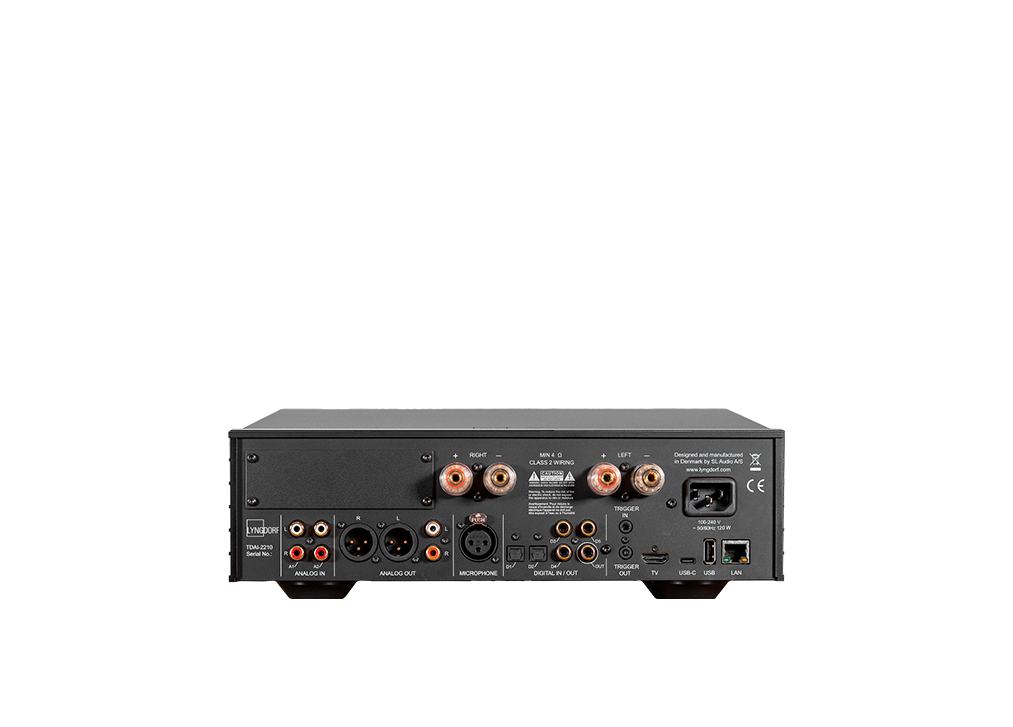

Ready for everything: Various inputs, outputs, modular upgrades
The TDAI-2210 is equipped with a suite of analog and digital inputs, from single-ended RCA to HDMI and USB-C. A module slot allows further customization with either a high-end analog board including an MM phono stage and balanced XLR inputs, or an HDMI 2.1 board with two more HDMI inputs and one output.
Specifications
- Description: 2-channel integrated streaming amplifier
- Power rating: 2 x 210 W @ 4Ω / 2 x 105 W @ 8 Ω
- Idle power consumption: 18-26 W
- Standby power consumption: < 0.5W
- Max output current per channel: 35A
- Audio specifications: Frequency Response: ±0,5dB from 20 – 20,000 Hz, Total Harmonic Distortion: 0.05% max from 20 – 20,000Hz, THD-N 1w/8ohm 0,04%, THD-N 1w/4ohm 0,04%
- Digital inputs: 3 x Coaxial digital (≤192kHz / 24 bit), 2 x optical digital (≤ 96kHz / 24 bit), 1 x USB C (≤192kHz / 24 bit), 1 x HDMI 2.1 (≤192kHz/24bit)
- Digital output: 1 x Coaxial digital (96kHz / 24 bit)
- Analog inputs: 2 x Single Ended RCA, 1 x Mic input (XLR) for RoomPerfect™
- Analog outputs: 1 x Single Ended RCA, 1 x XLR Balanced, 1 x 3.5mm headphone
- High-End analog module (optional): 1 x RIAA Phono MM, 2 x single ended RCA, 1 x XLR balanced
- HDMI 2.1 module (optional): 1 x HDMI Output / 2 x HDMI Inputs (PCM ≤192kHz/24bit), eARC/ARC (PCM ≤192 kHz/24bit), CEC integration
EQ: RoomPerfect™, voicings, Bass/Treble tone controls - Media player: Internet Radio (airable), Spotify Connect, TIDAL Connect, Roon Ready, Google Chromecast, Apple AirPlay2, DLNA Support (UPnP/see DLNA formats), Local file playback (USB), Bluetooth (BLE), Plays with Audirvana
- Interfaces: Touchscreen, web-interface for setup and media player, remote application for IOS and Android, IP control, CEC (HDMI), 1 x trigger input, 1 x trigger output, 1 x RJ45 Ethernet LAN
- Remote control: Infrared or bluetooth
- Accessories included: RoomPerfect™ microphone with stand and cable, Remote control
- Dimensions (W x H x D): 325 x 102 x 300 mm (incl. connections) / 12.8 x 4 x 11.8 inches (incl. connections)
- Weight: 4,8 kg / 10,6 lb
- Finish: Matte black
- Available versions: TDAI-2210, TDAI-2210 + High-End Analog Module, TDAI-2210 + HDMI 2.1 Module
