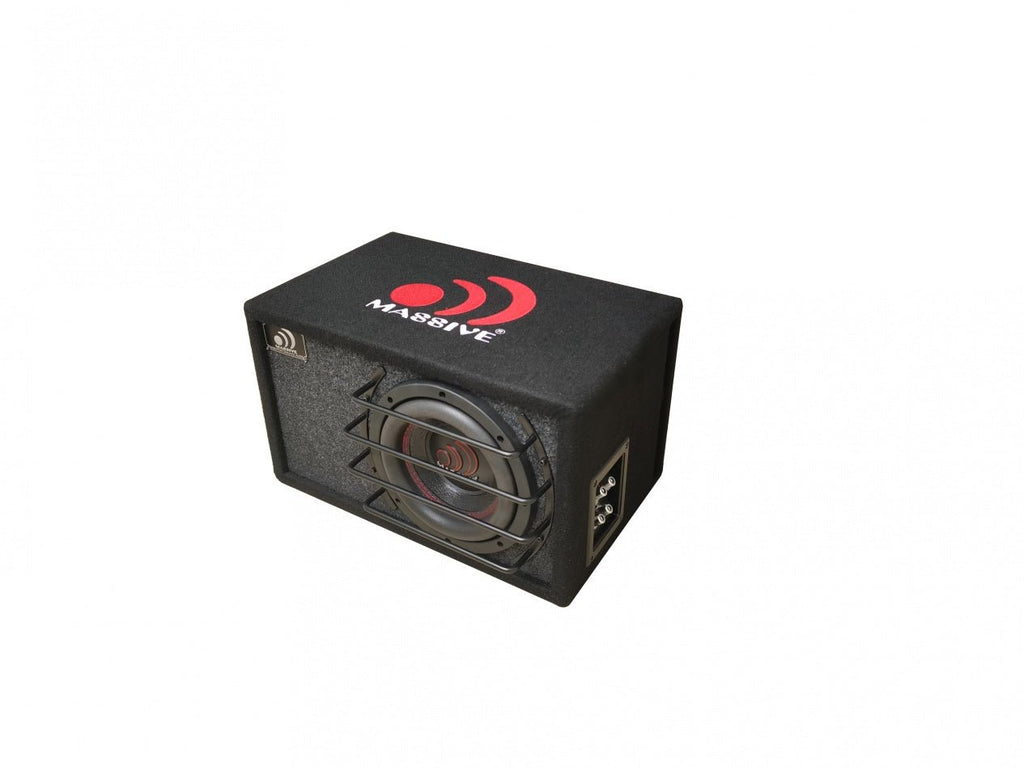

The BG-8 is an 8" Pre-Loaded Subwoofer rated at 400 Watts RMS with an internally wired 2 Inch 2 Ohm voice coil final configuration. These subwoofers use tight Red stitching that’s sewn through a UV treated non-pressed paper cone onto a EROM foam surround. Then it’s bonded to a heavy gauge steel basket that’s bolted to double stacked high flux Y30 90oz Strontium Ferrite magnets with a 10mm top plate. Then everything dances on a springy poly cotton spider with high powered woven tinsel leads that connect to spring loaded 5-way binding nickel plated speaker connectors. These Loaded Boxes are the perfect solution for DIY installs systems.
FEATURES:
- Heavy gauge Steel Basket with Industrial Texture Painting
- Dual Stacked High Flux Y30 90oz Strontium Ferrite Magnets
- Dual Impedance / 2" 4 Layer Hi-Temp Voice Coil
- Poly Cotton Spider with Woven Round Tinsel Leads
- UV Treated / Non-Pressed Paper Cone with EROM Foam Surround
- Round Shape PP Vacuum Dust Cap
- 10mm Top Plate
- Customized Rubber Gasket & Magnet Boot
- Black Anodized Deep Steel Woofer Bars
- Dual Impedance Black Anodized Former
- 5 Way Binding Push Terminals
- High Quality Industrial Grade Carpet
SPECIFICATIONS:
- Size: 8"
- Watts RMS: 400
- Peak Power: 800
- Cone: UV Treated / Non-Pressed Paper
- Voice Coil: 2" Dual 4 Ohm
- Surround: EROM Foam
- Magnet: 90oz
- Terminals: 5 Way Binding Push Terminals
- Basket: Heavy Gauge Steel
- Tinsel Leads: Woven Round
- X-Max: 10mm (1-way) + 10mm Top Plate
- SPL: 88 dB @2.83V/1m
- FS: 42.1Hz
- Dimensions: 18" x 12" x 10" (45,7 x 30,4 x 25,4 cm )
