Ortofon LW 800S
Äänirasian hopeinen johtosarja irtokelkoille.
Ortofon LW-800S headshell leadwires
LW-800S is the most sophisticated lead wires composed of Pure Silver and Silver coated wire. The nature of Silver wire, silver coated wire transmits the very clear high tone signals, it brings the brilliant tonality. The end of wire is fastened by Rhodium plated terminal.
All Ortofon cartridges have a colour coding of the terminals, indicating red and green for right channel respectively hot and ground terminal. White and blue for left channel respectively hot and ground terminal. Green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.

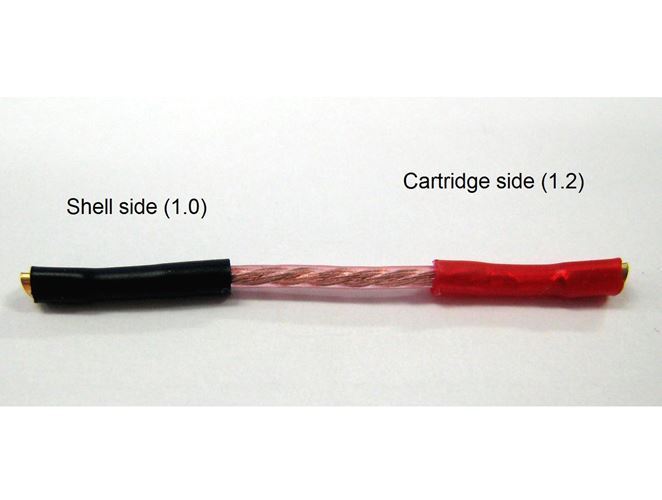

We recommend to connect lead wires to the cartridge and headshell before mounting the cartridge on the headshell. Please remember correct orientation of the leads. Ortofon SH-4 headshell and Ortofon cartridges' terminal PINs diameter is 1.2 mm, whilst Ortofon headshells' PINs diameter is normally only 1.0 mm.
Using LW 8N with the SH-4 headshell requies the LW 8N shell side clamp to be widened a little bit to fit on the SH-4 PINs. If shifted around, it may cause over-tightening of the assembly. Being aware about this detail, you will avoid the risk of having the cartridge's terminal PINs fall out.
- 4N Pure Silver wire: 3 x 0.26 mm
- Silver plated Oxygen Free Copper (OFC) wire: 16 x 0.10 mm
