Ortofon Stylus 510 mkII vaihtoneula


Hinta:
Alennushinta€60,00
Varasto:
Varastossa

Kuvaus

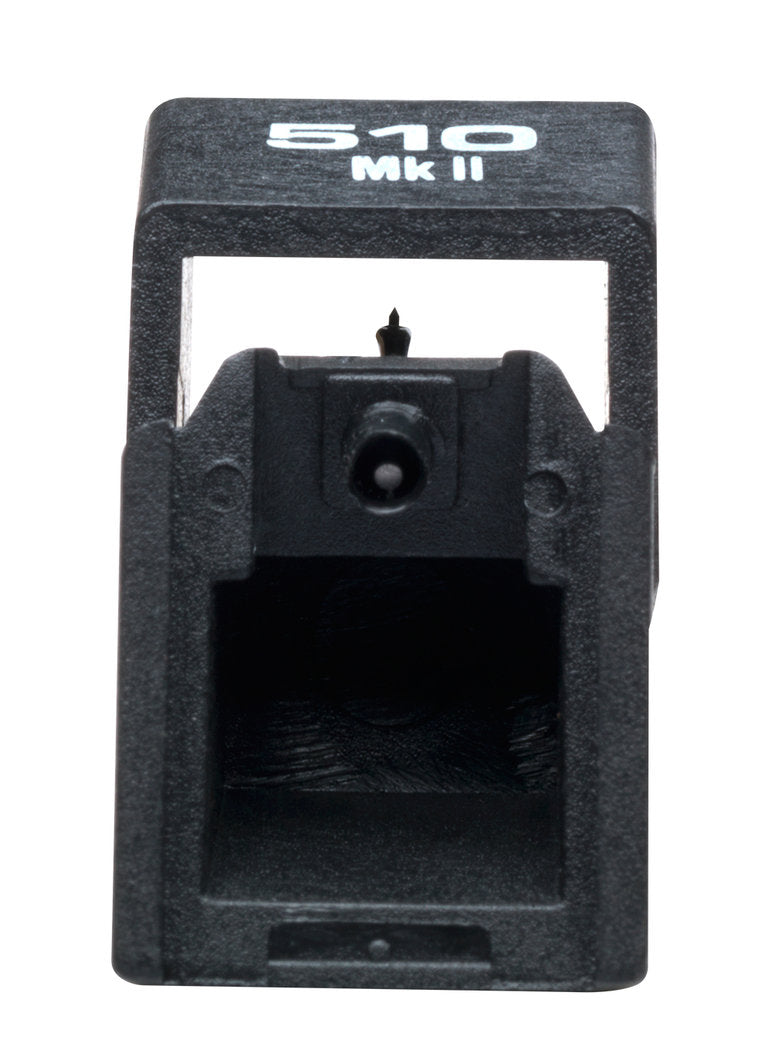

Ortofon Stylus 510 mkII

Vaihtoneula 500 -sarjan äänirasiolle sekä Ortofon Alpha -malliin.

Replacement stylus, recommended for the following cartridge models: 510 Mkll, 510, 510 P, Alpha
Please note, all cartridges within the 500 range have the same stylus-fitting, so they can all fit the Stylus 510, Stylus 520, Stylus 530 and Stylus 540. The Ortofon Alpha, as found on some Pro-Ject turntables, can be replaced or upgraded by any one of the 500 range as well.

Recommended for  Series 500 Mkll, 510, 510 P, Alpha

Technical Data:
  • Frequency Range: 20 - 23,000 Hz
  • Frequency Response 20 - 20,000 Hz: +2 / -3 dB
  • Tracking Ability at 315 Hz: Typically 70 µm
  • Compliance, Dynamic, Lateral: 25 µm
  • Stylus Type: Elliptical
  • Stylus Tip Radius r / R: 8 / 18 µm
  • Equivalent Stylus Tip Mass: 0.3 mg
  • Tracking Force Range: 1.25 - 1.75 g (12.5 - 17.5 mN)
  • Recommended Tracking Force: 1.5 g (15 mN)
  • Tracking Angle: 20º
  • Stylus Colour: Black
