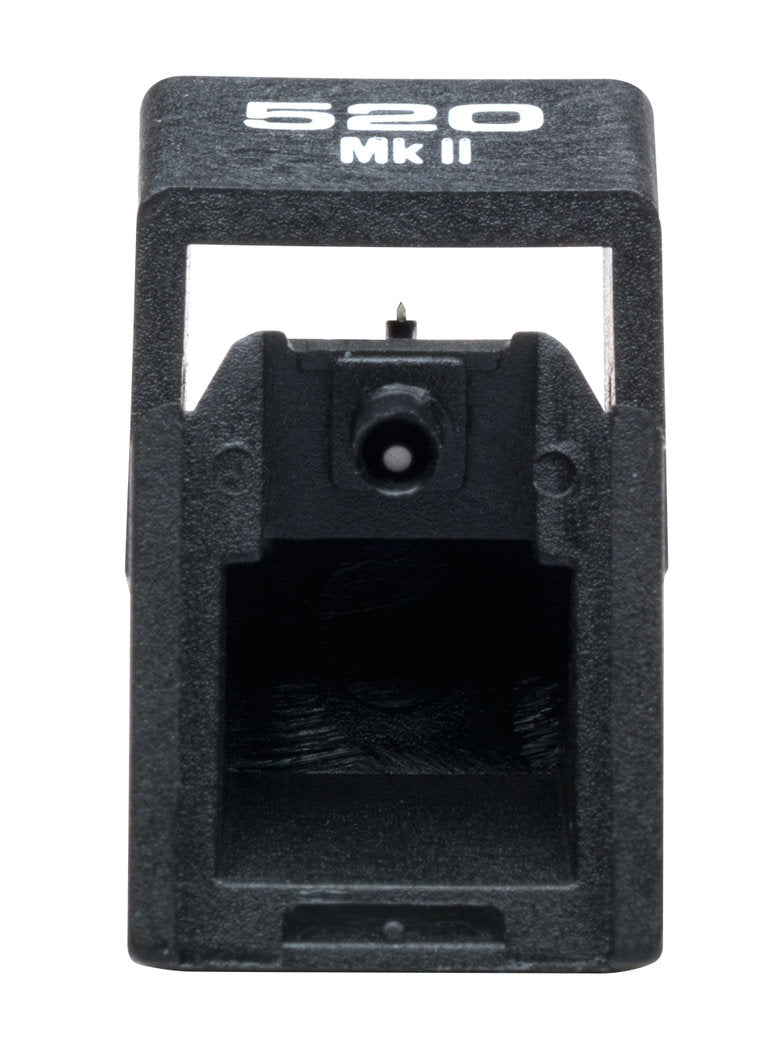

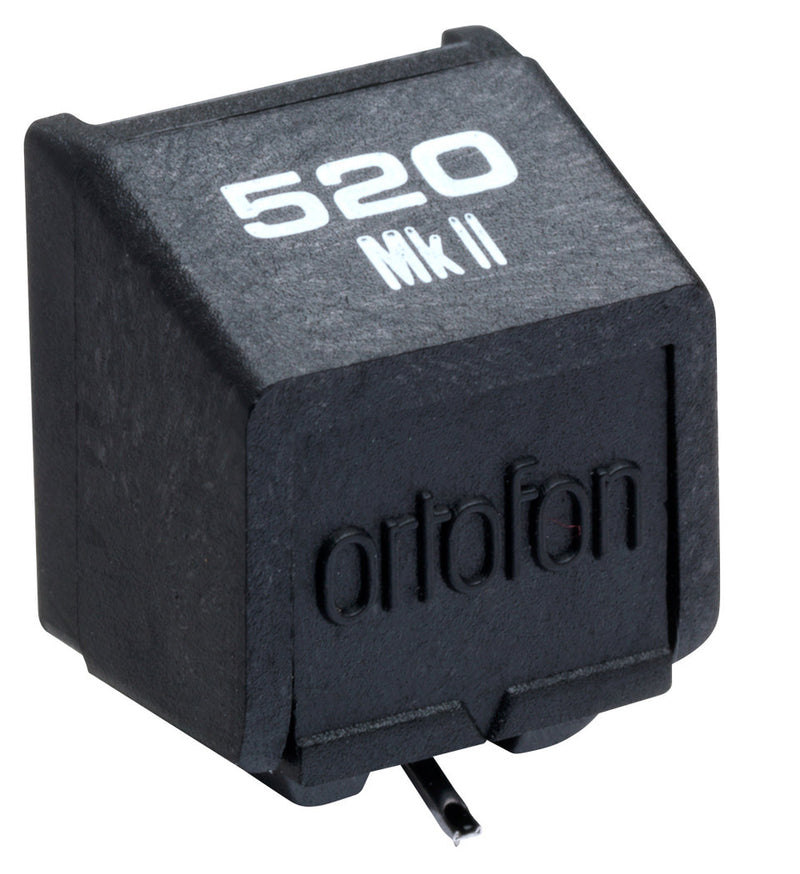

Ortofon Stylus 520 mkII
Vaihtoneula 500 -sarjan äänirasioille. Neula sopii myös Ortofon Alpha äänirasialle. Nude Elliptical hionta.
Replacement stylus, recommended for the following cartridge models: 520 Mkll, 520, 520 P
Please note, all cartridges within the 500 range have the same stylus-fitting, so they can all fit the Stylus 510, Stylus 520, Stylus 530 and Stylus 540. The Ortofon Alpha, as found on some Pro-Ject turntables, can be replaced by one of the 500 range as well.
Recommended for Series 520 Mkll, 520, 520 P, Alpha
Technical Data:
- Frequency Range: 20 - 23,000 Hz
- Frequency Response 20 - 20,000 Hz: +2 / -3 dB
- Tracking Ability at 315 Hz: Typically 70 µm
- Compliance, Dynamic, Lateral: 25 µm
- Stylus Type: Nude Elliptical
- Stylus Tip Radius r / R: 8 / 18 µm
- Equivalent Stylus Tip Mass: 0.3 mg
- Tracking Force Range: 1.25 - 1.75 g (12.5 - 17.5 mN)
- Recommended Tracking Force: 1.5 g (15 mN)
- Tracking Angle: 20º
- Stylus Colour: Black
