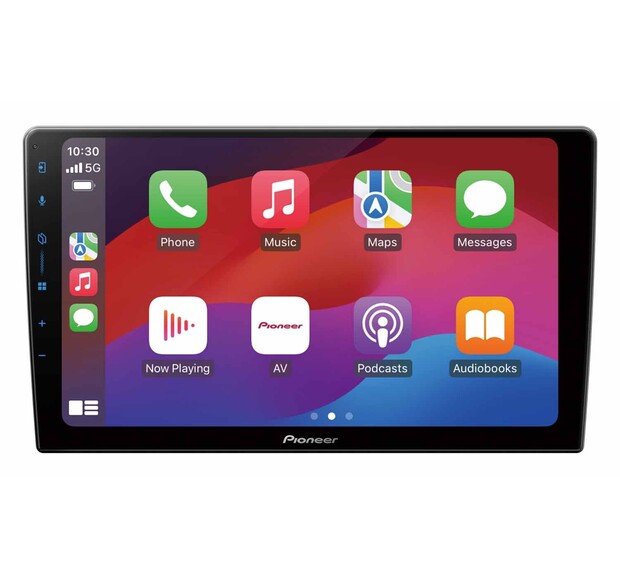

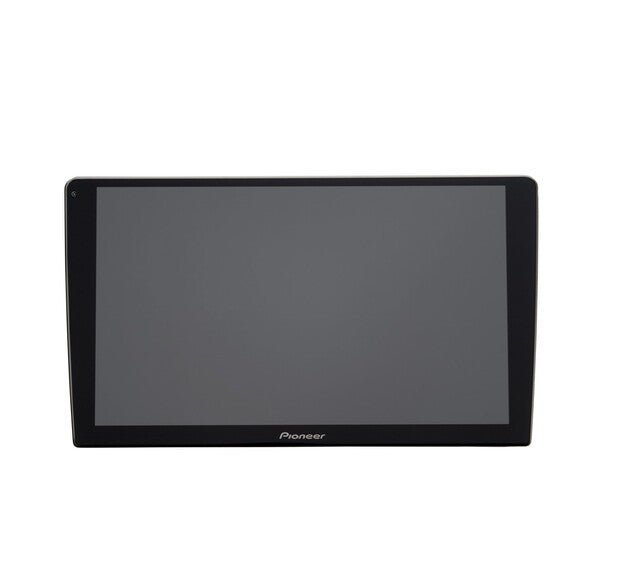

Pioneer SPH-PF97BT

SPH-PF97BT on 9,0 tuuman näytöllä varustettu NON-DIN multimediasoitin ( soittimessa ei ole perinteistä runkoa, jonka vuoksi se ei ole DIN-standardin mukainen ). Soittimella on laajat custom- asennusmahdollisuudet:

″PERFECT FIT″ -rakenteen ansiosta, soitin vaatii räätälöidyn kolmannen osapuolen asennussarjan ( Pioneer ei valmista kyseiseen soittimeen sopivia adaptereita ).

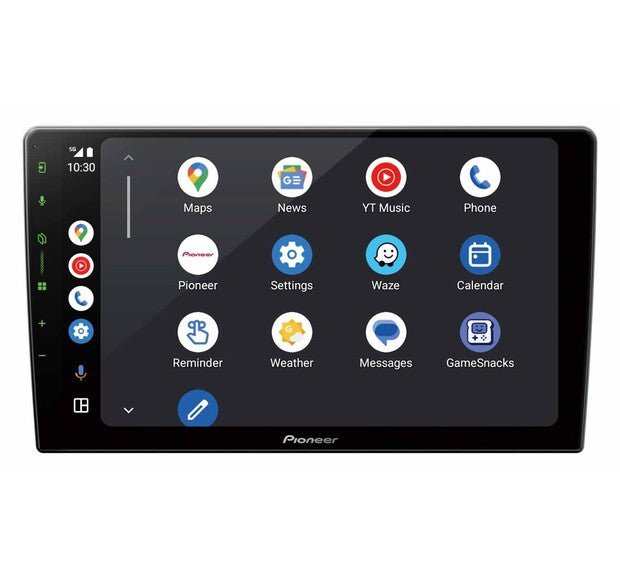

Apple CarPlay® (langaton ja langallinen), Android Auto™ (langaton ja langallinen), Bluetooth®, WebLink® 3.0 iOS:lle, Android™-älypuhelin/tabletit.

Pioneer Direct Key nopeaa, helppoa ja turvallista käyttämistä varten.

Ominaisuudet:

- DSP
- 3 x RCA-linjalähtö (4 V) (etu, taka ja subwoofer)
- Bluetooth 5.3
- Wifi
- Aux-in
- USB (takana)
- Tuki peruutuskameralle (ND-BC9)

General
Rated power source:
14.4 V DC (10.5 V to 16.0 V allowable)
Earthing system:
Negative type
Maximum current consumption:
10.0 A

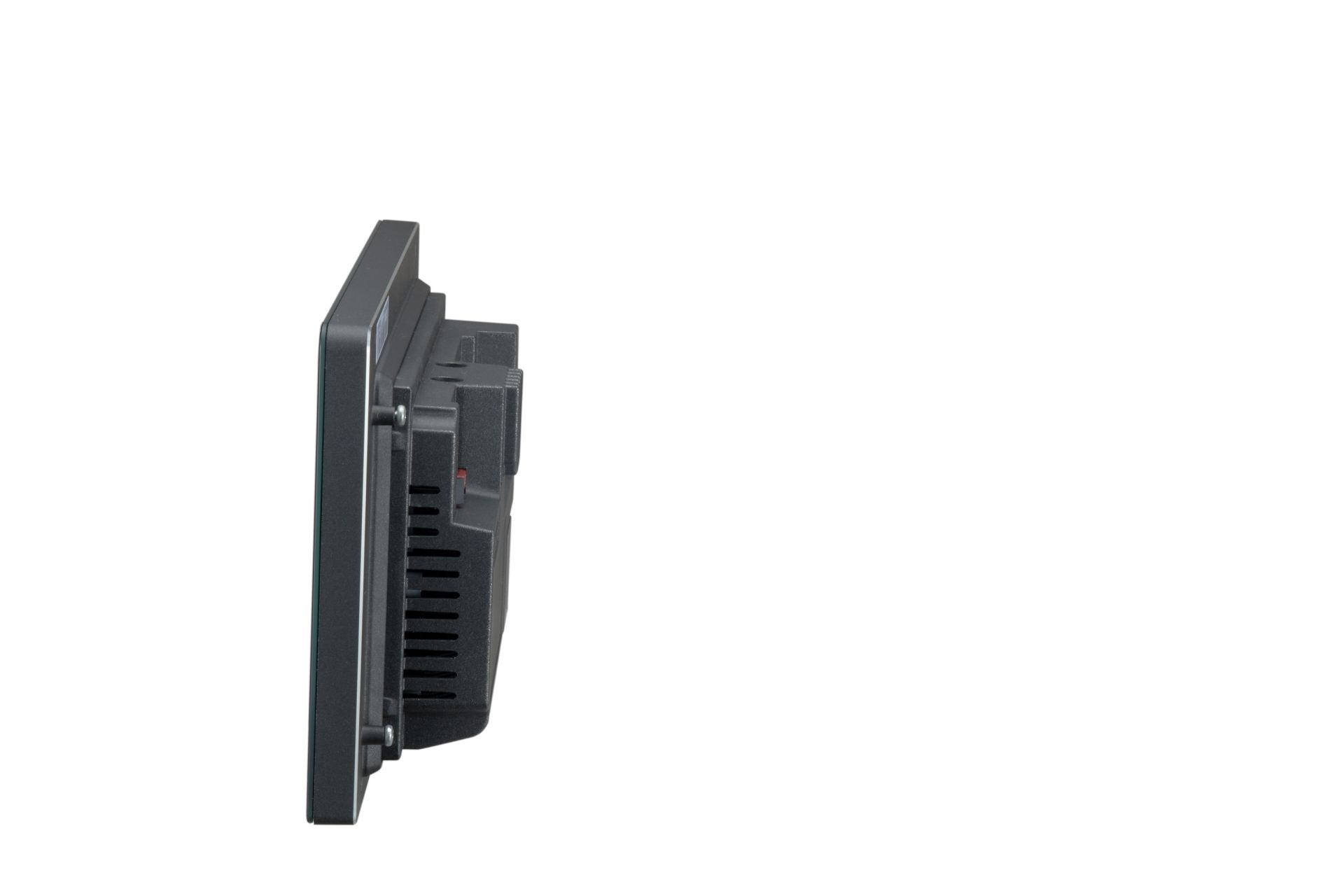

Dimensions (W × H × D):
Chassis:
188 mm × 108 mm × 37 mm
Nose:
229 mm × 131 mm × 13 mm
Weight:
0.9 kg

Display
Screen size/aspect ratio:
9 inch wide/16:9 (effective display area: 196.608 mm × 114.15 mm)
Pixels:
1 024 (Width) × 600 (Height) × 3 (RGB)
Display method:
TFT Active matrix driving
Colour system:
PAL/NTSC/PAL-M/PAL-N/SECAM compatible
Temperature range:
-10 ˚C to +60 ˚C

Audio
Maximum power output:
50 W × 4
Continuous power output:
22 W × 4 (50 Hz to 15 kHz, 5 % THD, 4 Ω LOAD, Both Channels Driven)
Load impedance:
4 Ω
Preout output level (max): 4.0 V
Equaliser (13-Band Graphic Equaliser):
Frequency:
50 Hz/80 Hz/125 Hz/200 Hz/315 Hz/500 Hz/800 Hz/1.25 kHz/2 kHz/3.15 kHz/5 kHz/8
kHz/12.5 kHz
Gain: ±12 dB (2 dB/step)
Standard Mode
HPF: ON/OFF
Frequency:
25 Hz/31.5 Hz/40 Hz/50 Hz/63 Hz/80 Hz/100 Hz/125 Hz/160 Hz/200 Hz/250 Hz
Slope:
-6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct
LPF (Subwoofer): ON/OFF
Frequency:
25 Hz/31.5 Hz/40 Hz/50 Hz/63 Hz/80 Hz/100 Hz/125 Hz/160 Hz/200 Hz/250 Hz
Slope:
-6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, -30 dB/oct, -36 dB/oct
Phase: Normal/Reverse
Time alignment:
0 to 490 cm (1.4 cm/step)
Speaker level:
+10 dB to -24 dB (1 dB/step)
Network Mode
HPF (High):
Frequency:
1.25 kHz/1.6 kHz/2 kHz/2.5 kHz/3.15 kHz/4 kHz/5 kHz/6.3 kHz/8 kHz/10 kHz/12.5 kHz
Slope:
-6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct
Phase (High): Normal/Reverse
HPF (Mid): ON/OFF
Frequency:
25 Hz/31.5 Hz/40 Hz/50 Hz/63 Hz/80 Hz/100 Hz/125 Hz/160 Hz/200 Hz/250 Hz
Slope:
-6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct
LPF (Mid): ON/OFF
Frequency:
1.25 kHz/1.6 kHz/2 kHz/2.5 kHz/3.15 kHz/4 kHz/5 kHz/6.3 kHz/8 kHz/10 kHz/12.5 kHz
Slope:
-6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct
Phase (Mid): Normal/Reverse
LPF (Subwoofer): ON/OFF
Frequency:
25 Hz/31.5 Hz/40 Hz/50 Hz/63 Hz/80 Hz/100 Hz/125 Hz/160 Hz/200 Hz/250 Hz
Slope:
-6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, -30 dB/oct, -36 dB/oct
Phase (Subwoofer): Normal/Reverse
Time alignment:
0 to 490 cm (1.4 cm/step)
Speaker level:
+10 dB to -24 dB (1 dB/step)

USB
USB standard spec:
USB 1.1, USB 2.0 full speed, USB 2.0 high speed
Max current supply: 1.5 A
USB Class:
MSC (Mass Storage Class)
File system: FAT16, FAT32, NTFS
USB audio
MP3 decoding format:
MPEG-1 & 2 & 2.5 Audio Layer 3
WMA decoding format:
Ver. 7, 8, 9, 9.1, 9.2 (2 ch audio)
(Windows Media™ Player)
AAC decoding format:
MPEG-4 AAC (iTunes encoded only) (Ver. 12.5 and earlier)
FLAC decoding format (MSC Mode only):
Ver. 1.3.0
Sampling frequency:
8 kHz to 192 kHz
WAV signal format (MSC Mode only):
Linear PCM
Sampling frequency:
16 kHz to 192 kHz
USB image
JPEG decoding format (MSC Mode only):
.jpeg, .jpg
Pixel Sampling: 4:2:2, 4:2:0
Decode Size:
MAX: 5 000 (H) × 5 000 (W)
(Maximum file size: 6 MB)
(Minimum file size: 10 kB)
PNG decoding format (MSC Mode only):
.png
Decode Size:
MAX: 576 (H) × 720 (W)
BMP decoding format (MSC Mode only):
.bmp
Decode Size:
MAX: 936 (H) × 1 920 (W)

Bluetooth
Version:
Bluetooth 5.3 certified
Output power:
+4 dBm Max. (Power class 2)
Bluetooth Low Energy output power:
+4 dBm Max.
Frequency band(s):
2 402.0 MHz to 2 480.0 MHz
Bluetooth profiles:
HFP (Hands Free Profile) 1.8
PBAP (Phone Book Access Profile) 1.2.3
A2DP (Advanced Audio Distribution Profile) 1.4
AVRCP (Audio/Video Remote Control Profile) 1.6.2
AVCTP (Audio/Video Control Transport Protocol) 1.4
AVDTP (Audio/Video Distribution Transport Protocol) 1.3
GAVDP (Generic Audio/Video Distribution Profile) 1.3
IOP (Interoperability Test Specification)
RFCOMM (RFCOMM with TS 07.10) 1.2

FM tuner
Frequency range:
87.5 MHz to 108 MHz
Usable sensitivity:
12 dBf (1.1 μV/75 Ω, mono, S/N: 30 dB)
Signal-to-noise ratio:
50 dB (IEC-A network)

AM tuner
Frequency range:
530 kHz to 1 640 kHz (10 kHz), 531 kHz to 1 602 kHz (9 kHz)
Usable sensitivity:
28 μV (S/N: 20 dB)
Signal-to-noise ratio:
45 dB (IEC-A network)
Wi-Fi
Version:
IEEE 802.11 a/n/ac (5 GHz)
Frequency channel:
149, 151, 155 ch (5 GHz)
Security:
WPA2 (Personal), WPA3 (Personal)
Output power:
+13.0 dBm Max (5 GHz)
GPS
GNSS receiver
System:
GPS L1C/Ac, SBAS L1C/A, GLONASS L1OF, Galileo E1B/C
SPS (Standard Positioning Service)
Reception system:
64 channel Multi-channel reception system
Reception frequency:
1 575.42 MHz/1 602 MHz
Sensitivity:
-140 dBm (typ)
Frequency:
Approx. once per second
GPS aerial
Aerial:
Micro strip flat aerial/right-handed helical polarisation
Aerial cable:
3.55 m
Dimensions (W × H × D):
47 mm × 16.2 mm × 55 mm
Weight:
104.0 g
