Pro-Ject RPM 9 Carbon
High End levysoitin 9" EVO äänivarrella.

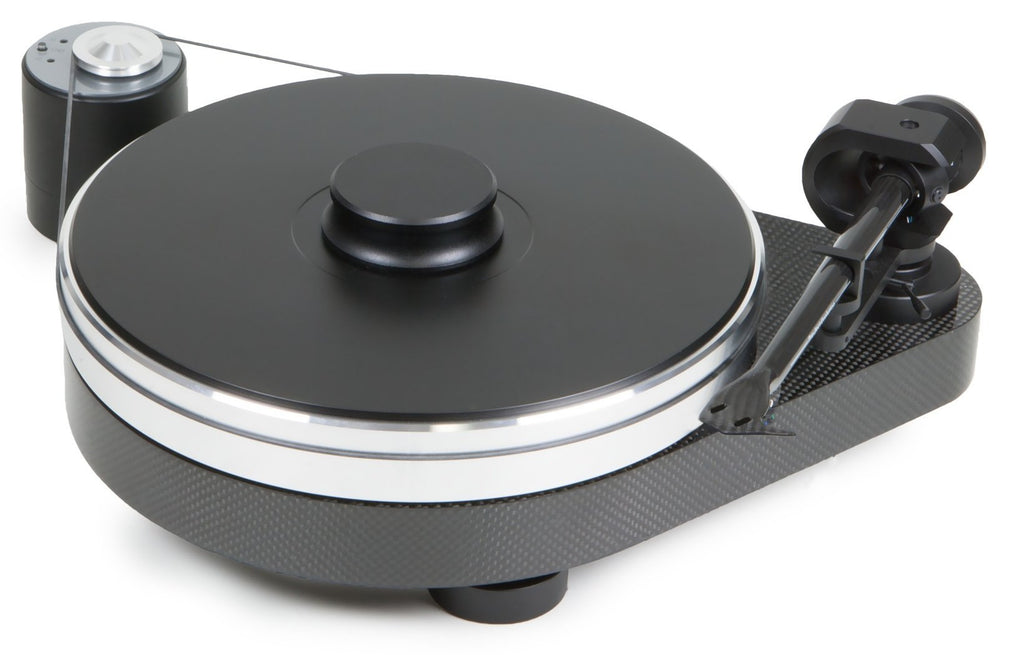

RPM 9 Carbon: Beautiful and clever design with true high-end sound quality
Due to extensive research and development, we now lift our classic RPM design to an even higher level. The RPM 9 Carbon uses a new extra heavy chassis which features a special CNC machined MDF plate that incorporates hard resin coated steel pellets to form an extra heavy precise sandwich construction. A special complex heat treatment and a carbon surface coating ensures superior low resonance levels. The mass-loaded chassis is effectively decoupled from its surface using magnetic feet.
Combined with a new special polished aluminium platter with internal TPE damping and a vinyl layer on top, the inverted ceramic main bearing delivers an absolute stable turntable speed with extra low rumble. The extra heavy outboard motor unit is equipped with a precise motor control and features a built-in switch between 33 & 45 rpm. Last but not least the non-compromise 9“ Evo tonearm with conical carbon-fibre armtube and inverted bearing design ensures perfect tracking, even with demanding cartridges. Highly flexible top-grade copper internal wiring. Delivered with topgrade 5P phono cable „Connect it CC“ with RCA plugs (XLR as an option).
Magnetically supported feet
With two magnets located in the feet, the turntable is practically floating. The studs in the feet are only used for keeping them centered. Due to this unique feature the turntable is perfectly decoupled from the surface it is placed on.
Key Features:
-
Advanced sandwich construction of plinth with combination of MDF, carbon fibre and steel pellets
-
Plinth manufactured with thermo treatment
-
Mass loaded subchassis design with magnetic feet
-
Inverted main bearing with ceramic ball/plate
-
7.2 kg acoustically inert aluminium platter with TPE damping and vinyl mat on the top
-
DC power supply with AC motor
-
Precise DC driven AC generator (Speed Box) built-in
-
Electronic speed control with 33/45 rpm switching
-
Outboard motor construction with massive steel base
-
Pre-mounted 9“ tonearm 9cc Evolution & Ortofon Quintet Bronze cartridge
Tekniset tiedot:
-
Nominal Speeds: 33/45 RPM
-
Motor Completely Decoupled: Yes
-
Effective Tonearm Length: 9" (230 mm)
-
Effective Tonearm Mass: 8 g
-
Overhang: 18 mm
-
Tracking Force: 10 - 35 mN
-
Speed Drift: ± 0.10 %
-
Wow & Flutter: ± 0.10 %
-
Signal to Noise: -75 dB
-
Platter Weight/Diameter: 7.2 kg/300 mm
-
Output Voltage: 15 V/800 mA DC
-
Power Consumption: 13 W Max./<0.3 W Standby
-
Dimensions (W x H x D): 440 x 180 x 325 mm
-
Weight: 16.7 kg
