CERAMIC TIPPED, MAGNETICALLY SUPPORTED INVERTED BEARING

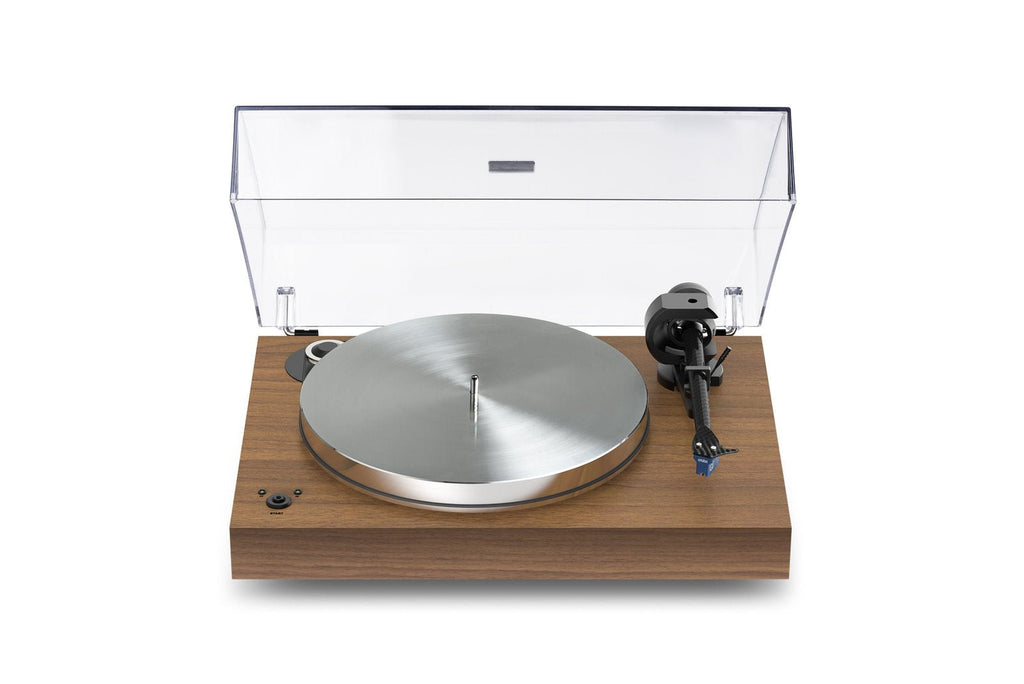

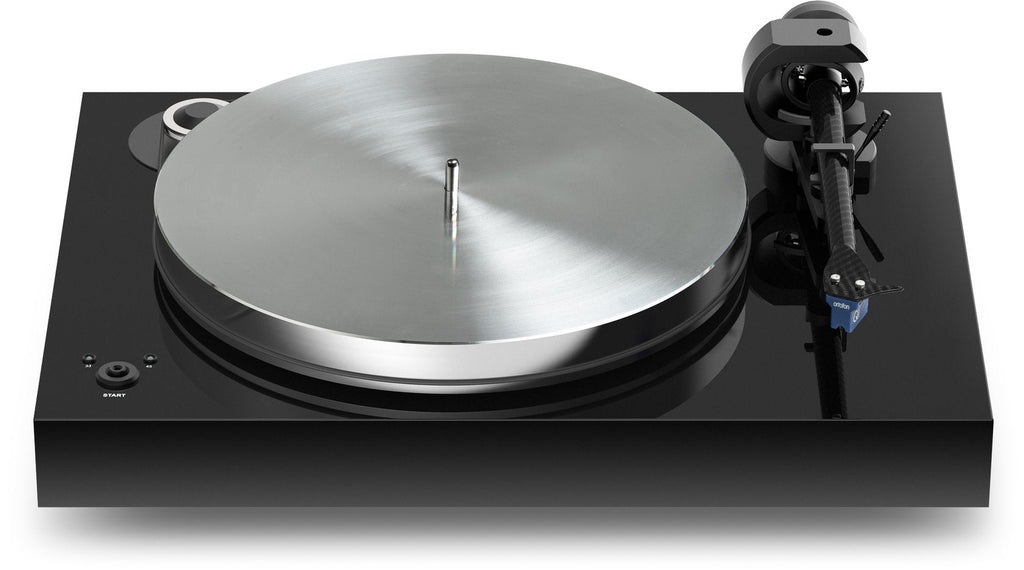

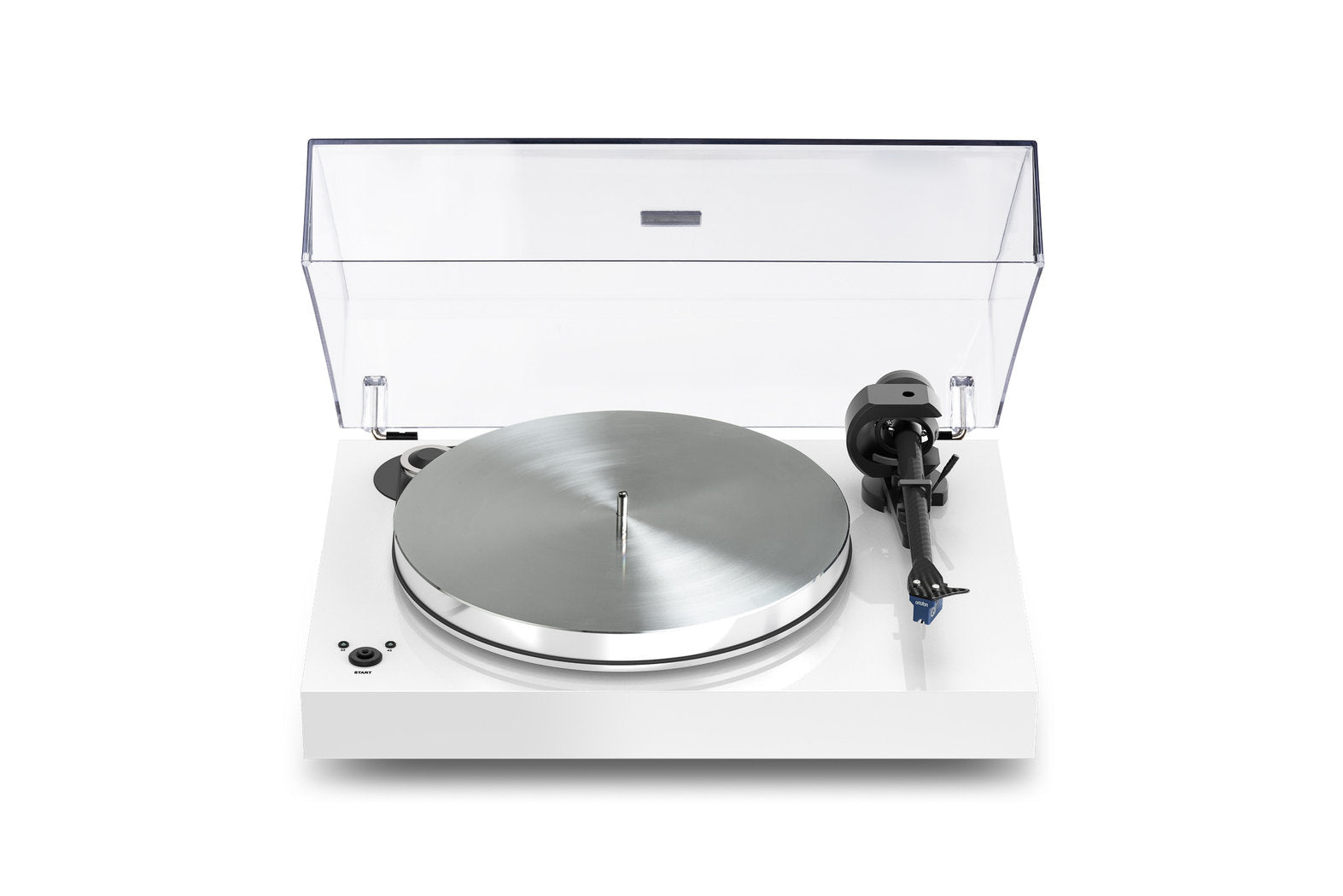

The X8 inherited the massive MDF chassis and the top-of-the-line Pro-Ject 9cc EVO carbon tonearm from its larger siblings. The height-adjustable X8 features machined aluminium feet. The TPE damping technology in the feet effectively decouples the X8 from the surface it is placed on. The feet are a great choice for a more budget orientated turntable as they are faster and easier to set up than magnetic feet on the X9/10, and also require less maintenance.

True Balanced Connection

We’re launching a whole line of new “True Balanced Connection” components that feature a balanced connection for your phono setup. The X8 is our first turntable to feature this new phono technology.

Turntables look back on a long history. Over time, many things have changed, not only from technical possibilities, but also from the environment. Wireless networks are omni present and countless electronic devices make your home „smarter“. This means there are now a lot of additional electromagnetic fields, which could interfere with your turntable‘s signal. This was simply not the case 30 years ago. To ensure the best connection to your phono preamplifier we designed our „True Balanced Connection“.

WHAT'S TRUE BALANCED?

Balanced audio connections are usually known from the professional sector like recording studios or live concerts. It is very important to have a stable & interference free connection, as these signals will be highly amplified. The same applies to the connection from your turntable to the phono preamplifier. The big advantage of a balanced connection is its ability to remove picked up noise and interferences. And best of all, cartridges by nature are already balanced signal transducers! With True Balanced your are simply using everything, literally everything, that your cartridge is picking up from the record groove. You are not throwing away half of the usable signal, like is done in typical single-ended RCA phono connections.

The X8 comes with a 5pin output jack and with our standard semi-balanced Connect it Phono E 5P -> RCA cable. By upgrading it to our fully balanced 5P to XLR version (available separately) and using a balanced phono stage, like our Phono Box DS3 B or any of our RS/RS2 phono stages, you are fully set-up for the True Balanced experience. This leads to increased dynamics, less noise and improved signal to noise ratios. You can imagine it, like hearing parts of your music that literally were not there before.

Unleash the full potential! Upgrade your phono cable to a Connect it Phono CC 5P/XLR for a True Balanced Connection to our Phono Box RS2 or our new Phono Box DS3 B.

A New Access to High-End

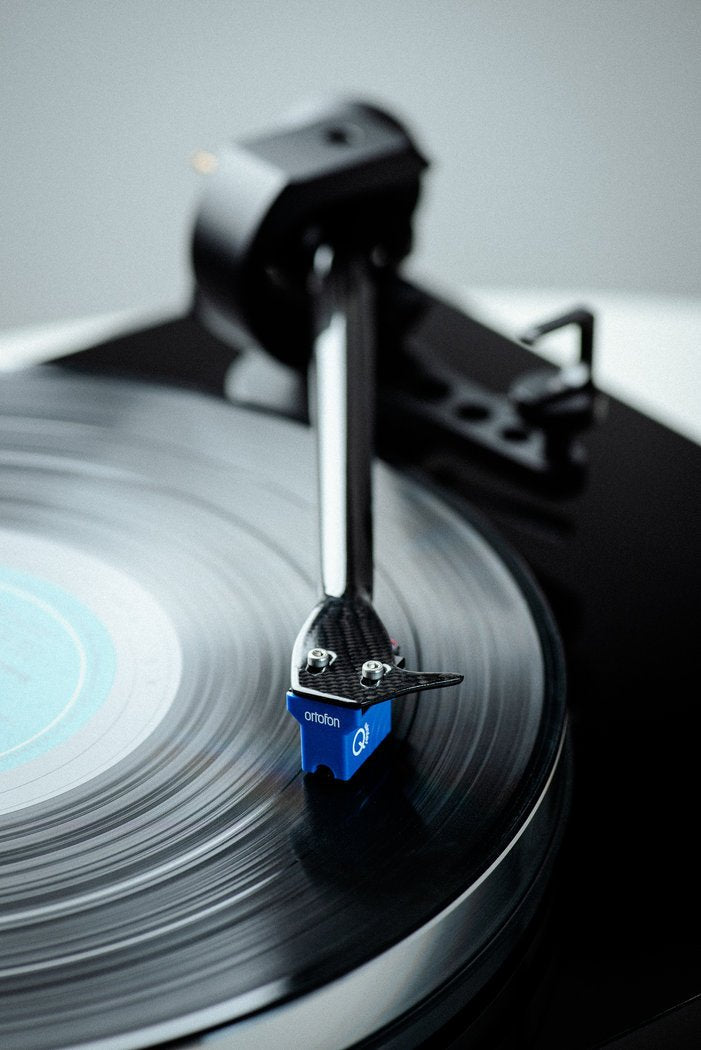

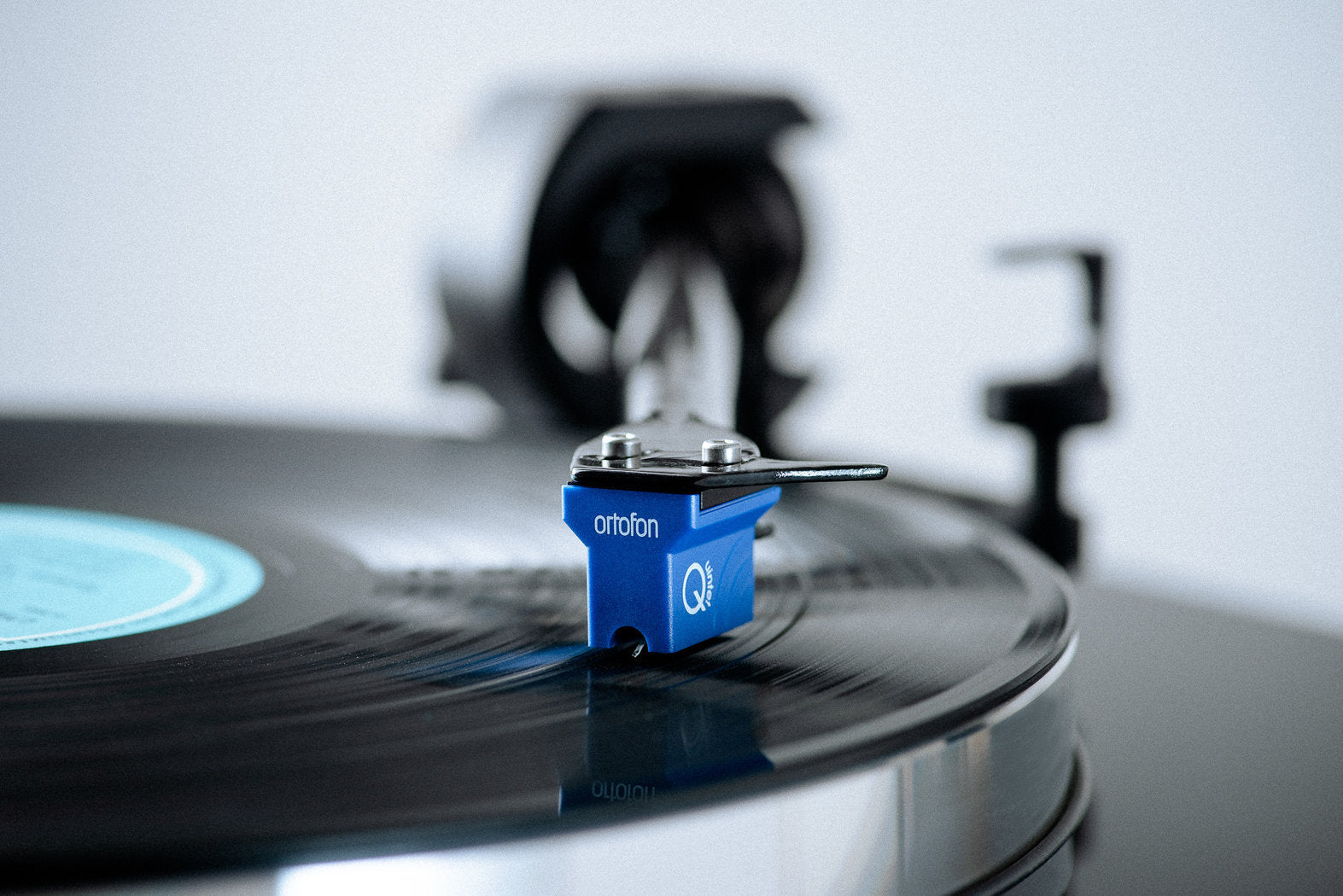

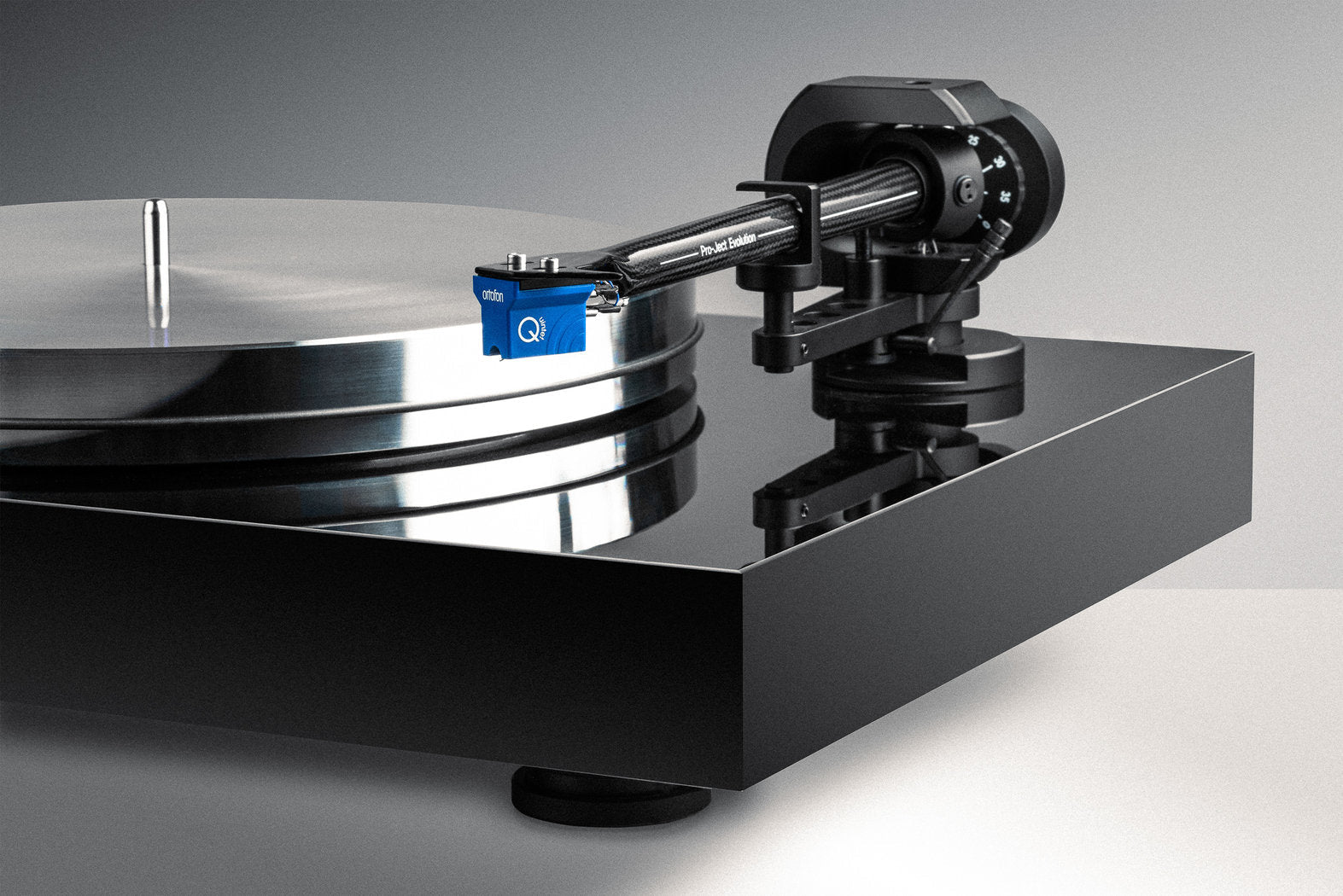

Ortofon Quintet Blue

Ready for True Balanced Connection

The X8 comes factory set with or without an Ortofon Quintet Blue. This cartridge will perfectly set you up for the True Balanced experience!

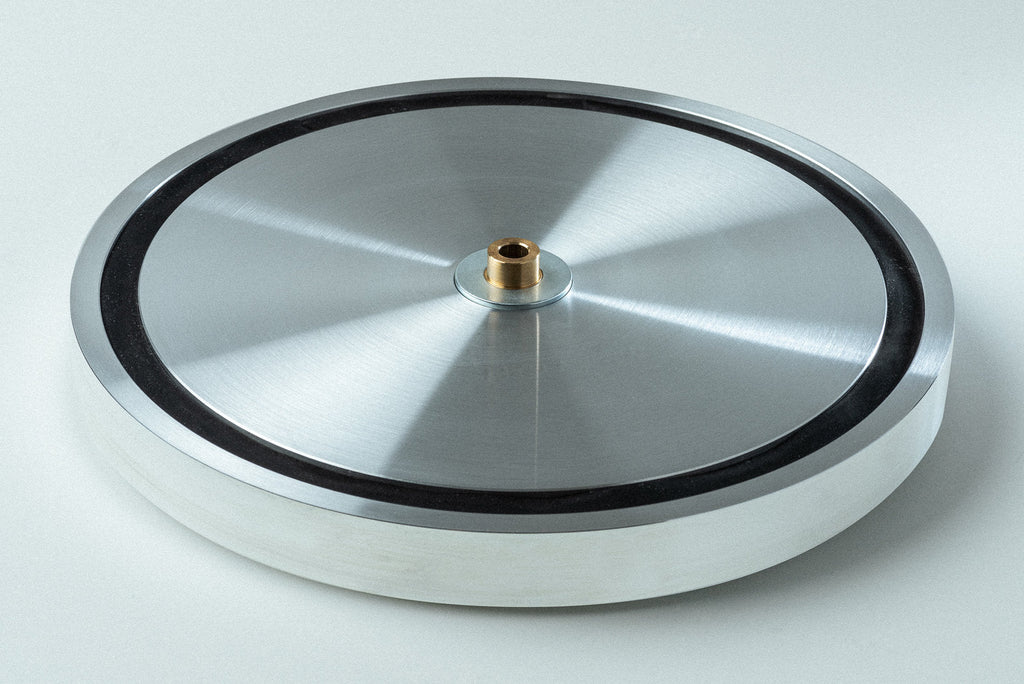

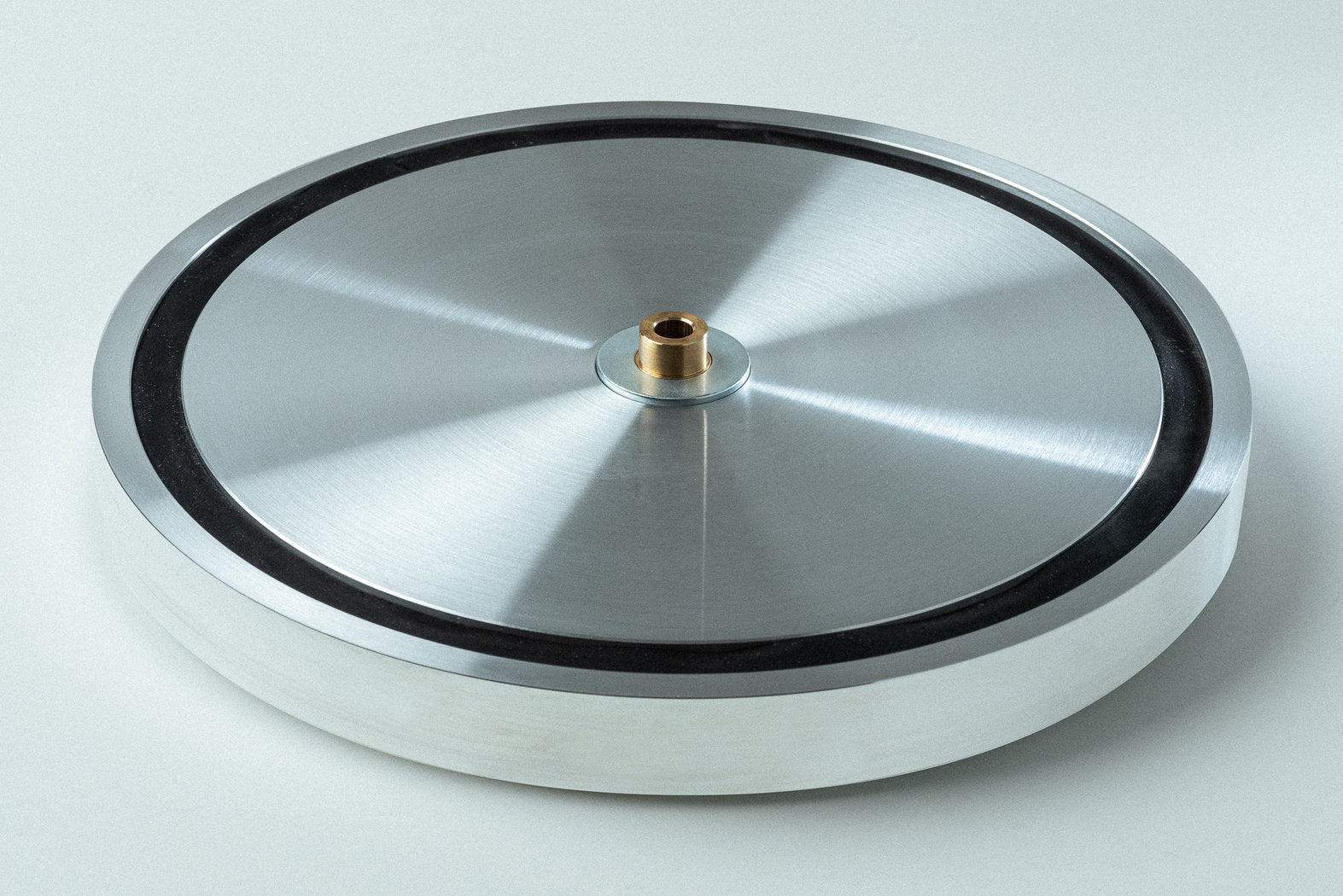

Mass-loaded platter

5.1kg heavy

TPE damped, mass-loaded platter precision lathed from a single aluminium block and finely balanced.

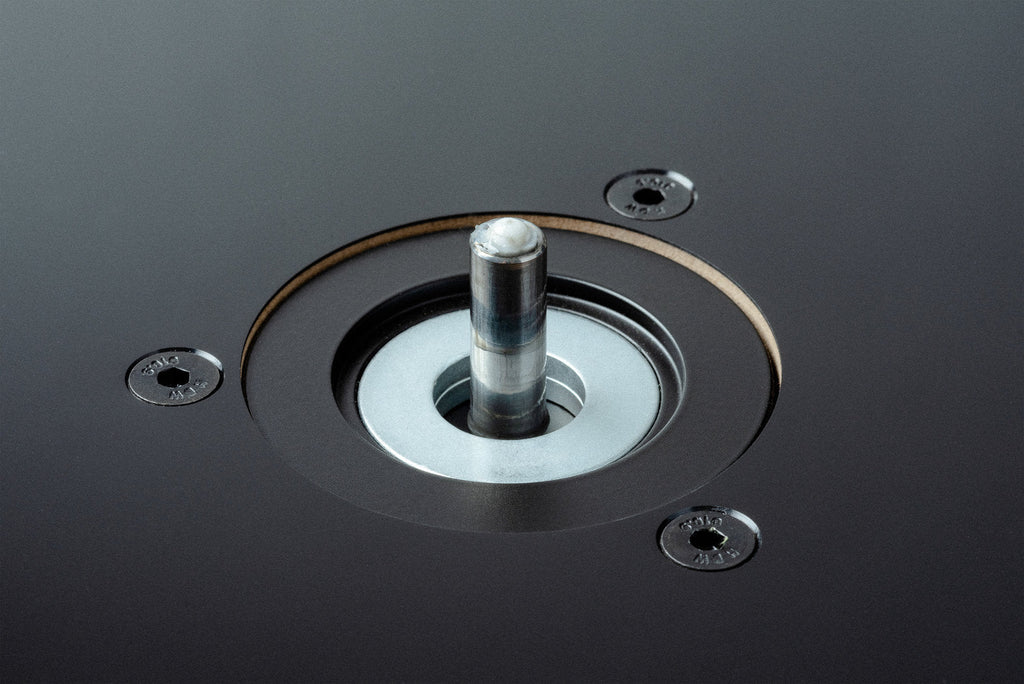

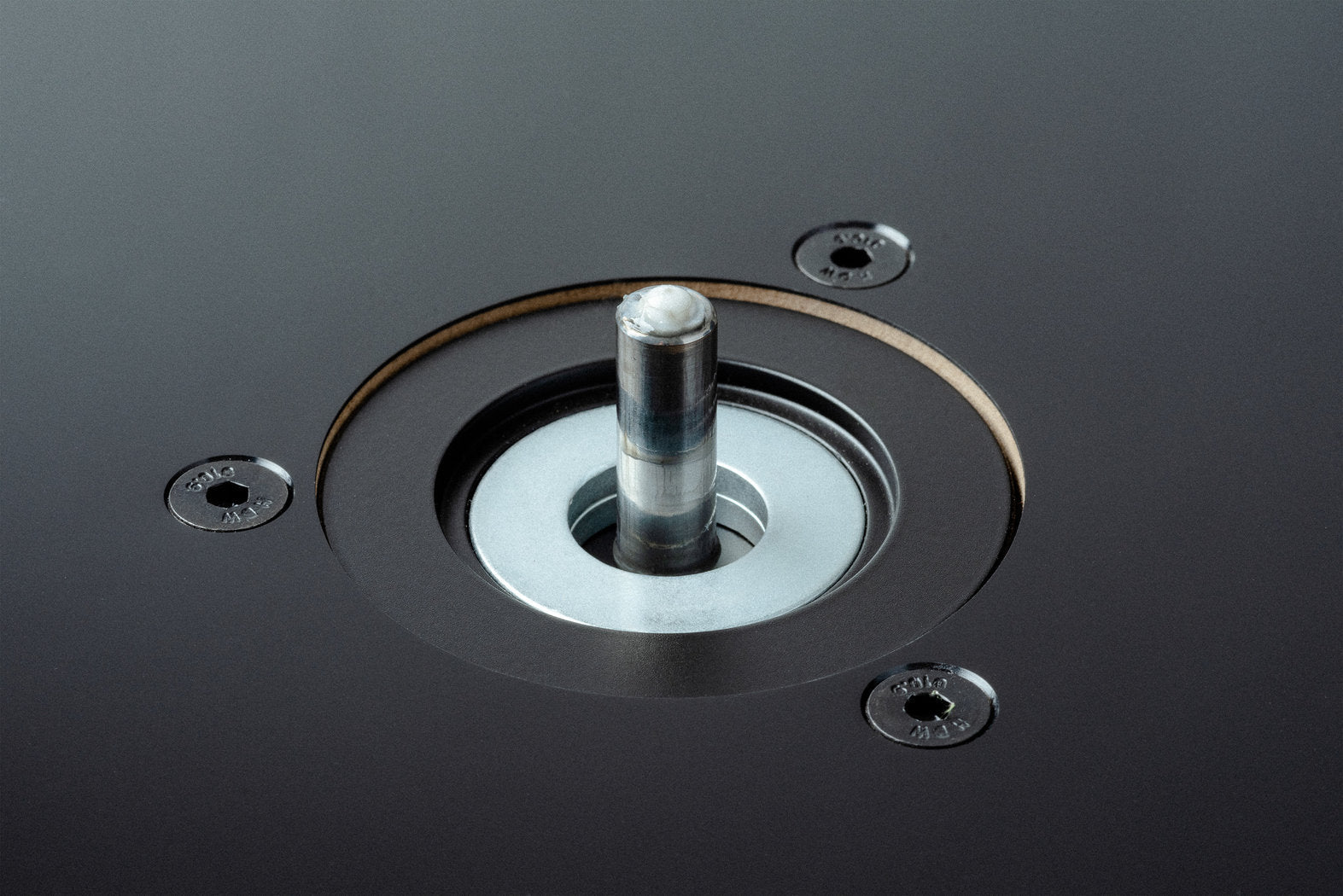

Inverted bearing

Stainless Steel Spindle

The inverted platter bearing is supported by a neodymium magnet that decreases the load on the ceramic tipped bearing.

Mass-loaded Chassis

Carbon tonearm

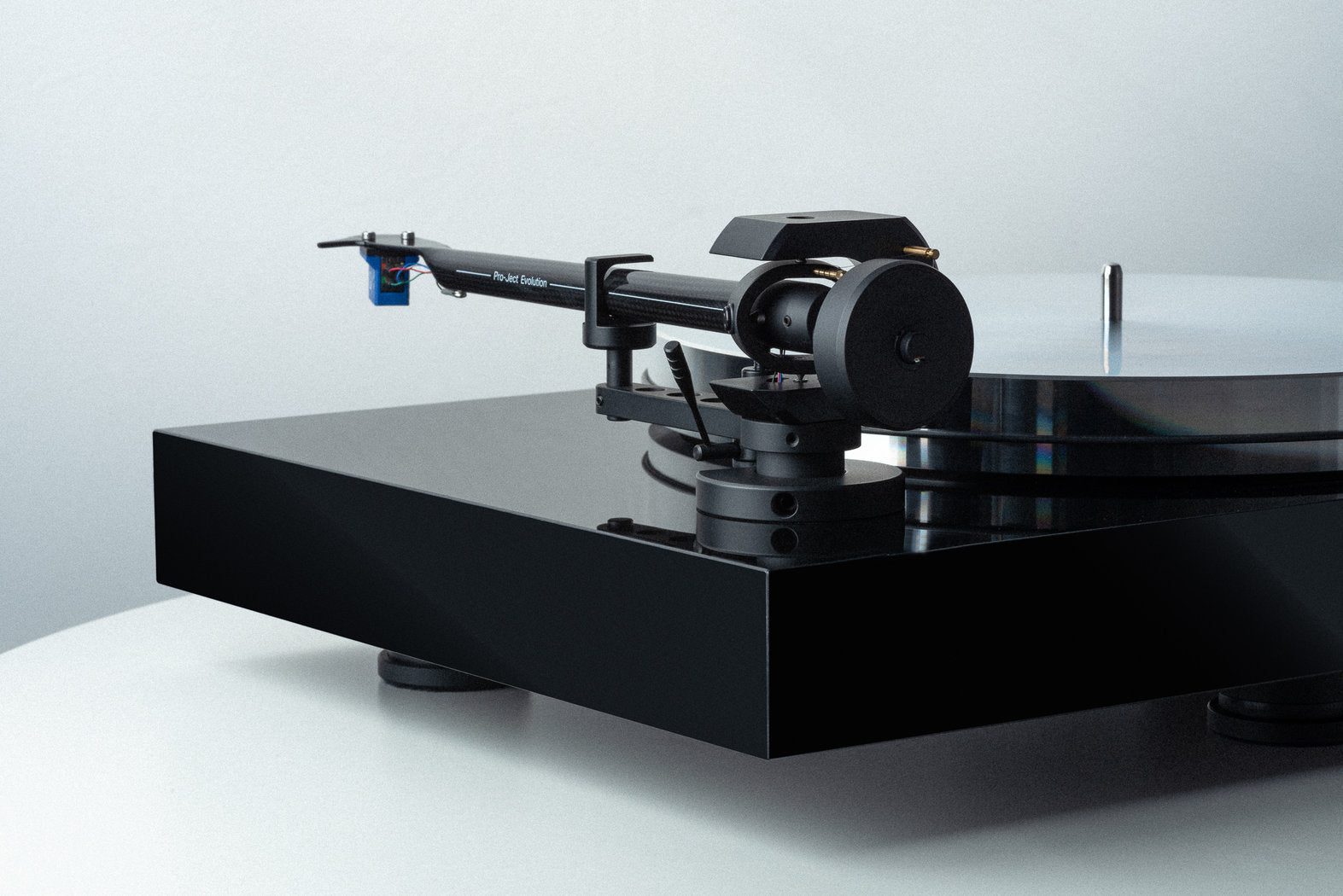

The X8 inherited the massive MDF chassis and the top-of-the-line Pro-Ject 9cc EVO carbon tonearm from its larger siblings.

Metal Feet

Damped & height adjustable

The three height adjustable damped aluminium feet guarantee the perfect stand & massively reduce risk of acoustical feedback.

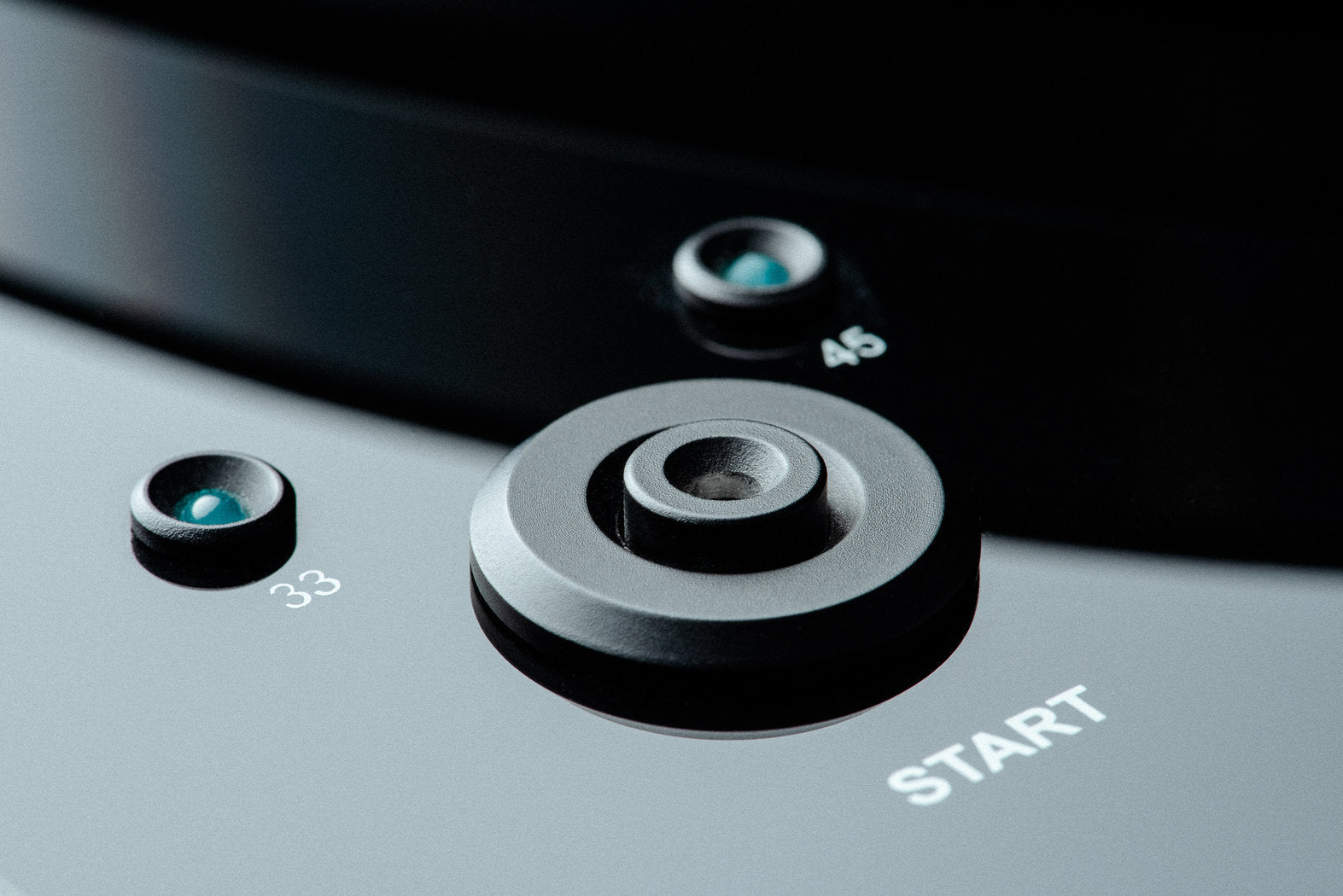

33/45 RPM

Precision controlled

Switch speeds at the push of a button and enjoy stable and accurate speeds due to the built in electronic speed control.

True Balanced

Unleash the full power

The X8 is ready for our new True Balanced Connection. Single-ended RCA connections, quite literally, only use half of your cartridge's output. With one of our new True Balanced phono cables wired to a Phono Box S3 B, Phono Box DS3 B, Phono Box RS or RS2 you'll be able to hear your MC cartridge in its entirety!

Handmade in EU

Since 1991

Made in Europe by a turntable factory with decades of experience. Expert craftsmanship dwells deep within the X8.

Tekniset tiedot:

• Nopeudet    33 / 45 rpm (sähköisesti valittavissa)
• Pölykansi    on
• Pro-Ject kaapeli    Connect it E 5P -> RCA, 1.23m
• Alumiinijalat    TPE vaimennus, säädettävä korkeus
• Levylautasen laakerointi    inverted with ceramic ball tips and magnetic support
• Maksimi nopeusvaihtelu    33: ±0,11% , 45 ±0,09%
• Maksimi huojunta    33: ±0,11% , 45 ±0,10%
• Jyrinä    -73 dB
• Levylautasen paino/halkaisija    5,1 kg sorvattu alumiini TPE vaimennus
• Viimeistelyvaihtoehdot    pianomusta, pianovalkoinen, pähkinä
• Tehollinen äänivarren pituus/overhang     9" / 230mm / 18mm
• Tehollinen äänivarren massa    8,5 g

Toimitus sisältää

• virtalähde, pölykansi, sinkkuadapteri, signaalikaapeli, huopamatto
• Ulkoinen virtalähde (ensiö/toisio)    220 - 240V/50Hz / 15V/800mA DC
• Virrankulutus    5W (max.) / < 0.3 watt standby
• Mitat LxKxS    465 x 150 x 350 mm kansi suljettuna
• Paino    15 kg
