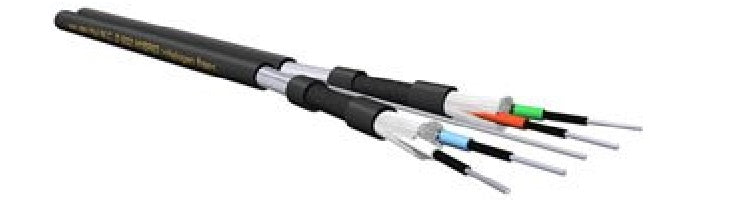

The D – 502 HYBRID is the twin version of the D – 501 HYBRID. Sonically the D – 502 HYBRID is one of our best products at a very affordable price. Its conductors’ combined quantity of silver and Linear Structured Carbon ® (LSC) are the best option available.

The D – 502 HYBRID’s sound quality is extremely detailed without any metallic character.

The D – 502 HYBRID is equipped with a centre steel wire to provide extra mechanical reinforcement and strain relief. This coated steel wire, can be soldered and used as an extra ground-lead. The total pulling force handling of just this centre wire is already more than 30 kg.

The total number of conductors involved incl. the 2 separate screens is 7.

The external dimensions are: 8.4 x 4.0 mm.

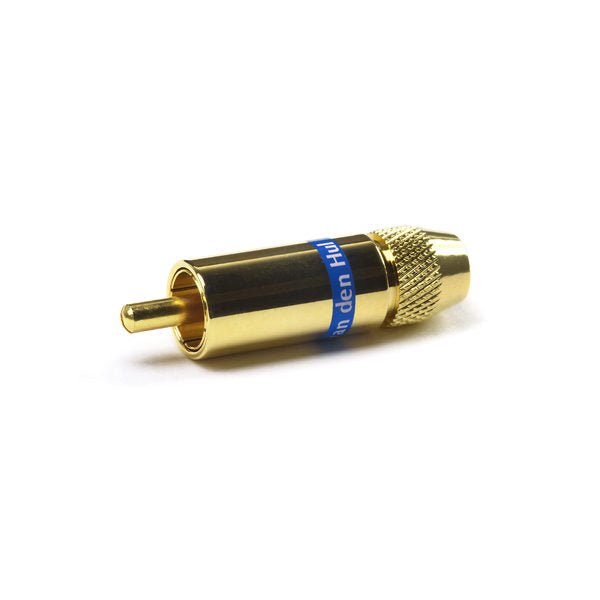

We have our special high-quality RCA connectors, type C – 4.0, available for this special sized cable.

To support the tone-arm and mixing console industry, this mat black HULLIFLEX ® jacketed balanced cable was designed: very flexible and with extremely good electrical qualities.

The D – 501 HYBRID is regularly used as a microphone cable in critical professional recordings and as a standard product for e.g. SME in England together with the prestigious Type V tonearm. This already since 1987.

The 2 signal lines are made each of 19 x 0.1 mm. very high grade OFC wires with the highest density of very pure silver coating.

• As an extra layer around the metal group, we use a Linear Structured Carbon ® (LSC) saturated coating.
• The signal line insulation with the colours white and yellow is made of cell-PE, so the stripping can even be done with your fingernails to prevent wire damage on the silver coated copper strands commonly caused by mechanical stripping.
• The resistance per signal lead is: 11.3 Ohm/100 meter.
• The capacitance between the 2 signal leads is: 75 pF/meter.
• Very flexible specially treated artificial fibres are used as a filler to prevent any harm caused by external humidity or chemicals.
• The shielding consists of 96 x 0.10 mm. wires of a high grade Matched Crystal (MC) OFC with a dense and very pure silver coating and a LSC saturated helical tape.
• The resistance of the shielding is: 2.3 Ohm/100 meter.
• The very flexible black outer jacket is made of migration-free HULLIFLEX ® to prevent any chemical deterioration over a long period.
• The type printing repeats every 25 cm. (10") to make cutting of specified lengths easy.
• The external cable diameter is: 4.5 mm.

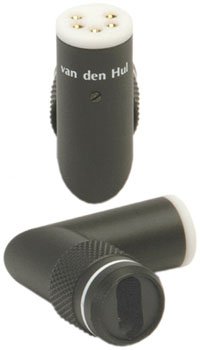

Huom. Jos tilaat levysoitinkaapelin TAC äänivarsiliittimellä, mainitse tilatessasi haluatko liittimen suorana vai 90 asteen kulmalla.
