Versatile and easy-to-assemble DIY gold plated connectors. They offer high quality contact over long periods of intensive use and are very effective in keeping oxidation away.

• 24 carat gold plated, screw-on, solderless connectors

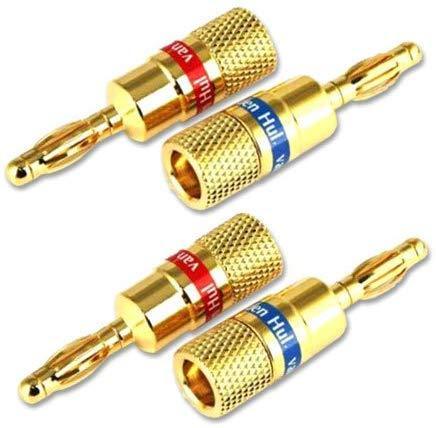

• Available in packs of four angled spades (fork) or banana plugs with red or blue rings for polarity identification
• Only suitable for multi-strand loudspeaker cable and wire types. Minimum values: AWG 12 (Ø2 mm), for the bare conductor, and Ø 6.5 mm for jacket diameter
• The banana and the angled fork spade screw-on terminals are WBT binding post fitting. Both offer excellent mating properties and minimal contact resistance.
• The high pressure clamping ensures low loss electrical connection and maximum signal transfer
• Banana terminal (standard Ø4 mm pin)
• Angled fork spade terminal fits studs from Ø 6.0 mm to Ø 8.5 mm.
• Easy assembly instructions (4 steps):

1. Strip off 14mm of the multi-strand cable/wire jacket
2. Insert the stripped end through the screw-on collar
3. Fan out the strands and evenly fold them encircling the collar
4. Insert the banana pin/spade blade and screw-on to the collar

These connectors fit the following cables and wires:

• The CLEARTRACK
• CS - 12 HF
• The CLEARWATER
• CS - 14 HYBRID
• D – 352 HYBRID
• CS – 14
• The GOLDWATER
• CS – 16
• The INSPIRATION HYBRID
• CS - 122 HYBRID
• The SKYLINE HYBRID
• SCS - 16
• The SNOWLINE
• SCS - 18
• The TEATRACK HYBRID
• The TWIN
• The WIND Mk II HYBRID

TIP:

Try our special contact fluid The SOLUTION on the strands before mounting the banana pin/spade blade part.
