Type of cable Analogue interconnect – balanced

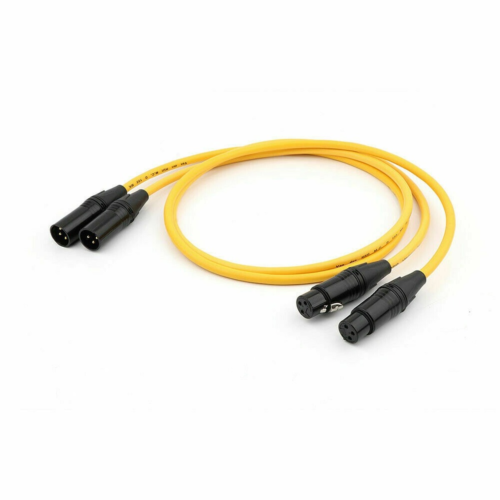

Available versions RCA, XLR
Jacket color Warm yellow-orange
Product range Entry-level
Conductor material 3T, Carbon, Silver plated OFC
Conductor diameter 0.63 mm
Shielding One LSC saturated, Triple shielded
Cable diameter 7.25 mm
Resistance 0,0062 Ohm/m (screen), 0,055 Ohm/m (conductor)
Capacitance 37 pF/m
With our ever-continuing technical improvements, it is logical to replace the already since 1982 available D-102 Series (after 24 upgrades in the meantime) with an actual Hybrid version. Together with our Linear Structured Carbon® technology, we have therefore applied some number of strands from our highly acclaimed 3T technology into the new D-102 III 3T Hybrid.

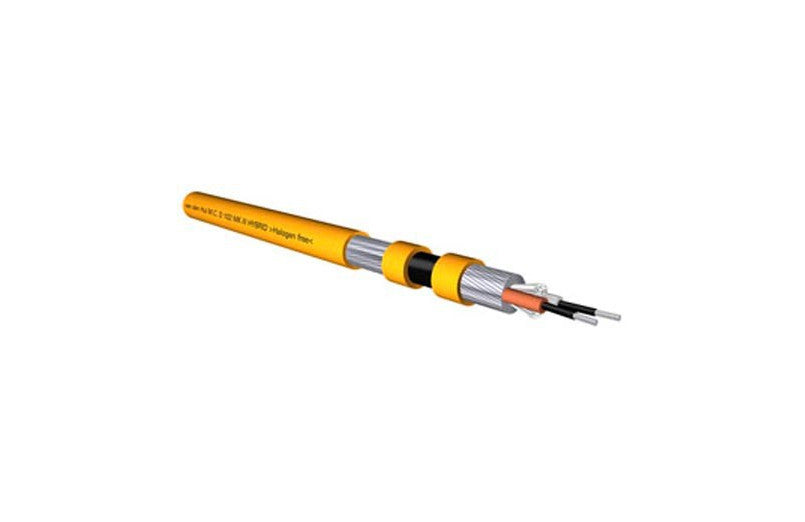

The D-102 III 3T Hybrid is a warm yellow-orange coloured very flexible balanced interconnect with a 3-layer shielding.
In an unbalanced operation, the two internal conductors can simply be taken together with the shield acting as the signal return. However, the better and preferred layout (which we apply) has the shield only connected to the signal ground at the signal source side (marked by a ground-end marking sticker). One of the internal conductors functions as a signal return.
