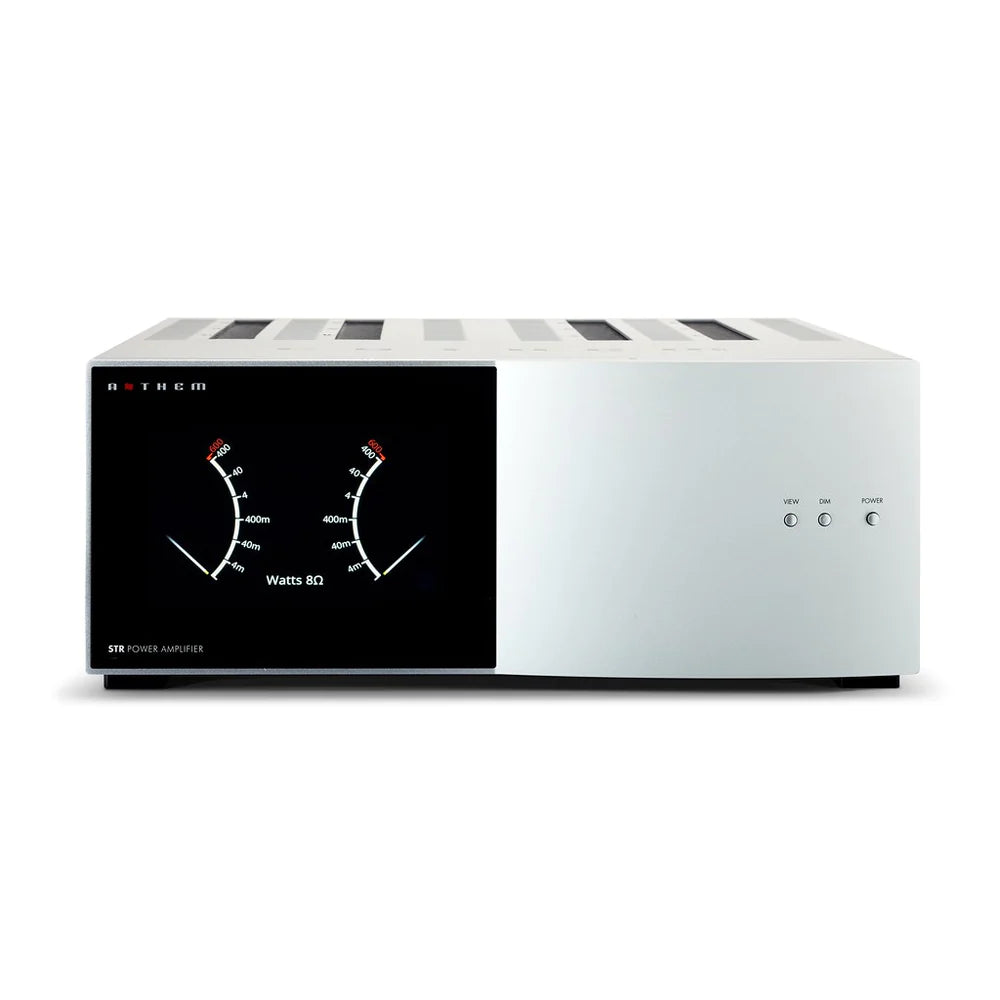

Anthem STR Power Amplifier power amplifier
Two-Channel Revolution. The STR Power Amplifier is the beating heart of a world-class 2-channel sound system. It delivers massive power generation, with audiophile-quality output in a smartly designed component.
Designed, engineered, and Crafted in Canada, the STR Power Amplifier delivers 400 Watts/channel into 8 ohms with both channels driven, a Massive 600 Watts/channel into 4 ohms (both channels driven) and 800W into 2 ohms, for true no- holds-barred performance.

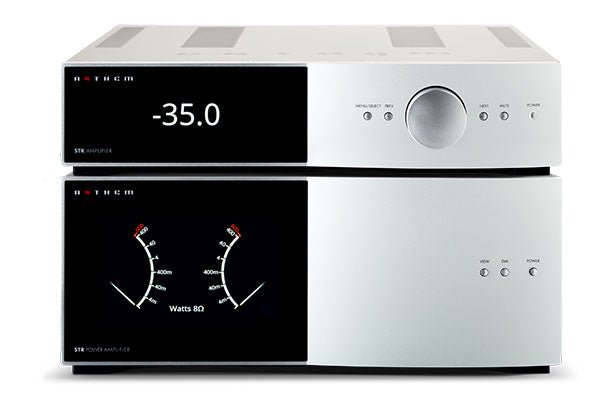

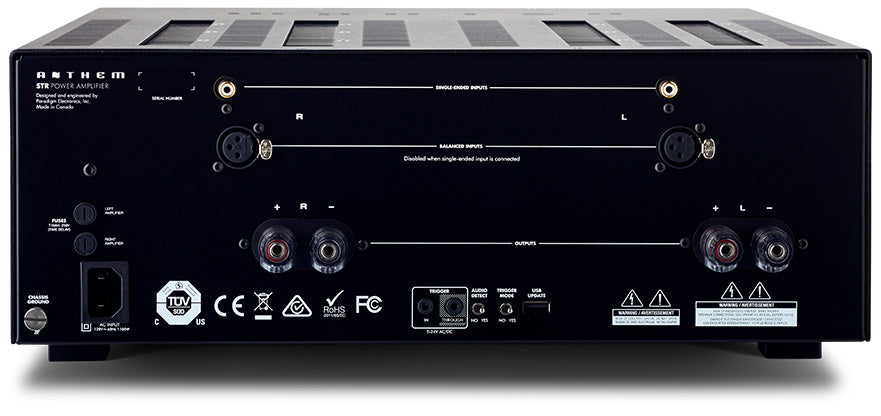

Inside, the STR Power Amplifier uses two colossal transformers and multiple high-current output devices so the most subtle details and dynamic peaks are handled equally well. Outside, its beautifully designed cosmetics, including a 7-inch graphic control display and secure, highly conductive audiophile connectors provide a perfect match to the STR Preamplifier.
STR Features & Functions
- 400W/600W/800W into 8/4/2 ohms
- Cascoded complementary feedback input stage
- Sixteen bipolar output devices per channel
- Dual Mono Design
- Massive Toroidal transformers
- Soft turn-on
- Four power on/off options
- No rail fuses
- Advanced Load Monitoring™ Technology
- Graphic front panel display for the power meter, status, and easy setup navigation
- Available in Silver and Black Finishes
- Crafted in Canada
POWER AMPLIFIER
- Impedance 8Ω 4Ω 2Ω
- Power Output (per channel)
- (Continuous, 20 Hz - 20 kHz, <1% THD) 400 W 600 W 800 W*
- * Maximum 3 seconds due to high current draw.
- THD (400 W) 0.0007% (1 kHz), 0.004% (20 kHz)
- IMD (300W)
- ITU-R (19 kHz + 20 kHz) 0.0006%
- SMPTE (60 Hz + 7 kHz) 0.0016%
- SNR (IEC-A, ref. 400 W) 121 dB
- Frequency Response (20 Hz - 20 kHz) ± 0.1 dB
- Power Bandwidth (-3 dB at 400 W into 8 ohms) 91 kHz
- Slew Rate 30 V/μs
- Damping Factor (20 Hz to 1 kHz) 360
- Channel Separation 101 dB (100 Hz), 98 dB (10 kHz)
- Input Impedance 10kΩ (RCA), 15kΩ (XLR)
- Input Sensitivity (for 400W into 8Ω) 2.1 Vrms
- Voltage Gain 29 dB
POWER REQUIREMENT
- 120 V version: In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz.
- 220-240 V version: In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz.
POWER CONSUMPTION
- Standby 310 mW
- Idle 65W
- Typical Playback Levels 150 W - 300 W
- High Playback Levels 600 W - 1100 W
DIMENSIONS
- Height 6-3/4” (17.2 cm)
- Width 17" (43.2 cm)
- Depth (not including power cord) 18-1/2” (47 cm)
- Weight (unpacked) 60 lb (27.3 kg)
