Description

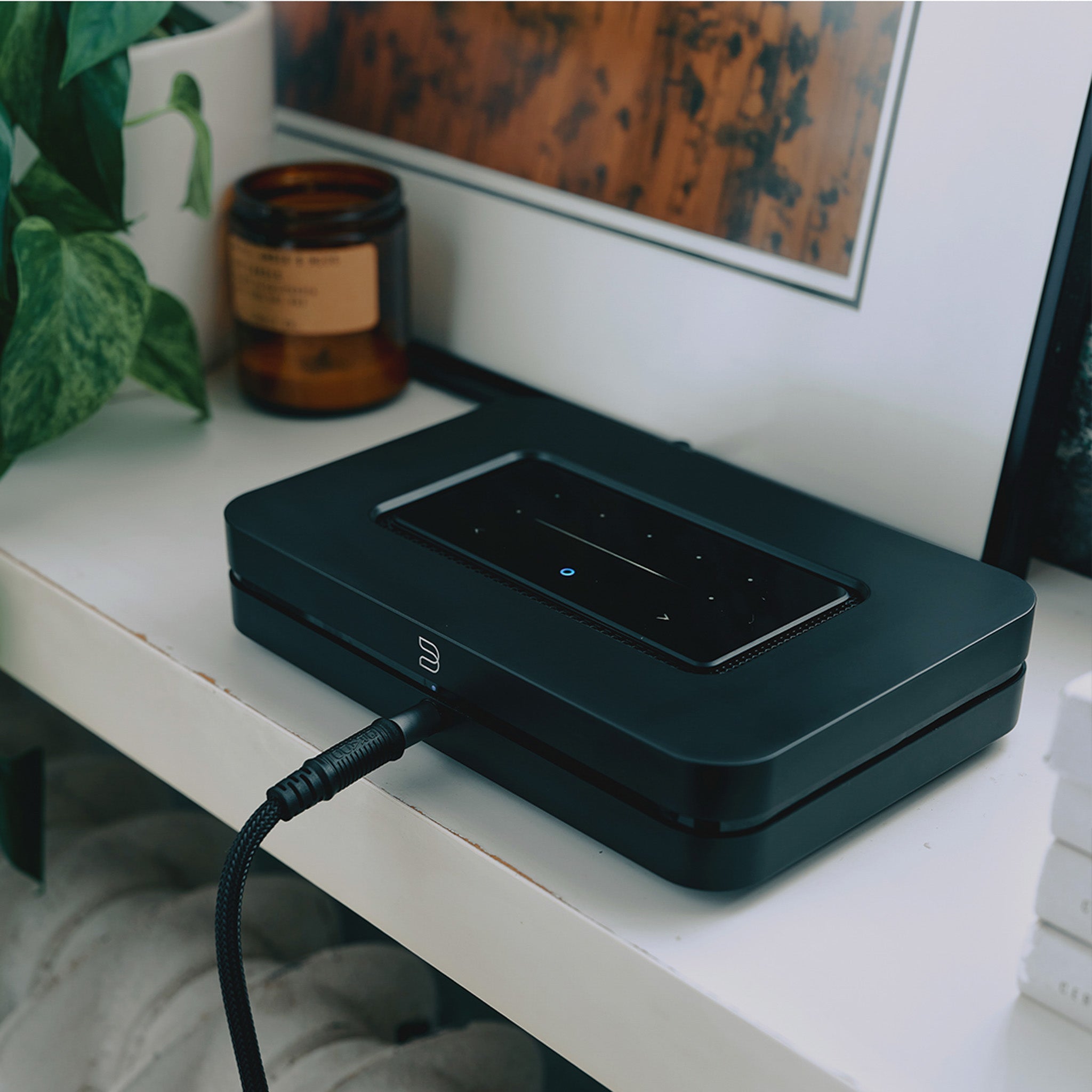

Bluesound NODE (N132) wireless Hi-Res multi-room network player
Bluesound 2024 new! In stock at the end of September 2024, available for pre-order.
The new Bluesound NODE (N132) network player of the fourth generation.
- A compact and versatile network player with completely wireless multi-room features
- Audiophile-grade da converter ESS ES9039Q2M SABER® DAC and unique THX AAA headphone amplifier
- Quad-core 1.8GHz ARM® Cortex™ A53 processor
- HDMI eARC connection for easy TV use
- Dirac Live room repair readiness
- Full size 6.3mm headphone jack
- Airplay 2 integration
- 5 programmable quick-touch speed dials
- Spotify Connect + TIDAL Connect
DOWNLOAD THE PRODUCT DATASHEET HERE
BLUESOUND NODE (N132) network player is very easy to connect to any stereo equipment, active speakers or home theater system. The new fourth-generation model is equipped with an HMDI eARC interface and a Dolby Digital decoder, which makes using the TV with NODE even easier; the devices communicate with each other and the volume can be controlled with the TV remote control.
The new NODE (N132) is very much based on Bluesound's 10th anniversary model NODE X, which was produced in limited quantities.
Compared to previous NODE models, you get new features that offer an even better listening experience. For example, the DA converter has been updated to an even better type (ESS ES9039Q2M SABER) and the headphone amplifier is really strong with THX AAA technologies.
All the world's music is at your fingertips wirelessly. The retained Finnish user interface works in both Apple and Android environments on phones and tablets.
With the Dirac Live room correction feature available as an upgrade, you can use advanced Dirac room correction technology and measure room acoustics to remove standing waves, reverberations and other unwanted distortions. For this, you also need a calibration kit (sensitive and accurate microphone, USB cable kit) available at an additional cost.
- Connect to any existing stereo amplifier, AV receiver or active speakers.
- Powered by a State of the Art quad-core 1.8GHz ARM® Cortex™ A53 processor and ESS ES9039Q2M SABER d/a converter
- HDMI eARC connection for TV, Dolby Digital decoder
- Digital and analog input and output connections, subwoofer connection, wired 6.3 mm plug and wireless headphone connection ( THX AAA hearing amplifier )
- Dirac Live room repair readiness
- DSD 256 playback, coming as an update
- HiRes quality in streaming cloud services, internet radios and your own local music library
- Dual-band Wi-Fi, Gigabit Ethernet and support for two-way Bluetooth aptX Adaptive Bluetooth technology guarantees uninterrupted music playback.
- new low-noise power supply
- Simple and user-friendly BluOS Controller app and easy setup
- Control panel touch controls with presets, lighting with motion sensor
- IR entry and learning IR; control NODE with the optional RC-1 remote control
- Voice control Amazon Alexa Skills; Actions is Google
- With AirPlay 2, you can play music or podcasts from speakers all over your house - in sync.
HIFI ON WIFI.
Enable 24-bit Hi-Res streaming with existing hi-fi equipment or active speakers and play music with a few taps from the BluOS Controller app on iOS, Android, Mac or PC devices. Thousands of Internet radio stations, premium music services such as Tidal, Qobuz, Deezer, Spotify and dozens of other music streaming services are integrated into NODE's operating system. Searching and listening to music is easy, seamless and logical.
BEAUTY AND INTELLIGENCE.
Don't let NODE's size and minimalist appearance fool you into thinking it doesn't have enough features. The device has an audiophile-quality DA converter ( ESS ES9039Q2M SABER) , which not only supports 24-bit / 192 kHz sound processing, but also supports MQA master-quality playback. With powerful software features, you can customize your player's listening settings in a versatile way.
WORKS WELL WITH OTHERS TOO.
Now you can easily connect your TV via the HDMI eARC connection to NODE and use the TV's remote control to adjust the volume as well. In addition to this, there is also an analog or digital input connection for connecting e.g. a record player. NODE can be connected to both wireless and wired networks easily and quickly. Apple users can also take advantage of AirPlay 2 features and the headphones can be connected wirelessly using Bluetooth (aptX Additive) or traditionally with a cable.
FROM ANYWHERE TO ANYWHERE.
High-quality music listening can take place in any room of your home. This is made possible by our unique multi-room application. Bluesound NODE uses the award-winning BluOS operating system, which is the only platform in the world that allows up to 64 different modes / players in the same system. Even in multi-room use, Bluesound supports 24-bit Hi-Res high-resolution sound.
By adding Bluesound devices to your system, the music in your home expands the way you want.

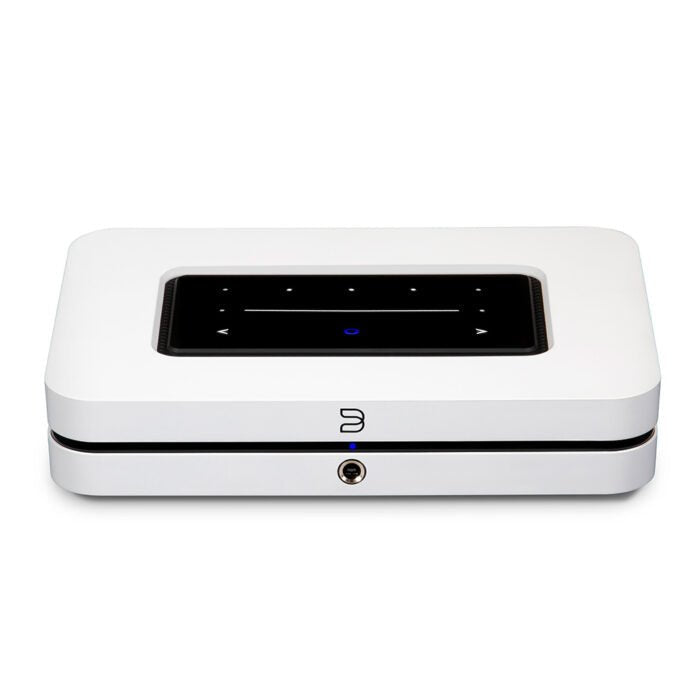

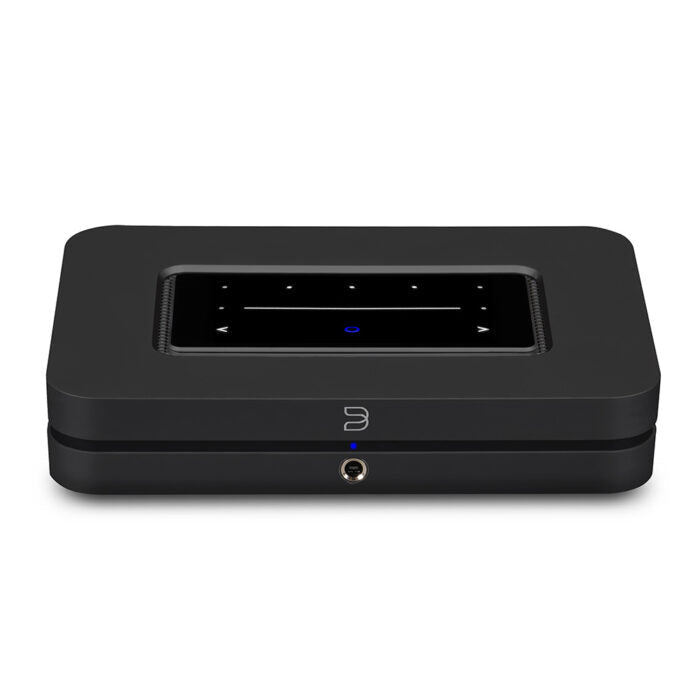

CONTROL FREAK.
Shortcut keys, such as play/pause, track skip and volume, are also managed from the touch panel on top of the device. Voice assistants such as Siri, Alexa or Google Voice are also available with the necessary additional devices. Operation is also possible by programming NODE's commands into your own IR remote control or by purchasing an optional RC1 remote control.
Additional settings, including volume controls, subwoofer crossover frequency, and settings for connecting an external DAC are available in the BluOS Controller app. NODE can also be integrated into a smart home with versatile controllers from Lutron, Control4, Elan, RTI, Crestron or other popular home control systems.
FILL YOUR HOME WITH MUSIC
Connect NODE online to other Bluesound products in your home, and you get an easily controlled and wireless multi-room system. Control is handled by the logical and easy-to-use BluOS operating system from your own smart device.
SPECIFICATIONS
AUDIO
Supported file formats
MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
Supported Hi-Res Audio file formats
FLAC, MQA, WAV, AIFF, MPEG-4 SLS
DSD support
DSD256 , available in a future update
Supported multi-channel audio format
Dolby Digital
Audio control & EQ
Sampling frequencies
up to 192 kHz
Resolution 16 - 24
Performance
Interference distance SNR - 118dBA
Distortion THD+N - 0.0007%
DAC
ESS 9039Q2M Saber DAC
SOFTWARE AND INTEGRATIONS
Operating system BluOS
Supported operating systems
Plays music from devices in your network that use the following operating systems: IOS, Android, Windows, MacOS
Network file sharing
SMB, indexing up to 200,000 copies
Internet radio
TuneIn Radio, Radio Paradise (also MQA), Calm Radio, LiveXLive
Supported music services (23+)
Spotify, Amazon Music HD, TIDAL, Deezer , Qobuz, HighResAudio (VAULT Required), Napster, KKBox, Bugs, Taihe Music ZONE, SoundMachine, IDAGIO, OraStream, Neil Young Archives, nugs.net...
Voice control integration
Amazon Alexa Skills; Actions is Google
3rd-Party
Airplay 2
Spotify Connect
Tidal Connect
Roon Ready
Dirac Live Ready
Integration Partners
Control4, RTI, Crestron, URC, ELAN, Lutron
Album art
JPG, PNG

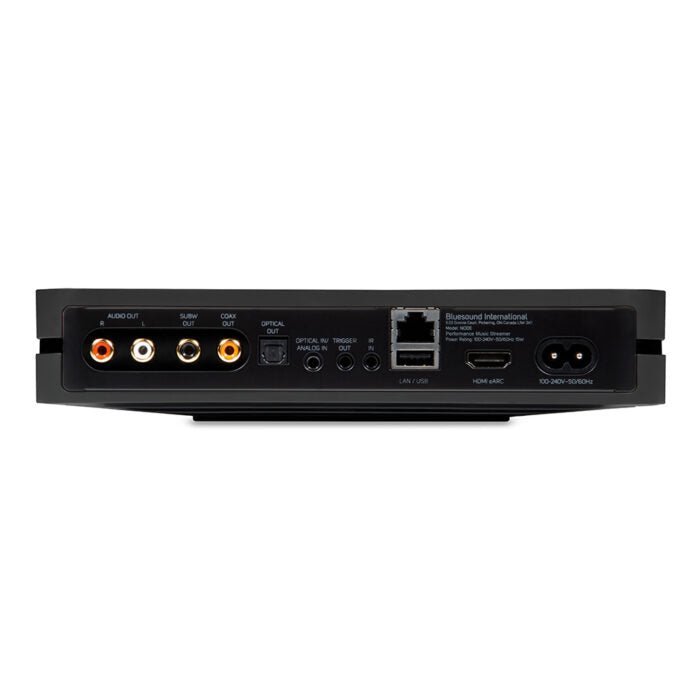

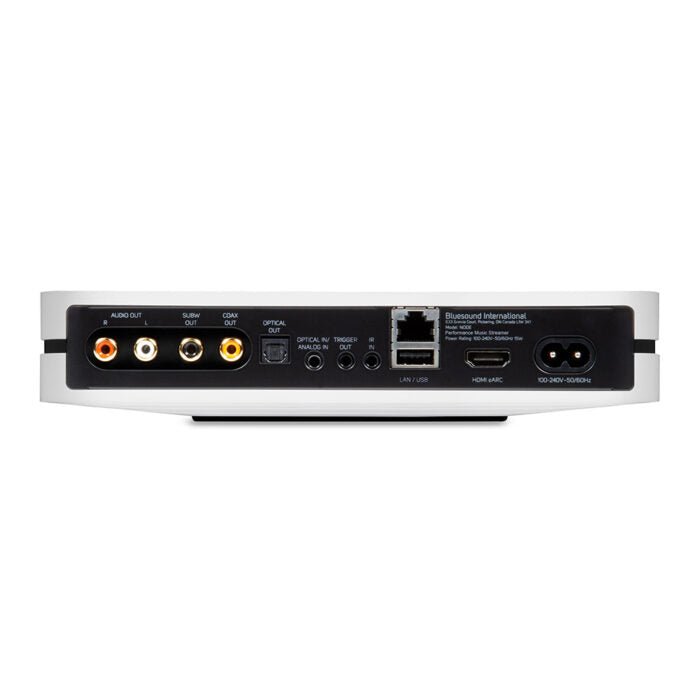

CONNECTIONS
Local network
Gigabit Ethernet RJ45, GigE 1000 Mbps
Wi-Fi 5 (802.11ac, dual band 2.4/5 GHz)
USB IN
Type-A port for USB external disk (FAT32 or NTFS formatted) - External Storage only; Local Server Mode
Audio inputs
HDMI eARC
Optical digital input TOSLINK or analog 3.5 mm
Audio outputs
Analog RCA stereo output, either fixed or adjustable
Coaxial digital RCA, either fixed or adjustable
TOSLINK optical digital, either fixed or adjustable
USB Audio 2.0 (Type A)
Bluetooth
Bluetooth 5.0 aptX Adaptive
Bi-directional (send or receive)
Headphones
Headphone connection 6.3 mm Stereo
Wireless Bluetooth output
Subwoofer
Subwoofer RCA (80 Hz high pass)
With wireless pairing PULSE SUB +
Trigger
12 V trigger
IR control
IR sensor built into the front panel
Learner
IR input with 3.5mm plug
Operating voltage 100 - 240 AC
USER INTERFACE AND CONTROL DEVICES
Mobile
BluOS - free Android and iOS application available on Google Play and Apple App Store
Buttons
Operating status indicator: RGB LED x 2 pcs
Play/pause button: Touch the LED
Volume control buttons: Touch the slider LED
Previous/next track buttons: Touch the LED
Preset buttons 5 pcs: Touch the LED
Proximity sensor: Yes
Built-in IR receiver on the front panel for e.g. learning TV remote control commands
IN GENERAL
Finish Black or white, matte satin painting
Included accessories
Mains power cable
Ethernet cable
Stereo RCA cable
Toslink Optical / 3.5 mm mini adapter
Safety/warranty guide
Quick Setup Guide
Dirac Live Ready Info Card
Weight 1.09 kg
Dimensions 220 x 46 x 146 mm
Idle power consumption 4 Watts / less than 0.5 W stand by
Storage temperature in degrees Celsius -10 - + 50, humidity 20-80%
Operating temperature degrees Celsius 0 to 40
