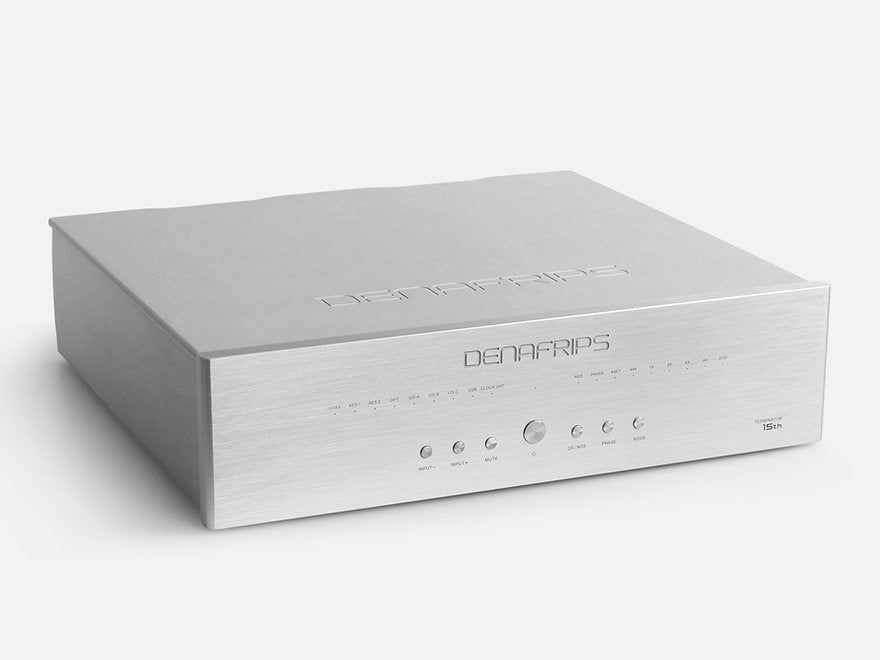

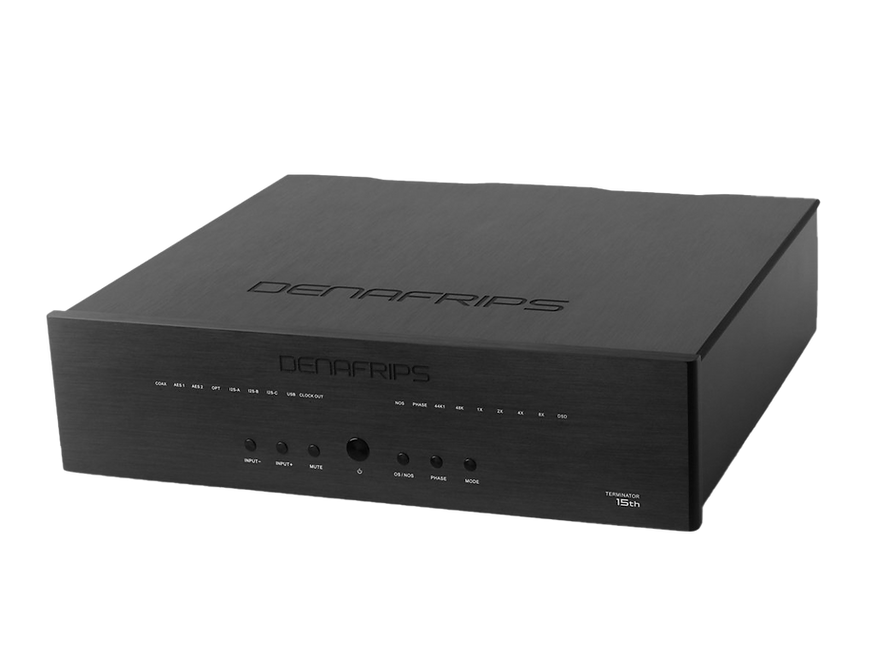

Denafrips TERMINATOR 15th is the manufacturer's top model, representing the pinnacle of digital audio conversion. Its innovative R-2R + DSD architecture, carefully selected components and meticulous design guarantee exceptional sound quality for even the most demanding hi-fi enthusiasts.
Demo at the Helsinki store!
Key features
- R-2R + DSD architecture: 26-bit R-2R and 6-bit DSD (32-stage FIR filtering)
- Precision resistor network: 0.005% thin film resistors
- Isolated digital and analog design: shielded circuit boards connected via an OCXO module
- OCXO clocks: Two oven-controlled crystal oscillators (45.1584 MHz and 49.152 MHz)
- FIFO buffering and reclocking: Minimizes jitter and improves signal accuracy
- Direct FPGA Signal Processing: Optimized Digital Processing
- DSD1024 and PCM1536 support: via USB and I²S inputs

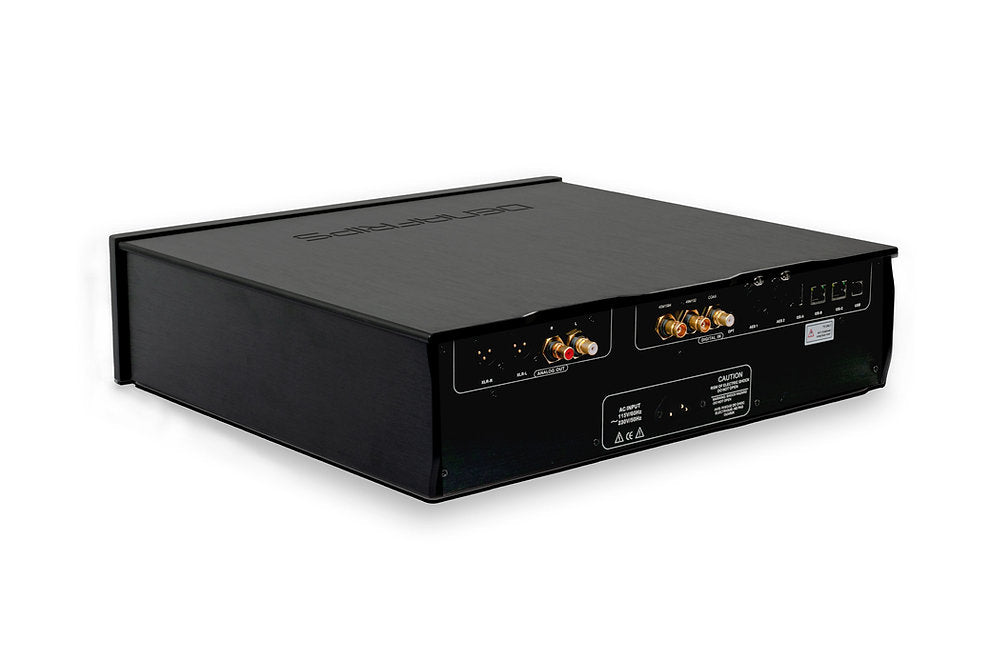

- Versatile digital inputs: USB, I²S (HDMI and RJ45), AES/EBU, coaxial, optical
- Analog outputs: RCA (2.0 Vrms, 625 Ω) and XLR (4.0 Vrms, 1250 Ω)
- Clock Output (BNC 75 Ω): 44.1 kHz, 48 kHz, 22.5792 MHz, 24.576 MHz, 45.1584 MHz, 49.152 MHz
Specifications
- Frequency response: 20 Hz – 40 kHz (-0.2 dB)
- THD: 0.05% (RCA), 0.002% (XLR)
- Signal-to-noise ratio: 110 dB (RCA), 120 dB (XLR)
- Dynamic range: 132 dB
- Inter-channel interference: -110 dB
- Power requirements: 100–240 VAC, 50/60 Hz
- Power consumption: ≤20W
- Dimensions (W x D x H): 430 x 380 x 125 mm
- Weight: 19.0 kg
Denafrips TERMINATOR 15th offers top-notch sound quality and technical performance that will meet the expectations of even the most demanding listeners. Its innovative design and high-quality components make it an excellent choice for high-end sound systems.
