Denafrips Terminator Plus 15th Anniversary Edition DA Converter
Extreme precision and musical depth
Denafrips Terminator-Plus 15th is the manufacturer's flagship model, celebrating 15 years of excellence in the world of digital audio. This DAC, based on the R-2R architecture, offers exceptionally clean and detailed sound quality that meets the expectations of even the most demanding listeners.
Key features
- R-2R + DSD Architecture: True balanced 26-bit R-2R networks and 6-bit DSD (32-step FIR filters) ensure accurate and natural sound conversion.
- OCXO Clocks: Two crystal oscillators (45.1584 MHz and 49.152 MHz) provide extremely low phase distortion and high accuracy, improving sound clarity and depth.
- Digital and Analog Isolation: The digital processing board and R-2R networks are fully isolated from each other, reducing noise and improving signal-to-noise ratio.
- Adaptive FIFO Buffer Reclocking: Reduces voltage fluctuations and improves audio signal accuracy by storing and reclocking digital audio data before conversion.
- High-quality power supply: Encapsulated, ultra-low-noise power supply with gold, silver, and copper-containing O-type transformers provides clean and stable power delivery.
Specifications

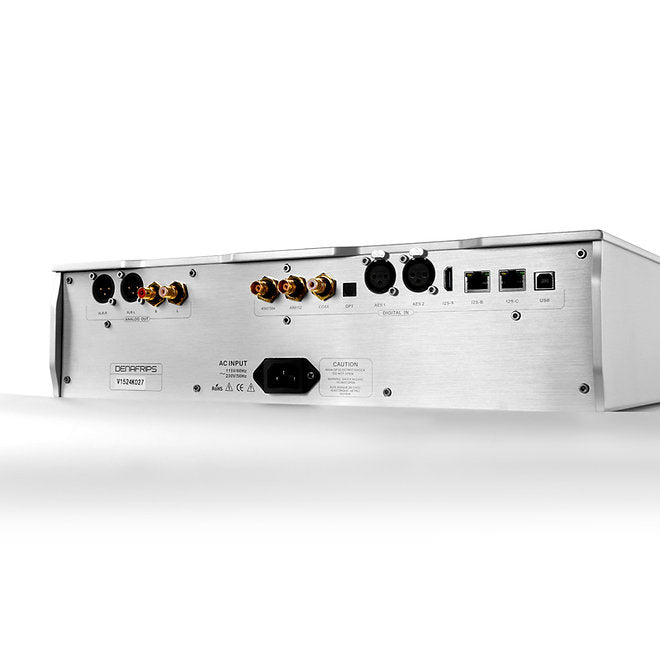

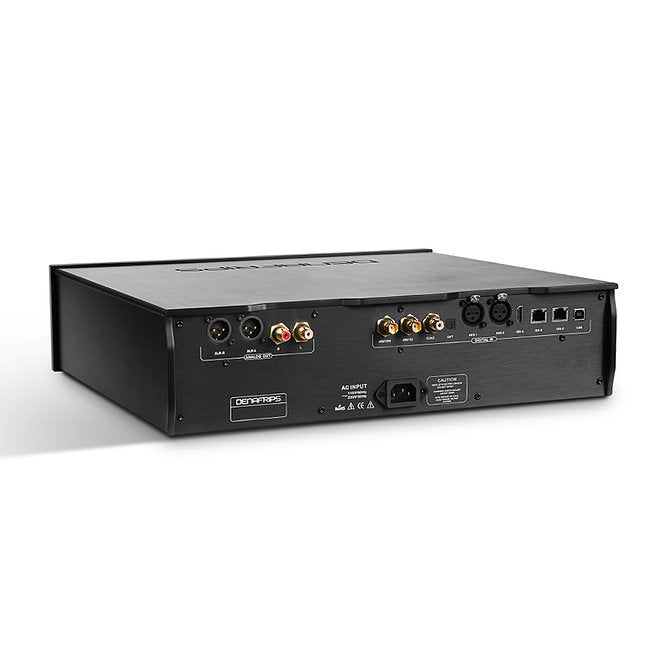

- Digital inputs:
- 1 x RCA (Coaxial)
- 1 x TOSLink (Optical)
- 2 x AES/EBU (supports Dual AES/EBU L/R channel input)
- 1 x USB 2.0 Type B
- I²S HDMI LVDS
- I²S RJ45 LVDS
- I²S RJ45 LVCMOS
Analog outputs:
- RCA: 2.2Vrms, 625Ω
- XLR: 4.4Vrms, 1250Ω
Supported formats:
- PCM: 24bit / 44.1–192 kHz on all inputs; up to 1536 kHz on USB and I²S inputs
- DSD: DSD64 (DoP) on all inputs; up to DSD1024 on USB and I²S inputs
- Clock output (BNC 75Ω):
- 44.1kHz, 48kHz
- 22.5774MHz, 24.576MHz
- 45.1548MHz, 49.152MHz

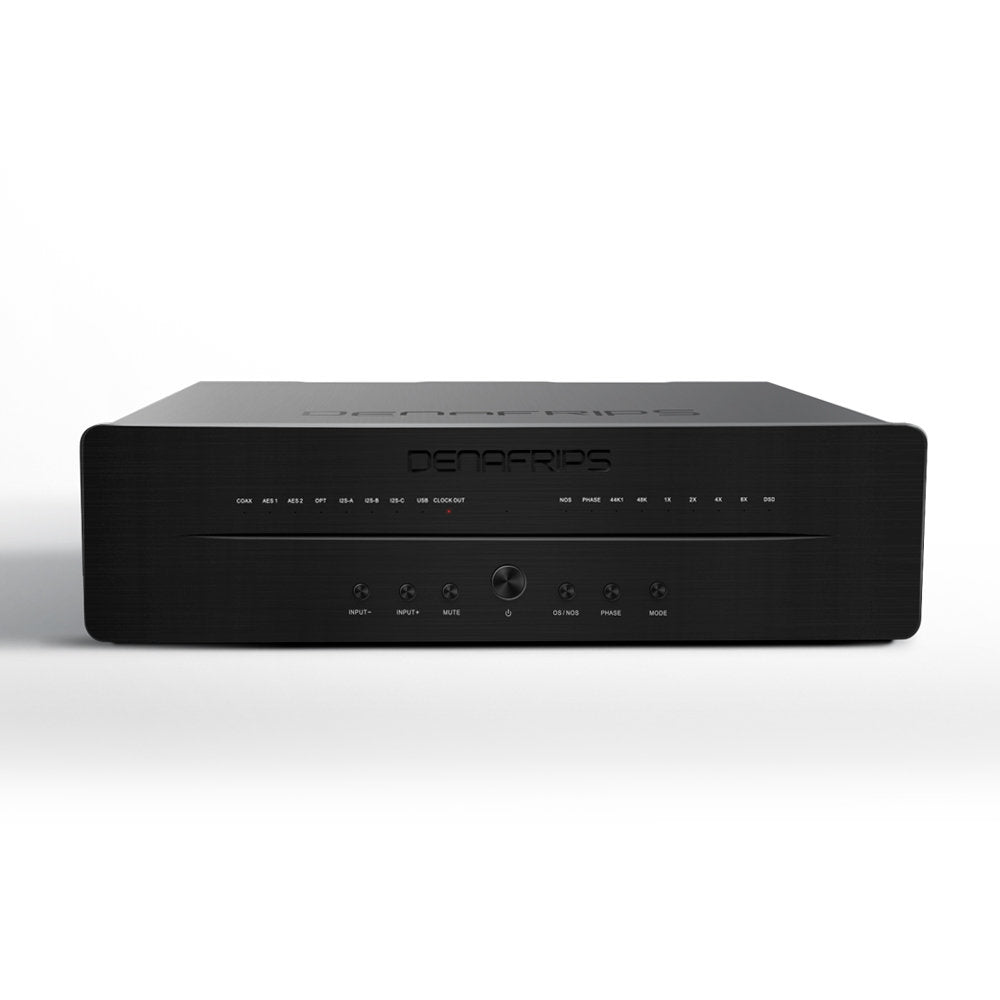

Sampling facilities:
- Non-Oversampling (NOS)
- Oversampling (OS)
Performance:
- Frequency response: 20–40 kHz (-0.2 dB)
- THD+N: 0.0010%
- Signal-to-noise ratio: 127 dB
- Dynamic range: >132 dB
- Crosstalk between channels: -110 dB
Power supply:
- 100–240 VAC, 50/60 Hz (worldwide voltage compatibility)
- Power consumption: ≤20W
Physical dimensions:
- Dimensions: 430 x 380 x 125 mm (including legs)
- Weight: 19 kg

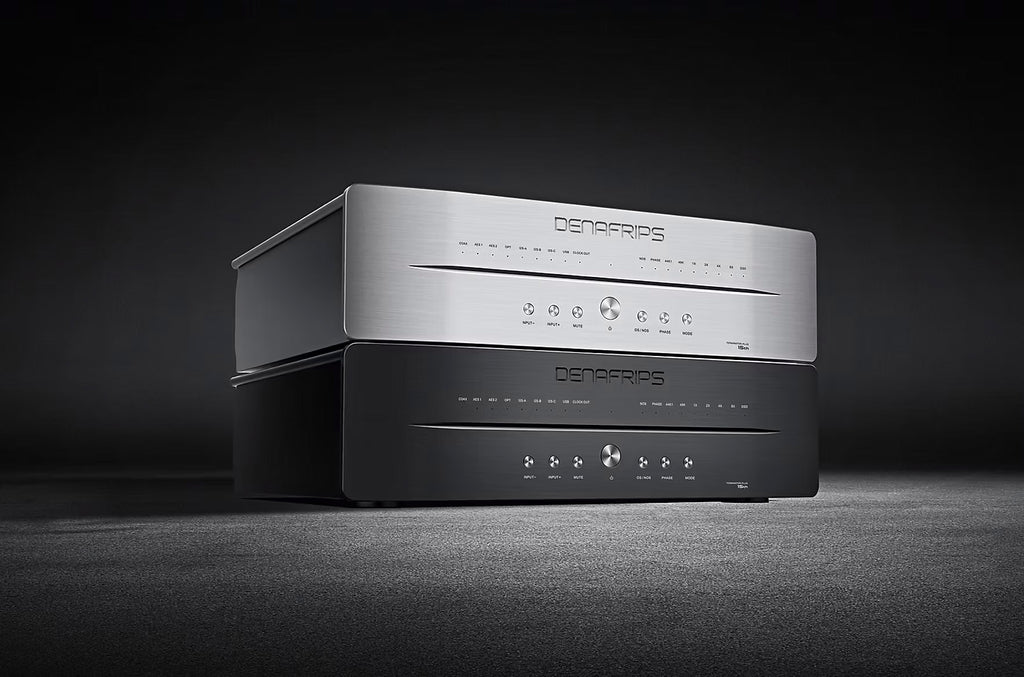

- Colors: Silver / Black
- Warranty: 36 months
