Description
The Denon AVR-X1800H AV receiver delivers pure and trusted Denon power from two to up to seven speakers. A stable power supply means better sound quality from your old or new speakers. The amplifier technology represents Denon's well-proven class AB discrete component implementation, which produces tonal and natural sound without clinical sharpness. The AVR-X1800H creates a realistic and immersive experience with both stereo music and multi-channel 3D sound effects. Of the latter, the amplifier can e.g. Dolby Atmos®, Dolby Atmos Height Virtualization, DTS:X® and DTS Virtual:X™ technologies. The AVR-X1800H is compatible with the latest 8K/60Hz video technologies. 8K/60 and 4K/120Hz pass-through is in the three inputs, so you can enjoy perfect image reproduction with the latest game consoles and computers when gaming. Otherwise, on the image side, e.g. Dolby Vision™, HDR10, HDR10+, 8K upscaling and HDCP 2.3 support can be found on all HDMI connections (6 in/1 out), so the amplifier is perfectly equipped with today's best image sources and display devices in mind.
With HEOS® features, you can stream the most popular streaming services such as Spotify®, TIDAL, Deezer, TuneIn, Amazon Music HD, Soundcloud and many others over Bluetooth, Apple AirPlay 2 or Wi-Fi.
The award-winning Denon Setup Assistant first-time installation program ensures that you get the most relevant settings at once on the miter. Every home theater is different - that's why Denon uses Audyssey's state-of-the-art calibration technology, which automatically measures and optimizes the audio system to suit the conditions of the listening room. For those who need particularly precise adjustability, the Audyssey Editor application (paid option) is also available, with which you can modify the response and other features of the room correction to your heart's content.
CHARACTERISTICS
7.2-channel AV tuner: Seven powerful amplifier channels guarantee the well-known Deno sound quality.
Selection of the operating mode of two amplifier channels: listen to music in another room, double the amplifiers of your main speakers (Bi-Amp), add Dolby Atmos height speakers or control the surround back rear speakers.
Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X and DTS Virtual:X support: Enjoy 3D sound reproduction with up to a 5.2.2-channel speaker system.
Full 8K/60Hz and 4K/120Hz support: Enjoy your 8K image sources thanks to the latest HDMI compatibility. Three 8K inputs and one output with 8K/60Hz playback and 4K/120Hz pass-through. 8K upscaling for all six HDMI inputs.
The latest video technologies: Support for the latest HDR formats including HDR10, HDR10+, HLG, Dolby Vision, and Dynamic HDR ensures the best brightness, contrast and colors for image sources.
The latest news from the video game front: 4K/120Hz passthrough, variable refresh rate (VRR), Automatic Low Latency Mode (ALLM) and Quick Frame Transport (QFT) guarantee great image quality and lower lag.
Award-winning Denon Setup Assistant and graphical user interface: Easy and intuitive setup.
Built-in HEOS multi-room technology: Listen to your favorite music in any room.
Smart TV compatible: Control the amplifier with your TV remote control (standard HDMI CEC control).
Enhanced Audio Return Channel (eARC): Play Dolby Atmos and DTS:X 3D audio from video apps on your TV easily via HDMI cable.
Game Mode: Low Latency Mode (ALLM) support for lag-free gaming (also requires support from a 4K monitor and game console).
Support for Spotify, Amazon Music HD, TuneIn, Deezer and more: Stream popular music streaming services wirelessly.
HiRes DSD (2.8/5.6MHz), FLAC, ALAC and WAV support: Studio-level playback of music files for those who want the best sound quality.
Built-in turntable preamplifier (for MM box): Connect the vinyl turntable directly to the amplifier.
All Zone TV audio feature: Play TV sound on all HEOS devices in the home.
Audyssey MultEQ XT calibration software: Optimize the sound exactly to match the acoustics of your own room.
TECHNICAL INFORMATION

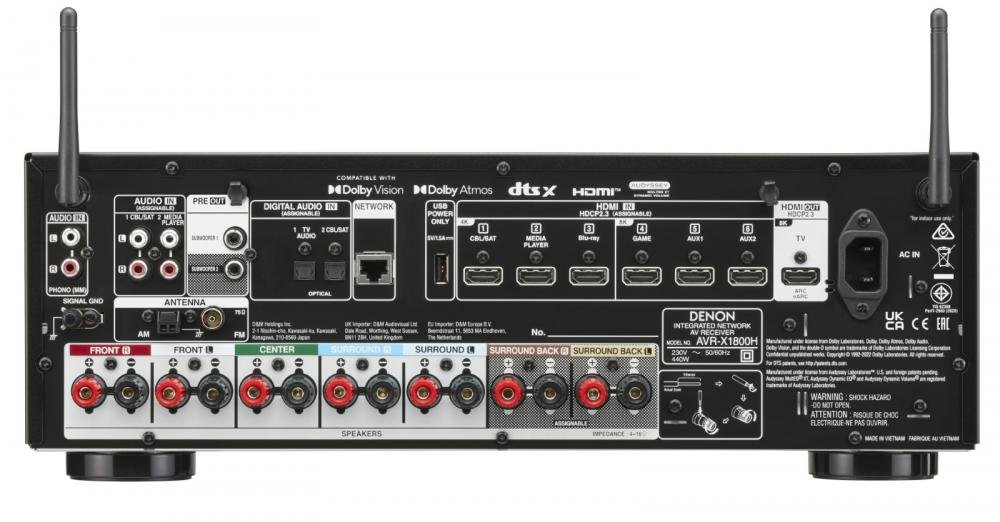

Connections:
- HDMI inputs: 6x HDMI (of which 3x 8K)
- HDMI outputs: 1x eARC/8K
- Analog inputs for sound (RCA): 2 (+1 MM Phono connection)
- Optical inputs: 2
- USB connection on the front panel
- USB power supply on the back panel (5V/1.5A)
- 2x Subwoofer output (RCA)
- Headphone jack
- Microphone connection (Audyssey)
- Ethernet connection
- FM/AM antenna connection
Sound features:
- Number of amplifier channels: 7
- Power (8 ohm, 20 Hz - 20 kHz, THD 0.08%, 2 channels loaded): 80W per channel
- Burst power (6 ohm, 1 kHz, THD 0.7%, 2 channels loaded): 120W per channel
- Burst power (6 ohm, 1 kHz, THD 1%, 1 channel under load): 145W
- Speaker impedance 4 to 16 ohms
- Audyssey MultEQ XT
- Audyssey Dynamic EQ / Dynamic Volume
- DTS:X / DTS Neural:X / DTS HD Master
- Dolby Atmos / Dolby TrueHD / Dolby Surround
HDMI:
- HDCP 2.3
- 8K/60Hz and 4K/120Hz Ultra HD
- 4:4:4 Pure Color
- High Dynamic Range (HDR10+)
- Dolby Vision, HLG
- 3D and BT.2020 pass-through
- HDMI pass-through in standby mode
- eARC
- Auto lipsync
Network functions:
- Network streaming support: MP3 / WMA / AAC / FLAC / ALAC / WAV
- Non-stop playback support for HD music as well
- FLAC HD 192/24
- WAV 192/24
- ALAC 96/24
- DSD 2.8MHz / 5.6MHz
- AirPlay 2 audio streaming
- Spotify Connect
- Internet radio (TuneIn)
- Roon Tested
- Denon HEOS and AVR Remote App for iOS and Android devices
- Ethernet, Wi-Fi 2.4GHz/5GHz and Bluetooth reception and transmission
Dimensions:
- Dimensions (WxHxD): 434 x 151 x 339 mm
- Power consumption (Normal / ECO / Standby): 39 W / 29 W / 0.1 - 2 W depending on CEC and network settings
- Maximum power consumption: 430W
- Weight: 8.6 kg
- Warranty 24 months
