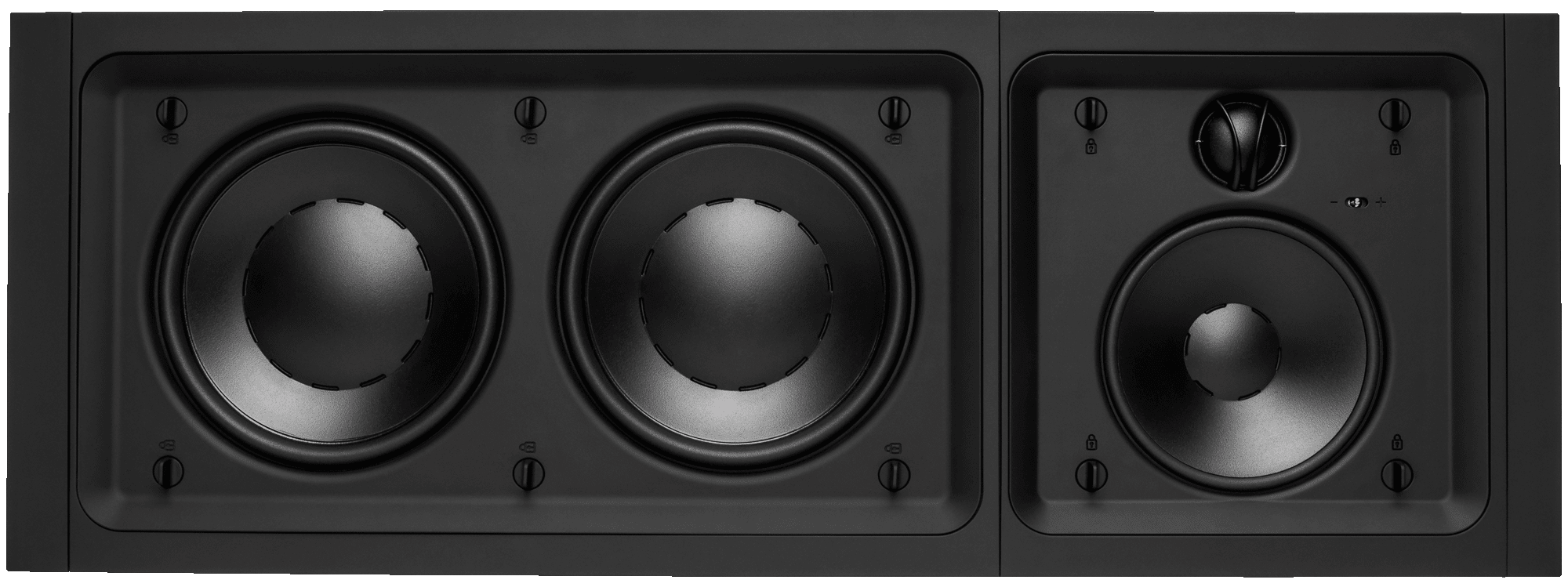

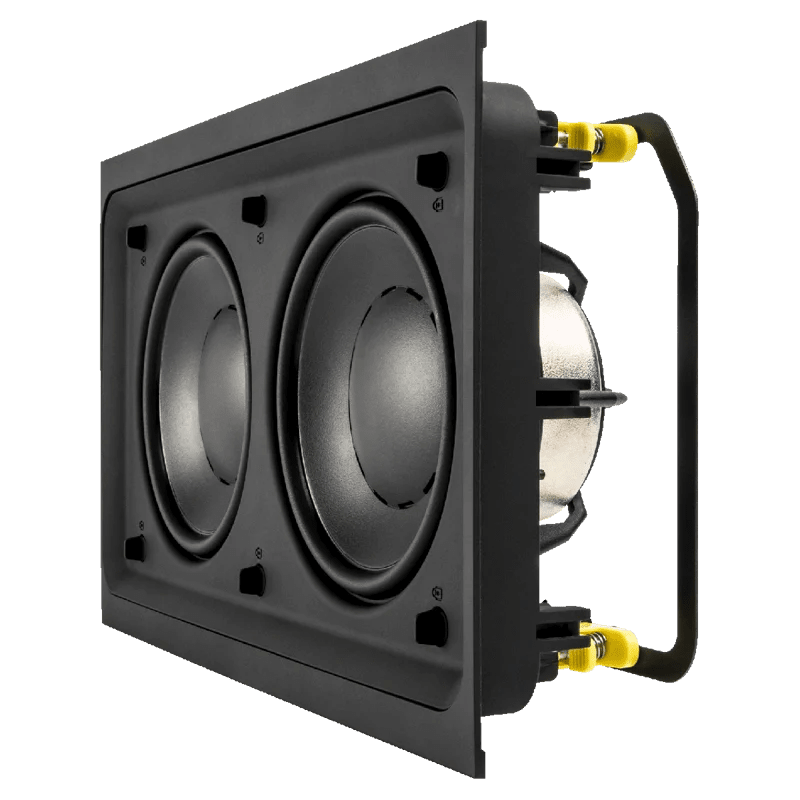

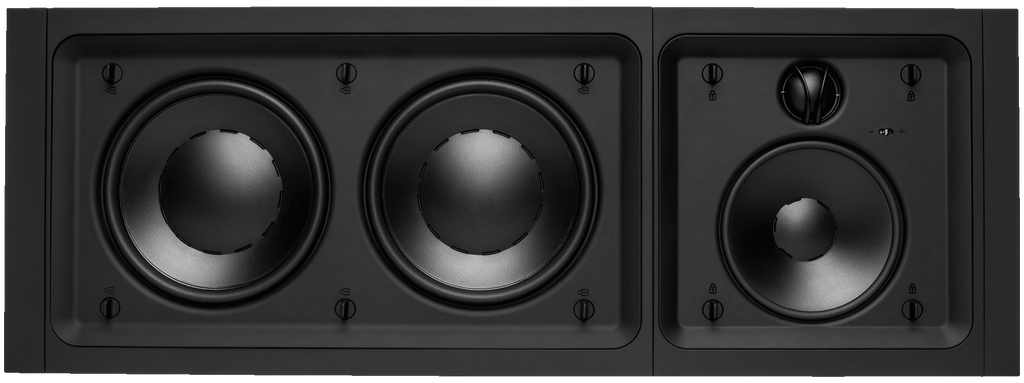

DYNAUDIO S4-LCR6W IN-DEPTH SPEAKER
In-Wall speaker, Studio series in-wall speaker, woofer module. 2 x 16.5 cm MSP woofer.
DOWNLOAD THE PRODUCT DATASHEET HERE
Intelligent design. An instant system, tailored for you.
The Dynaudio Custom Studio S4-LCR65 system lets you create personalized vertically or horizontally oriented left, center and right three-way speaker channels. And it's a Breeze to install... even between stud bays.
Its Intelligent modular design means Incredible flexibility: the S4-LCRMT mid/tweeter and S4-LCR65W woofer modules fit around standard 16in studs (so you don't have to cut them away). You can position the Tweeter either way up and at any height in the array (so the listener gets total focus). And the individual modules are easily connected using speaker wire, with their frames either connected together and installed in a single cut-out, or spaced apart in multiple cut-outs to create a Bespoke single channel (so the possibilities are immense).
Easy installation, custom features

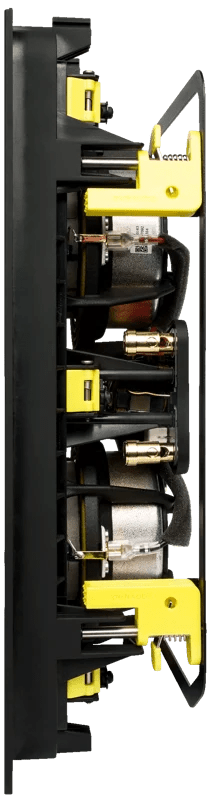

Like the rest of the Dynaudio Custom range, all the modules mount into their frames without any tools required. The frames use a special integrated counter-spring mechanism that prevents unwanted Sonic vibrations while keeping everything solidly connected in the installation.
Each module uses a passive crossover with a three-position switch, pre-configured to standard LCR channel configurations that use one or two connected woofer modules. There's also a bypass position to enable an Unlimited number of fully active and completely customized S4-LCR65 system Setups with external DSP processing and a dedicated amplifier channel for every driver.
The S4-LCR65 system has five different optional paintable white grilles that attach magnetically (four standard-sized and one customizable), and it can also be installed behind acoustic fabric or acoustically transparent screens.
And, of course, it uses the same materials and technologies that have made our other loudspeakers so legendary: soft-dome tweeters, MSP cones and large Aluminum voice-coils. Classic Dynaudio heritage in a brand-new configuration.
- Segment: Custom Install
- Range: Studio
- Type: In-wall Bass Module
- Sensitivity (dB @ 2.83V/1m): 86
- Rated Power: 50
- Long Term Power: 200
- Rated Impedance (Ohms): 8
- Impedance (Minimum): 4.6
- Lower Cutoff (Hz @ +/- 3 dB): 35
- Crossover: Custom
- Midrange/Woofer: 2x 16.5 cm MSP
- Tweeter level options: -3dB, 0dB, +3dB
- Width mm: 395
- Height mm: 213
- Depth mm: 90
- Width Cutout mm: 190
- Height Cutout mm: 373
