DYNAUDIO S4-LCRMT IN-RESTRICTED SPEAKER

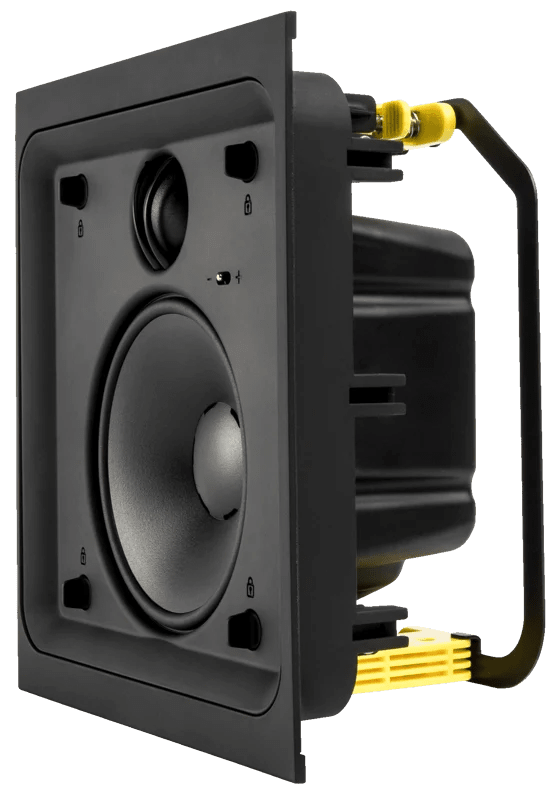

In-Wall speaker, Studio series in-wall speaker, mid-bass / tweeter module. 2 x 16.5 cm MSP midrange/woofer element, 28 mm Soft Dome tweeter.
DOWNLOAD THE PRODUCT DATASHEET HERE
Wall of sound. Simple installation, simple finishing, simply brilliant.
It isn't fun cutting through studs in walls. It isn't fun dealing with the extra bracing required. It isn't fun cleaning up the sawdust. So don't put yourself through it…
The Dynaudio Custom Studio series S4-LCR65 system is modular; its separate woofer and Tweeter modules are designed to fit snugly in the spaces between standard American 16in on-center wall-studs. That means you can configure a full three-way LCR array with no modifications – and no more effort than it takes to spec the rest of the system.

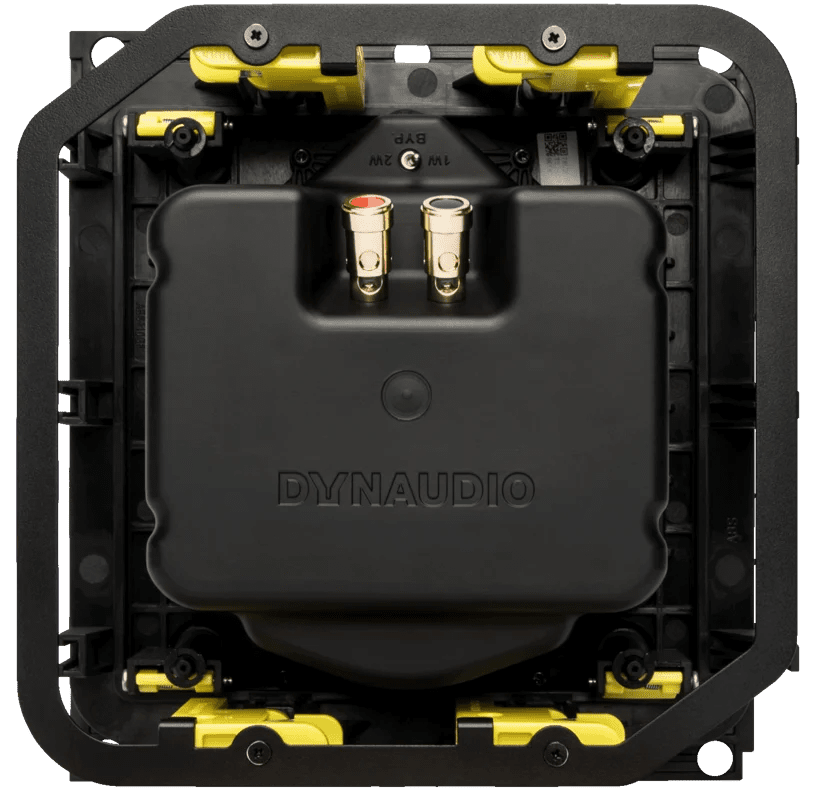

The Tweeter modules can be placed either way up to optimize the system for the listening position, while a rear switch lets you match their power setting to the number of woofer modules you've chosen. There's also a passive filter bypass setting to unlock an Unlimited range of fully active LCR system configurations.

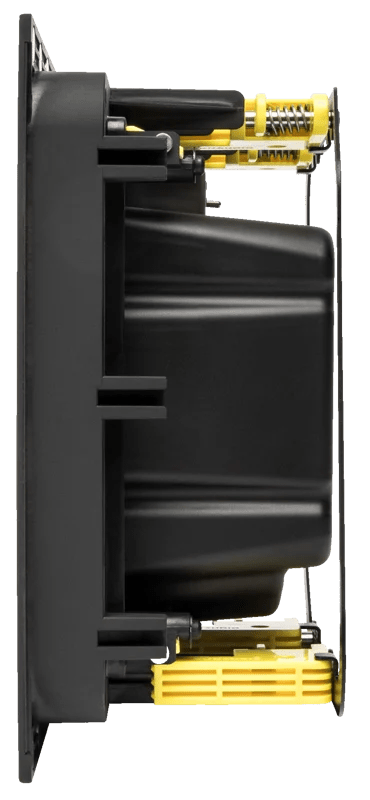

Our engineers wanted to make it as easy as possible to install a larger array in one go, which is why magnetic fastenings hold everything securely together if you're not separating the modules. The S4-LCR65 system also uses the exact same unique clamp-and-lock mechanism as the rest of the Dynaudio Custom Studio range.
- Segment: Custom Install
- Range: Studio
- Type: In-wall tweeter/mid module
- Sensitivity (dB @ 2.83V/1m): 89
- Rated Power: 50
- Long Term Power: 150
- Rated Impedance (Ohms): 8
- Impedance (Minimum): 5
- Lower Cutoff (Hz @ +/- 3 dB): 250
- Upper Cutoff (kHz @ +/- 3 dB): 20
- Crossover: 2-way
- Tweeter: 28 mm soft dome
- Midrange/Woofer: 2x 16.5 cm MSP
- Tweeter level options: -3dB, 0dB, +3dB
- Width mm: 395
- Height mm: 213
- Depth mm: 90
- Width Cutout mm: 190
- Height Cutout mm: 373
