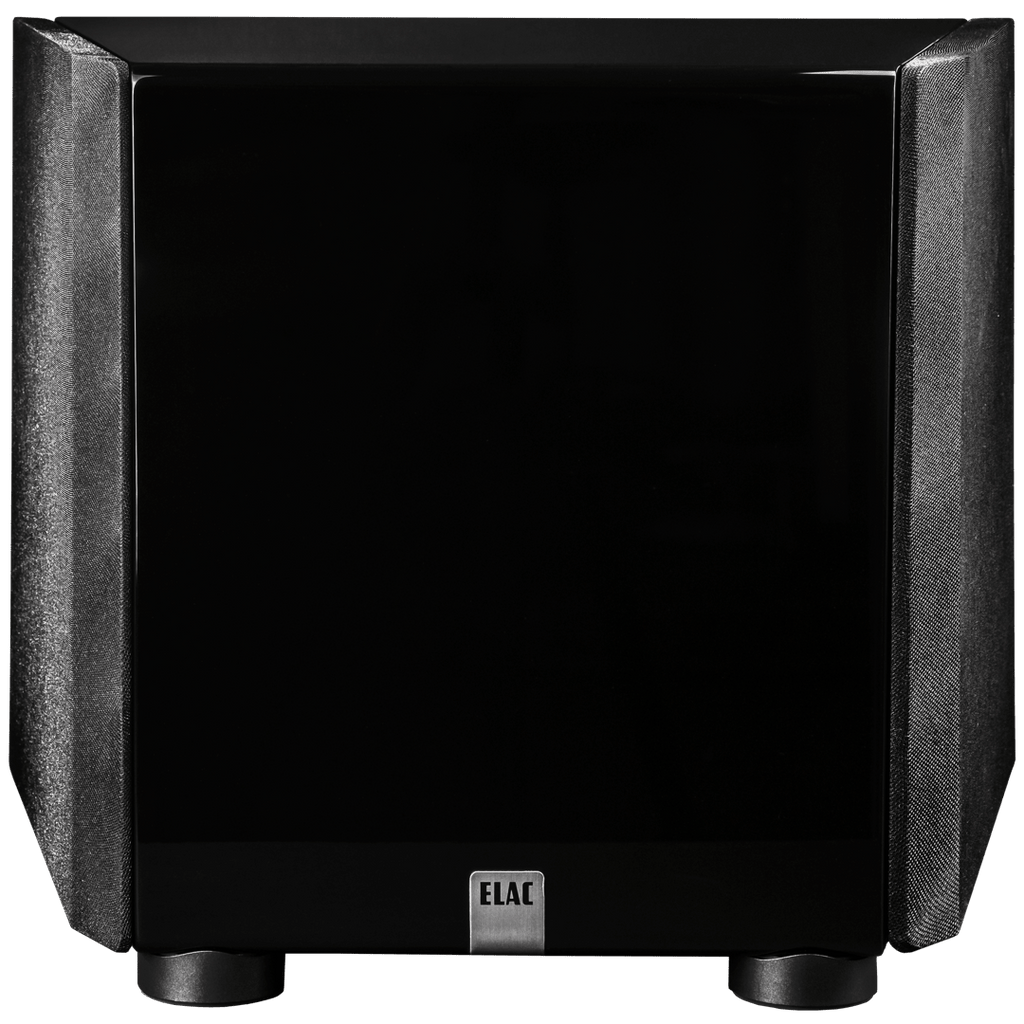

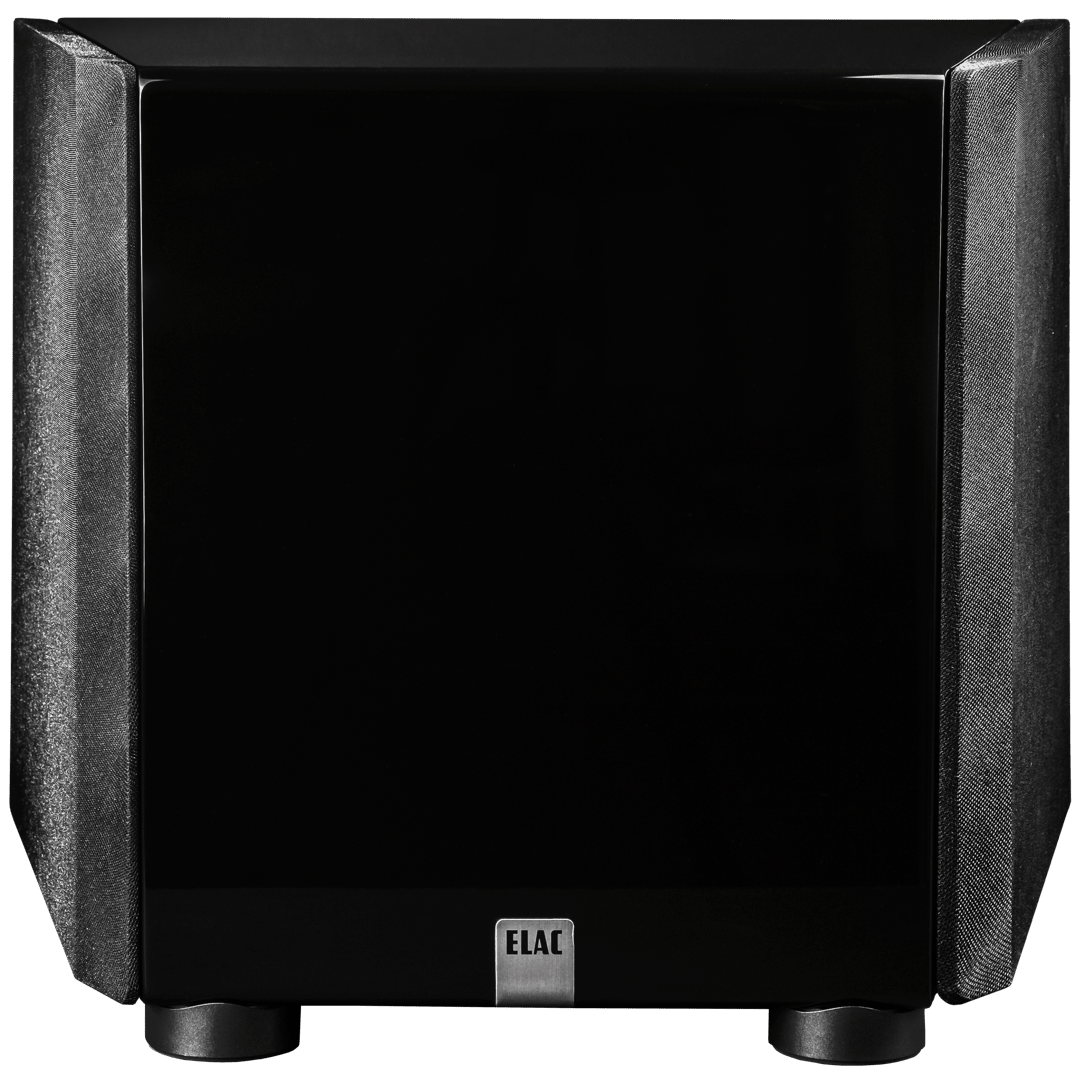

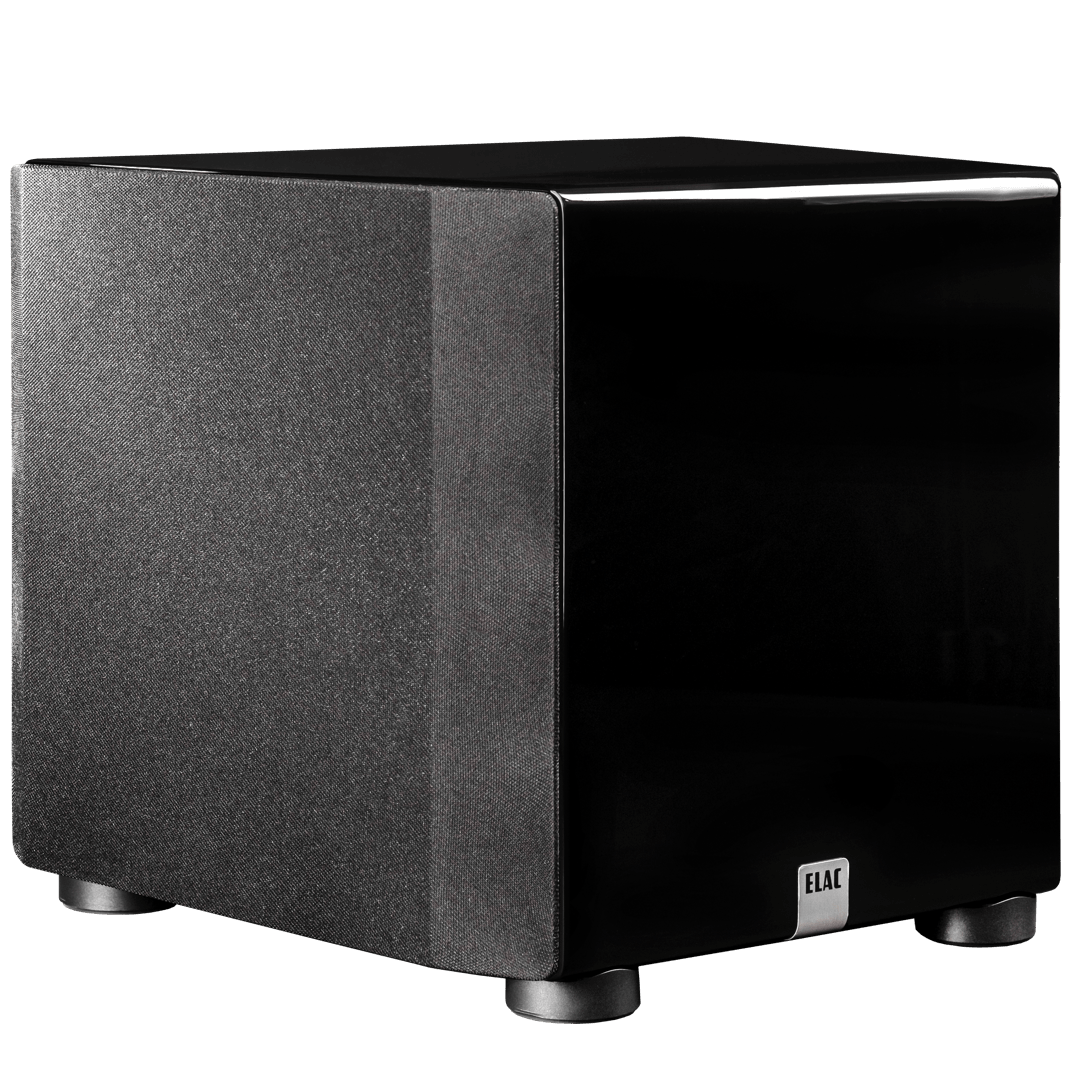

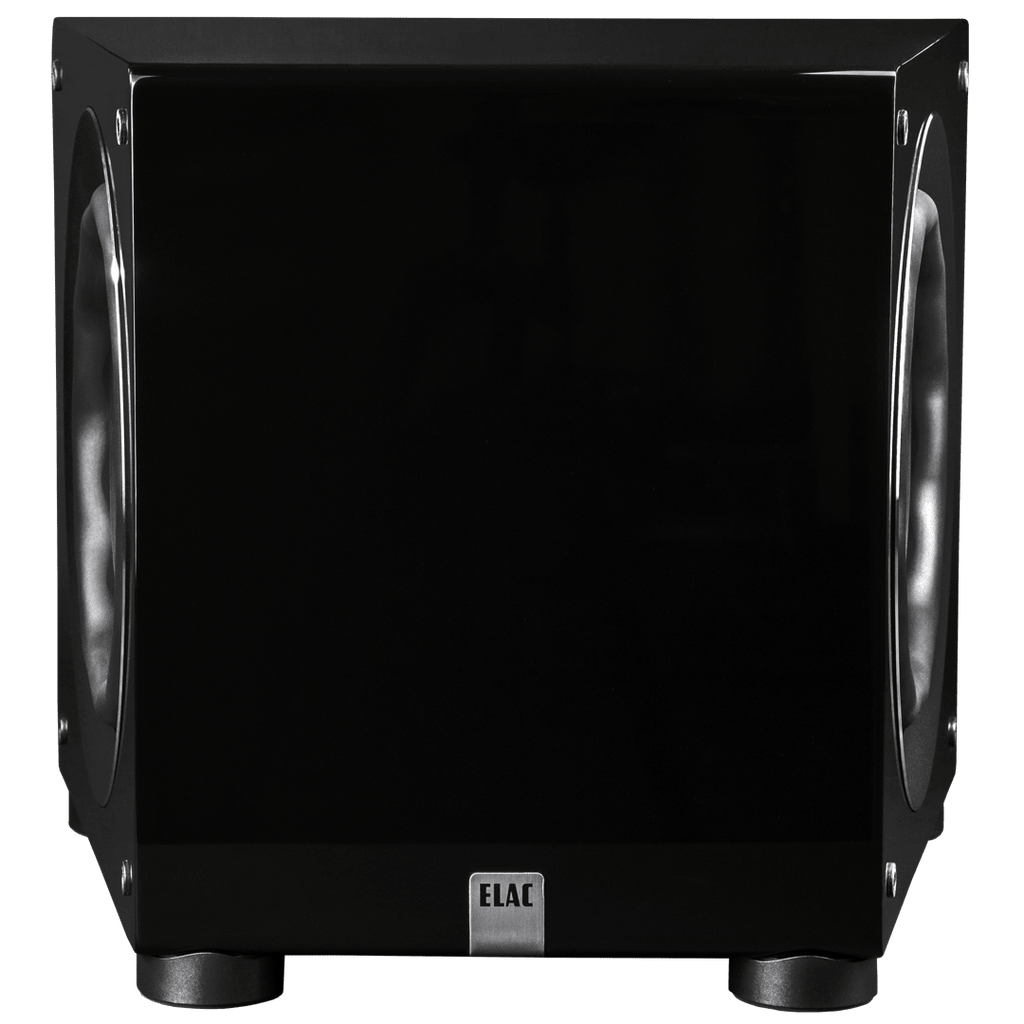

Elac DS1200 12″ Dual Subwoofer
Varro Dual Reference Series 12" Subwoofer
Powerful. Bold. Dynamic ELAC Dual Reference Series Subwoofers: Total Performance Begins With Design
Experience the Incredible sound of our iconic Dual Reference Series Subwoofer — this single subwoofer can power your sound system with even, precisely tuned, crystal-clear bass. Our state-of-the-art technology delivers a clean, balanced low-frequency experience, with two powerful bass drivers with excellent linearity, producing tight and accurate bass, with minimal distortion. Perfectly tuned for the most demanding movies or music.

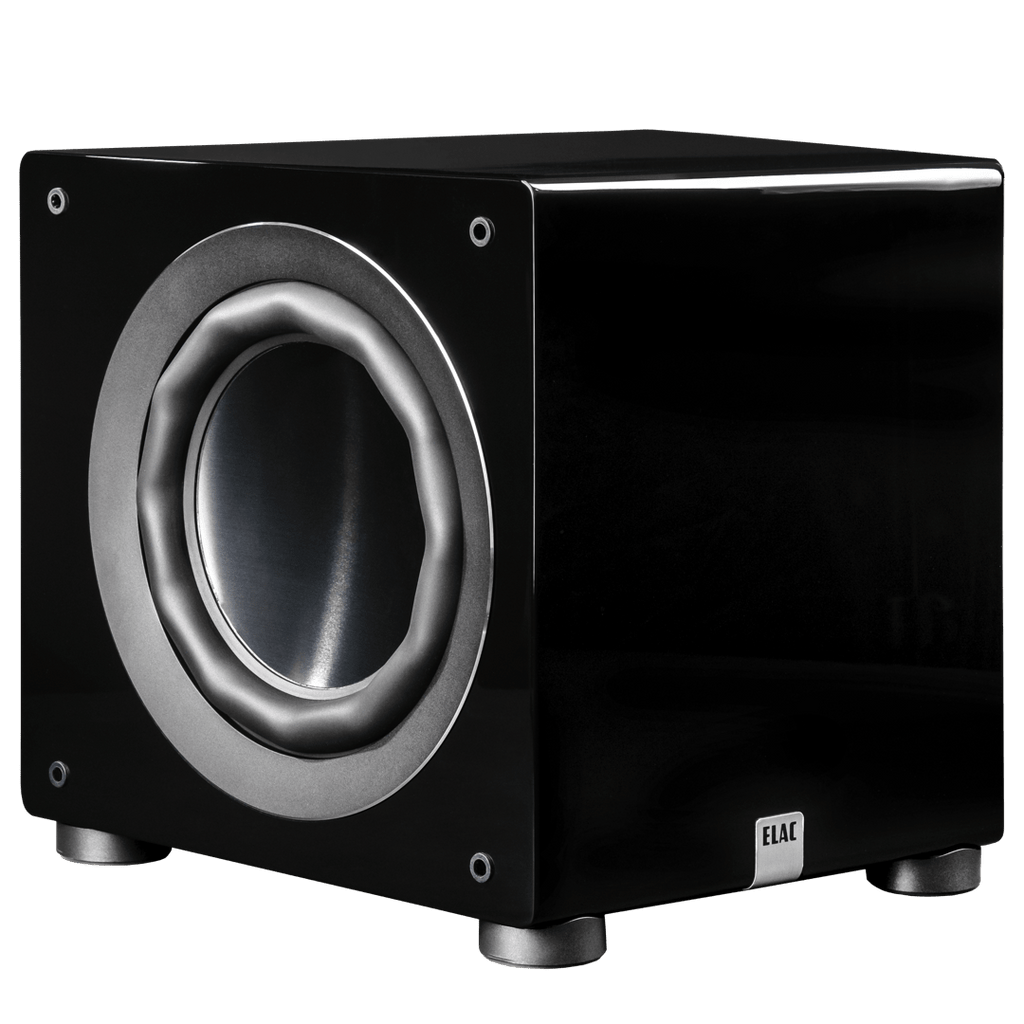

Advanced Woofer Design Total Performance Begins With Design
Our High Excursion (HEX) surround technology allows for greater extrusion and less distortion.
However, to facilitate the extra movement, longer voice coils were required. Meaning our Aluminum Sandwich technology was too heavy.
To improve efficiency, our drivers were designed with cutouts arranged in the paper cone prior to gluing to the aluminum cone.
The Die Cast backrest ensures strength under load, and a large magnet completes the custom driver.
Custom Designed BASH Amplifier All seven models utilize BASH technology.
The discrete implementation of these tracking amplifiers allows for maximum voltage swing, providing all the power that is needed and additional dynamic power throughout the entire operating range of the woofers.
Auto EQ and Advanced App Control Placement of a subwoofer can be challenging. This is because typically they are placed in Corners or Hidden next to Couches causing reflection, Peaks or valleys.
The principle of ELAC's Auto EQ, is to remove the effect of the room by making a near-field measurement and comparing it to a far-field (listening position) measurement.
This allows a greater degree of freedom for placing the subwoofer where it meets all requirements.
As the pioneer of APP-controlled subwoofers, all seven Varro subwoofers include our 3rd generation Sub Control 3.0 App with Auto EQ room correction and easy setup of multiple subwoofers.
Product Specifications
- Speaker Type Sealed
- Woofer 12" HEX Surround x2
- Frequency Response 17Hz—150Hz (Anechoic) 14Hz—150Hz (In-Room)
- Maximum Output Level, SPL dB/1m anechoic 118 dB
- Low Pass Crossover 40Hz to 150Hz
- Amplifier Power 1200/2400 Watts
- App Controlled (BLE) iOS and Android
- Amplifier Topology BASH
- Standby Power Consumption < 2.0 Watts

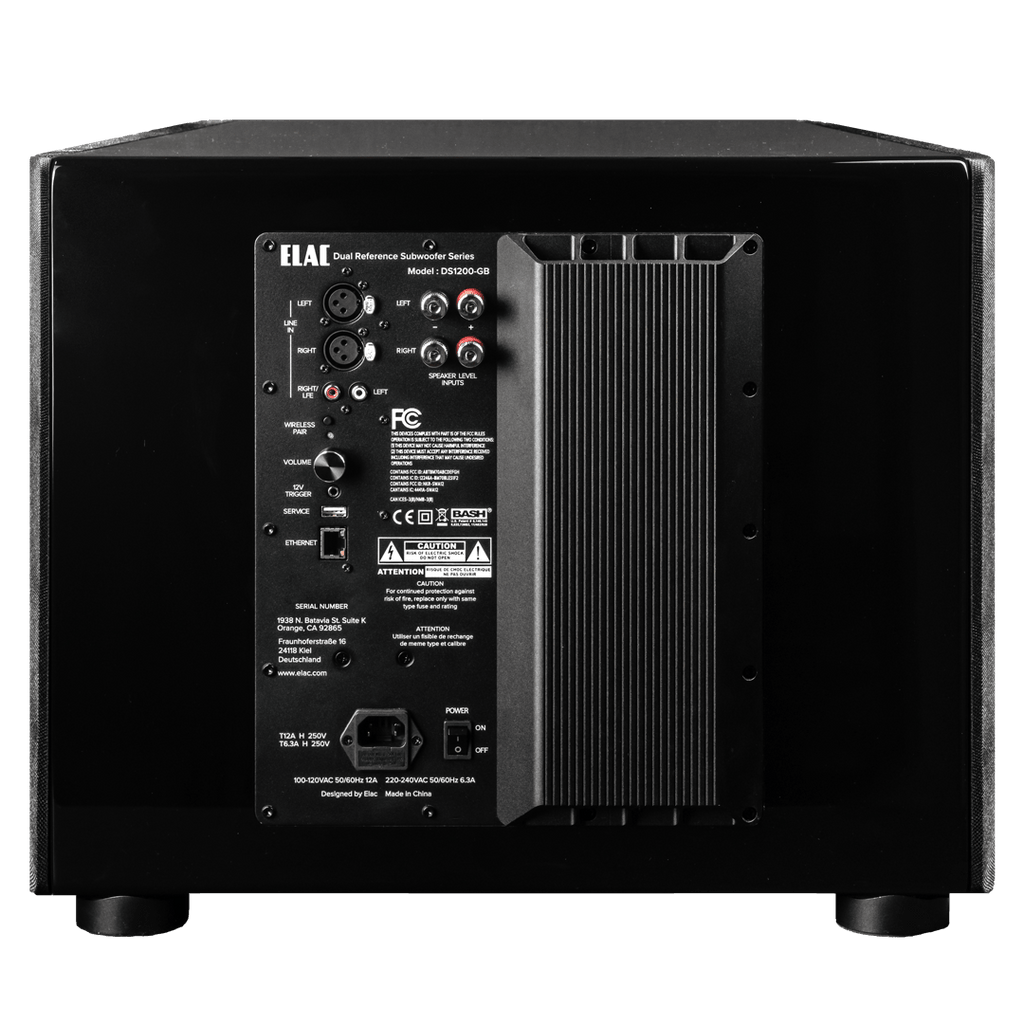

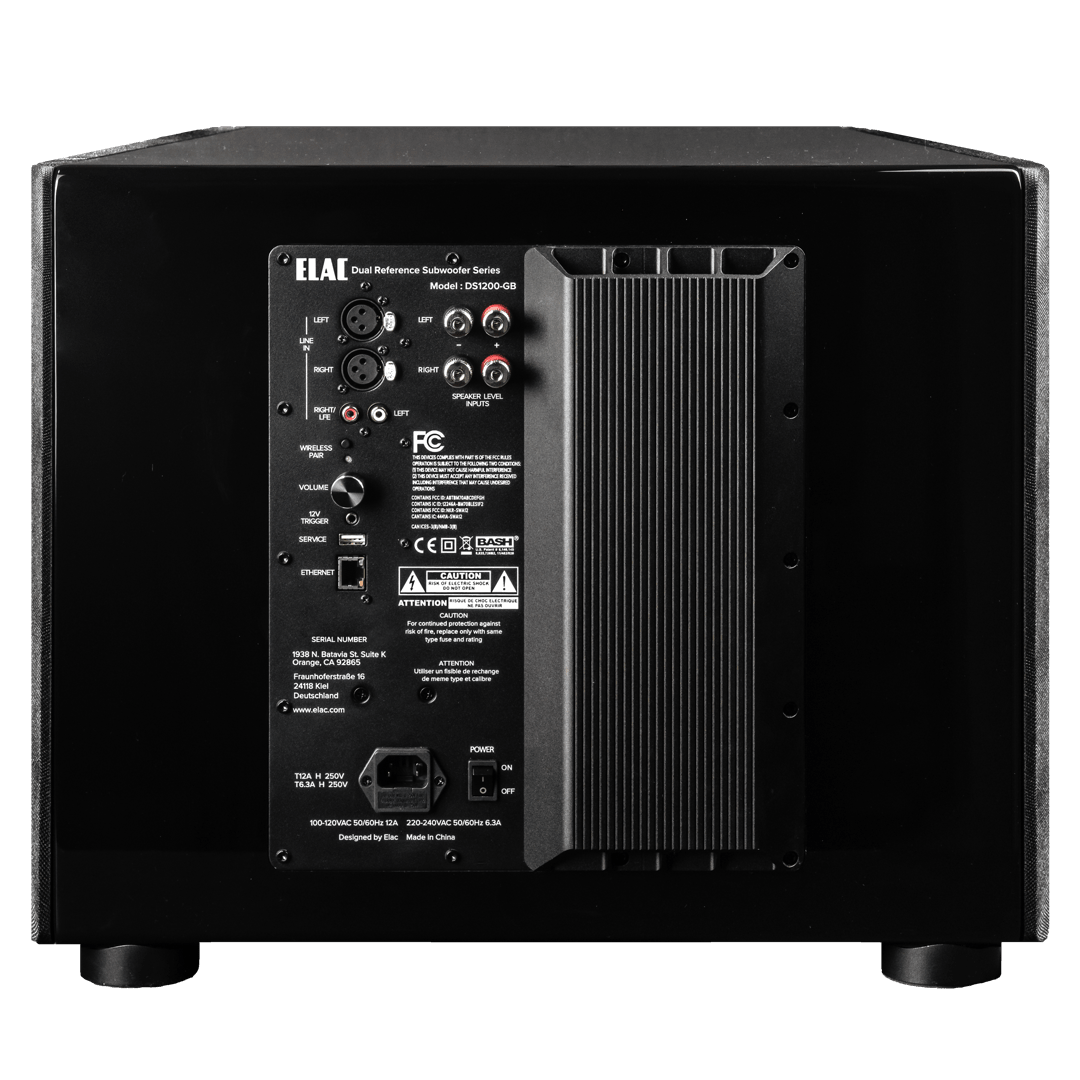

- Inputs RCA Line Level, Balanced XLR, Speaker Level
- 12 Volt Input 12 Volt Trigger
- Data Connection USB (Firmware Update)
- Ethernet Third-Party Control
- Cabinet Finish Gloss Black
- Included Accessories Grille
- AC Power Cord, Spikes
- Dimensions (H x W x D) 421 x 482 x 416 mm
- Net Weight 37.9 kg
