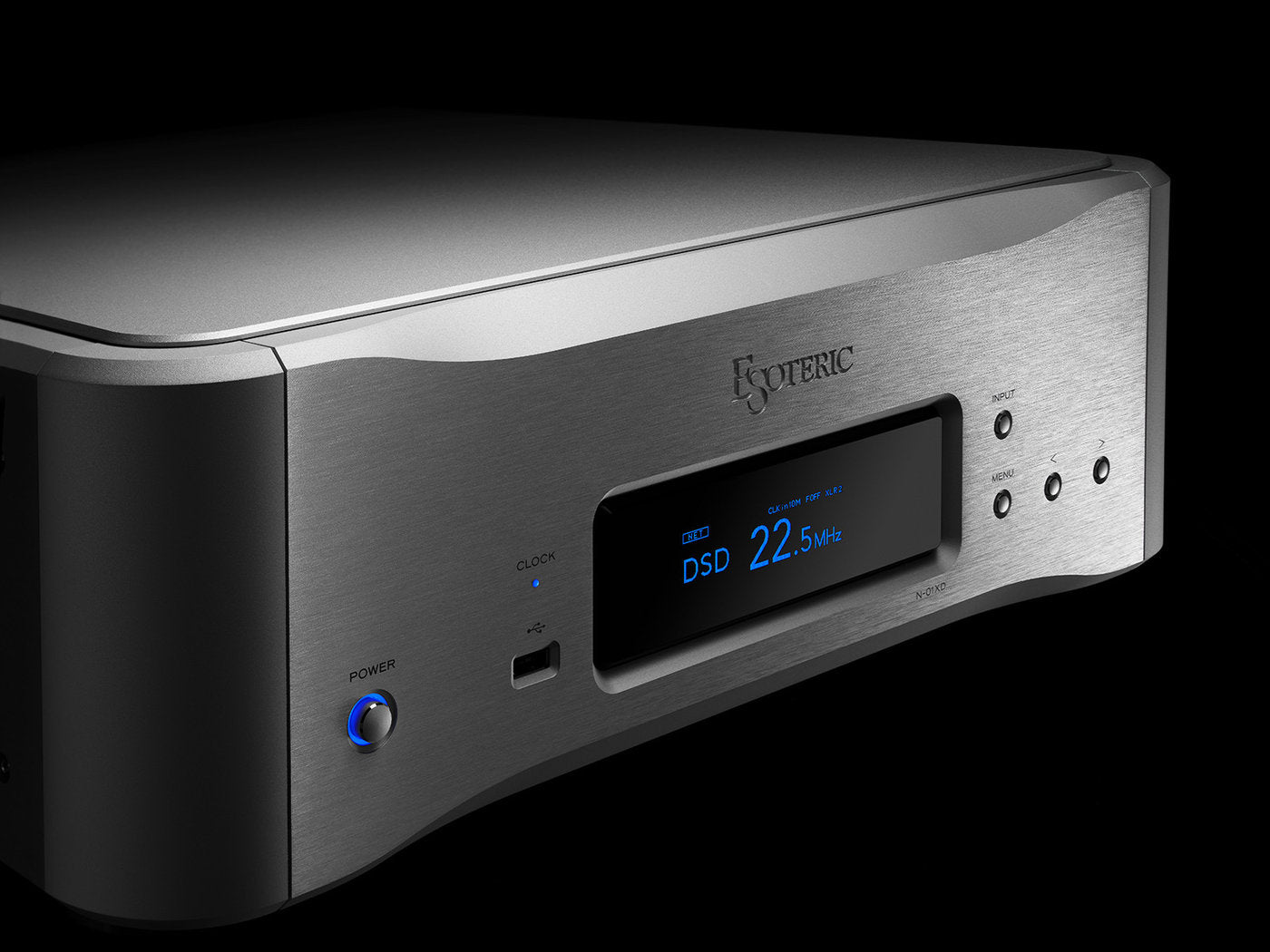

Esoteric N-01XD network player

The Ultimate Network x DAC only ESOTERIC could achieve

An all unique circuit design called "Master Sound Discrete DAC", together with a further refined sound quality Network Module as core technology results in the Ultimate Network Audio Player/DAC, the N-01XD. The outcome of ESOTERIC's passion that strives for the original master sound.

Specifications:

Digital audio input
ES-LINK	1 (L/R)
Input signal formats
Linear PCM	44.1k to 768kHz, 48bit (ES-LINK5 format)
DSD	2.8MHz, 5.6MHz, 11.2MHz, 22.5
XLR	1
Input level	5.0Vp-p
Input impedance	110Ω
Input signal formats
Linear PCM	32k to 192kHz, 16bit / 24bit (AES/EBU format)
DSD	2.8MHz (ES-LINK1, ES-LINK2, DoP format)
RCA	1
Input level	0.5Vp-p
Input impedance	75Ω
Input signal formats
Linear PCM	32k to 192kHz, 16bit / 24bit (IEC60958 format)
DSD	2.8MHz (DoP format)
OPTICAL	1
Input level	–24.0 to –14.5dBm Peak
Input signal formats
Linear PCM	32k to 192kHz, 16bit / 24bit (IEC60958 format)
DSD	2.8MHz (DoP format)
USB	1 (B type)
Input signal formats
Linear PCM	44.1k to 384kHz, 16bit / 24bit / 32bit
DSD	2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz
ETHERNET	1 (1000BASE-T)
Input signal formats
Linear PCM	44.1k to 384kHz, 16bit / 24bit / 32bit (stereo) • 32bit audio files only support integer formats.
DSD	2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz (stereo)
Supported file formats
PCM lossless	FLAC, Apple Lossless (ALAC), WAV, AIFF, MQA
DSD lossless	DSF, DSDIFF (DFF) , DoP
Compressed audio	MP3, AAC (m4a container)
USB DRIVE	2 (Front, Rear)
Supported file system	FAT32, exFAT, NTFS
	Single partition
	USB2.0 or later recommended
Maximum power supply	0.5A
Input signal formats
Linear PCM	44.1k to 384kHz, 16bit / 24bit / 32bit (stereo) • Only integer format file supported at 32bit
DSD	2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (stereo)
Supported file formats
PCM Lossless	FLAC, Apple Lossless (ALAC), WAV, AIFF, MQA
DSD Lossless	DSF, DSDIFF (DFF) , DoP
Compressed audio	MP3, AAC (m4a container)
Analog audio outputs
XLR/ESL-A	1 pair (L/R)
Output level	5.0Vrms (1kHz, 10kΩ loaded)
Output impedance	40Ω
RCA	1 pair (L/R)
Output level	2.5Vrms (1kHz, 10kΩ loaded)
Output impedance	15Ω
Clock sync input
BNC	1
Input frequency	10MHz (±10ppm)
Input impedance	50Ω
Input level
Rectangle wave	equivalent to TTL level
Sine wave	0.5 to 1.0Vrms
Clock sync output
BNC	1
Output level	TTL level equivalent (75Ω load)
Output frequency	44.1k / 48kHz
Output frequency accuracy	±0.5ppm
General
Power supply
	AC 230V, 50Hz
	AC 120V, 60Hz
	AC 220V, 60Hz
Power consumption	38W
External dimensions (W×H×D)	445 × 162 × 438mm 17-⅝" × 6-½" × 17-¼" (including protrusions)
Weight	26.3kg / 58lb
Included accessories	Power cord × 1 HDMI cable × 1 Felt pads × 4 Owner's manual × 1 Warranty card × 1

Audio performance

Frequency response	5Hz to 70kHz (–3dB)
S/N ratio	113dB
Distortion	0.0007% (1kHz)

• Design and specification are subject to change without notice.
• Weight and dimensions are approximate.
