Esoteric N-03T network player

Esoteric Sound Stream is an Apple iOS and a Google Android network playback app for tablets and smartphones designed with an emphasis on intuitive operability. Simply select music tracks by using your tablet or smartphone to create a customized playlist and then play the playlist. All screens are intuitively designed for easy operation and access to playlists and libraries, making it easy for anyone to use. It also has a wide range of advanced features that meet the demands of even the most experienced users.

A key feature is the excellent search and retrieval function that fully utilizes tag information. Images are also stored in the app, enabling you to instantly scroll through album artwork and libraries according to categories such as artist, year of recording, composer or category. For more information about ESOTERIC Sound Stream app, please see its product page here . For ESOTERIC Sound Stream app manual, please see here .

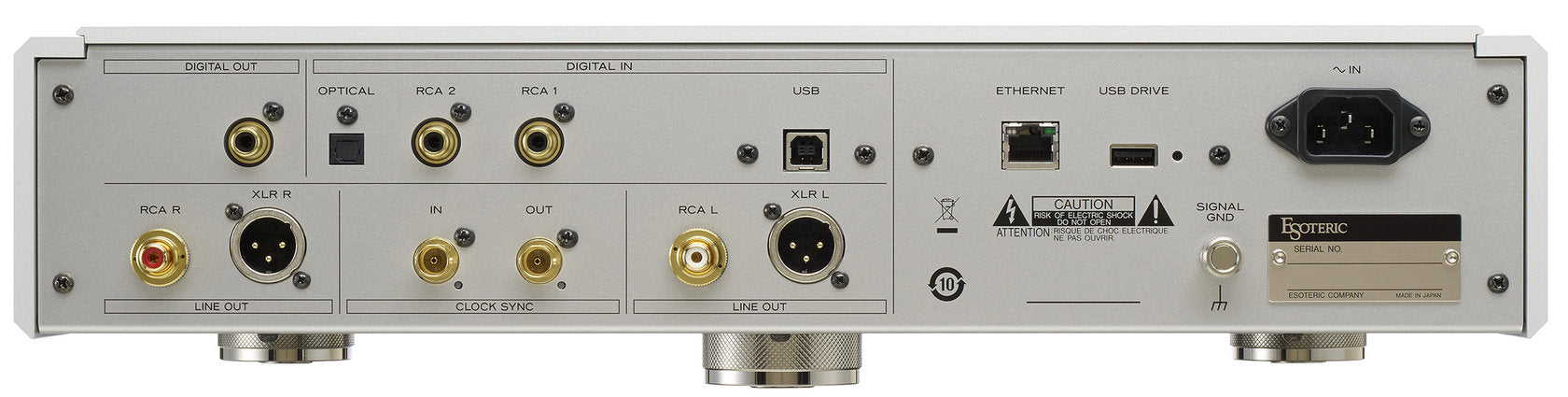

Two other digital output systems (XLRx1 and RCAx1) are also included, supporting PCM up to 192kHz/24-bit and DSD2.8MHz (DoP).

The N-03T can also be used as a Simplified music server in which a player and a library can be integrated by connecting large-capacity storage devices to two USB ports on the front and rear of the unit.

Esoteric has partnerships with a wide range of streaming service and audio codec providers, and preparations are underway for Compatibility with new services.*
*Information on newly supported services will be released on the Esoteric website. However, regional restrictions may be implemented on some services.

The N-03T is equipped with two large independent Toroidal transformers, one for the internal network module and one for the other digital circuits, enabling the ideal supply of power to each circuit block. Unlike a standard switching power supply, these large linear power supplies are made with high quality components such as large filter capacitors and Schottky barrier diodes. The dedicated power supply for the network module also has an EDLC (Electric Double-layer Capacitor), a super-capacitor that has 1F (1,000,000μF) capacitance. These provide a dramatic improvement in audio quality.

The bottom chassis used to secure the circuit components has a dual layer structure with two steel plates (5mm and 2mm). The power supply transformer and other components are arranged three-dimensionally on the two layers to prevent interference between components, and laser-cut slits are applied to each layer for effective control of vibration. And a thick, heavyweight aluminum panel enclosure and Esoteric's unique pinpoint feet (patents no. JP4075477 and JP3778108) provide thorough mechanical grounding against vibration.

Ever since we were first established, Esoteric's Philosophy has centered on modular audio systems, breaking audio down into separate devices and Refining each one to achieve maximum audio quality. The N-03T network audio transport system can be combined with Esoteric's range of D/A converters (D series) and Super Audio CD players (K series) to build your system just the way you want it.

Specifications:

• This product is available in three different power supply variations, as shown in the chart above. Make sure that the voltage shown on the rear panel matches the AC line voltage in your area.
• The shape of the AC Inlet and plug of the supplied power cord depends on the voltage rating and destination country.
• Design and specifications are subject to change without notice.
• Weight and dimensions are approximate.

Maximum sampling rate / bit rate

• For USB connection, the N-03T automatically down-converts the signal to the maximum Fs which the connected device can playback.
• For XLR/RCA connection, PCM 384/352.8kHz data will be down-converted to 192/176.4kHz. DSD 5.6MHz signal output can be down-converted to 2.8MHz (Dop) or PCM88.2kHz signal.
• The N-03T cannot down-convert DSD11.2MHz and PCM768/705.6kHz music files.
