Description
GAS's popular 8" subwoofer and 500W mono amplifier now at a package price!
Double-reel mini monster

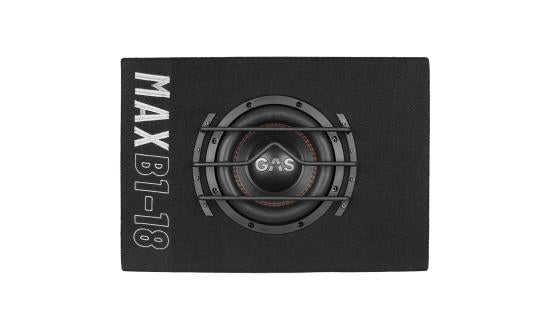

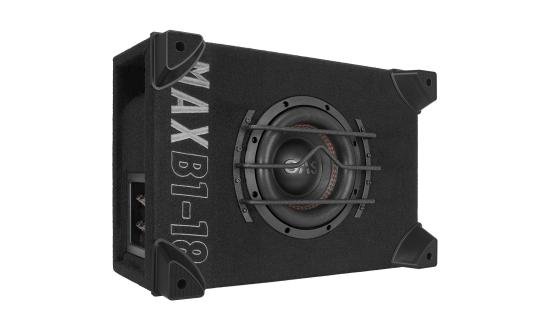

The GAS MAX B1-18 subwoofer enclosure features a metal-bodied and sturdy 8″ subwoofer with 2 x 2ohm voice coils. The driver is designed specifically for this enclosure and follows much the same design as the GAS MAX S1 series subwoofers.
Whichever way!
The GAS MAX B1-18 is very compact in size. The case volume is only 17 liters and the case is easy to place in any car.
The enclosure comes with separate mounting feet, so you can also use the enclosure with the driver facing down, and with this installation method you get even more kick in the bass reproduction.
Power and adjustments at an affordable price

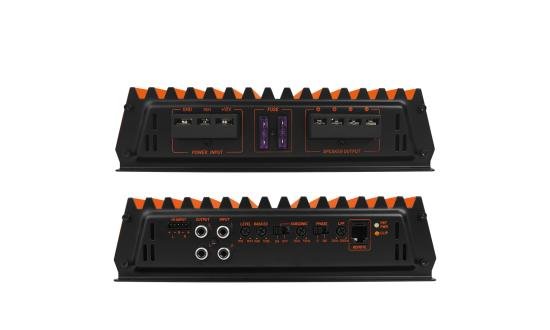

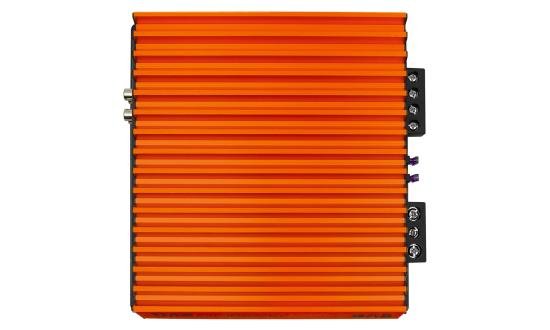

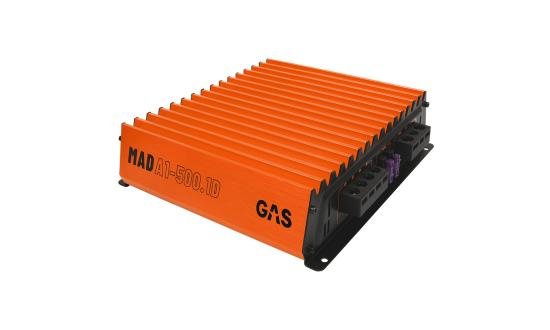

The amplifier offers 500 watts of power into a one-ohm load, and thanks to its extensive adjustment options, you can get the sound exactly how you want it.
The amplifier has a stepless low-pass filter (30 – 300Hz) with a slope of 12dB, as well as Subsonic, which allows you to cut off the lowest frequencies (15 – 50Hz) if desired.
The amplifier comes with a wired level control with a clip light, which makes it easy and quick to adjust the sub's level from the driver's seat. The clip light lights up if the playback exceeds one percent distortion.
Better sound quality than ever before

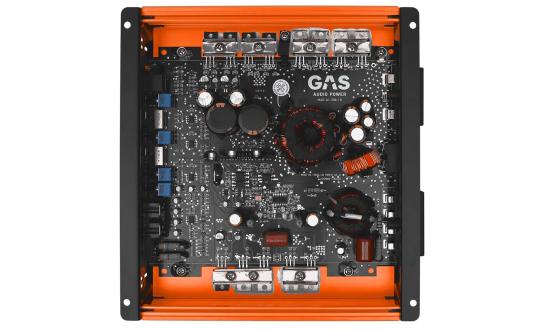

The inside of the device is not overshadowed by the exterior. Among other things, balanced inputs reduce the noise produced by the amplifier and raise the sound quality of the amplifier to a level significantly higher than in this price range.
Amplifier specifications:
- Class D mono amplifier
- 1 x 230W (4 ohms)
- 1 x 370W (2 ohms)
- 1 x 500W (1 ohm)
- Frequency range: 15 – 300Hz
- Low-pass filter (12dB/ok): 30 – 300Hz
- Subsonic: 15 – 50Hz
- Signal-to-noise ratio: >92dB
- Bass EQ: 0 – 12dB @ 45Hz
- Phase shift: 0 / 180°
- Input sensitivity adjustment: 0.5 – 6V
- Damping coefficient: >130
- RCA input: Yes
- Speaker level input: Yes (with autostart)
- Wired level control: Yes
- Clip light on level control / amplifier: Yes / Yes
- Recommended power/ground wire: 20mm²
- Recommended speaker cable: 1.5 – 4.0mm²
- Dimensions: 194 x 209 x 55mm
Subbar technical specifications:
- Reflex housing
- 8″ element
- Power rating: 500W RMS / 1000W Max
- Impedance: 1ohm / 2 x 2ohm / 4ohm
- Frequency range: 25 – 200Hz
- 2.5″ voice coil
- Cone: Unpressed paper pulp
- 2 x 56oz double magnet
- Silver-plated conductors
- Protective bars in front of the element
- It is also possible to install the element downwards
- Felt upholstery, with GAS embroidery
- Volume: 17 liters
- Includes jumpers, stand, user manual (English) and GAS sticker
- Dimensions: 480 x 330 x 208mm
