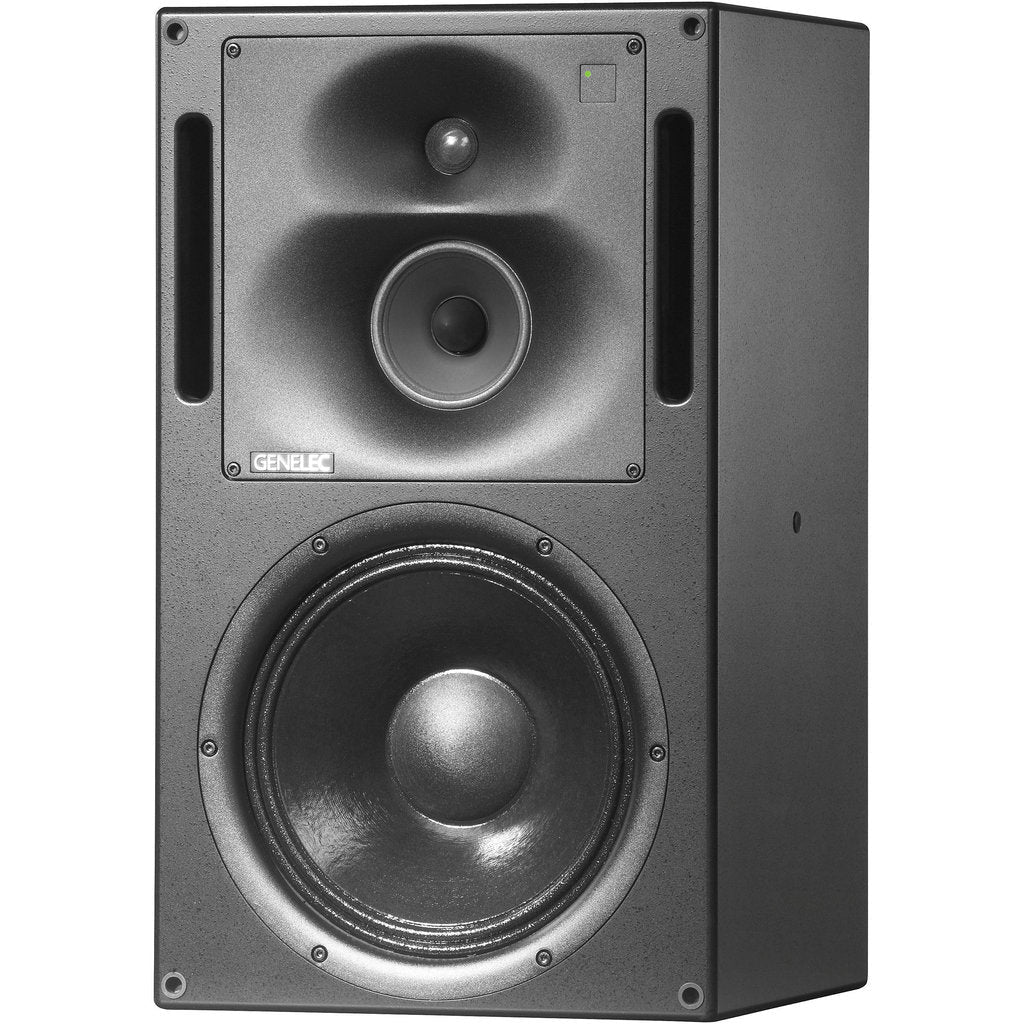

Genelec 1237A
The top loudspeaker of Genelec's SAM active collection.
Technical information:
-
Input audio format: analog and digital
-
16-24 bits
-
Digital input: AES/EBU (single/dual wire)
-
Connector: XLR female
-
Sampling frequency: 32 to 192 kHz
-
Control network: Proprietary Genelec Loudspeaker Manager network (GLM™)
-
System calibration: AutoCal™, GLM™ manual, Stand-alone
-
Sound pressure, single speaker, instantaneous effective value, 1m distance: ≥ 118 dB SPL
-
Bass element: 12"
-
Midrange driver: 5"
-
Tweeter element: 1" metal dome + DCW
-
Split frequency: 450 Hz, 3 kHz
-
Frequency response in free field: 37 Hz to 20 kHz (± 2.5 dB)
-
Amplifier power/channel: bass 500 W, midrange 250 W, treble 200 W
-
Dimensions (H x W x D): 680 x 400 x 380 mm
-
Weight: 38 kg
