HELIX NEXT V TWO

HELIX NEXT V TWO

• 2-channel DSP amplifier
• 2 x 400 W @ 2 Ohms
• 2 x RCA / V-AMP link inputs
• DirectDSP
• DSP PC Tool 6
• USB-C connector

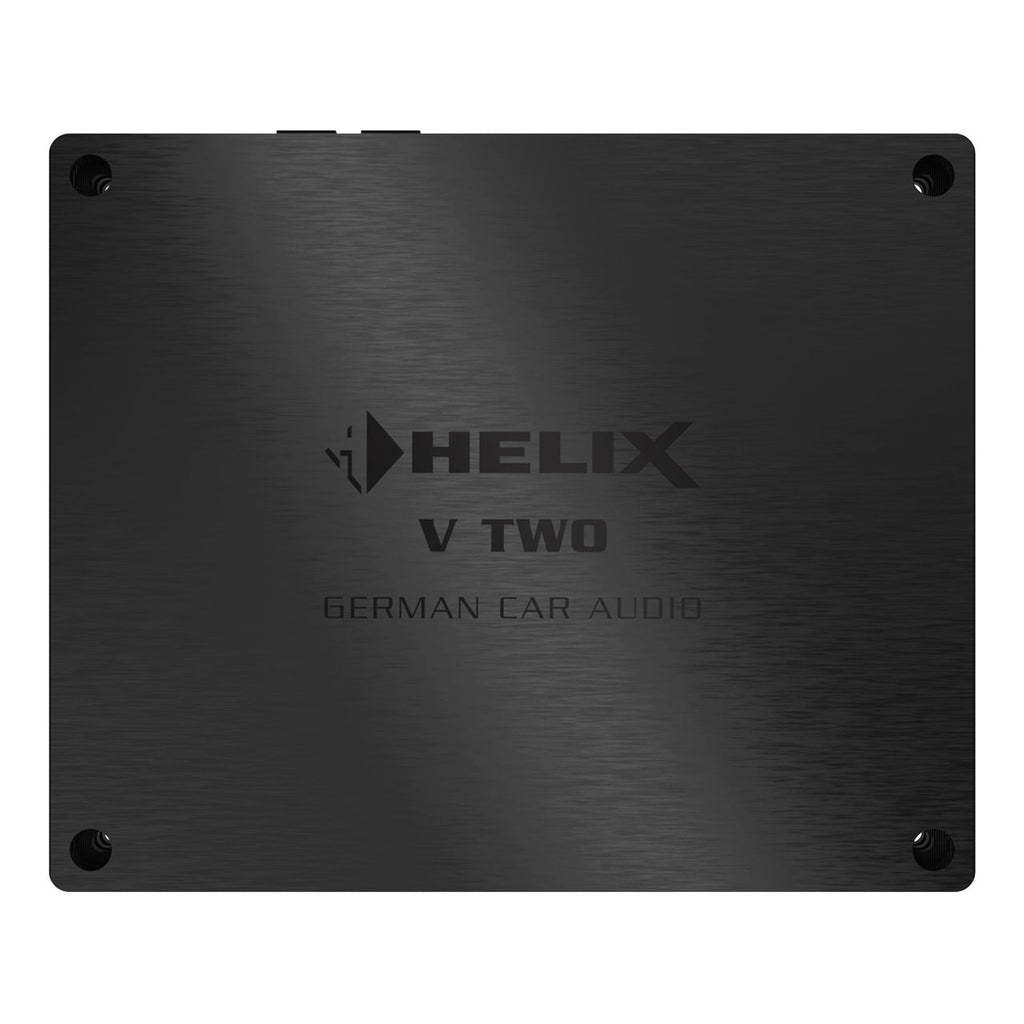

HELIX V TWO is a new generation 2-channel DSP amplifier designed to work perfectly with other Helix DSP devices.

The device features a new V-AMP link input. V-AMP Link is a speaker-level input that is specifically optimized for connecting HELIX V series amplifiers, such as the NEXT V EIGHT DSP ULTIMATE
(also supports DirectDSP feature).

The HELIX NEXT V TWO is a great addition to the NEXT V EIGHT DSP ULTIMATE for driving subwoofers, for example.

Combined with the all-new DSP PC-Tool 6 software, users benefit from an enhanced feature set, smarter adjustment tools and a significantly improved user interface.

Features:

• 2 x 400W RMS @ 2 Ohm / 1 x 800W RMS @ 4 Ohm
• Automatic Gain control
• Mono/stereo mode
• V-AMP link input
• DirectDSP
• 2 x RCA inputs

Specifications:
Technical data

Power RMS ≤ 1% THD+N
- @ 4 Ohms 2 x 200 Watts
- @ 2 Ohms 2 x 400 Watts
- @ 1 Ohm -
- bridged @ 4 Ohms 1 x 800 Watts
- bridged @ 2 Ohms -
Max. output power per channel* Up to 500 Watts RMS @ 2 Ohms
Up to 1000 Watts RMS @4 Ohms bridged
Amplifier technology Class D
Inputs 2 x RCA / Cinch
2 x V-AMP Link
1 x Remote In
Input sensitivity RCA / RCA: 0.5 - 8 Volts
V-AMP Link: 1.5 - 21 Volts
Input impedance RCA / RCA: 3 kOhms
V-AMP Link: 13 Ohms

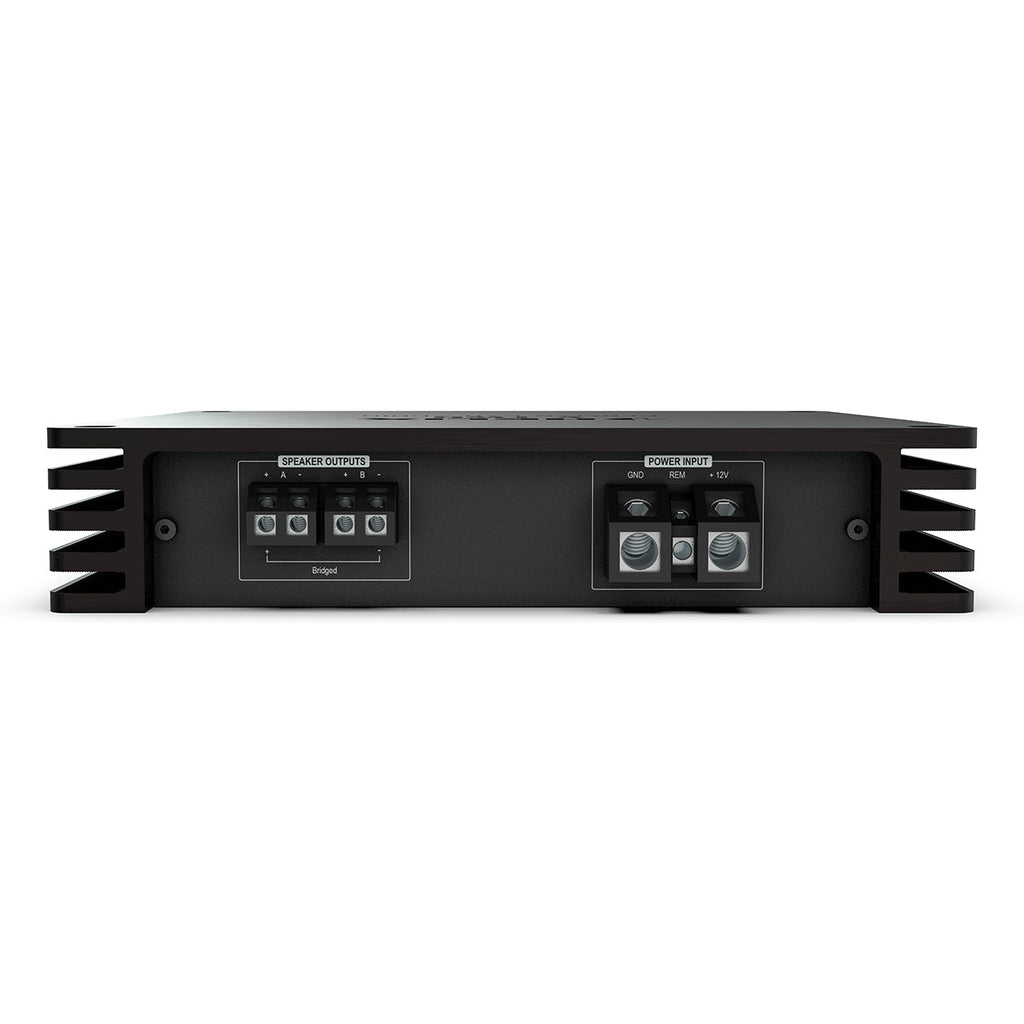

Outputs 2 x Speaker output
Output voltage RCA / Cinch -
Signal Converter for digital input -
Frequency response 10 Hz to 22,000 Hz
Bass boost -
Highpass -
Low-pass -
Bandpass -
Subsonic -
Phase -
Slope high- / low-pass -
Slope subsonic -
Slope subsonic / lowpass -
Signal-to-noise ratio (A-weighted) 109 dB
Distortion (THD @ 1 kHz, 1 W into 4 Ohms) 0.003%
Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms) 0.004 %
Distortion (THD @ 100 Hz, 1 W into 4 Ohms) -
Distortion (THD+N @ 100 Hz, 1 W into 4 Ohms) -
Damping factor 350
Operating voltage 10.5 - 18 Volts (max. 5 sec. down to 6 Volts)
Idle current 1,400 mA
Fuse 3 x 30 A LP-Mini-fuse (APS)
Power rating DC 12 V ⎓ 86 A max.
Operating temperature range -40 °C to +70 °C
Additional features Auto-Gain-Ranging, Mono / Stereo Mode, Start-Stop capability, V-AMP Link, regulated power supply
Dimensions (H x W x D) 44 x 220 x 180 mm /
1.73 x 8.66 x 7.09”
* In typical applications as subwoofer amplifier



Scope of delivery
1 x Amplifier HELIX NEXT V TWO
2 x Allen keys
3 x Fuse
1 x Mounting material
1 x Instruction manual
