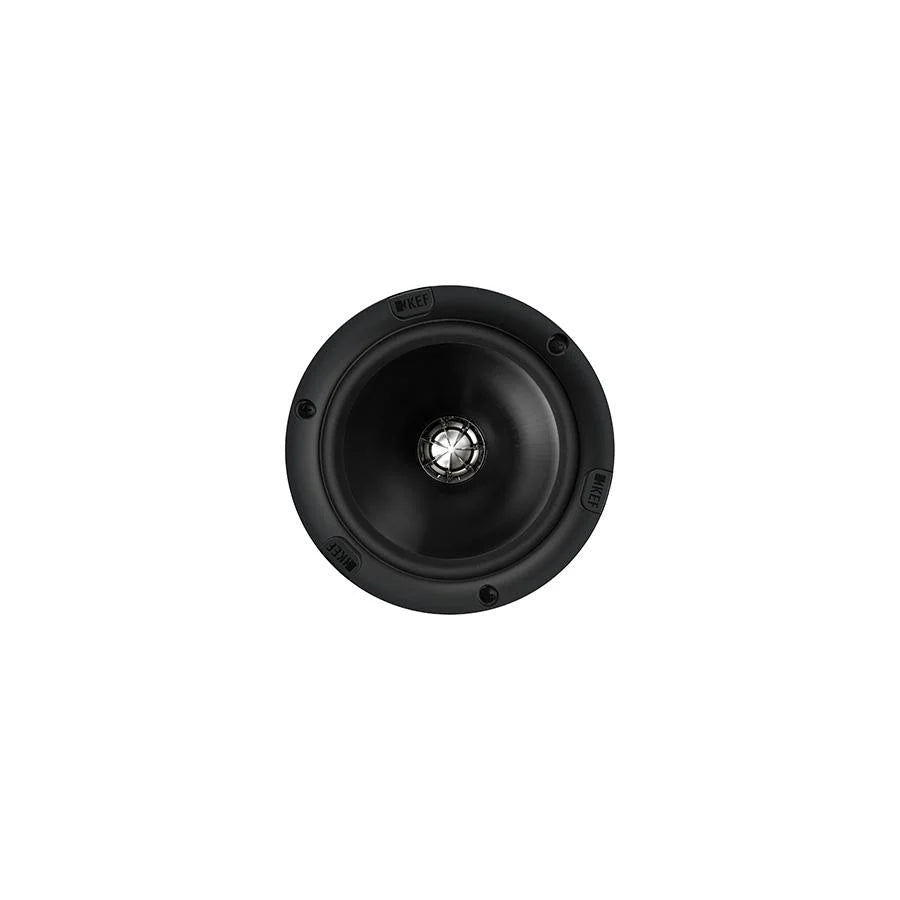

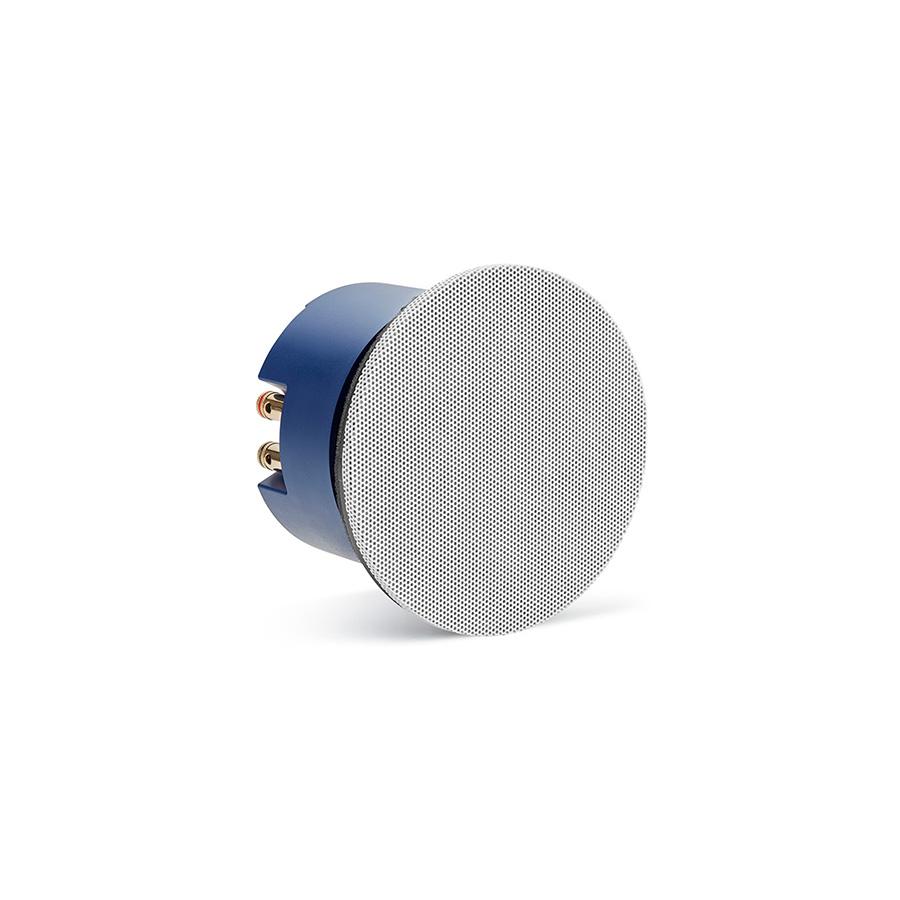

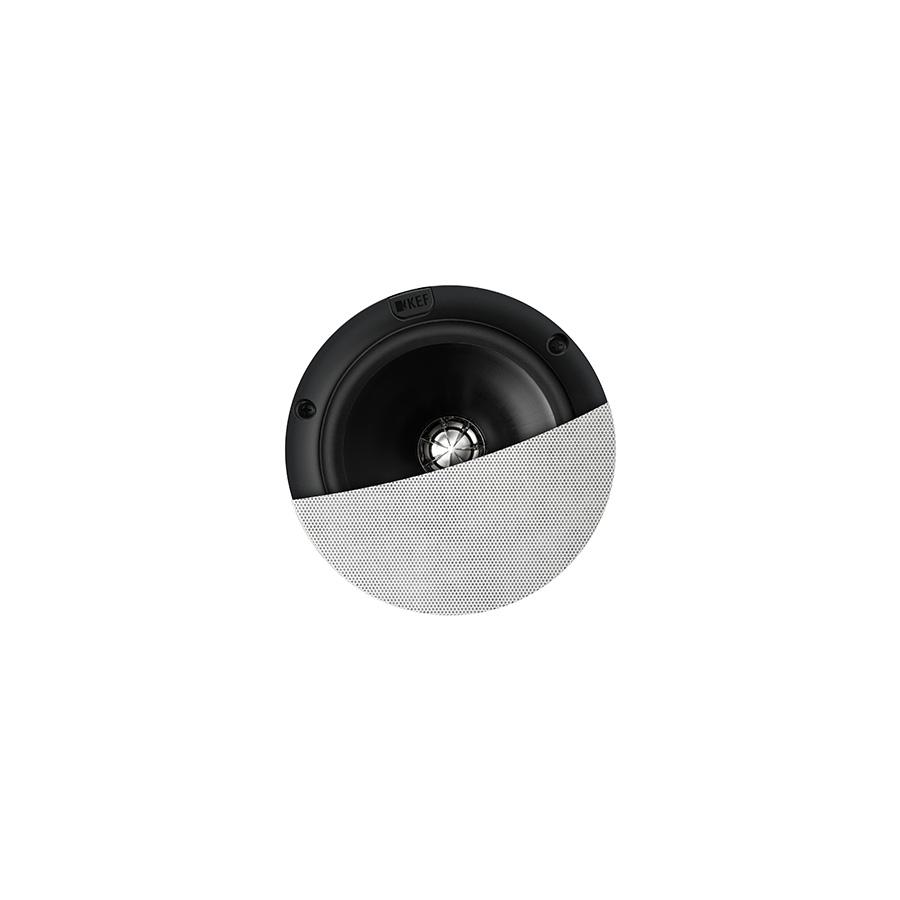

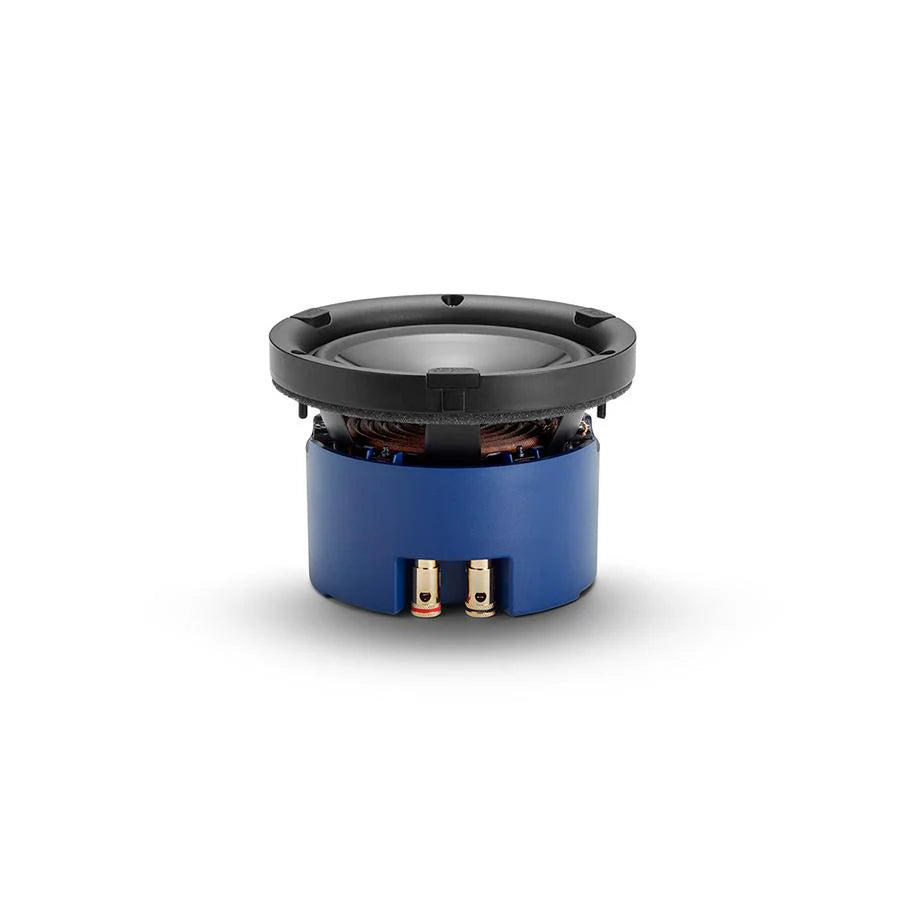

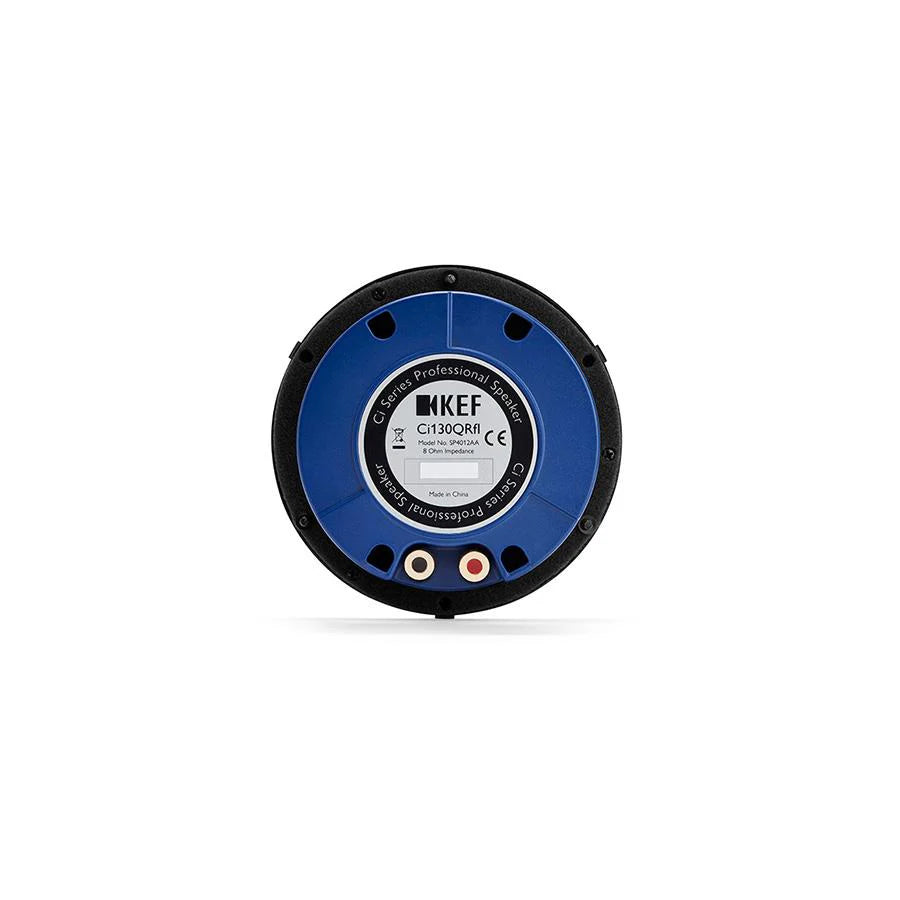

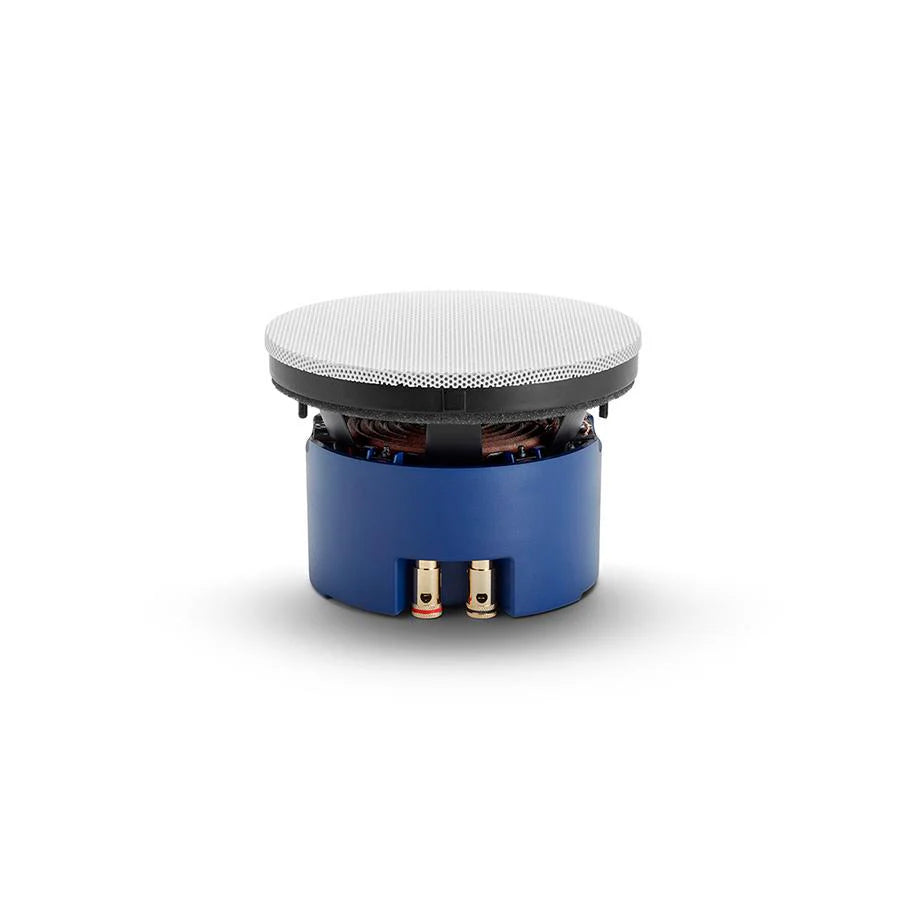

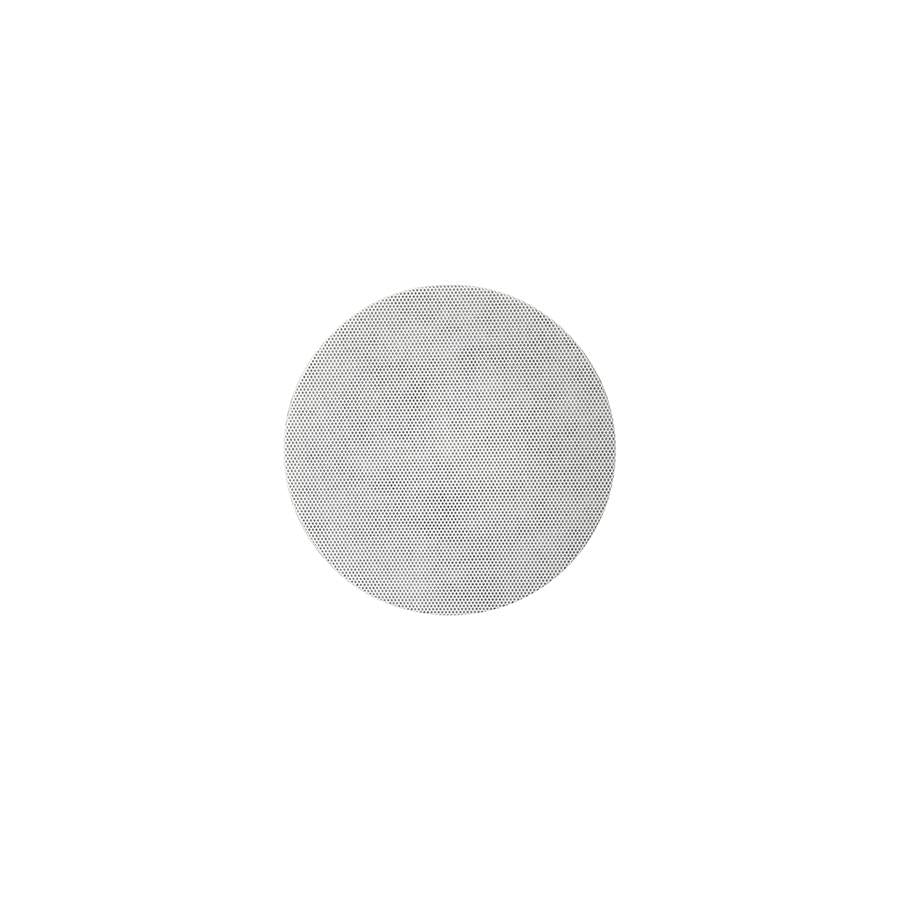

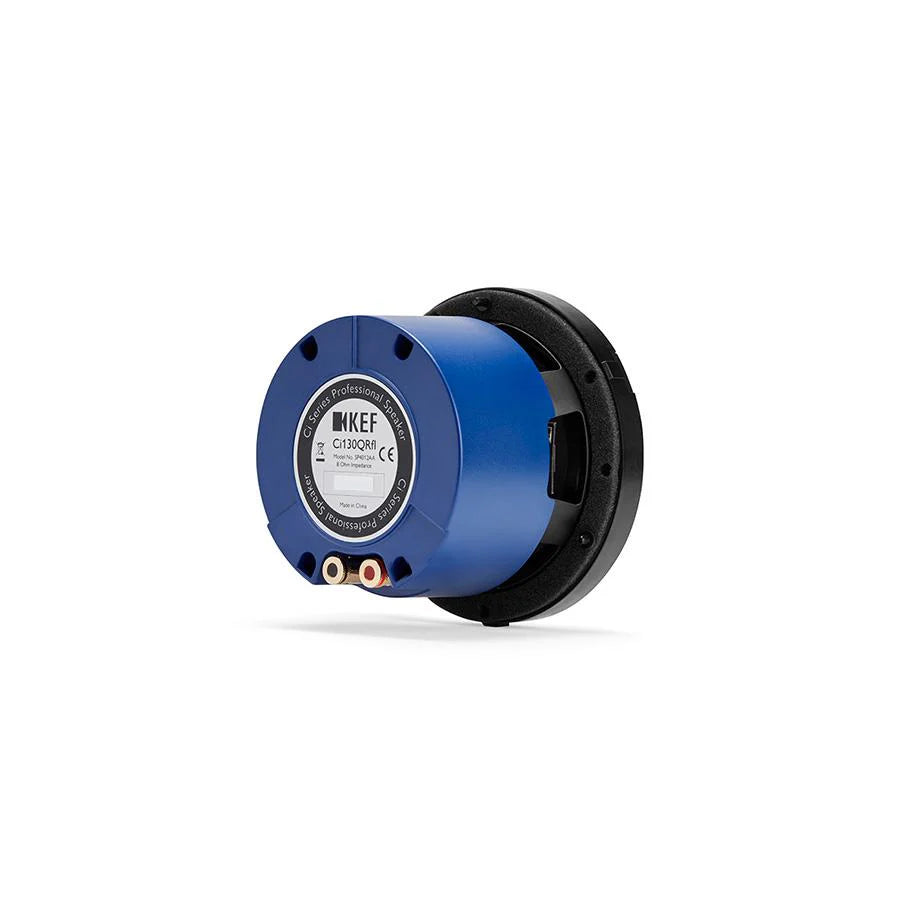

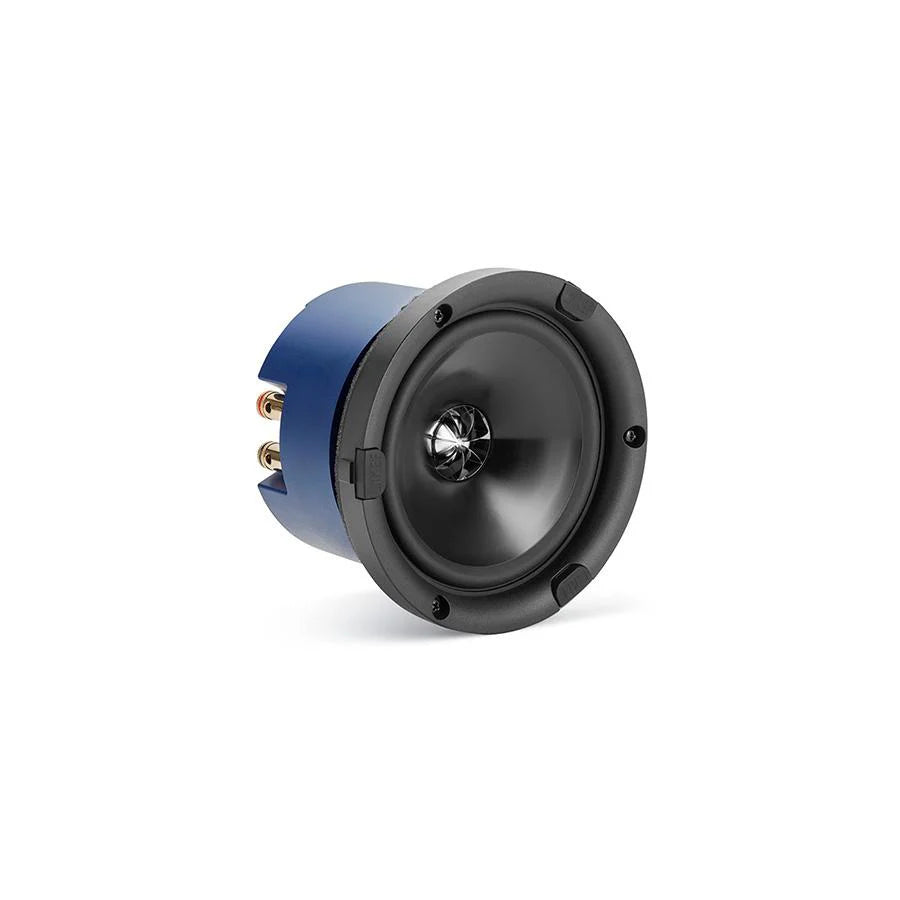

Ci130QRfl recessed architectural speaker
KEF Ci130QRfl – a fully flush-mount, frameless speaker for discreet sound
The KEF Ci130QRfl is a state-of-the-art architectural loudspeaker that mounts completely flush to the wall or ceiling surface without a visible frame. It is designed to deliver high-quality sound and effortless installation – whether in new builds or upgrading existing structures.
The speaker blends perfectly into its surroundings, making it ideal for locations that emphasize clean lines, minimalist architecture, and aesthetically pleasing interiors.
Part of the Ci-Q series, the Ci130QRfl is based on KEF's renowned Uni-Q driver, which acts as a single point source of sound. Combined with Tangerine Waveguide technology, it spreads sound evenly and crystal clear throughout the room.
The Ci130QRfl is a round-bodied speaker, while the Ci130QSfl offers the same elements and performance in a square-shaped frame.

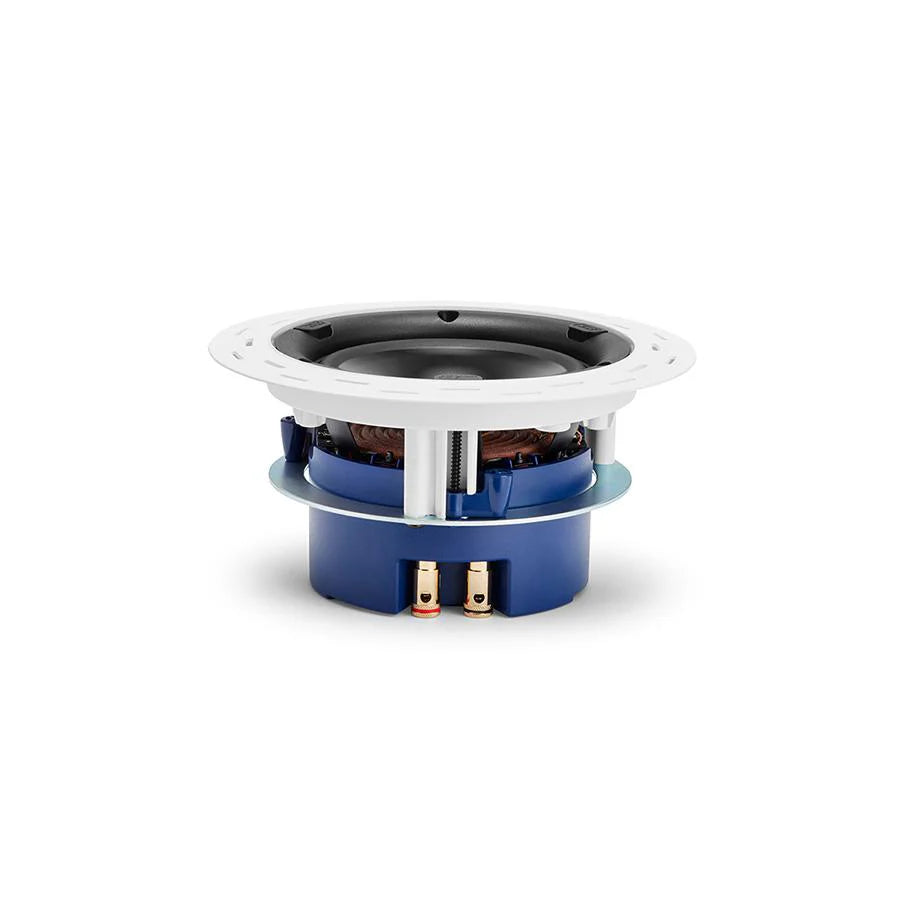

Easy and intuitive installation
The Ci130QRfl is designed for easy installation. It is suitable for both new builds and renovations and can be installed as part of a levelling or plastering job. Its frameless design means the speaker sits completely flush with the wall or ceiling surface, providing a very clean and unobtrusive finish.
Specifications
- Nominal impedance 8 Ω
- Sensitivity 87 dB (2.83 V / 1 m)
- Frequency response (±6 dB, open design) 45 Hz – 34 kHz
- Frequency range (-10 dB) 38 Hz – 30 kHz
- Nominal directivity (degrees) 130°
- Maximum sound pressure (SPL) 103 dB
- Crossover frequency 3.8 kHz
Elements
- Bass/Midrange (LF): 130 mm (5.25”) Uni-Q
- Tweeter (HF): 19 mm (0.75”)
- Recommended amplifier power 10–100 W
- Recommended high-pass filter 50 Hz
Dimensions
- Diameter: 200.6 mm (7.9”)
- Depth: 104.6 mm (4.12”)
- Installation opening (cut-out)
- Diameter: 158 mm (6.22”)
- Mounting surface thickness
- Maximum thickness: 31 mm (1.220”)
- Minimum thickness: 7 mm (0.276”)
- Installation depth from surface 101 mm (3.98”)
- Net weight 1.45 kg (3.19 lbs)
Other information
- Recommended rear case volume
- Ideal: 15 liters
- Minimum: 10 liters
- Accessories
- Rough-in frame: Not available
- Back cover: Not available
