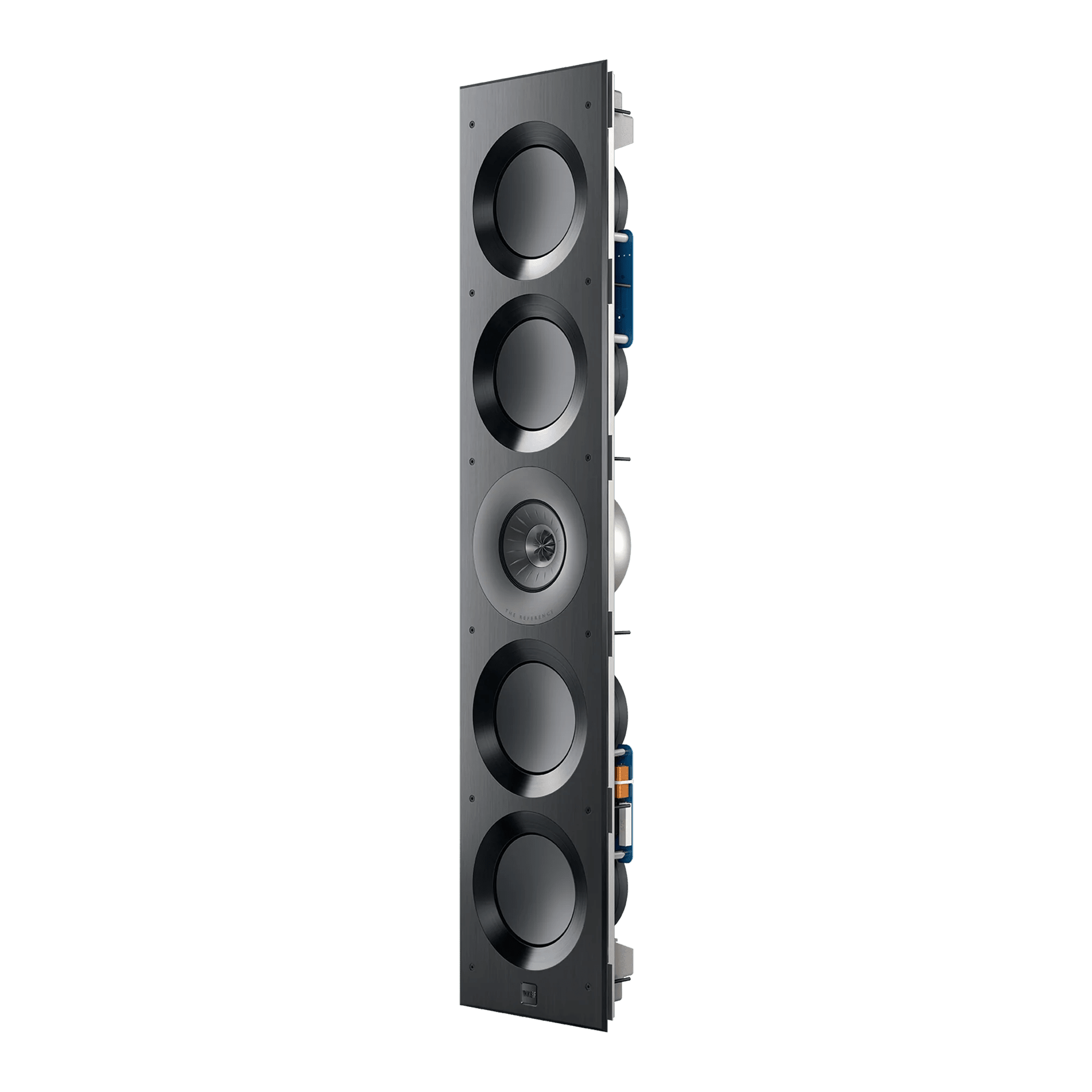

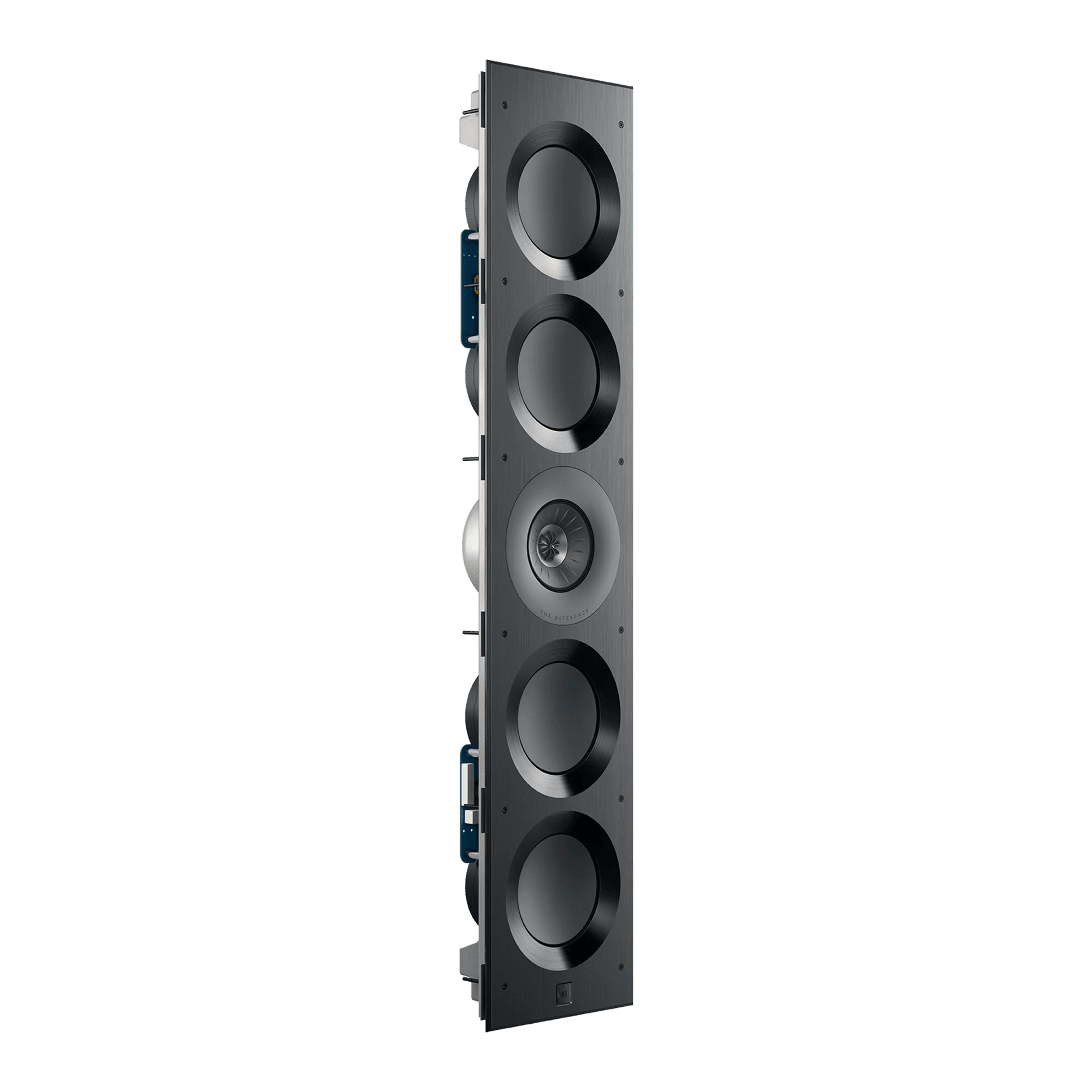

KEF Ci5160REFM-THX Meta Custom Install speaker

KEF Ci5160REFM-THX Meta Custom Install speaker, 1 pc, special order product

KEF's first THX® Certified Dominus speaker

The Ci5160REFM-THX Ci-Reference Architectural Wall-Mounted Speaker is KEF’s first in-wall speaker to be THX® Certified Dominus – one of the few speakers in the world to meet this extreme standard. Equipped with a 12th generation Uni-Q driver and Metamaterial Absorption Technology (MAT™), the Ci5160REFM-THX delivers an immersive, high-quality soundstage with unrivalled sound quality – even for the most expansive home theatres and living rooms.

Realistic, high-quality sound

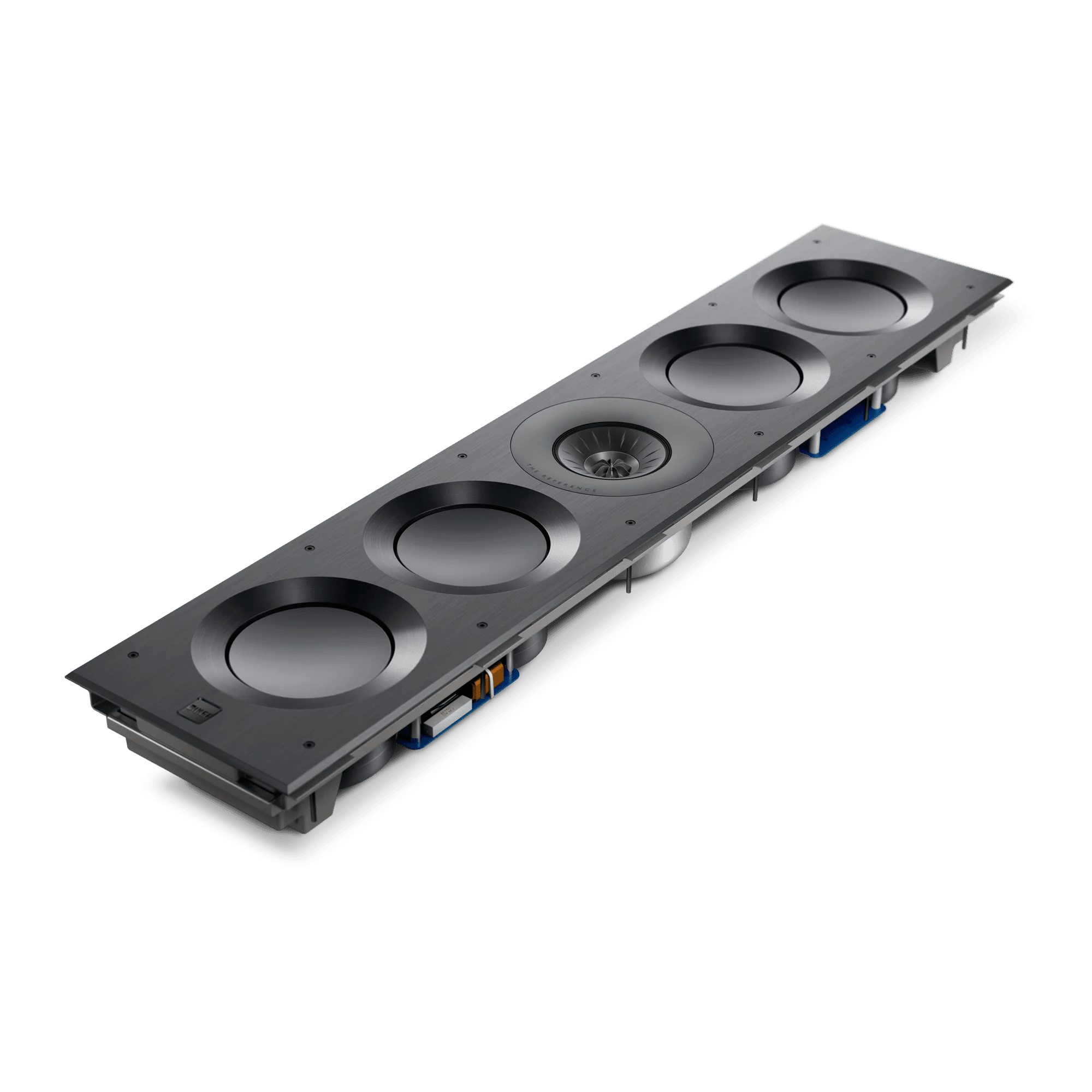

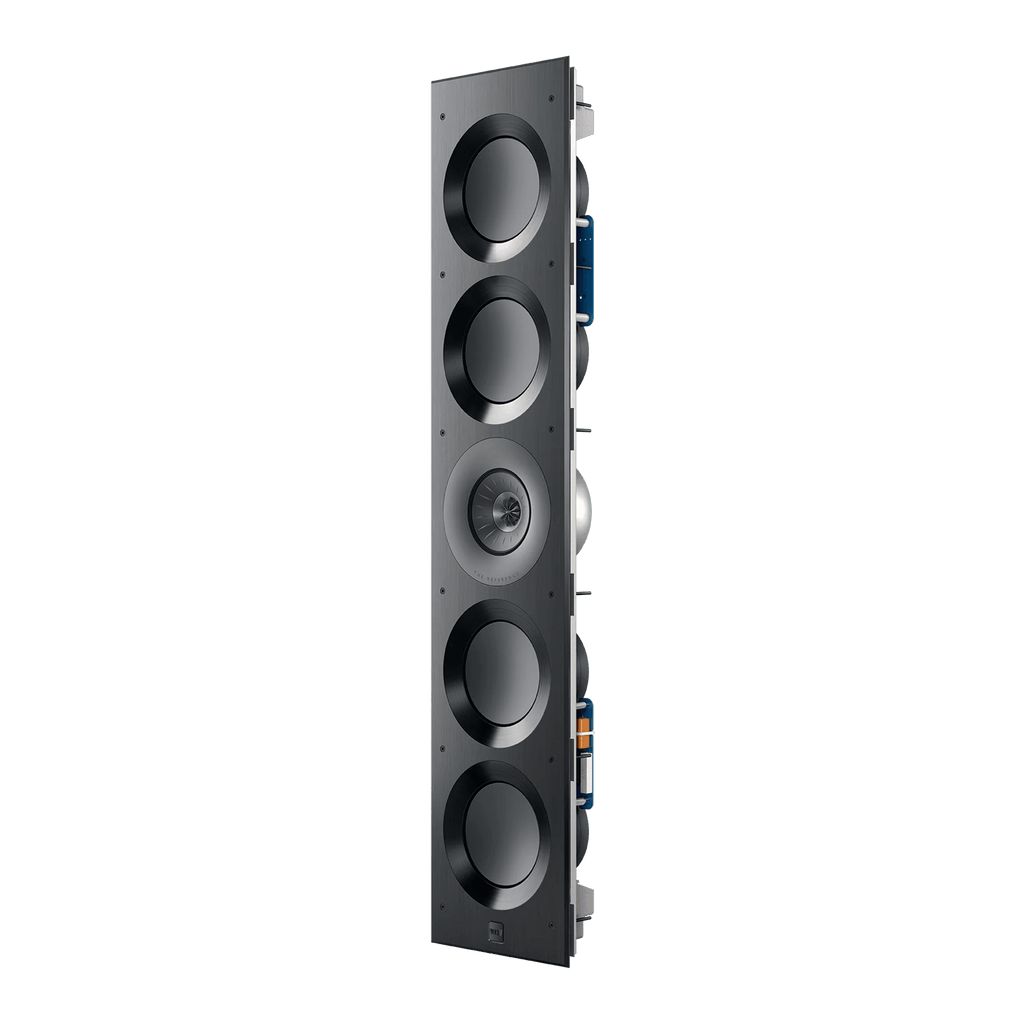

Equipped with four 160 mm (6.5") woofers, the Ci5160REFM-THX delivers clean, rich and highly articulate bass down to 32 Hz. Combined with a massive, ventilated motor system – specifically designed for in-wall applications – the Ci5160REFM-THX blends seamlessly into the space, leaving nothing behind but an impressive, immersive listening experience.

THX® Certified Dominus

The Ci5160REFM-THX is THX® Certified Dominus, meaning it is in the highest and most powerful performance category of THX® ratings. This level is the closest you can get to the sound experience of a public cinema in your home.

Metamaterial Absorption Technology

Attenuates 99% of unwanted sound

Handmade in the UK

Like our other high-end speakers, Ci-Reference is designed, developed and hand-built in Maidstone, UK.

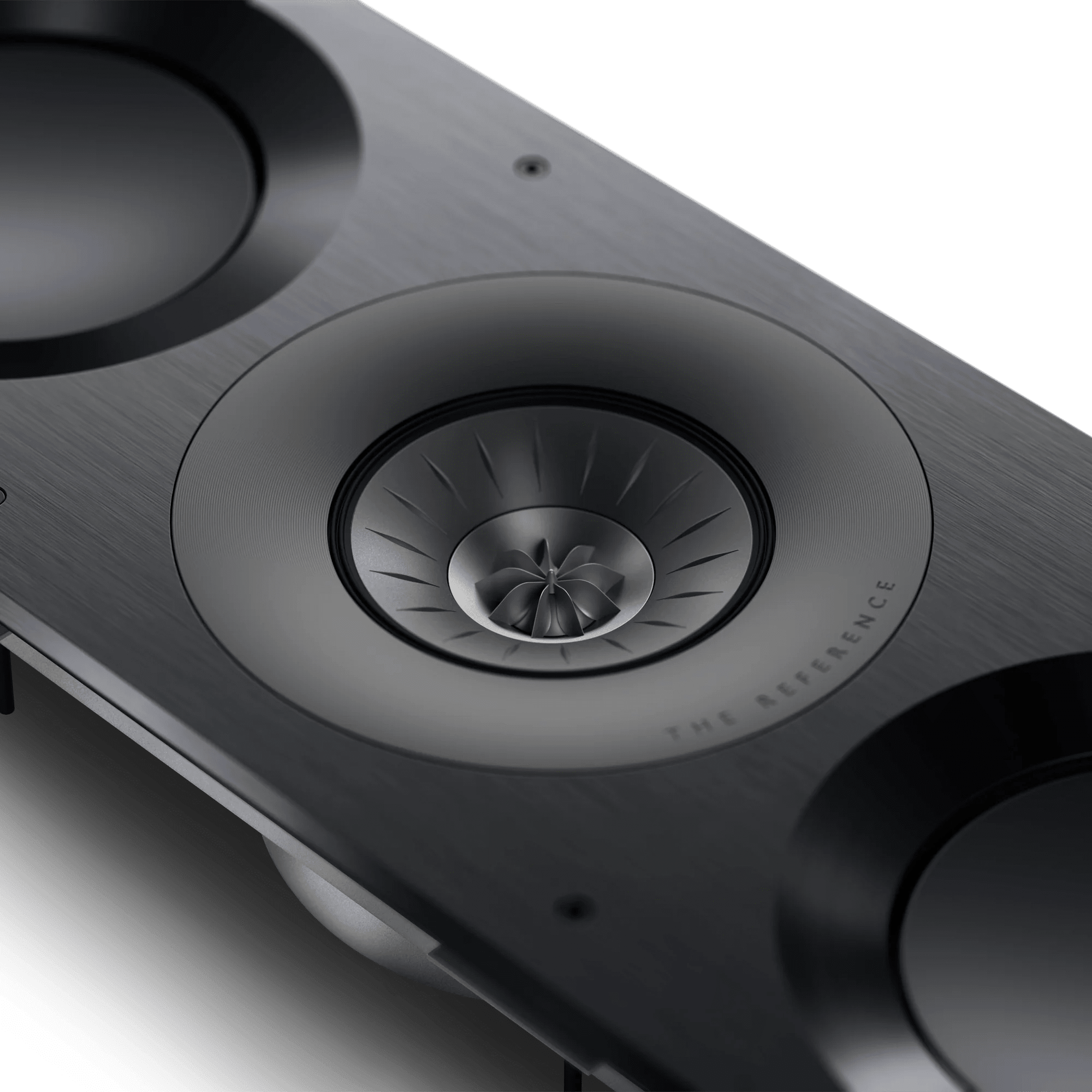

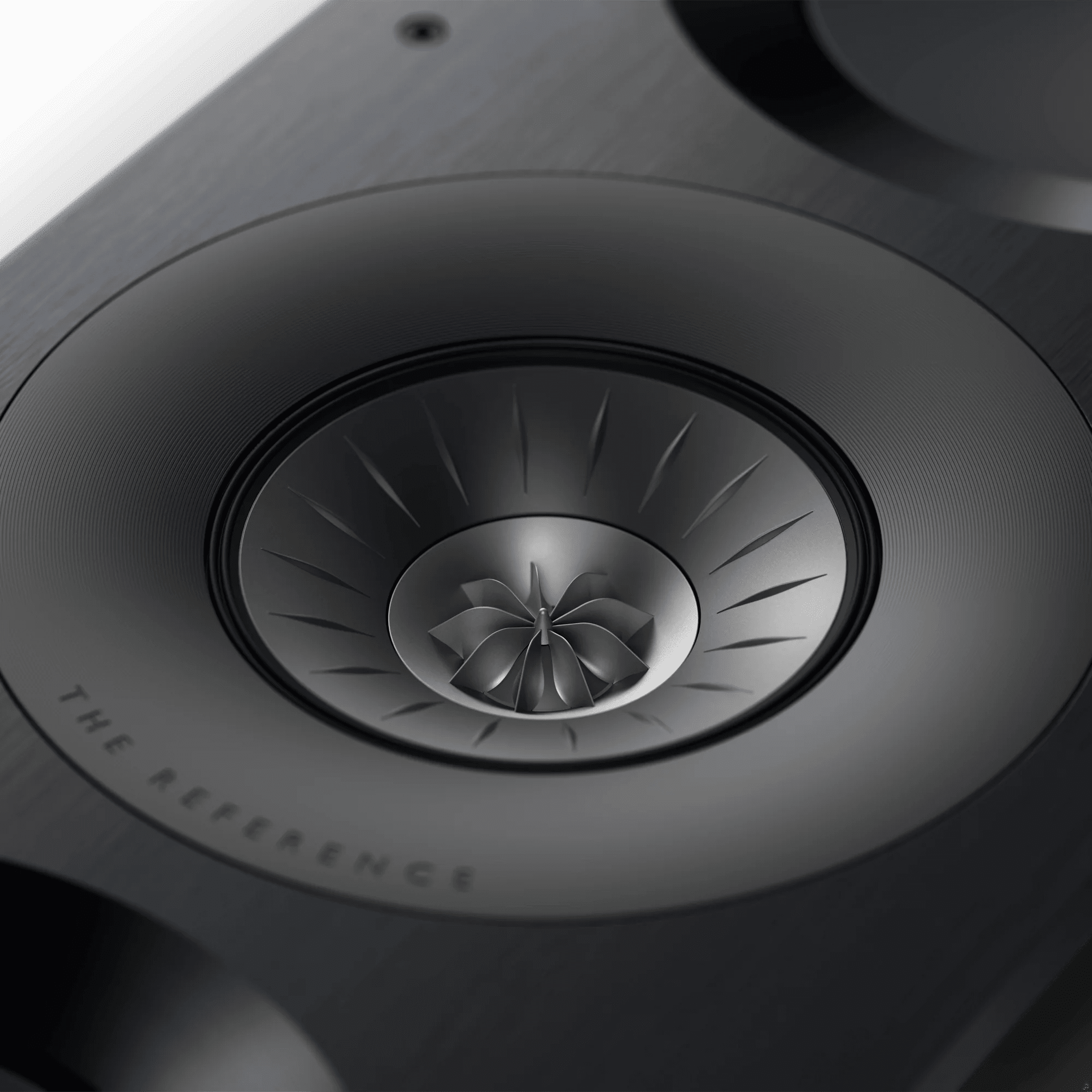

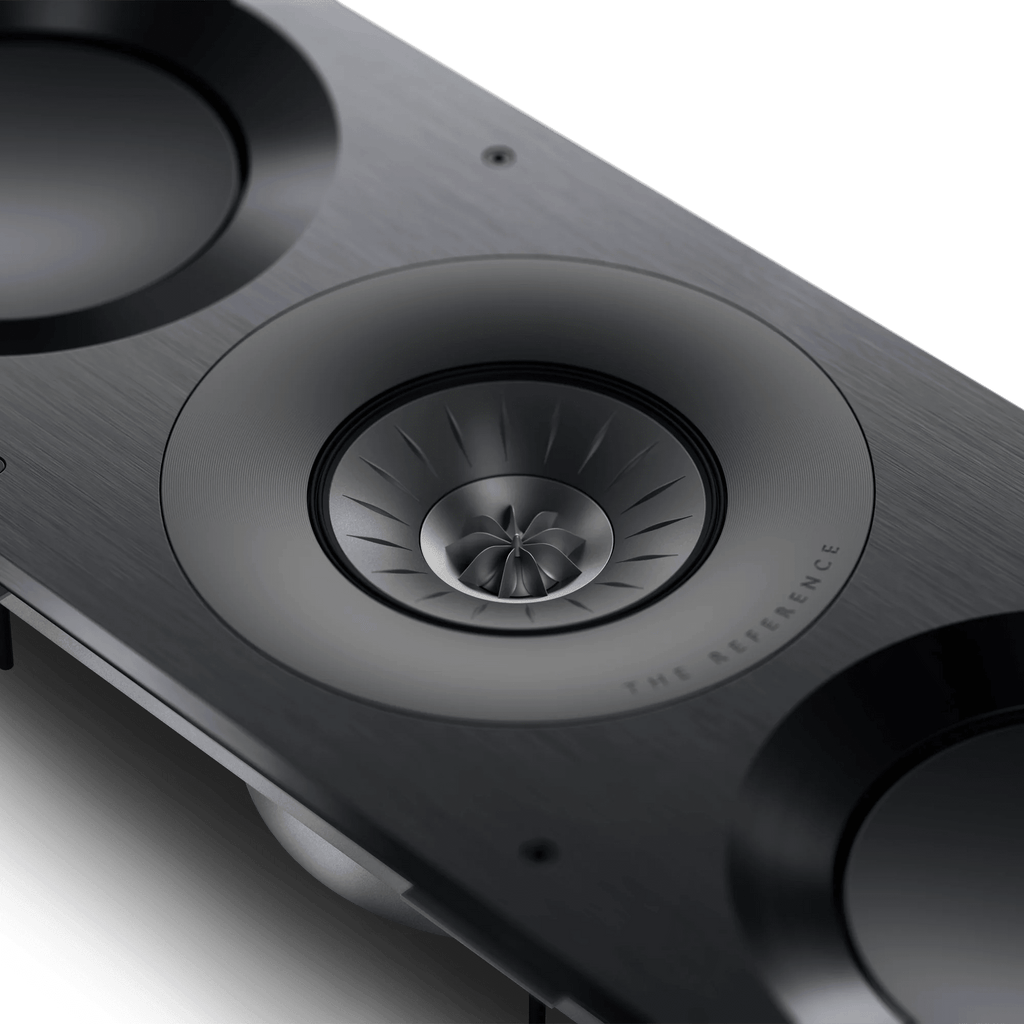

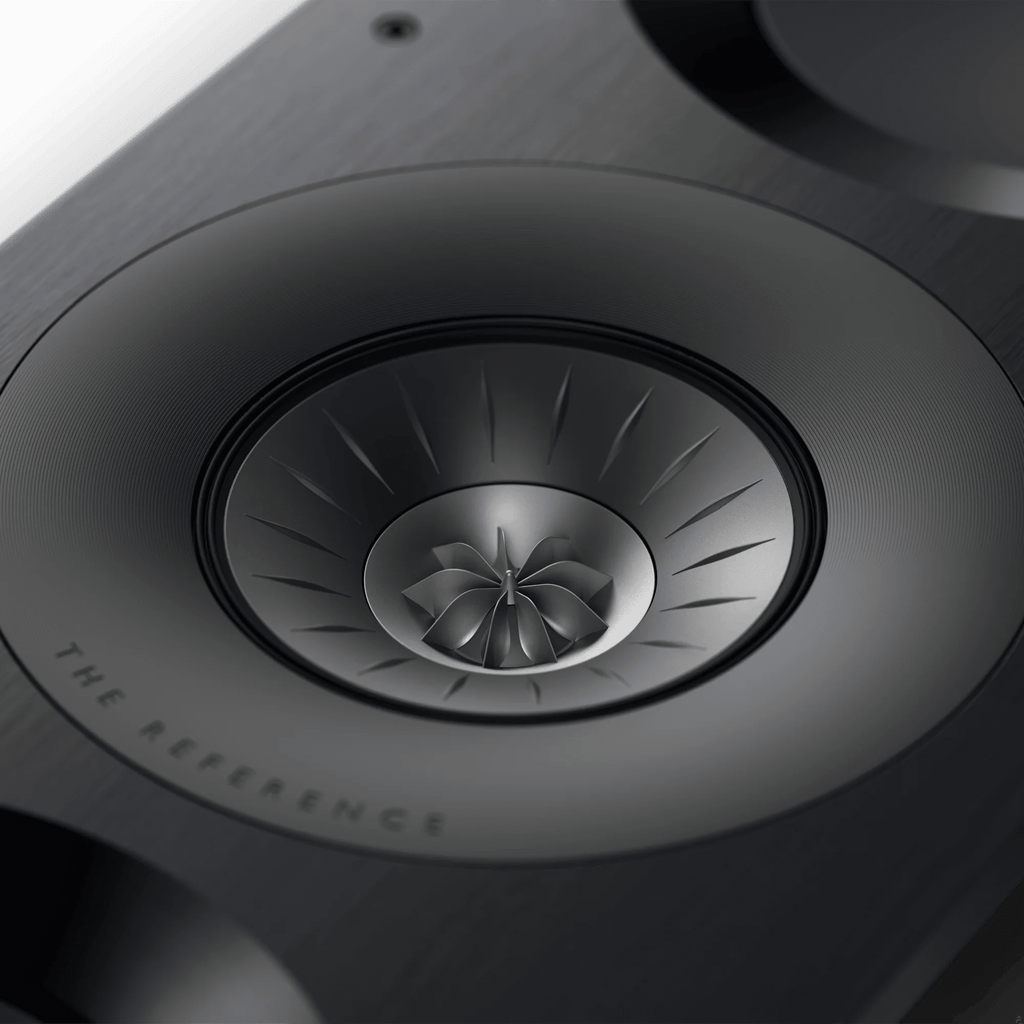

Uni-Q®

Acts as a single sound source, expanding the "sweet spot" and spreading the sound more evenly throughout the space.

Finished to perfection

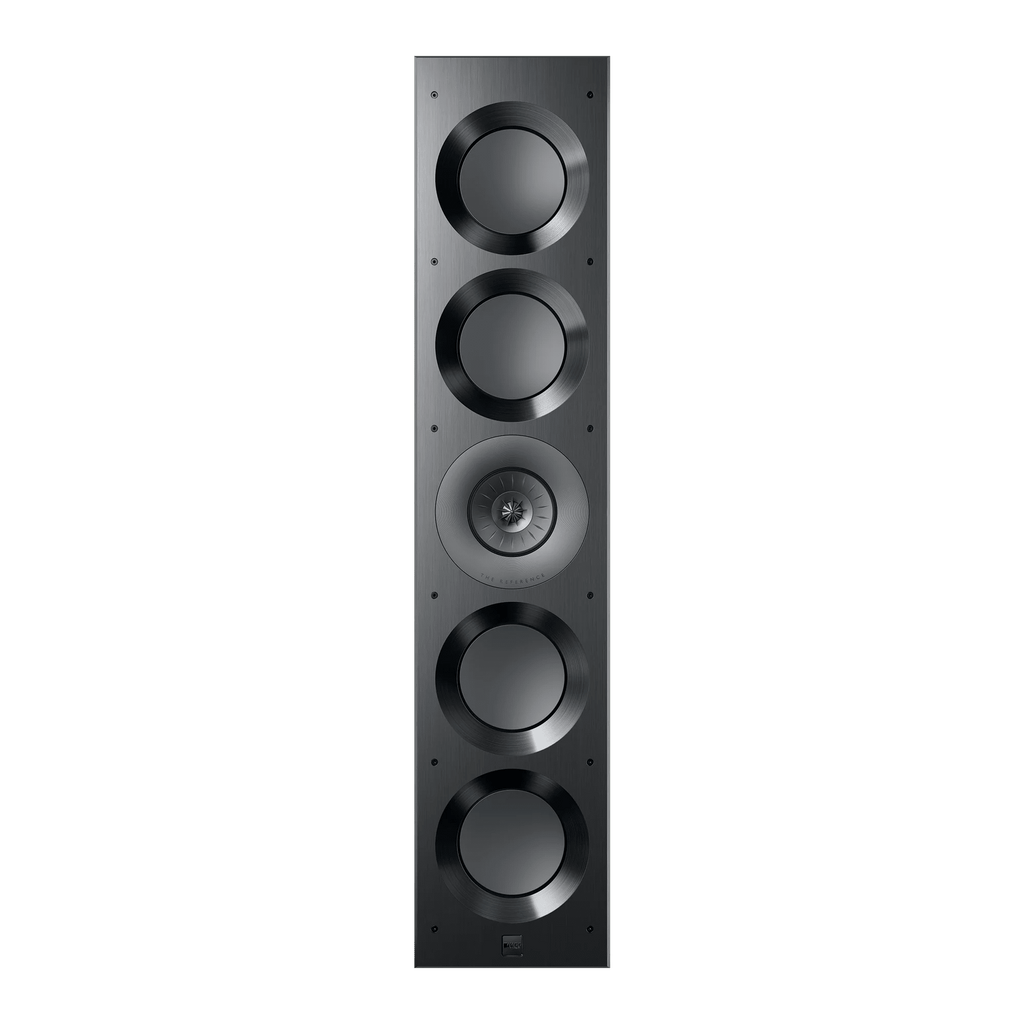

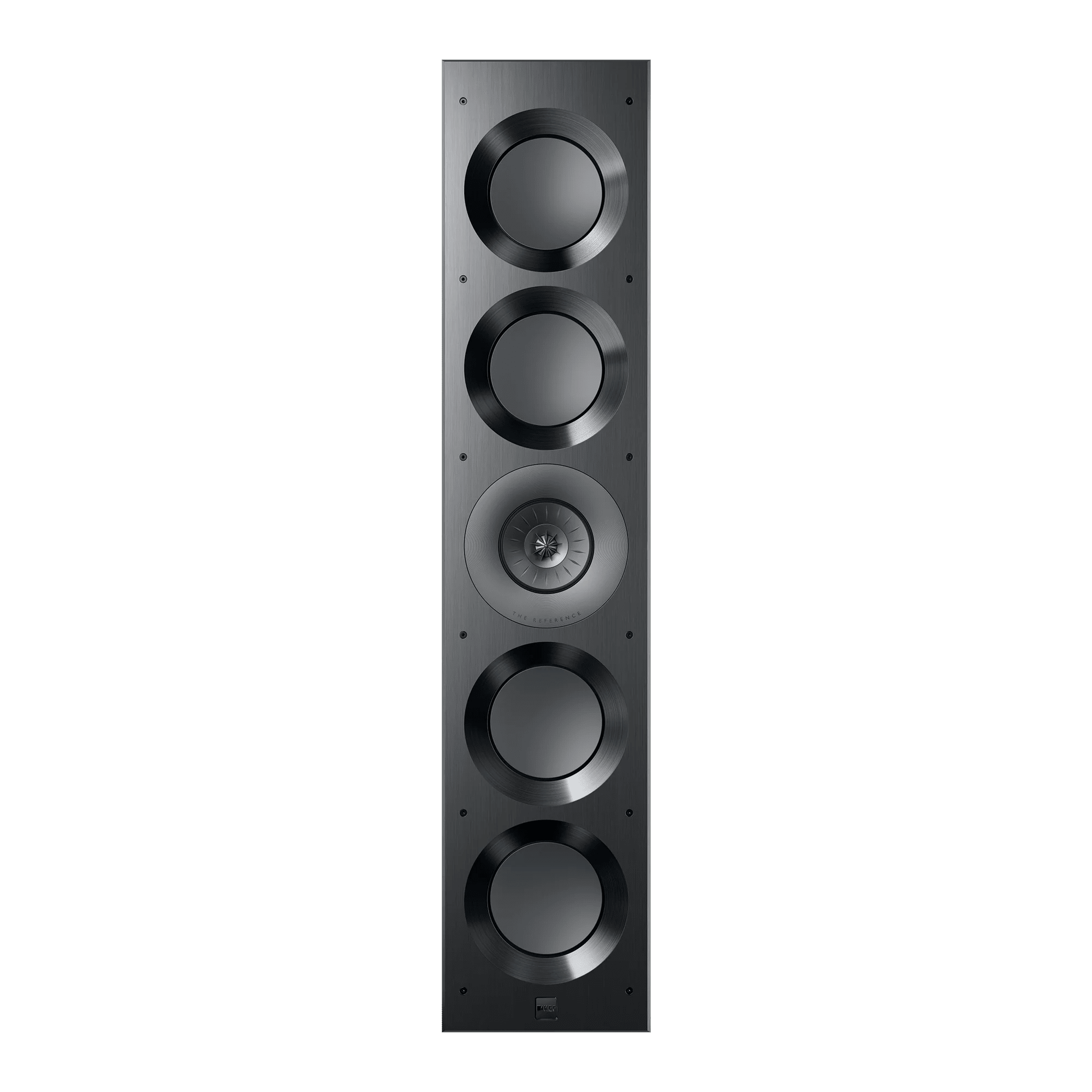

Available in Aluminium Black/Grey – brushed aluminium front panel in black and Uni-Q element in grey.

Hide your speakers, not your voice

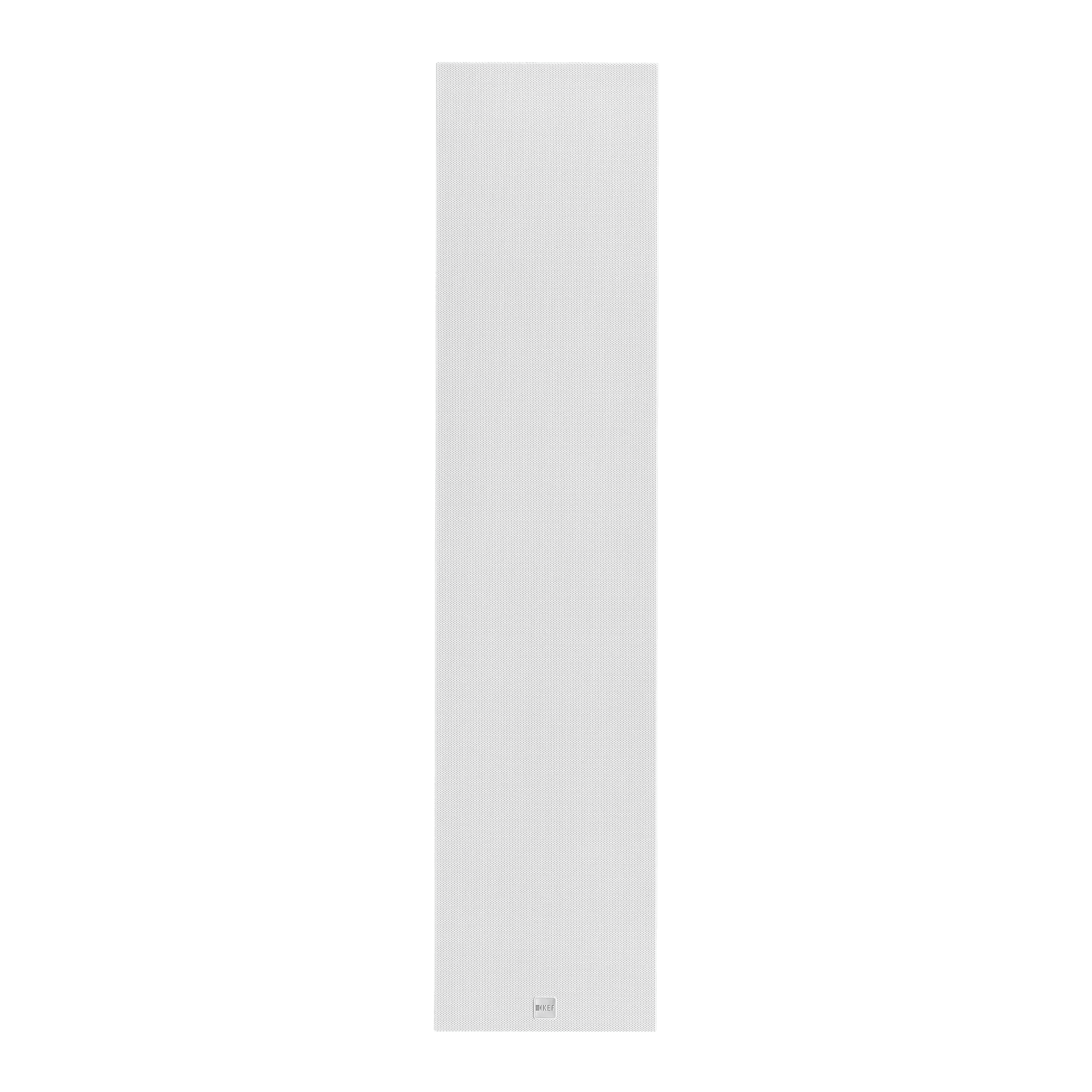

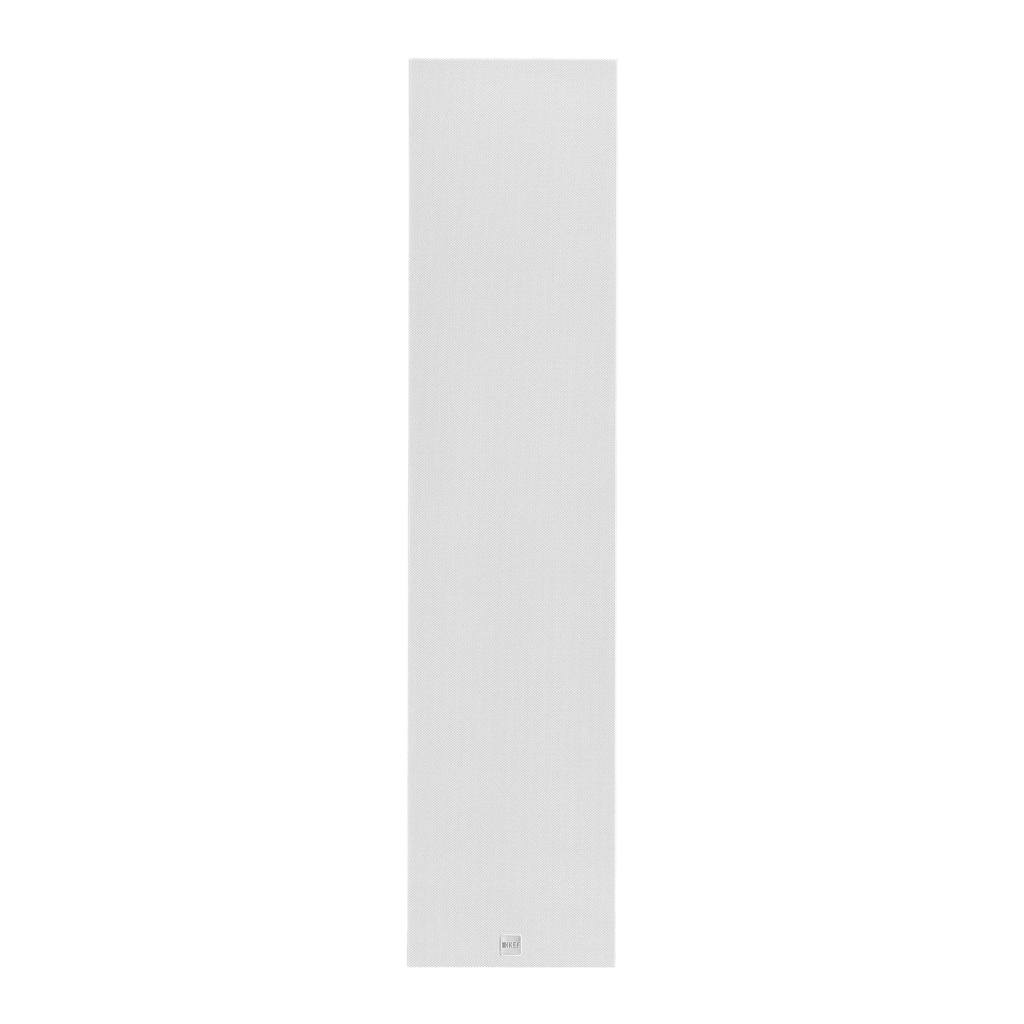

A paintable magnetic metal grille and optional black fabric grille ensure the speaker blends in seamlessly with its surroundings.

Perfect attention to detail

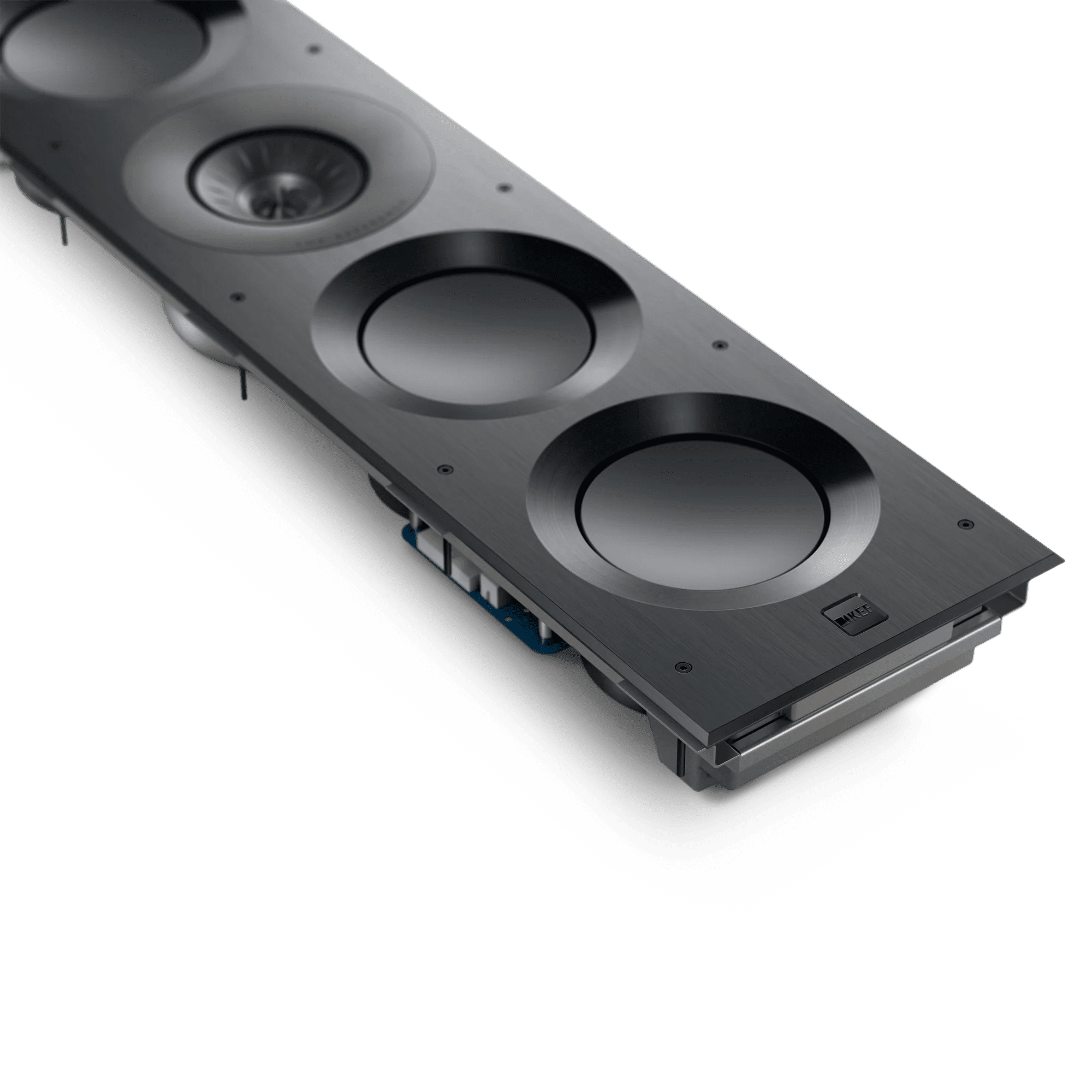

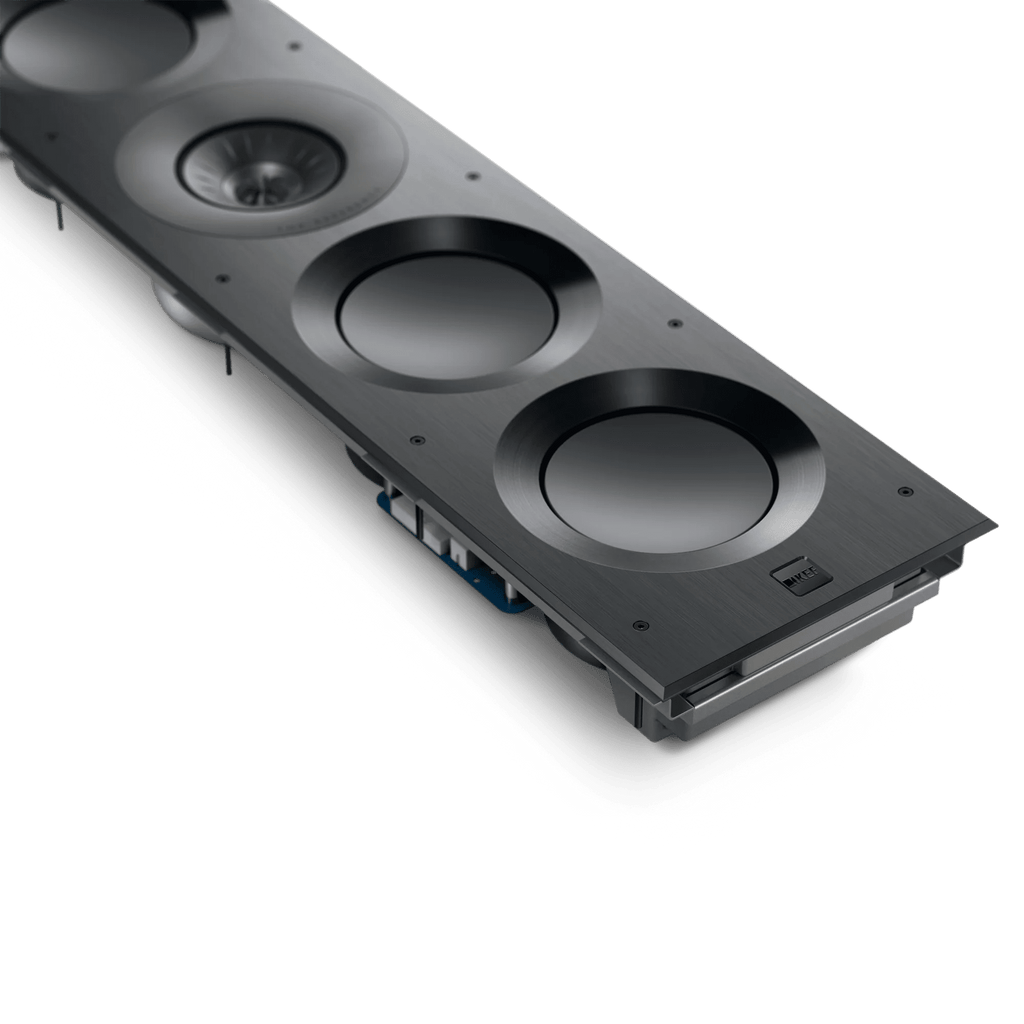

The 11mm thick, precision-machined aluminum front plate is designed to eliminate vibrations and provide a solid foundation that allows the powerful drivers to perform at their best.

Technical specifications – Ci5160REFM-THX

• Nominal impedance: 4Ω
• Sensitivity (2.83V/1m): 92dB
• Frequency response (±6 dB, open back): 40–28kHz
• Frequency range (-10 dB): 32–45kHz
• Nominal directivity: 150°
• Crossover frequencies: 600Hz, 3000Hz

Elements:

• Low frequency (LF): 4 x 160mm (6.5")
• Midrange (MF): 125mm (5.25") Uni-Q
• Tweeter (HF): 25mm (1") ventilated aluminum dome tweeter with Metamaterial Absorption Technology
• Recommended amplifier power: 50–500 W
• Recommended high-pass filter: 35Hz–80Hz

Dimensions:

• External dimensions (H x W x D): 1070 x 230 x 105.7mm (42.13 x 9.06 x 4.16")
• Mounting hole (H x W): 1052 x 209mm (41.42 x 8.23")
• Installation depth from surface: 99mm (3.9")
• Net weight: 21.7kg (47.8lbs.)
• Optional mounting frame: RIF5160L

Enclosure/wall information:

• Ideal rear space (L): 90
• Minimum rear space (L): 40
• Maximum SPL: 116dB
• Certification: THX Certified Dominus
• Maximum wall thickness: 40mm (1.58")
• Minimum wall thickness: 6mm (0.24")

Note: Metamaterial Absorption Technology is a joint development project between KEF and the Acoustic Metamaterials Group. KEF reserves the right to change specifications in the interest of continuous product development. THX® and associated logos are registered trademarks of THX Ltd.
