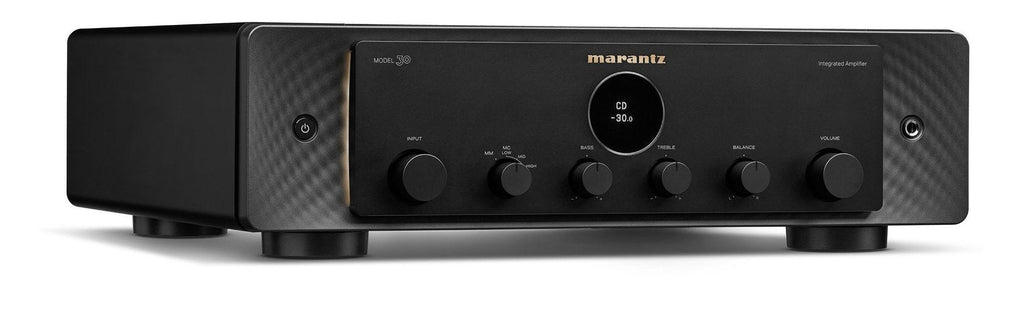

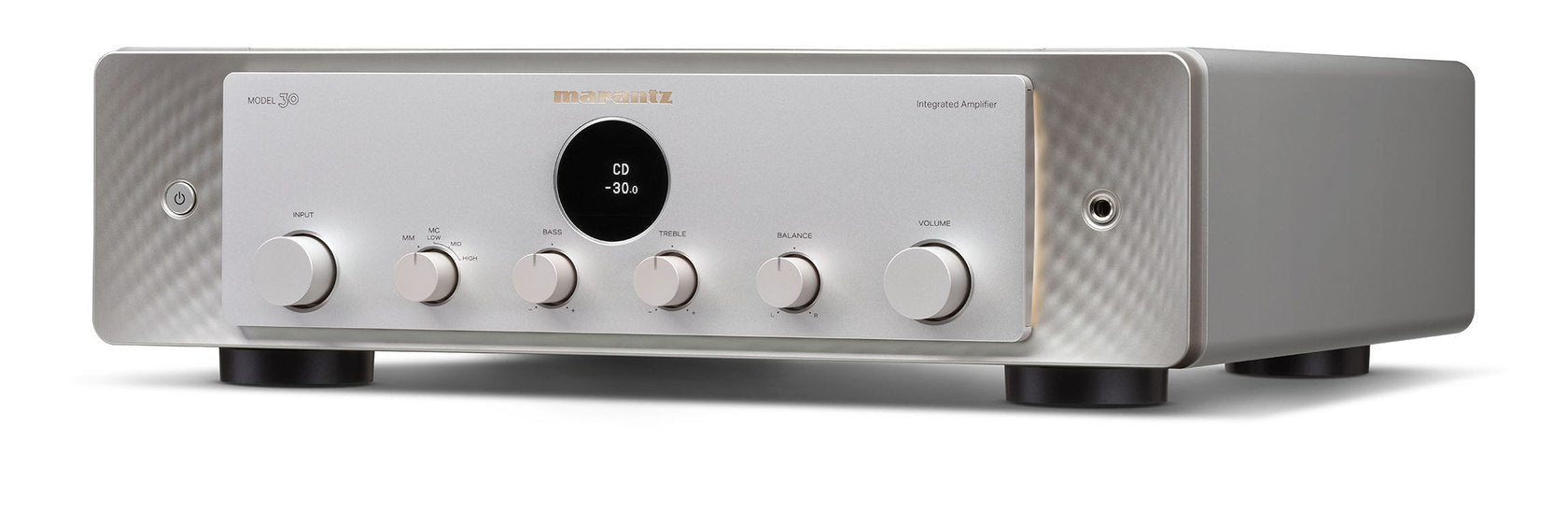

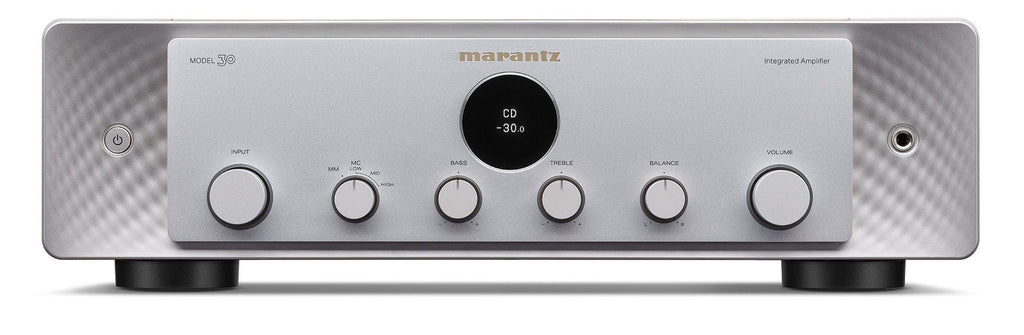

Marantz MODEL 30

The new MODEL 30 stereo amplifier takes Marantz into a new era. The stylish new design language brings strong elements of the traditional, timeless elegance of the already legendary Marantz devices. The technology of the amplifier is imported from the technology based on the flagship models, PM10 and PM KI RUBY. MODEL 30 contains two devices in one, a high-quality Class A analog stereo preamplifier and a modern Class D power amplifier. Great finish, sound quality and reliable operation of devices for decades to come has always been the strength of Marantz products, and this tradition continues and gets stronger.

Specifications:

Features

• Aluminum extrusion heat sink (Separate)
• Balance / Bass / Treble / Loudness o / o / o / -
• Channels 2
• Current Feedback Topology o
• Customized Components o
• Digital in: USB-B / optical / coaxial / USB-A - / - / - / -
• HDAM version SA3, SA2
• High Grade Audio Components o
• Phono EQ: Standard / Marantz Musical / Marantz Musical Premium - / - / o
• Power Transformer: Toroidal / El SMPS
• Symmetric PCB Layout o

General

• Auto power off o
• Carton Maximum Dimensions (W x D x H) in mm 534 x 522 x 255
• Carton Weight (inc. product) in kg 17.6
• Detachable Power Cable o
• Maximum Dimensions (W x D x H) in mm 443 x 431 x 130
• Metal Front Panel o
• Power Consumption in W 130

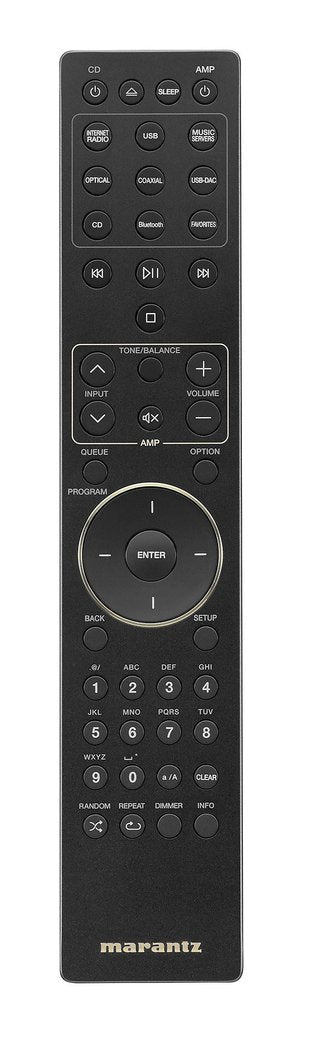

• Remote Control RC002PMND
• Standby Consumption in W 0.2
• System Remote Function o
• Weight in kg 14.8

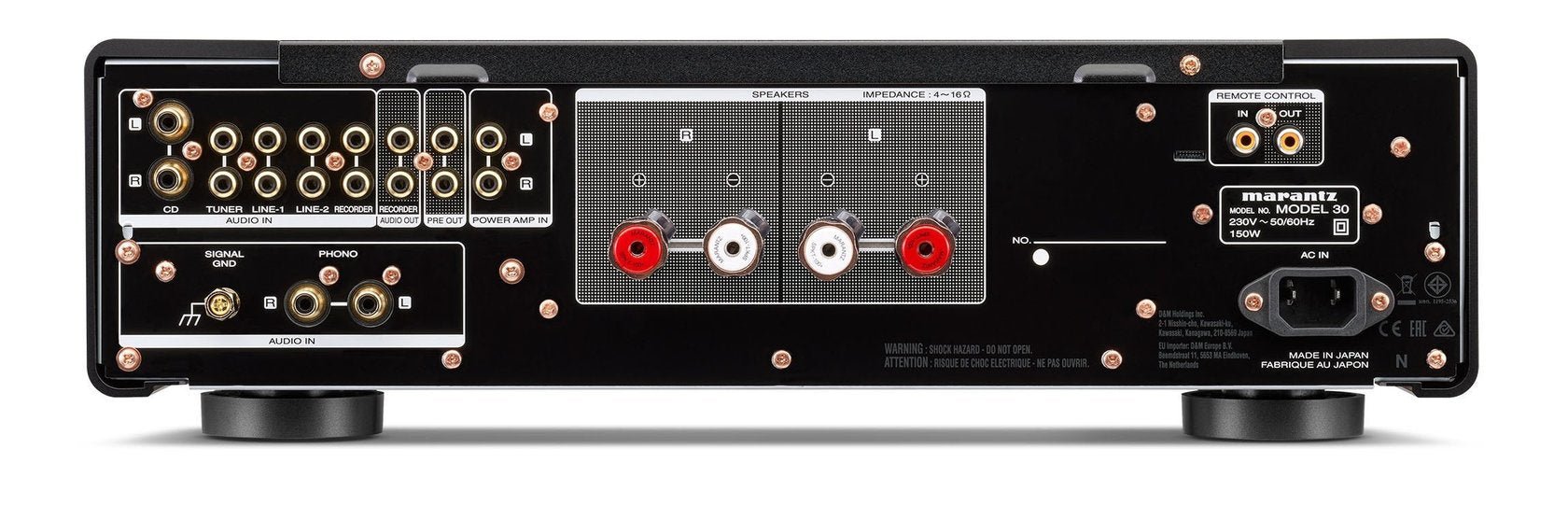

Inputs/Outputs

• Audio Inputs 6
• Audio Outputs 1
• Balanced In / Out - / -
• D-Bus o
• Digital in: USB-B / optical / coaxial / USB-A - / - / - / -
• Floating Control Bus (3.5 mm mono jack x 2) -
• Gold Plated Cinch o
• HDMI: inputs / outputs -
• Headphone Gain Control (low / mid / high) -
• Headphone Out o
• Number of terminals 2
• Phono Input: MM / MC o / o
• Power Amp Direct IN o
• Pre-out / Main-in o / -
• Speaker A / B -
• Speaker Terminals Marantz SPKT-100+

Others

• 5mm Aluminum top plate -
• BI-AMP and Multichannel option -
• Double Layer Bottom Plate o
• Input buffer amp (all inputs / CD only) - / -
• Linear Drive Power Supply o (pre-amplifier stage)
• Linear volume control o
• Low noise LCD display -
• Low Noise OELD display o
• Marantz Musical Digital Filtering -
• Power Amp direct -
• Schottky diodes o
• Source Direct -
• System block shielding: copper / metal / none o / - / -

Specifications

• Damping Factor 500
• Frequency Response 5 Hz to 50 kHz
• Input Sensitivity: Balanced High level -
• Input Sensitivity: High level 220 mV / 13 kohm
• Input Sensitivity: MC 250
• Input Sensitivity: MM 2.3 mV / 39 kohm
• Input Sensitivity: Power Amp Direct IN -
• Power Output (8 / 4 Ohm RMS) 100 W / 200 W
• Signal to Noise Ratio: High level 107 dB(2V input/Rated output)
• Signal to Noise Ratio: MM / MC 88 / 75 dB
• Signal to Noise Ratio: Power Amp Direct IN -
• Total Harmonic Distortion 0.005%

More information: Manufacturer's pages

---

Marantz offers an extended 5-year warranty for its Premium and Premium+ products, as long as the consumer remembers to register ( https://www.marantz.com/fi-fi/ 5ywarranty ) of their product within 3 months from the date of purchase.
