Description

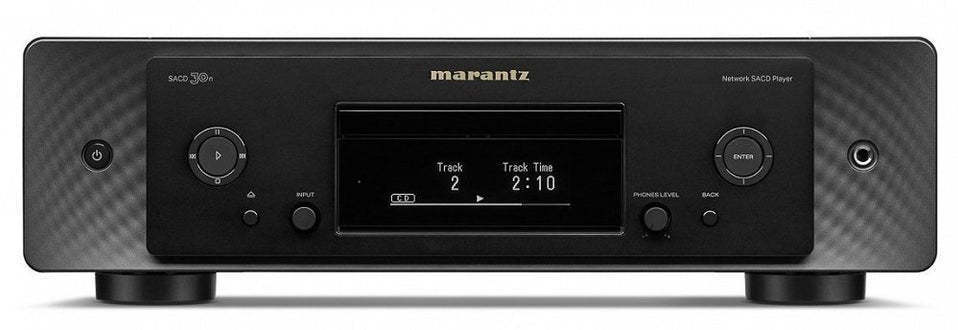

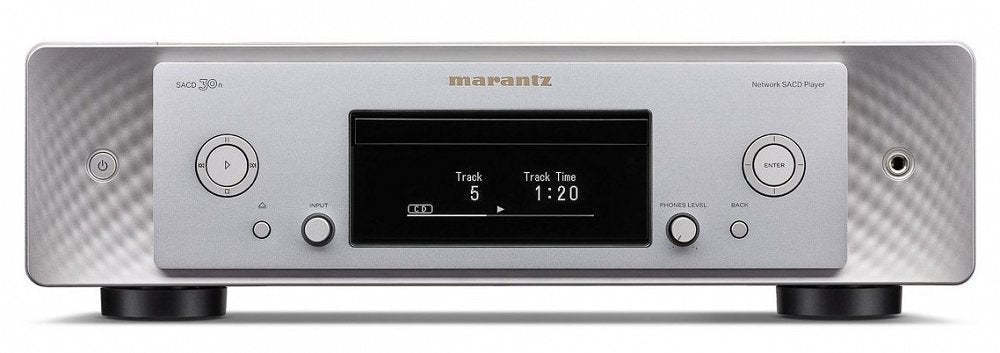

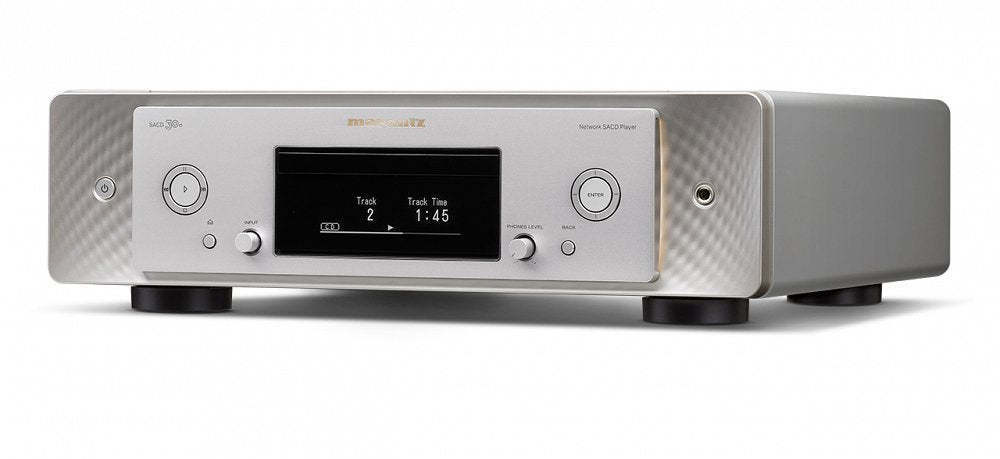

Marantz SACD 30n
SACD/CD and network player with HEOS support
The SCAD 30n combines a high-quality SACD player and a network player in one high-quality housing. The SACD30 model has built-in HEOS functions, so the device is a ready-made part of the home's multi-room system. The device supports DSD files and converts the PCM signal to DSD format, so you can be sure that the device gives you the opportunity to hear recordings in as good a quality as is only possible with current technology. Marantz Musical Mastering, is Marantz's own, patented solution for processing the signal flow, which eliminates the need for traditional D/A conversions, makes the signal path shorter and thus creates an unprecedented good sound quality.
Technical information:
- AirPlay 2 o
- Amazon Prime Music* / Pandora* o / o
- Asynchronous mode rear USB-B o
- Bit-perfect transmission o
- CD Compatibility: CD / CD-R/RW / SA-CD / WMA / MP3 / AAC o / o / o / o / o / -
- CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta data - / o / o / o / -
- Copper plated chassis -
- Customized Components o
- DAC operation mode: USB-B / Coax / Optical o / o / o
- Data Disc Compatibility: DSD / WAV / ALAC o / o / o
- Digital out off / Audio EX Mode o / -
- Extra metal plate for chassis strengthening o (1.5mm)
- HDAM version HDAM+HDAM SA3
- Headphone: Standard / Buffer / Current feedback - / - / o (HDAM SA2)
- HEOS Multiroom and Streaming o
- High Grade Audio Components o
- Internet radio tuner
- Jitter Reducer o
- Network audio streaming o
- Power Transformer: Toroidal / El o / -
- Roon Tested o
- Signal isolator for DAC Mode operation o
- Spotify Connect* / Tidal* / Deezer* / others * o / o / o / o
- Symmetric circuit layout o
- USB input for memory stick o
- USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 / DSD11.2 o / o / o
- Voice Control - Google Assist / Apple Siri o / o
- Voice Control - Microphone built-in -
- Voice Control - Works with Amazon Alexa o
General
- Auto power off o
- Available colors: Gold / Silver / Black / Silver-Gold - / - / o / o
- Carton Maximum Dimensions (W x D x H) in mm 534 x 522 x 255
- Carton Weight (inc. product) in kg 16.2
- Detachable Power Cable o
- Maximum Dimensions (W x H x D) in mm 443 x 424 x 130
- Metal Front Panel o
- Power Consumption in W 48
- Remote Control RC002PMND
- Standby Consumption in W 0.4
- Weight in kg 13.5

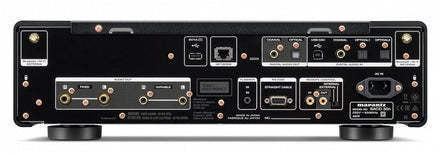

Inputs/Outputs
- Analog Out (Cinch) 1
- Balanced Out -
- D-Bus o
- Digital Coaxial In / Out 2 / 1
- Digital Optical In / Out 1 / 1
- Ethernet port o
- Flasher input o
- Gold Plated Cinch o
- Headphone Out o
- Headphone Volume Control o
- IP control o
- RS232 o
- Sample Rate digital In 192 kHz / 24-bit
- USB Audio (front) or (rear)
- USB type B input for PC (rear) Sample Rate USB type B In o up to DSD11.2
- Variable Out (Cinch) 1
Network
- App control AMP/CD via Network Player o
- Bluetooth on / off mode o
- DSD Audio Streaming up to DSD11.2 by Update
- Gapless playback o (FLAC, WAV, DSD)
- Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 o / o / o / o
- Lossy formats MP3 / WMA / AAC o / o / o
- Remote APP: iDevice / Android o / o
- Wi-Fi on / off mode o
- Wi-Fi / Wired LAN 2.4GHz, 5GHz / o
Others
- Display: Dimmer / Off o / o
- Marantz Musical Mastering o
- Marantz Musical Mastering Conversion o
- Marantz Musical Mastering Stream o
- Selectable filter: CD / SA-CD / DAC-Mode o/ - / o(PCM Only)
- Separated rectifier circuit for analogue and digital circuitry o
- Playback
- Program Play (CD / SA-CD) 25 / -
- Random Play o
- Repeat o
Specifications
- Channel Separation -
- Channel Separation (SA) -
- D/A Conversion MMM
- DAC IC MMM
- Digital Filter MMM
- Dynamic Range 98 dB
- Dynamic Range (SA) 109dB
- Frequency Response 2 Hz to 20 kHz
- Frequency Response (Cust.) 2 Hz to 20 kHz
- Headphone amp HDAM SA3
- Low Pass Filter stage HDAM
- Mechanism SACDM-3L
- Noise Shaper MMM
- Output buffer HDAM SA3
- Signal to Noise Ratio 104dB
- Signal to Noise Ratio (SA) 112dB
- Total Harmonic Distortion 0.000015
- Total Harmonic Distortion (SA) 0.0008%
- Weight 13.5kg
More information: Manufacturer's pages
Marantz offers an extended 5-year warranty for its Premium and Premium+ products, as long as the consumer registers ( https://www.marantz.com/fi-fi/ 5ywarranty ) of their product within 3 months from the date of purchase.
Below are the instructions in a nutshell:
- Consumers are interested in a Marantz product and become aware of the 5-year warranty via the brand website or the dealer
- Consumer Buys a Premium or Premium plus product and can register this on a dedicated registration page (within 3 months after purchase)
- Once all data is submitted, the consumer will receive a confirmation email with a proof of the registration
- When a product breaks, the consumer can go to the dealer/service center with the defective product, receipt and confirmation email
- Dealer/service center to check if the serial numbers match, and if the purchase date on the receipt matches the registration
- Once all is fine, the consumer qualifies for the extra warranty and the service can be executed free of charge.
