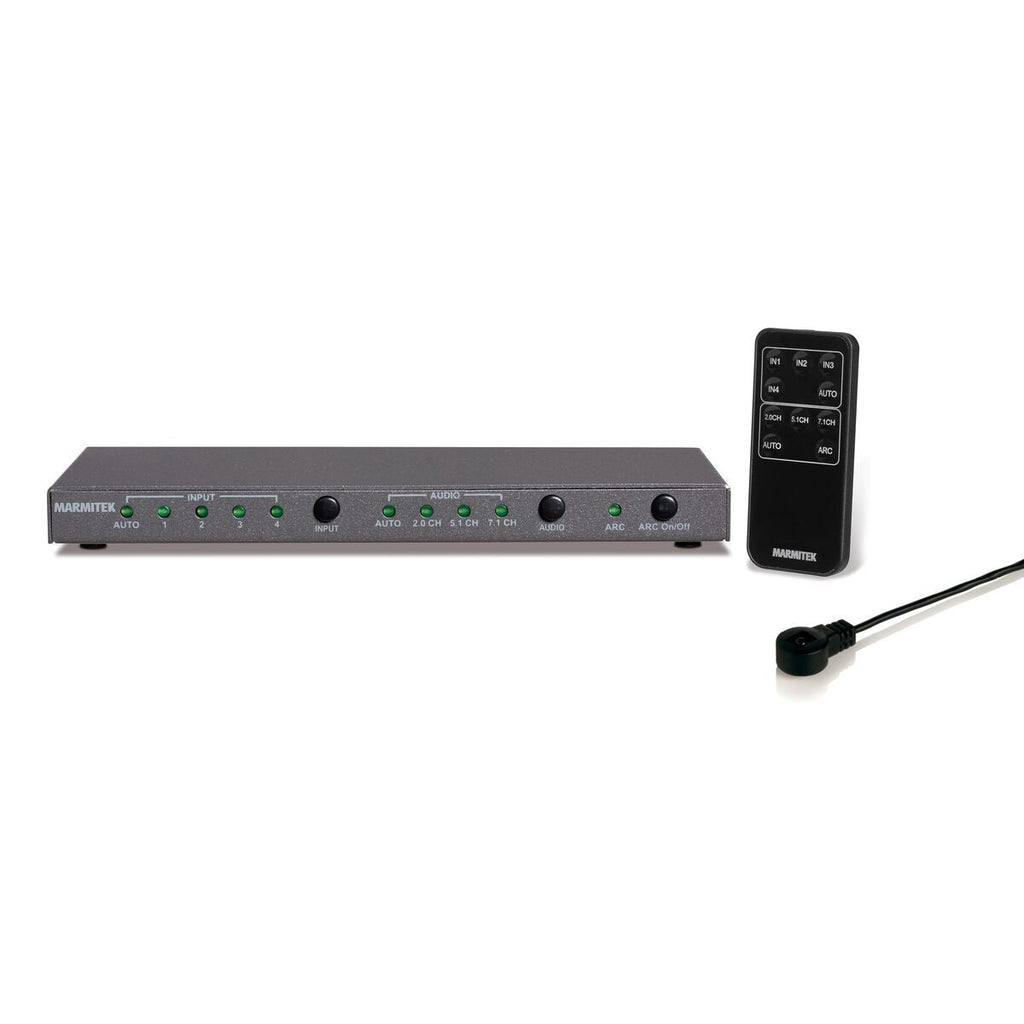

With this PRO-level HDMI switch, you can connect 4 devices to one HDMI input of a TV or projector. Connect 621 UHD 2.0 includes separate audio output connections in analog and optical, so you can upgrade to a modern HDMI picture and maintain high-quality multi-channel sound reproduction with an older AV amplifier or stereo amplifier.
UHD 621 2.0 supports Ultra HD 4K60 resolution (3840 x 2160/60 Hz), HDR, Deep Color and 4:4:4 chroma resolution. The Connect 621 UHD 2.0 switch has a built-in signal repeater and corrector to ensure a high-quality signal, and is excellently immune to interference thanks to its solid metal housing.
Features:
Suitable for connecting four HDMI devices to, for example, a TV or an AV amplifier.
For connecting game consoles such as PlayStation and Xbox, Blu-ray players, digital TV tuners and other HDMI devices.
Enjoy the latest Ultra HD content and watch Netflix or Blu-ray movies in 4K format, maintaining extreme contrast and beautiful colors.
Digital audio output for connecting an AV receiver with a single cable, and the ability to select the desired audio format (2.0/5.1/7.1).
Supports Ultra HD 4K60 resolution (3840 x 2160/60 Hz), dynamic image reproduction (HDR), Deep Color color reproduction and 4:4:4 chroma sampling.
Supports Dolby Atmos and DTS:X and other common audio formats.
Input switching automatically and/or by remote control.
Supports HDCP 2.2 protected 4K Ultra HD content.
Built-in repeater and corrector to avoid signal losses.
Supports Audio Return Channel (ARC) to avoid synchronization problems between picture and sound.
A separate IR receiver to operate the switch when it is concealed.
Technical information

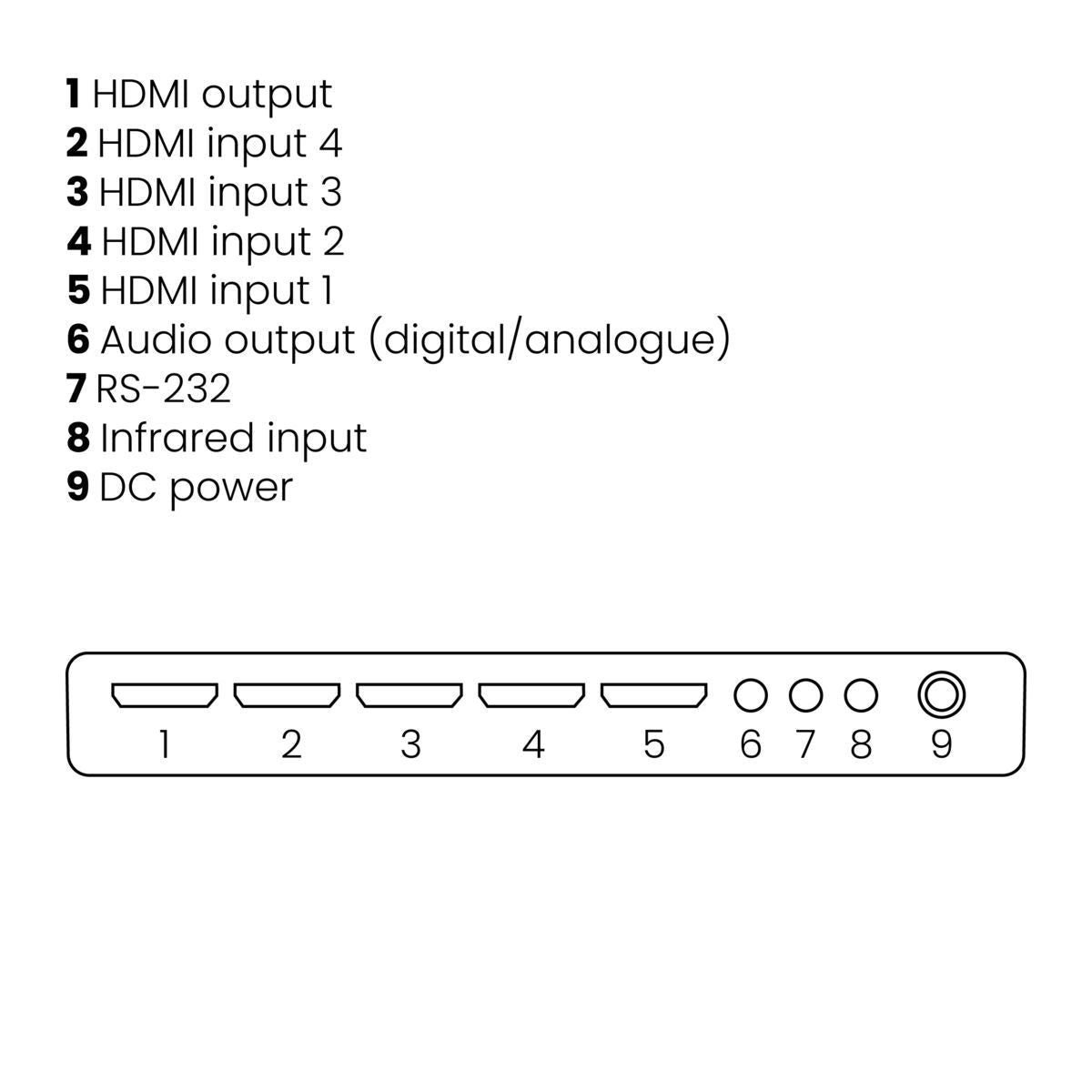

- AV input: 4x HDMI
- AV output: 1x HDMI
- Digital audio output: 1x optical Toslink
- Analogue audio output: 1x 3.5mm stereo plug
- RS232 control: 1x 3.5mm plug
- Video resolution: max. 2160@60 Hz
- PC resolution: max. 2560x2048
- 3D formats: all 3D formats
- Video bandwidth: max. 18 Gbps
- HDMI standard: HDMI 2.0b, CEC, EDID, DVI
- HDCP standard: HDCP 1.4/2.2
- Color formats: RGB and YCbCr 4:4:4, 4:2:0 or 4:2:2
- Color depth: max. 36-bit
- HDMI audio: DTS-HD Master Audio, Dolby TrueHD, Dolby Atmos, DTS:X, Dolby Digital/AC3, DTS 5.1 and PCM stereo
- Dimensions (H x W x D): 21 x 182 x 85 mm
- Weight: 366 grams
- Operating environment temperature: +0 ... +40 ° C
- Operating environment humidity: 20% - 90%
- Power source: 100-240 VAC 50/60 Hz, 5 VDC adapter

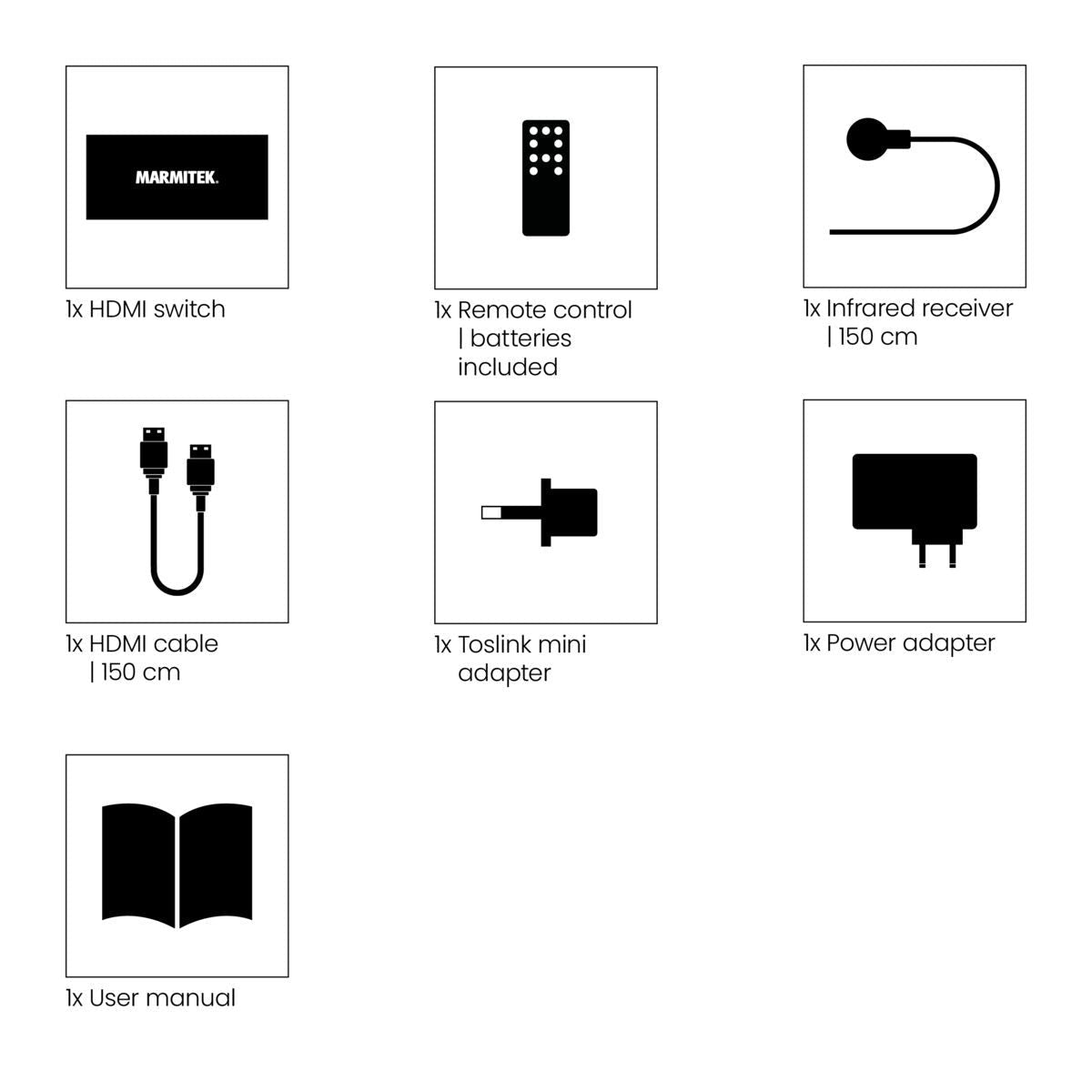

- In addition to the switch, the package includes:
- Remote control (batteries included)
- Infrared eye with cord, length 150 cm
- HDMI cable, length 150 cm
- Toslink Mini adapter
- Power adapter
- Manual
- Warranty 24 months
