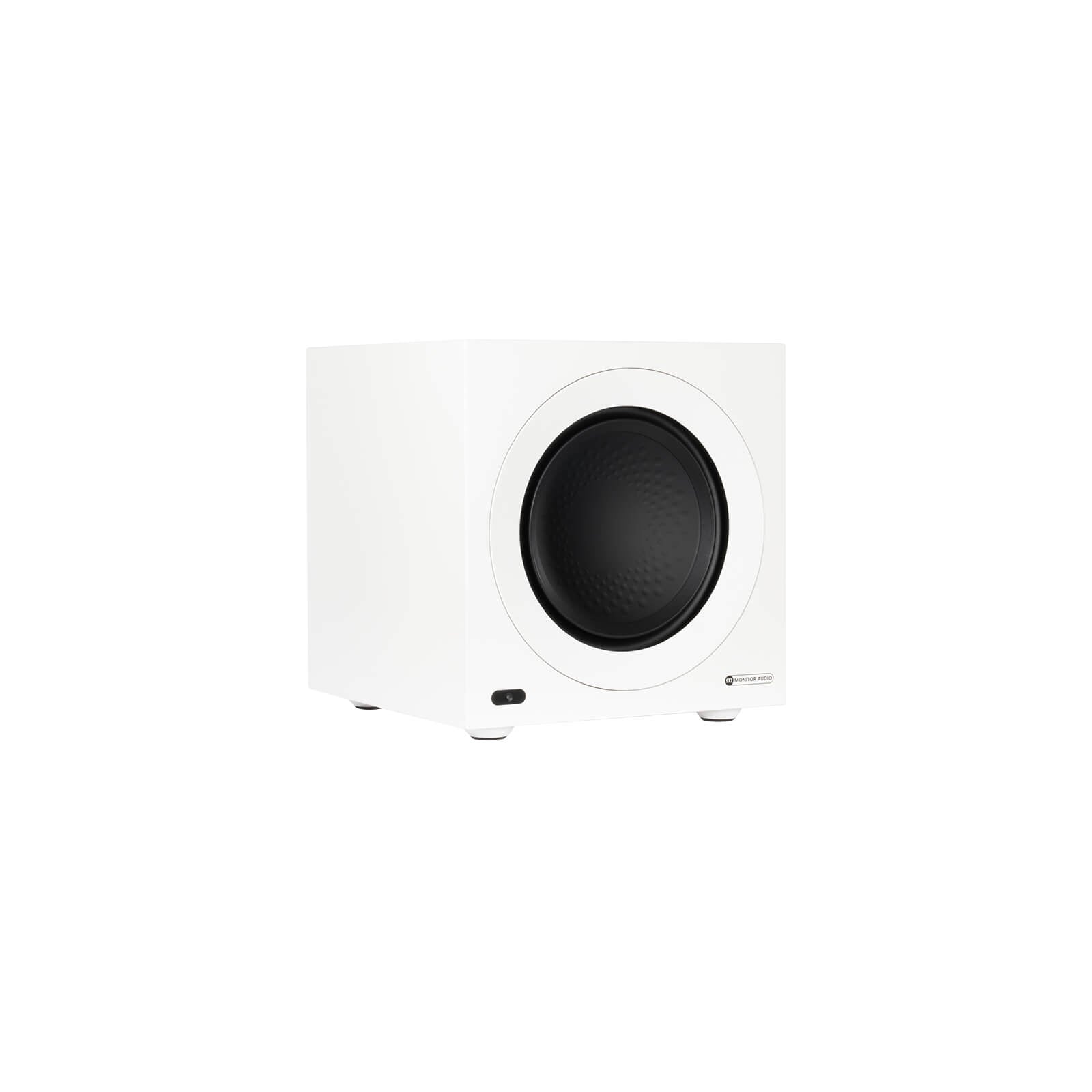

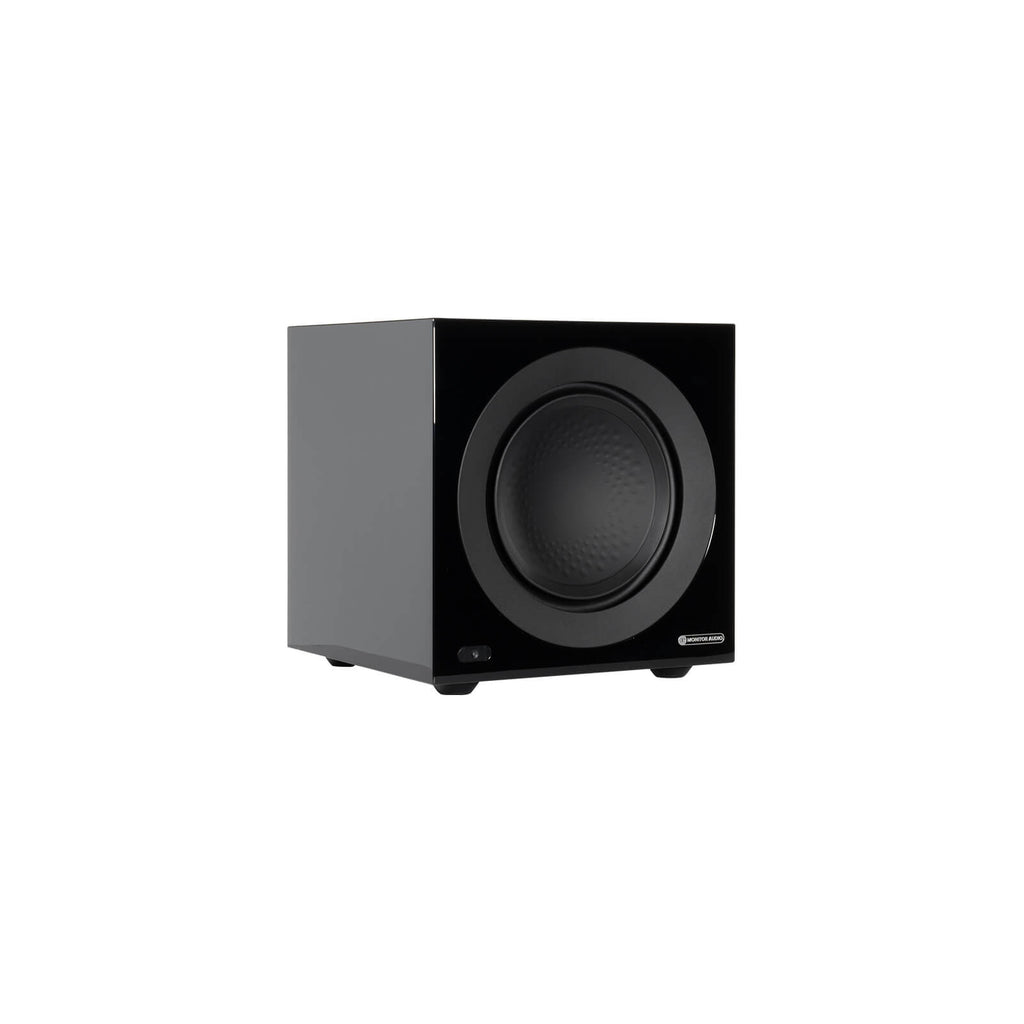

Monitor Audio Anthra W10 10" active subwoofer
The most compact model in the Anthra series, the Monitor Audio Anthra W10 offers big performance in a smaller size. It is powered by a 10” RST II C-CAM driver designed for high-excursion and accurate, deep bass. A sealed, internally reinforced enclosure ensures a controlled response, and a 500W Class-D amplifier delivers the power needed for all music and movie applications.
Key features
- 10” RST II C-CAM high-excursion driver – a compact yet powerful element for deep and controlled bass reproduction.
- 500W Class-D amplifier – enough power for both music and movies.
- Closed, solidly braced enclosure – resonance-free construction ensures fast and tight response.
- Full-color LCD display – clear and modern user interface.

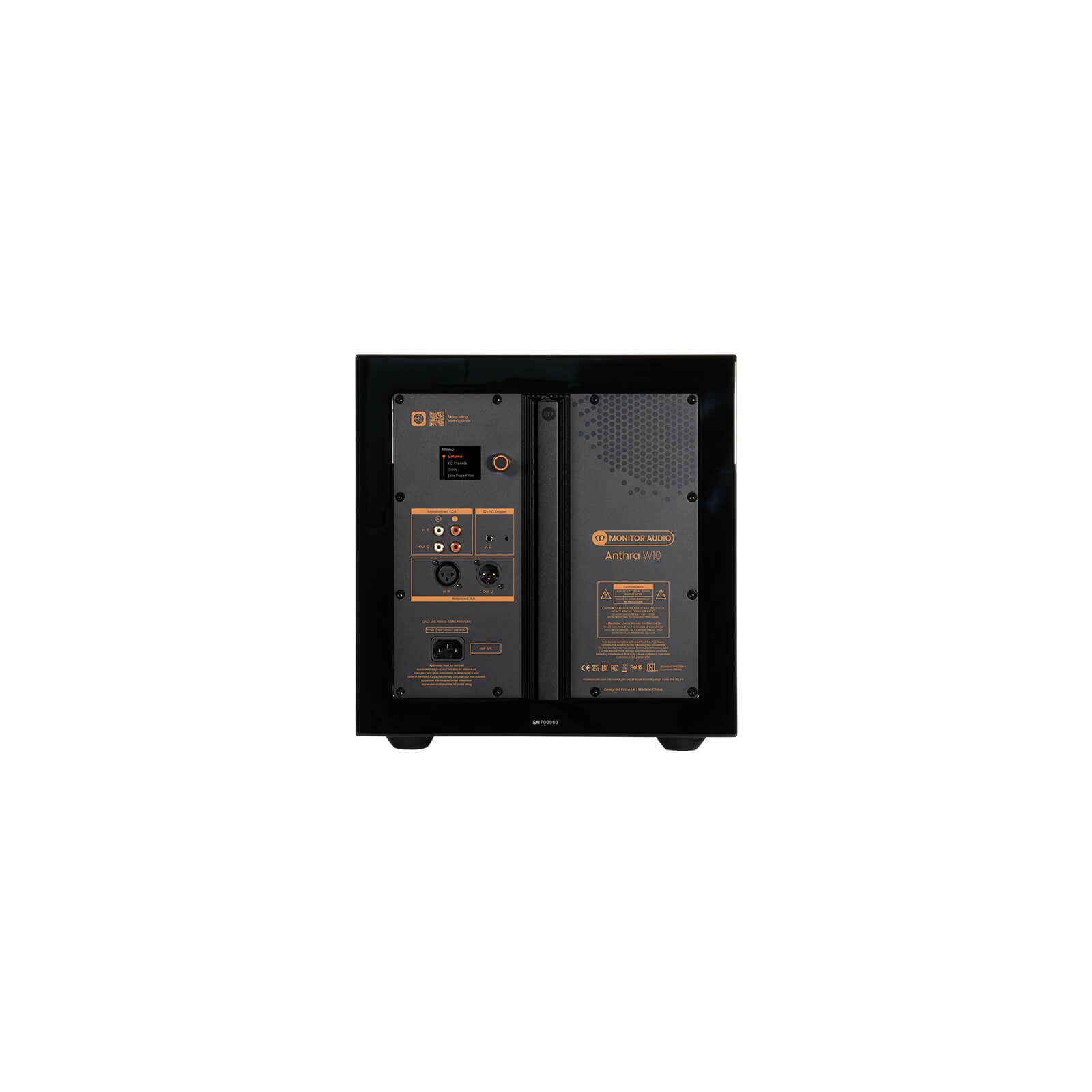

- Extensive connectivity – RCA and XLR inputs and RCA and XLR outputs for versatile system use.
- Massive motor construction – ensures reliability and control even in heavy use.
- Compatibility with MaestroUnite system – easy deployment and integration.
Specifications
- System: Active subwoofer, closed enclosure
- Element: 1 x 10" RST II C-CAM high-excursion driver
- Amplifier: High-Efficiency Class-D, 500 W (instantaneous), 425 W (continuous short-term)
- Frequency response: 17 Hz – 400 Hz (-6 dB, LPF off)
- Phase: 0–360°
- Low-pass filter: 20–200 Hz, slope adjustable from -3 dB to -48 dB/oct
- EQ: 3 presets + 3 user-definable (8-band)
- Inputs: RCA (stereo/mono LFE), XLR (mono/LFE)
- Outputs: RCA and XLR (through)
- Dimensions (H x W x D): 321 x 321 x 321 mm (without feet)
- Weight: 20.06 kg
- Power consumption: 120 W
- Enclosure: 18 mm MDF, 36 mm front panel, solidly braced

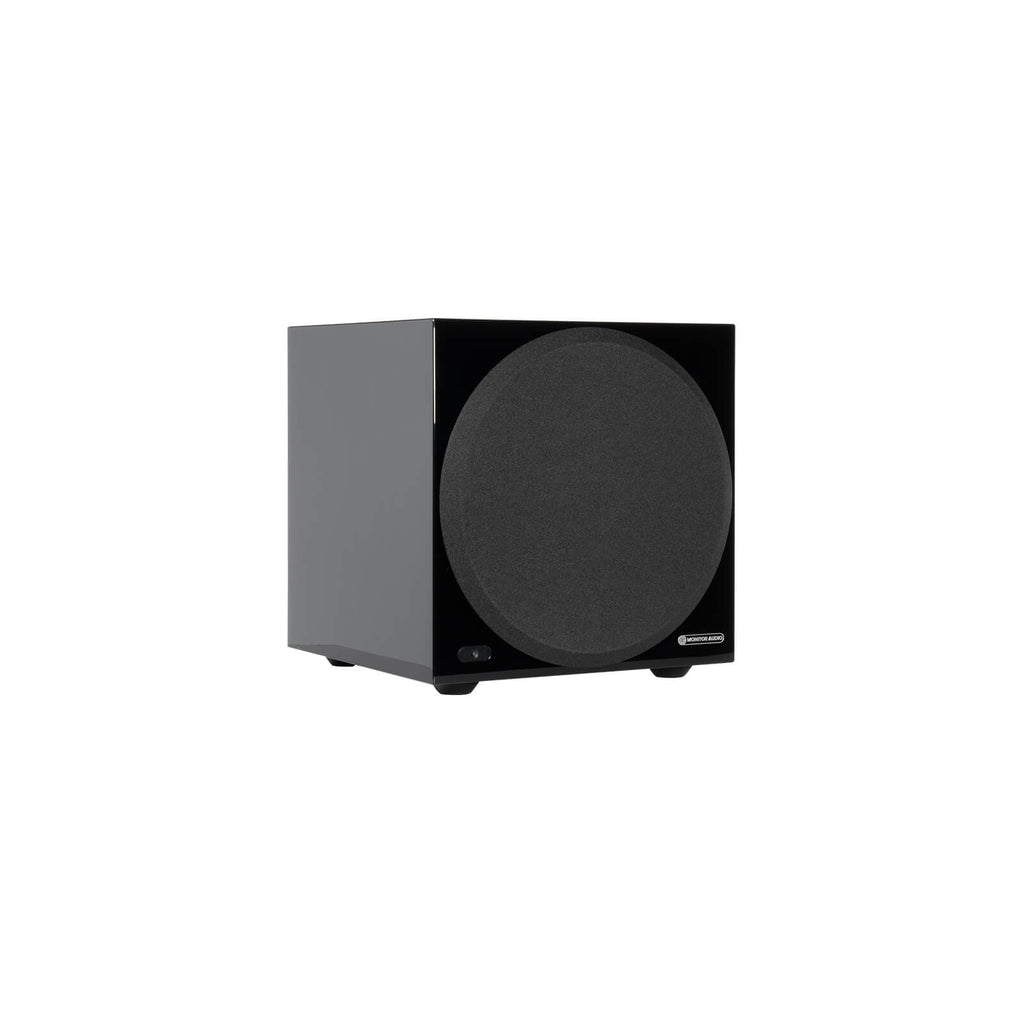

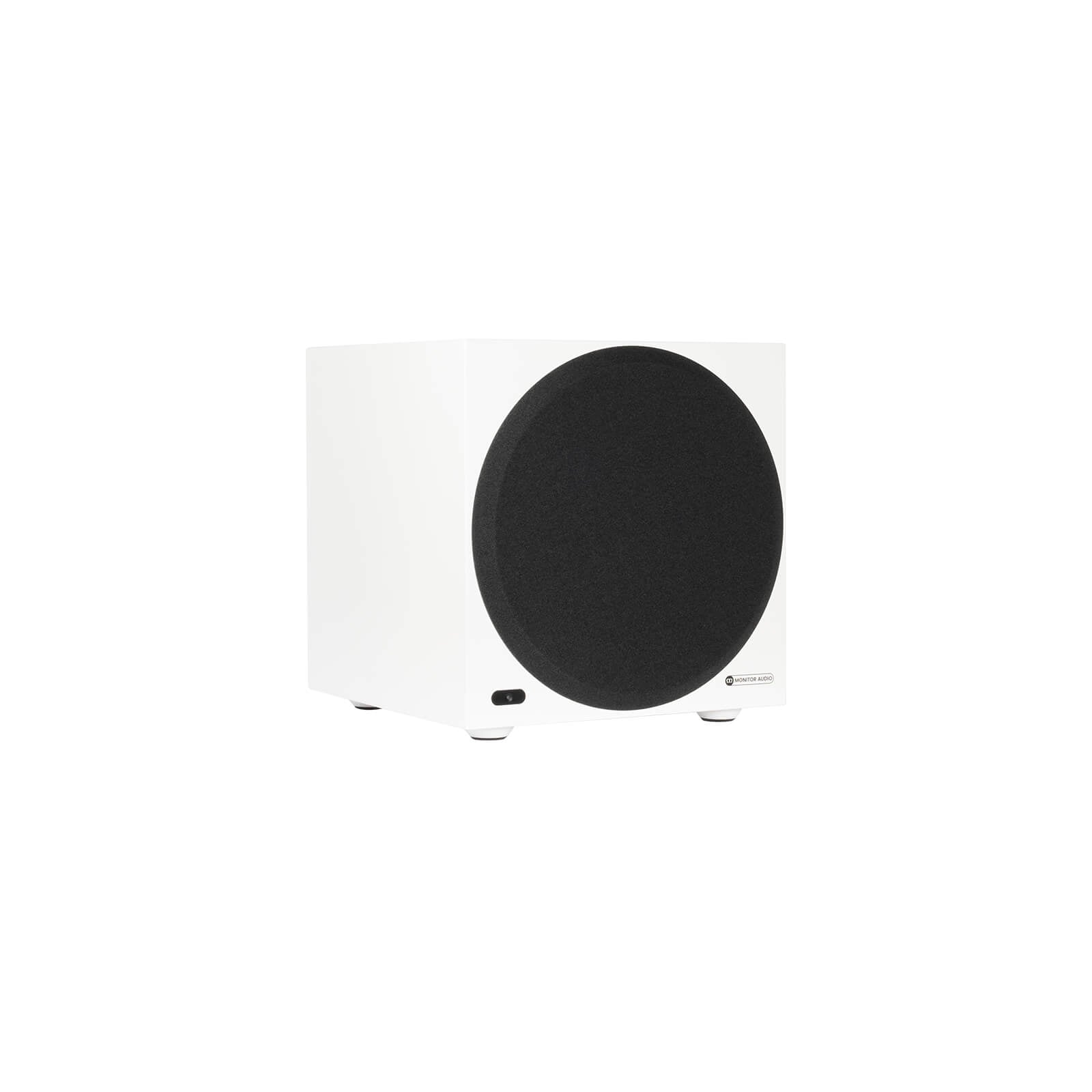

- Front grille: Fabric-covered, magnetic fastening
- Warranty: 5 years
