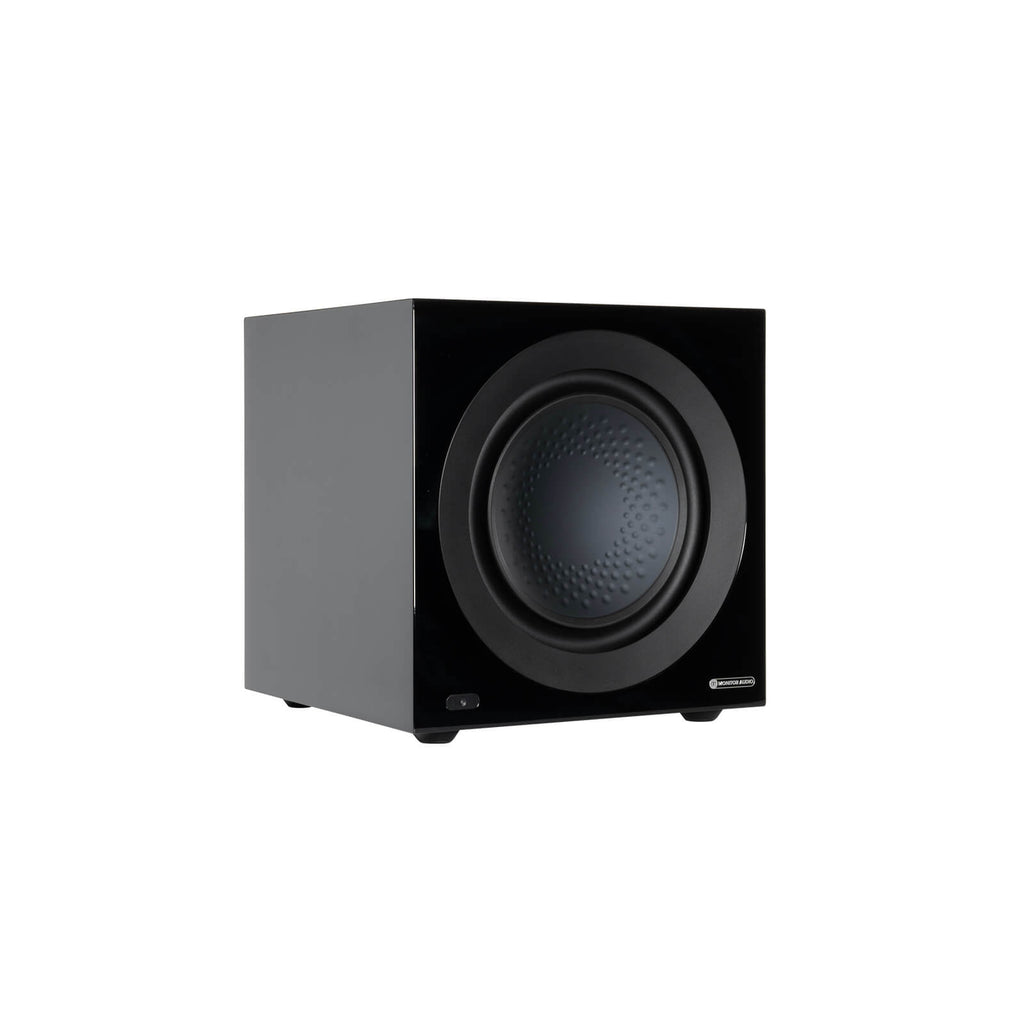

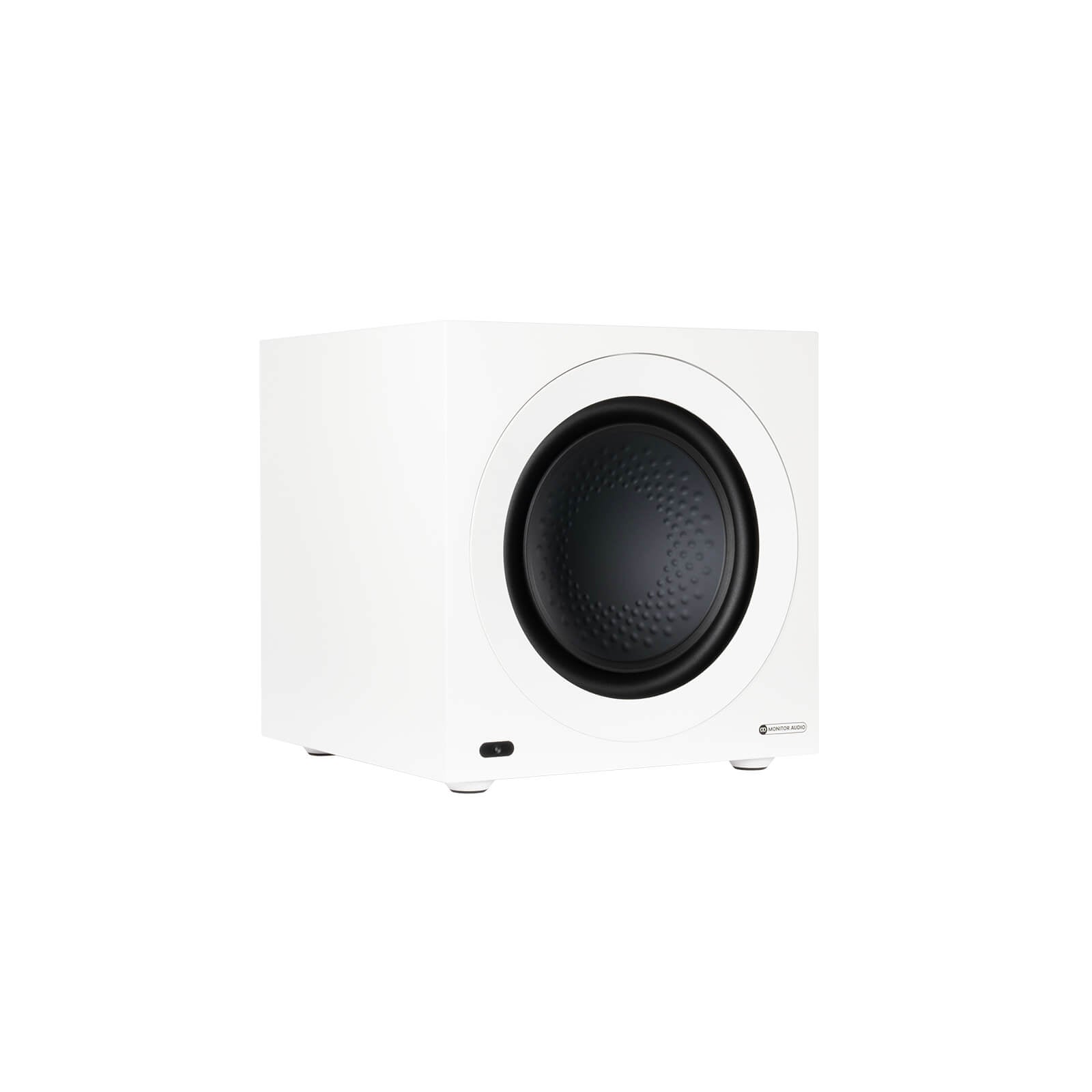

Monitor Audio Anthra W12 12" active subwoofer
The Monitor Audio Anthra W12 is the mid-sized model in the Anthra series, combining uncompromising design, high power and sealed enclosure technology. At its heart is a 12" (305 mm) High Linear-Excusion Triple Suspension Driver designed for high-excursion and exceptionally controlled bass response. Powered by a 1,700 W Class-D amplifier , it delivers both speed and power for even the most demanding soundtracks.
Key features
-
12" (305 mm) High Linear-Excusion Triple Suspension Driver – a stiff, lightweight, high-excursion driver for exceptionally accurate and deep bass reproduction.
- 1,700W Class-D amplifier – massive power reserve ensures both dynamics and control.
- Closed-back enclosure – internally rigidly braced construction eliminates resonances and ensures fast, tight response.
- Full-color LCD display – a clear interface for managing settings.

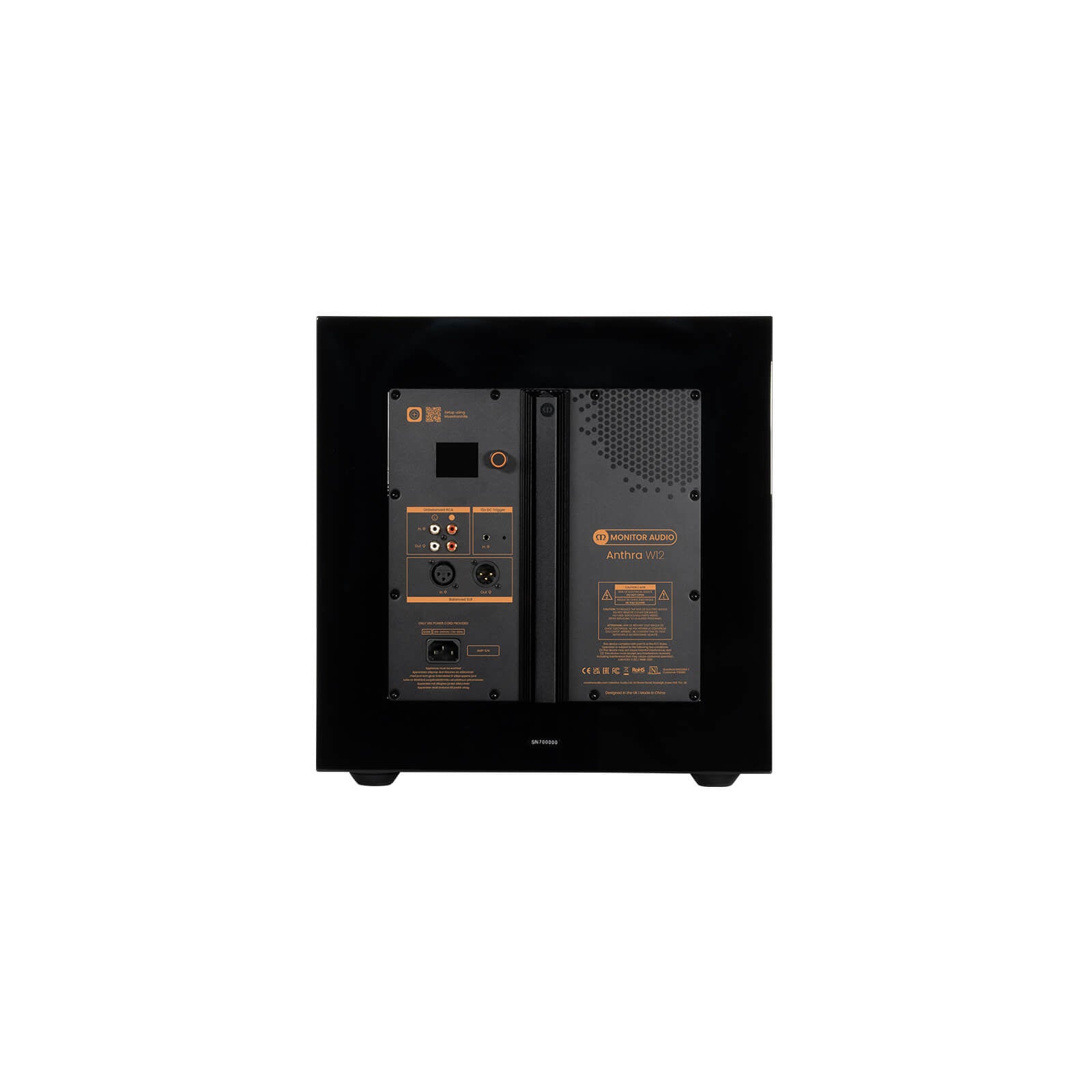

- Extensive connectivity – RCA and XLR inputs and RCA and XLR outputs for versatile system integration.
- Massive engine construction – designed for ultimate control and reliability.
- Compatible with the MaestroUnite platform – easy deployment and system control.
Specifications
- System: Active subwoofer, closed enclosure
- Element: 1 x 12" (305mm) High Linear-Excusion Triple Suspension Driver
- Amplifier: High-Efficiency Class-D, 1700 W (instantaneous), 900 W (continuous short-term)
- Frequency response: 16 Hz – 400 Hz (-6 dB, LPF off)
- Phase: 0–360°
- Low-pass filter: 20–200 Hz, slope adjustable from -3 dB to -48 dB/oct
- EQ: 3 presets + 3 user-definable (8-band)
- Inputs: RCA (stereo/mono LFE), XLR (mono/LFE)
- Outputs: RCA and XLR (through)
- Dimensions (H x W x D): 374 x 374 x 374 mm (without feet)
- Weight: 28.56 kg
- Power consumption: 200 W
- Enclosure: 25 mm MDF, 36 mm front panel, solidly braced

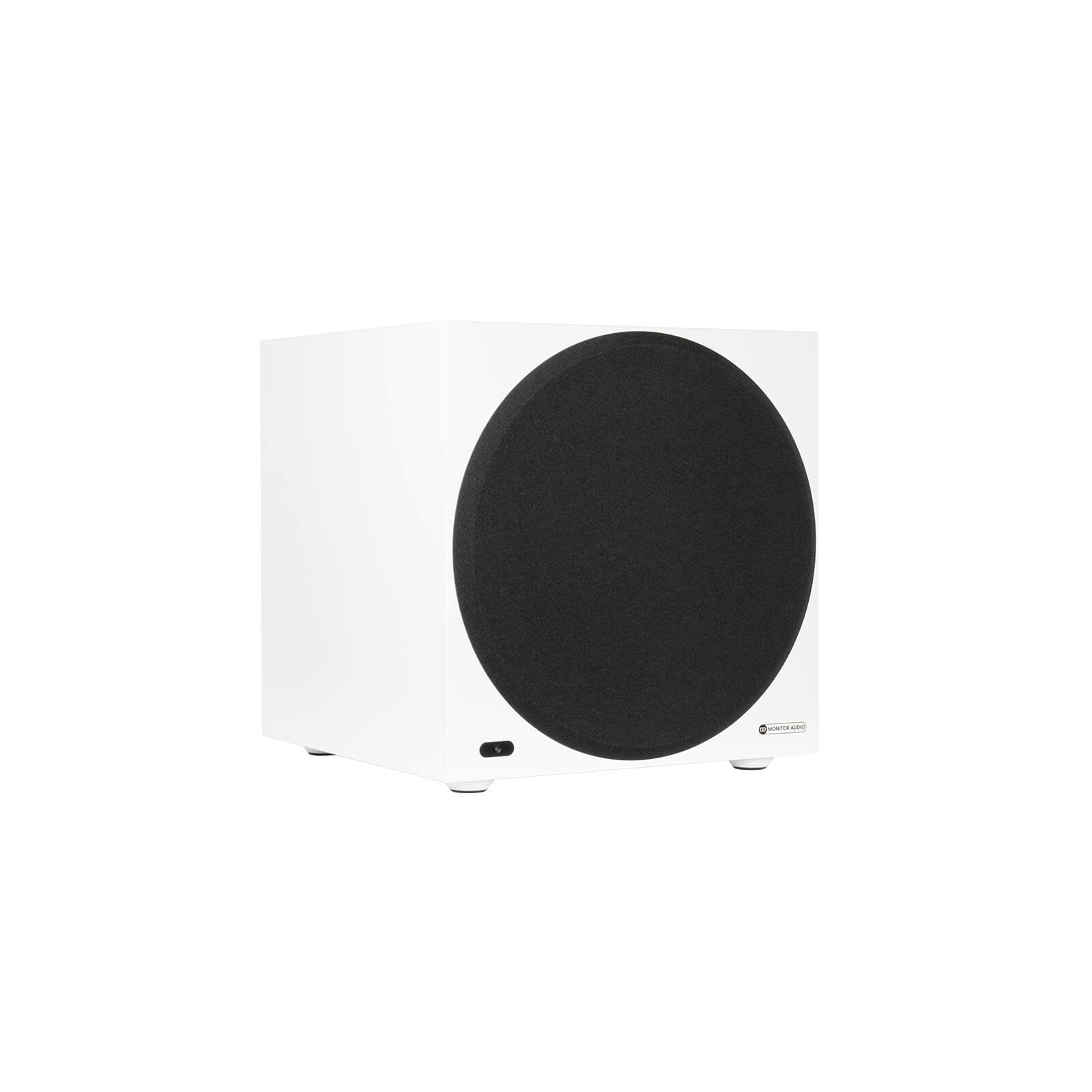

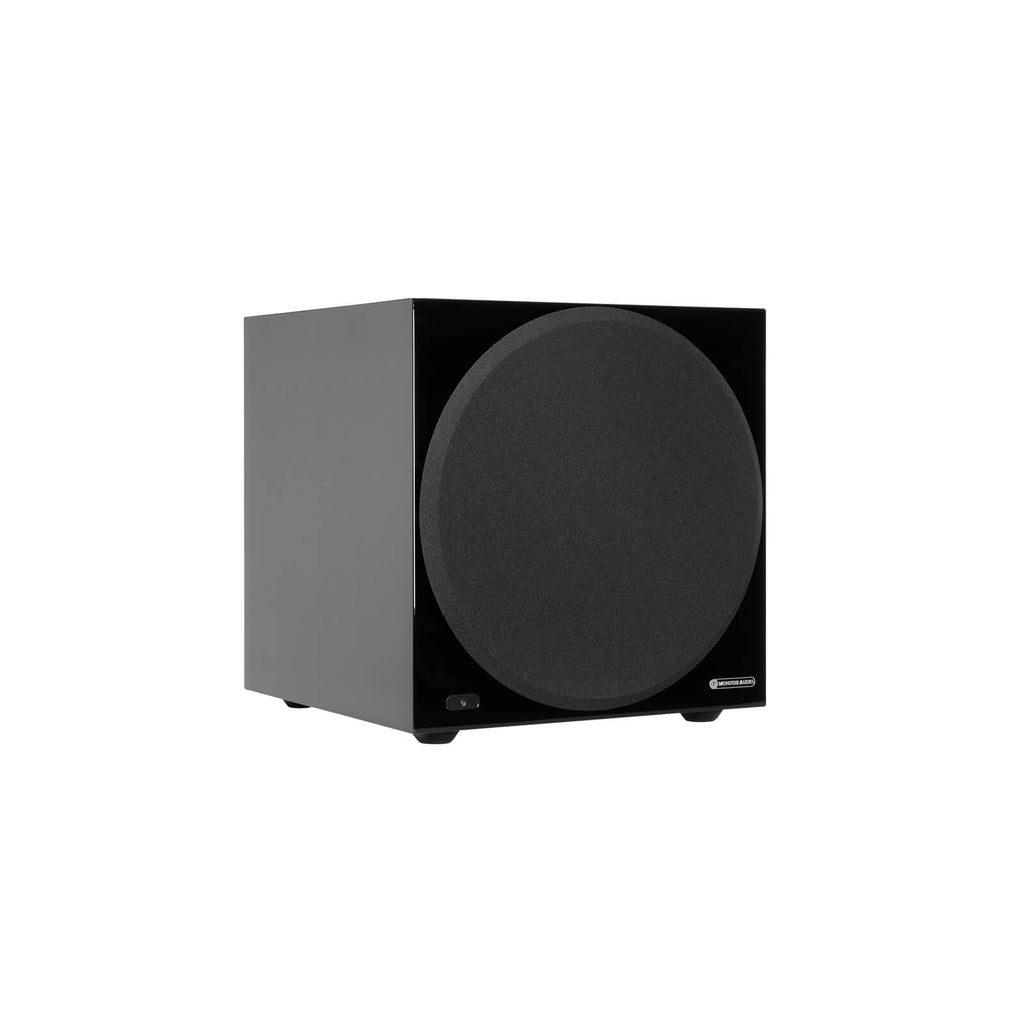

- Front grille: Fabric-covered, magnetic fastening
- Warranty: 5 years
