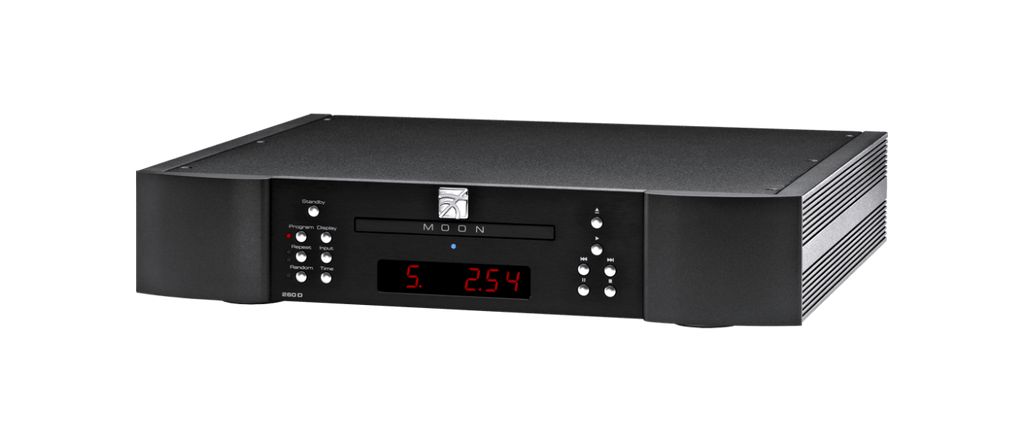

Moon 260D
CD player + DAC
A high-performance and affordable top-of-the-line digital product that meets current and future needs. The Moon 260D CD player and optional 32-bit DAC combine powerful and useful features, CD playback and music streaming in one platform.
The Moon 260D offers excellent flexibility as a CD player and DAC all-in-one. With a 32-bit processor, the Moon's familiar oversized power supplies, and complex analog stages, the 260D's sound reproduction is unmatched in its price class. The DAC section is completely optional, so you can add it later if needed.
The player has an "MQA pass-through" feature. The MQA-encoded data on the disc is sent to the digital output to be decoded by an MQA-certified DAC, giving the user the full performance of MQA.
Manufacturer's product page (EN)
Technical information:
- M-Quattro gel-based 4-point floating suspension
- 2 digital outputs (S/PDIF and AES/EBU)
- A true 32-bit asynchronous Digital-to-Analog converter
- 4 digital inputs (S/PDIF x 2, TosLink x 1, USB x 1)
- USB input with galvanized insulation
- Frequency response (full range): 2Hz - 100kHz +0/-3dB
- THD @ 1kHz, 0dBFS (A-weighted): 0.005%
- Intermodulation distortion: 0.005%
- Dynamic Range: 120dB
- Signal-to-noise ratio: 120dB @ full output
- Channel Separation: 116dB
- Intrinsic Jitter: 1 picosecond RMS
- Analog Output @ 0dBFS: 2.0V
- Analog output impedance: 75Ω
- PCM Bit-depth range: 16 - 24 bits
- PCM sampling frequency rates: 44.1 - 192kHz
Dimensions:
- Height: 8.6cm
- Width: 42.9cm
- Depth: 33.3cm
