Description

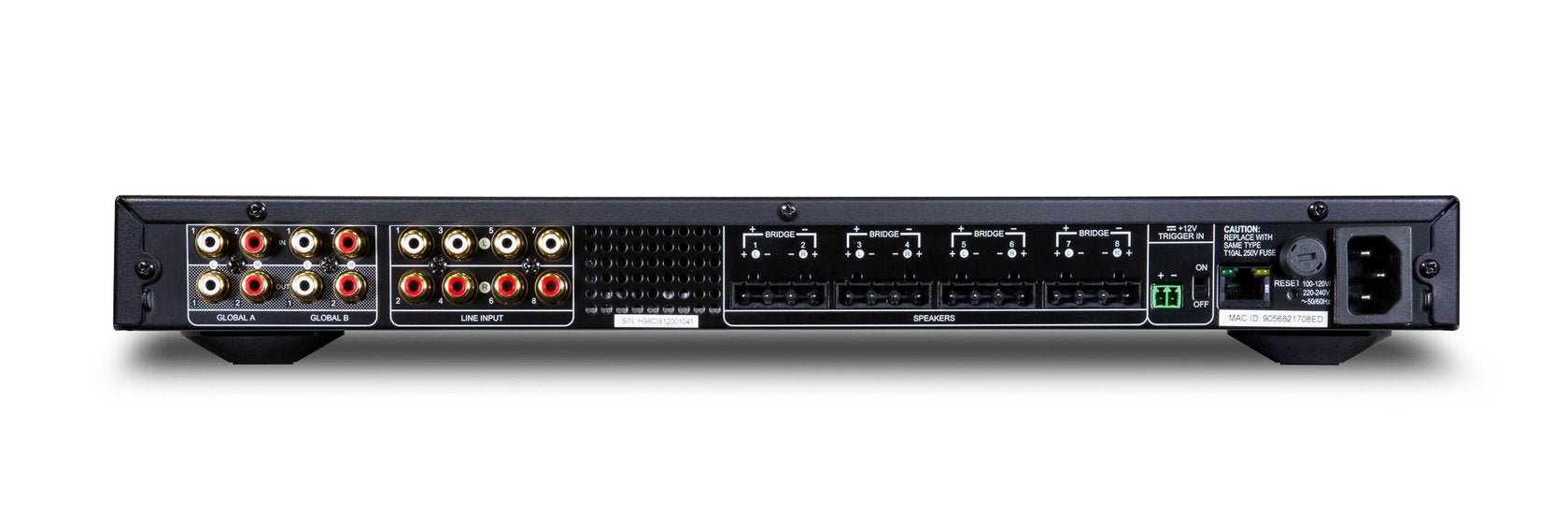

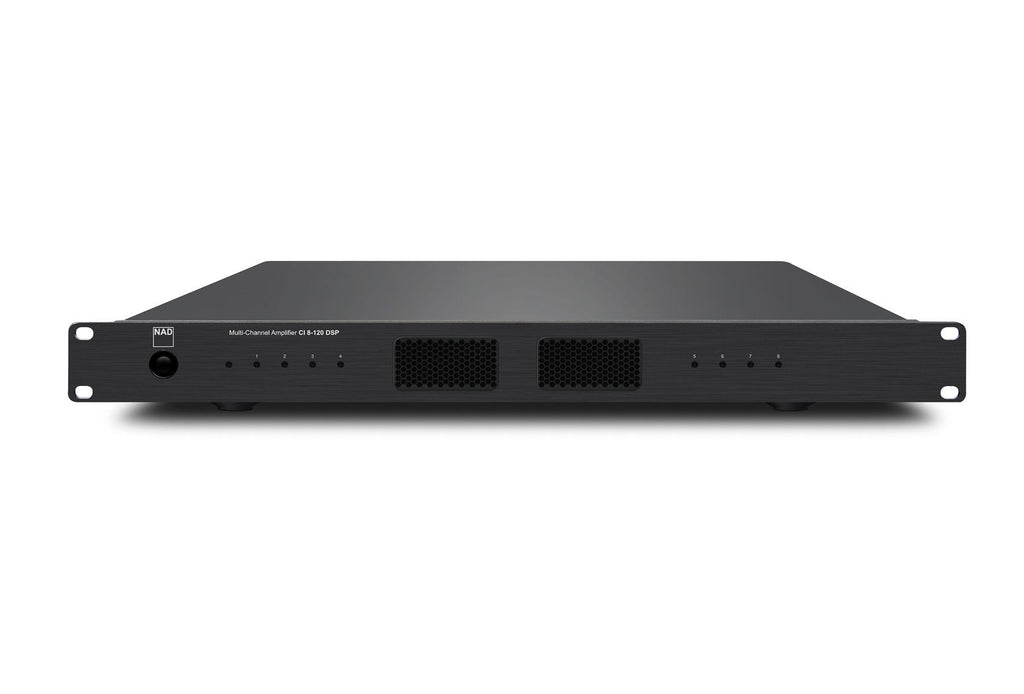

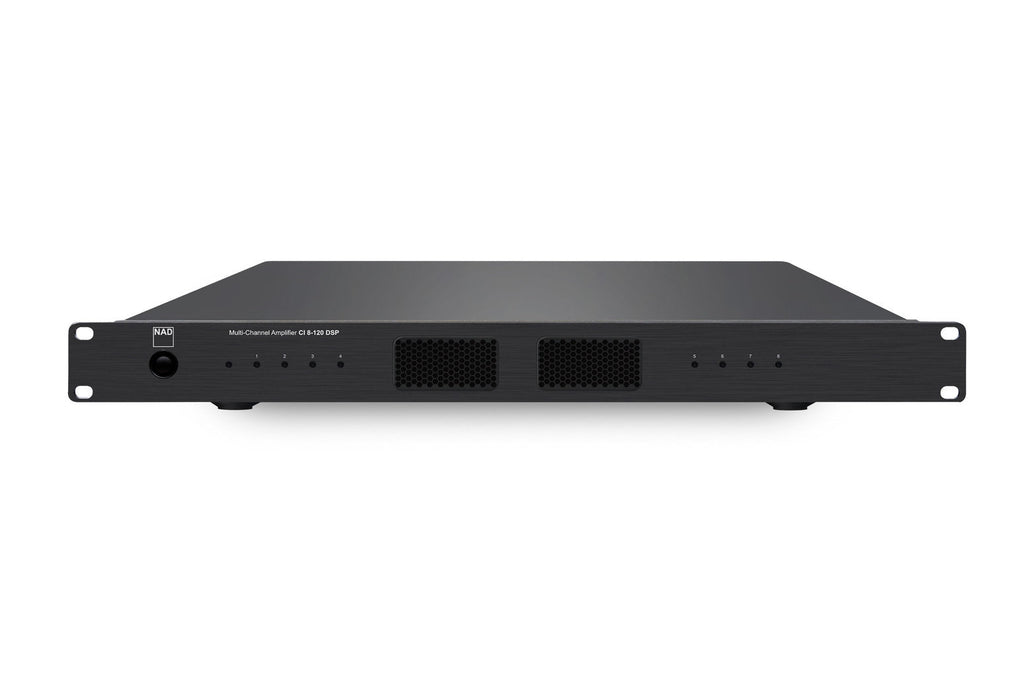

NAD CI 8-120 DSP
Multi-channel Custom Install power amplifier
The CI 8-120 DSP delivers a conservative 8 x 120 watts per channel @ 8 ohm and is bridgeable to 4 x 200 watts per channel @ 8 ohm. The hybrid digital amplifier platform delivers stable and efficient power with high current capability all in a slim 1U rack space.
Smart CI Solution with Audiophile Performance for Distributed Audio
Our eight-channel Powerhouse Promises NAD's legendary performance with reliability and stability with lots of installer-friendly features. The NAD CI 8-120 is an advanced amplifier targeted squarely at high performance distributed audio systems. Delivering a conservative 8 x 120 watts per channel @ 8 ohm, it is also bridgeable to 4 x 200 watts per channel @ 8 ohm. IHF Dynamic Power in bridged mode is 4 x 350 watts per channel @ 4 ohm. To put it simply, the CI 8-120 will drive most anything you need in your multi-room audio system.
The hybrid digital amplifier platform delivers stable and efficient power with high current capability, all in a slim 1U rack space. To make this level of performance possible, the CI 8-120 DSP uses a customized version of the proven Hypex UcD output stage. This allows for massive power with extremely low distortion and noise in the Audible range. Every detail of this design has been carefully executed to wring out every last drop of performance. Designed to deal with the demands of the CI world, it was made to handle long cable runs and difficult speaker loads.
NAD is keenly aware that reliability is paramount for a professional Installer so all models will be based on tried and true amplification platforms delivering stable and reliable performance. The CI 8-120 amplifier is stable at 4 ohm impedance. A variety of power methods are available as well as an Eco mode setting for minimal power consumption.
Key Features of the NAD CI 8-120 DSP Amplifier
- 8 Channels X 120 Watts @ 8 Ohms
- Bridgeable to 4 Channels X 200 Watts @ 8 Ohms
- Renowned NAD Sonic signature
- 1U Rack Height- saves valuable rack space
- Platform accessed through IP control
- Custom web app Manages DSP calibration, IP control and more
- Effectively handles long cable runs and difficult speaker loads
- Dual global Inputs/Outputs
- 5W Standby Mode, 3W Network Standby
- 12V Trigger In; IR In/Out
- Auto Sense Turn-on
- Universal AC Power Supply
Technical information:
All specs are measured according to IHF 202 CEA 490-AR-2008 standard. THD is measured using AP AUX 0025 passive filter and AES 17 active filter.
- Continuous output power into 8 ohms
- 120 W (all channels driven)
- 130 W (two channels driven)
- Continuous output power into 4 ohms
- 135 W ( all channels driven)
- 230 W ( two channels driven)
- Continuous output power into 8 ohms at Bridged mode
- 200 W ( all channels driven)
- 320 W ( two channels driven)
- THD (20 Hz – 20 kHz) <0.05 % (1 W to 100 W, 8 ohms and 4 ohms)
- Signal-to-Noise Ratio >88 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
- Clipping power (All channels driven)
- 130 W(1kHz8ohms 0.1%THD)
- 150 W (1kHz4ohms 0.1%THD)
- Clipping power into 8 ohms at Bridged mode
- 300 W (1 kHz 0.1% THD – all channels driven)
- 400 W (1 kHz 0.1% THD – two channels driven)
- IHF Dynamic Power (all channels driven) – 8 Ohms 125 W
- IHF Dynamic Power (all channels driven) – 4 Ohms 200 W
- IHF Dynamic Power (all channels driven) – 2 Ohms 180 W
- IHF Dynamic Power (two channels driven) – 8 Ohms 145W
- IHF Dynamic Power (two channels driven) – 4 Ohms 260W
- IHF Dynamic Power (two channels driven) – 2 Ohms 300W
- IHF Dynamic Power (Bridged mode, All channels driven) – 8 Ohms 440W
- IHF Dynamic Power (Bridged mode, All channels driven) – 4 Ohms 350W
- IHF Dynamic Power (Bridged mode, All channels driven) – 2 Ohms 230W
- IHF Dynamic Power (Bridged mode, Two channels driven) – 8 Ohms 480W
- IHF Dynamic Power (Bridged mode, Two channels driven) – 4 Ohms 380W
- IHF Dynamic Power (Bridged mode, Two channels driven) – 2 Ohms 300W
- Peak output current 20A(1ohm,1ms)
- Damping Factor 110 (ref. 8 ohms, 20 Hz to 6.5 kHz)
- Frequency Response ±0.5dB(20Hz-20kHz)
- Channel Separation
- 70dB (1kHz)
- 65dB (10kHz)
- Maximum undistorted input level 2900 mV
- Input sensitivity (for 120 W in 8 ohms, maximum volume) 1150 mV
- Analog Input audio sense threshold (one channel with signal) 3 ± 0.5 mVrms (ref. 100 Hz – 10 kHz)
- Trigger IN level 3-30Vdc
- Standby power 0.5 W
- Gross dimensions (W x H x D)* 483x45x435mm
- Shipping Weight 10 kg
