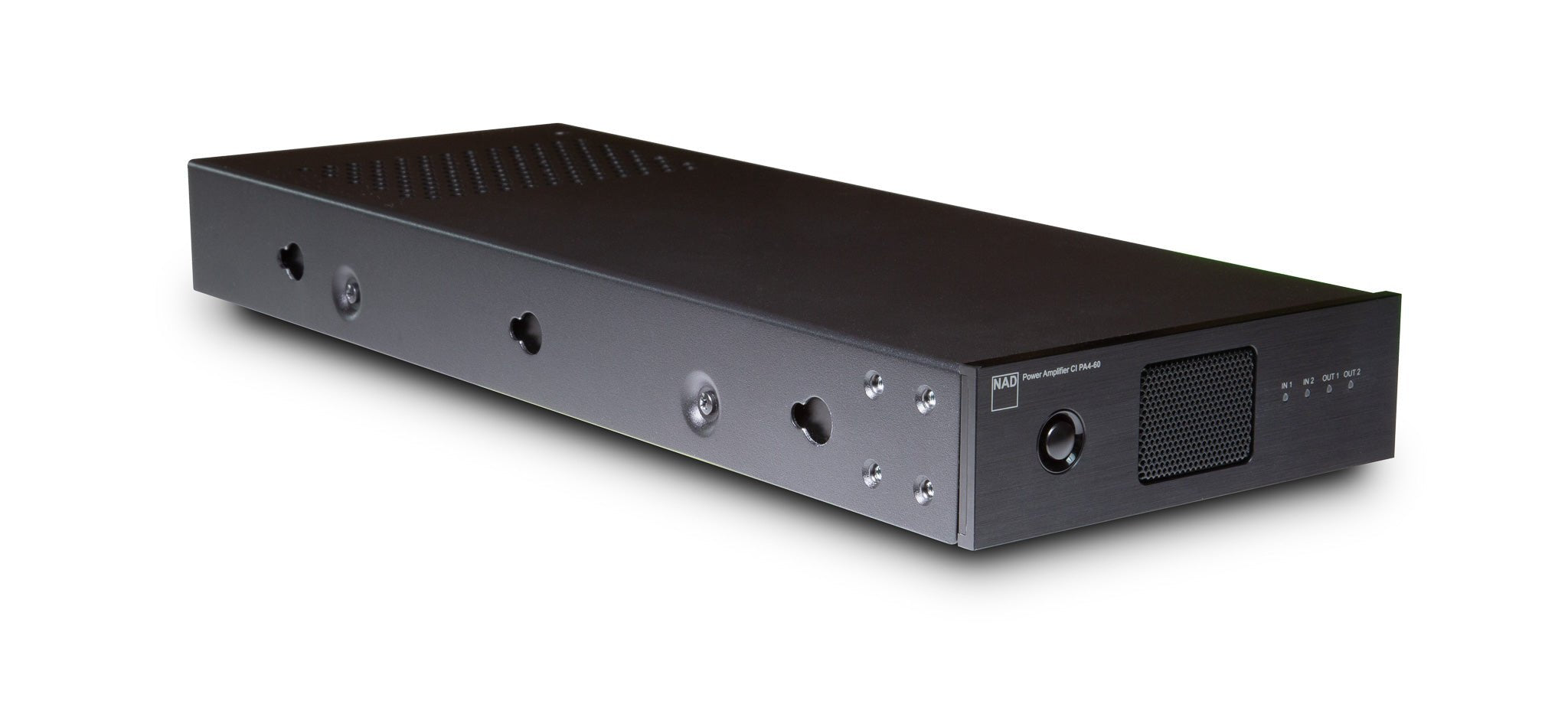

NAD CI PA4-60 power amplifier 4x60W or 2x120W for multi-room use
The CI PA4-60 power amplifier module is a versatile four-channel custom-built amplifier that combines NAD's renowned performance with exceptional scalability in a compact 1/3 width, 1U height design. It offers flexible configuration for 4 x 60W or 2 x 120W DirectDigital™ amplification, and promises powerful, transparent and detailed sound with five decades of experience.
Available for pre-order, coming soon.
Compact and efficient
Part of NAD's new CI Modular range, the CI PA4-60 is designed to take up minimal rack space (1/3 width x 1U height), yet still accommodates a 4 x 60W DirectDigital™ amplifier. Featuring NAD's legendary load-independent amplification design, the CI PA4-60 efficiently handles long cable runs and difficult speaker loads, delivering clear, detailed sound even at low SPLs. This amplifier is highly reliable and efficient, and features thermostatic fan cooling that draws air from the front to the back of the unit, meaning they can be stacked on top of each other with minimal space required.
Versatile uses
The amplifier can be used as a standalone configuration or daisy-chained with multiple PA4-60 amplifiers via an analog loop output, providing up to 12 channels in just 1U of rack space. It can be used in a multi-room system or to feed additional effects channels with an NAD AV receiver. In addition, thanks to Dynamic Load Management, the amplifier automatically detects whether one or two pairs of speakers are connected and directs power to a 2 x 120 WPC or 4 x 60 WPC configuration.
Flexible to use

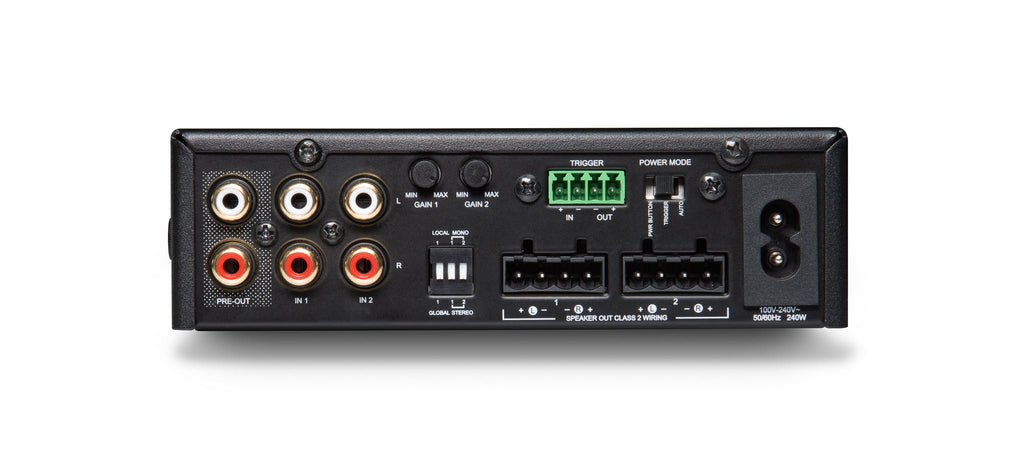

Mount the CI PA4-60 to a wall or rack using the included rack mounting brackets and locking rack connection system, as well as rubber feet for surface mounting. It also features a variety of input and output connections, including 2 x RCA line inputs with global/local DIP switch and gain control, 2 x 4-pin Phoenix speaker connector snap-in block connectors, stereo/mono DIP switches, and trigger input/output, giving integrators unprecedented flexibility in installation and connectivity.
Main features
- 4 x 60 W or 2 x 120 W (continuous into 8 ohms) DirectDigital™ amplification
- Dynamic load management automatically detects and routes power based on the number of speakers connected to the outputs
- Compact rack size: 1/3 width x 1U height
- 2 x RCA line inputs with input gain potentiometers
- 1 RCA line output (loop out to input 1)
- Global/local DIP switch for input 1
- Stereo/mono selection for inputs 1 and 2
- 2 x 4-pin Phoenix snap-in speaker connectors
- Flexible wall, rack and surface mounting options
