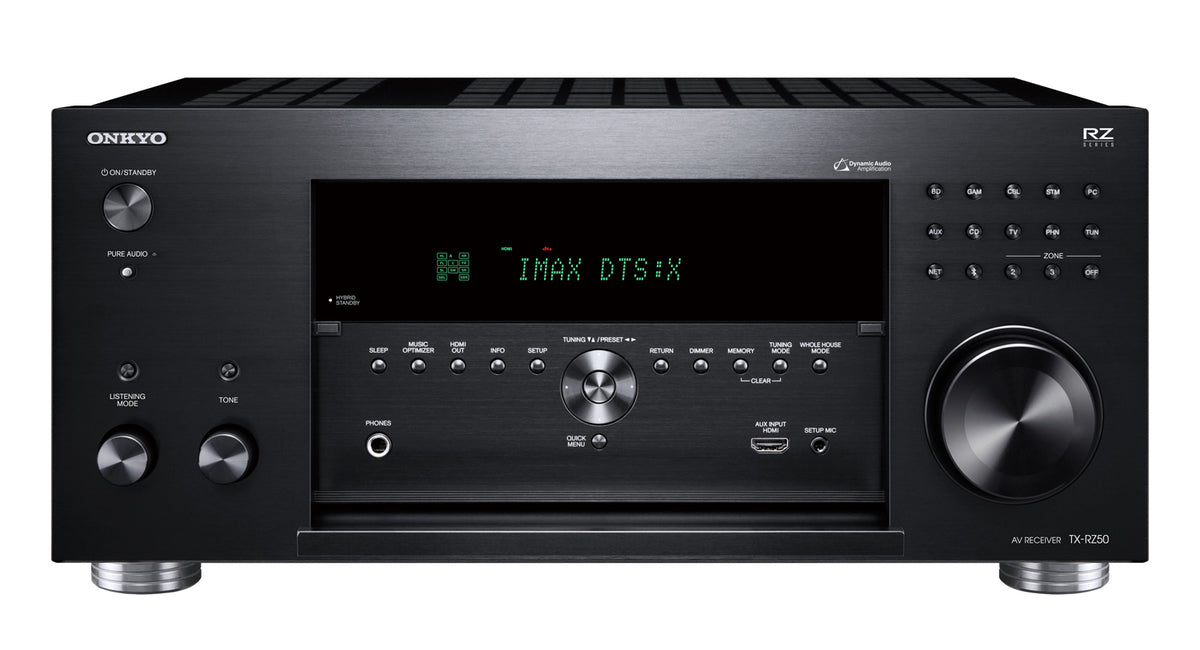

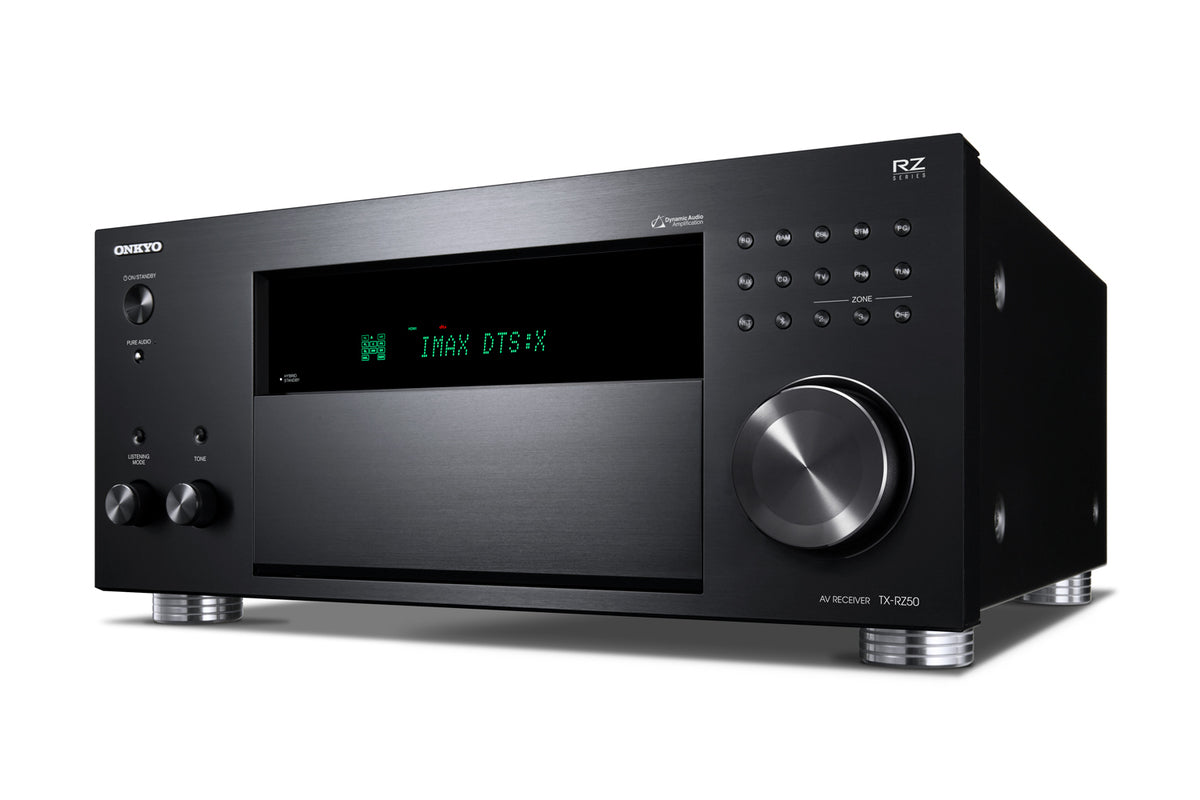

Onkyo TX-RZ50 9.2 AV Amplifier

"Best Buy AV Receiver" - EISA Awards 2023-2024

Upgrade your entertainment to a new era, with the RZ50 delivering 8K HDR image quality to your screen (lag-free optimized for gaming) via HDMI and feeding Dolby Atmos or DTS:X surround sound to your 5.2.4 speaker system. Thanks to the Powered Zone 3 output and the voice-controlled SMART AV Receiver Suite, you can play sound in different rooms. In addition, the amplifier supports your existing Sonos system and plays music wirelessly to your headphones thanks to a two-way Bluetooth connection.

Thanks to 75 years of hi-fi craftsmanship, the THX Certified Select and IMAX Enhanced certified RZ series with a customized amplifier structure, emotive music, movie and game sound reproduction and reproduction optimized by the Dirac Live room correction system offer top quality for true enthusiasts. This tuner packs a ton of great features, including Front-to-Height stereo switching when you want to switch to atmospheric background listening, DSP-driven speech enhancement for clearer dialogue in series and movies, My Volume presets, and an OSD function that compares the source data to the output jacks' settings so that playback would always be ideal for a complete entertainment experience.

HDMI 2.1:

• 8K/60p, 4K/120p
• 4:4:4
• HDCP 2.3
• VRR / ALLM / QFT / DCS / QMS
• eARC
• HDR10+, Dolby Vision, HDR10, HLG, BT.2020, Deep Color, xvColor
• LipSync

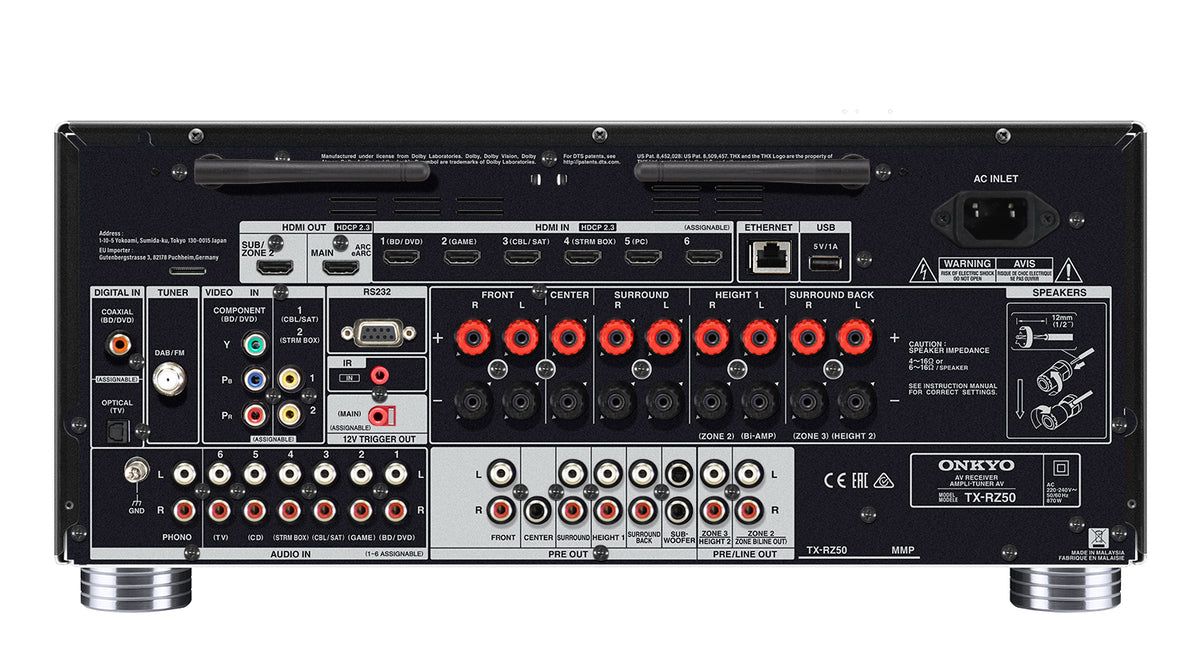

Connections:

• 7 x HDMI inputs (1 front)
• 2 x HDMI outputs (Main [eARC], Sub/Zone 2 - supports second monitor or projector)
• Inputs: 1 x component, 2 x composite, 1 x optical, 1 x coaxial, 6 x analog (RCA), 3.5mm connection for room calibration microphone (AccuEQ / Dirac Live), 1 x Phono (MM)
• Outputs: 6.35mm headphone output (front panel), 11.2-ch pre-out (RCA), Zone 2/Zone B and Zone 3 (RCA pre/line-level outputs),
• 9 x screw terminals for speakers
• Ethernet
• USB connection for audio playback
• AC connection (detachable power strip)
• IR input
• 12V trigger output (Main, configurable, 100mA)

Media playback:

• SMART AV Receiver multi-room platform
• FM/AM RDS radio tuner with 40 memory locations
• Hi-Res Audio network playback (DSD256/DSD128/DSD64 [PCM conversion], FLAC, WAV [RIFF], AIFF and ALAC (192 kHz/24-bit)
• Pure Audio mode and Direct mode
• Bluetooth (send and receive)
• Compatibility: Chromecast built-in, Ok Google, Works with Sonos, Airplay 2, DTS Play-Fi, FlareConnect, Spotify, Amazon Music, TIDAL, Deezer, TuneIn and more
• DTS Play-Fi multi-room playback with Onkyo Music Control
• Roon Tested
• USB playback from mass memories (connector on the back panel)
• THX listening modes for movies, music and games

Features:

• Power amplifiers: 9
• Power: 215W/channel (6Ω, 1kHz, 10% THD, 1 channel loaded)
• Power: 180W/channel (6Ω, 1kHz, 1% THD, 1 channel under load, IEC)
• THD+N: 0.08% (20 - 20,000 Hz, half power)
• Tone control: ±10 dB, 20 Hz (Bass), ±10 dB, 20 Hz (Treble)
• Signal to noise ratio: 106 dB (line level), 80 dB (phono)
• Speaker impedance 4 Ω to 16 Ω
• Frequency response: 5 - 100,000 Hz /+1dB, -3dB (direct mode)
• THX® Certified Select and IMAX Enhanced certified
• Dolby Atmos and DTS:X playback (5.2.4-ch)
• 11.2-ch processing and pre-outs for 7.2.4 systems
• Dolby TrueHD and DTS-HD Master Audio decoding
• Dolby Atmos Height Virtualizer
• Dolby Surround and DTS Neural:X 3D upmix
• Supports Dirac Live room correction
• PLL (Phase Locked Loop) anti-jitter technology for S/PDIF audio
• Power consumption: 870W; Standby: 0.15W
• Dimensions (WxHxD): 435 x 201.5 x 398 mm
• Weight: 14 kg
• Included: FM internal antenna, microphone for room calibration, quick start guide, remote control, 2 x AAA batteries
