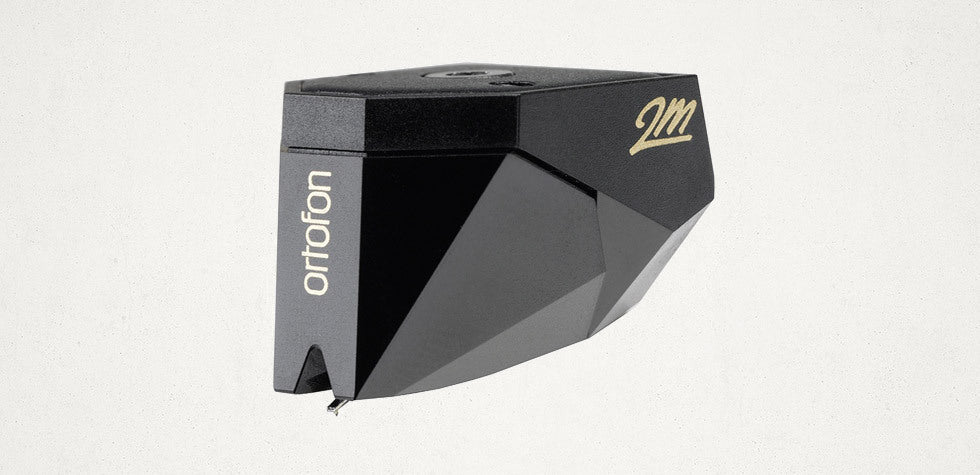

Ortofon 2M Black
'Outstanding Product' hailed by Hi-Fi News and What Hi-Fi; The best of all.
The prestigious flagship of the 2M collection, Nude Shibata with a needle, is the reference for MM bags.
The best of everything, true to the groove.
2M Black - The 2M series were developed in conjunction with Danish designer Møller Jensen Design – the same designer who designed the award winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record's surface, the 2M's handsome Elegance establishes a great combination of form and functionality.
2M are designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the recorded sound as accurately as possible, without coloring the sound. We have optimized the design for ease of mounting the cartridge, weight and size to fit the most common turntables on the market today.
The name 2M was selected among several ideas. We wanted a modern name which should be easy to pronounce and to remember, and therefore an alpha numerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.
The 2M Black is the new moving magnet Flagship from Ortofon. The 2M black is graced with a Shibata diamond stylus – the same diamond as on the acclaimed MC Jubilee. Its slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures remarkably detailed reproduction throughout the spectrum, including even the most high frequency groove information. Users of the 2M Black will enjoy the benefit of impeccable sound quality, along with reduced record & stylus wear and reduced distortion and phase error as a result of the Diamond's improved tracking geometry.
The cartridge body used for the 2M Black is manufactured from a newly-developed Noryl plastic/glass combination, a revolutionary material which ensures high rigidity while eliminating unwanted resonances. The 2M Black uses a special upgraded engine, featuring split pole pins with a silver plated copper wire.
Technical data
- Output voltage at 1000 Hz, 5 cm/sec.: 5 mV
- Channel balance at 1 kHz: 1 dB
- Channel separation at 1 kHz: 26 dB
- Channel separation at 15 kHz: 15 dB
- Frequency range at - 3dB: 20 - 31,000 Hz
- Frequency response: 20 - 20.000 + 2 / - 0 dB
- Tracking ability at 315Hz at recommended tracking force: 80 µm
- Compliance, dynamic, lateral: 22 µm/mN
- Stylus type: Nude Shibata
- Stylus tip radius: r/R 6/50 µm
- Tracking force range: 1.4 - 1.7g (14 - 17 mN)
- Tracking force, recommended: 1.5 g (15 mN)
- Tracking angle: 20°
- Internal impedance, DC resistance: 1.2 kOhm
- Internal inductance: 630 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 150 - 300 pF
- Cartridge colour, body/stylus: Black/Black
- Cartridge weight: 7.2 g
- Replacement stylus unit: 2M Black
