Description

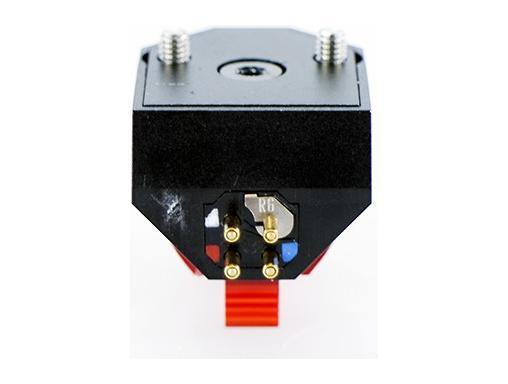

Ortofon 2M Red Verso cartridge
Bottom-mounted version of Ortofon's 2M Red cartridge.
The 2M Red and 2M Blue are designed for precise and accurate retrieval of the information in the record groove. Indeed, it is Ortofon's lasting philosophy to only ever play the recorded sound, without colouration.
To obtain a flat frequency response, as with a Moving Coil cartridge, Ortofon are using split pole Pins in the 2M design, to reduce the Eddy current. The split pole Pins are an Ortofon invention which was originally presented in the 500 and Super OM series, to great effect.
The 2M Red and 2M Blue both use the same engine with split pole pins. With this improved engine Ortofon have been able to increase the output to an impressive 5.5 mV.
The 2M Red and 2M Blue both use the same engine with split pole pins. With this improved engine Ortofon have been able to increase the output to an impressive 5.5 mV.
The 2M technology
Both the 2M Red and 2M Blue have Diamonds which are polished to the highest standards of the industry. 2M Red has a tipped Elliptical diamond, and the 2M Blue has a nude Elliptical diamond.
The design has been optimized for easy mounting on a tonearm; the weight and size of all 2M models is well-suited to fit the most common turntables on today's market.
The 2M Red and 2M Blue also have interchangeable stylus units, and replacement styli are readily available in the UK.
The design has been optimized for easy mounting on a tonearm; the weight and size of all 2M models is well-suited to fit the most common turntables on today's market.
The 2M Red and 2M Blue also have interchangeable stylus units, and replacement styli are readily available in the UK.
About the unique 2M design
2M was developed by Ortofon in conjunction with "Møller Jensen Design" from Copenhagen, Denmark - the same designer who collaborated on the award-winning MC Jubilee cartridge, and the coveted Kontrapunkt series.
The inspiration for designing the 2M was related to the facets of the diamond - elegantly concentrating its contours against the grooves on the record surface.
The name 2M was selected among several ideas. Ortofon wanted a modern name which would be easy to pronounce around the world, and to remember. Therefore an alpha-numerical name was chosen...
2M means MM, which is simply the common abbreviation for Moving Magnet.
The 2M range has been structured in the same way as the popular Rondo and Cadenza Moving Coil series, with ascending quality as you move from Red - Blue - Bronze - Black. The Spectacular 2m Black has become the Flagship of 2M, and all Ortofon moving magnet cartridges.
2M was also the last product designed by Ortofon's former chief engineer, Per Windfield. He developed the 2M series over the final 2 years of his 30 year tenure with Ortofon.
The inspiration for designing the 2M was related to the facets of the diamond - elegantly concentrating its contours against the grooves on the record surface.
The name 2M was selected among several ideas. Ortofon wanted a modern name which would be easy to pronounce around the world, and to remember. Therefore an alpha-numerical name was chosen...
2M means MM, which is simply the common abbreviation for Moving Magnet.
The 2M range has been structured in the same way as the popular Rondo and Cadenza Moving Coil series, with ascending quality as you move from Red - Blue - Bronze - Black. The Spectacular 2m Black has become the Flagship of 2M, and all Ortofon moving magnet cartridges.
2M was also the last product designed by Ortofon's former chief engineer, Per Windfield. He developed the 2M series over the final 2 years of his 30 year tenure with Ortofon.
2M Red features:
- an improved engine, which provides an increased output of 5.5mV and an optimized sound Reproduction and a high level of Sonic accuracy
- a tipped Elliptical diamond and split pole Pins with a copper wire
2M Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth.
Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance.
2M Series style interchangeability:
The 2M Series' engines, coils and Magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:
- 2M Red, 2M Blue and 2M Silver
- 2M Bronze and 2M Black
- 2M Mono and 2M 78
Compatibility with Rega brand TT/TA:
REGA brand cartridges' height from stylus tip to the top cartridge mounting surface is lower than standard. Therefore you would need spacers to ensure the correct set-up of the Ortofon cartridge. Please read about cartridge set-up and alignment on tonearm on our FAQ.
Adjusting the height of your Rega tonearm is easy with Acoustic Signature's Spacer Set. It allows you to adjust the height from 0.5 mm to 3.5 mm in precise steps of 0.5 mm - without removing the tone arm. Simply loosen the screws, insert the AS-spacer, then lock the screws back down, and you're tonearm is ready to play.
3.2 - 4 mm spacers should be enough for 2M cartridge.
Technical data:
-
Output voltage at 1000 Hz, 5 cm/sec.: 5.5 mV
-
Channel balance at 1 kHz: 1.5 dB
-
Channel separation at 1 kHz: 22 dB
-
Channel separation at 15 kHz: 15 dB
-
Frequency range at - 3dB: 20-22.000 Hz
-
Frequency response: 20-20.000 + 3 / - 1 dB
-
Tracking ability at 315Hz at recommended tracking force: 70 µm
-
Compliance, dynamic, lateral: 20 µm/mN
-
Stylus type: Elliptical
-
Stylus tip radius: r/R 8/18 µm
-
Tracking force range: 1.6 - 2.0g (16 - 20 mN)
-
Tracking force, recommended: 1.8 g (18 mN)
-
Tracking angle: 20°
-
Internal impedance, DC resistance: 1.3 kOhm
-
Internal inductance: 700 mH
-
Recommended load resistance: 47 kOhm
-
Recommended load capacitance: 150-300 pF
-
Cartridge colour, body/stylus: Black/Red
-
Cartridge weight: 7.2 g
-
Replacement stylus unit: 2M Red
/
