A new benchmark for analog perfection

In the world of vinyl playback, the cartridge is the beginning of the journey. The turning point where music rises from rhythm and transforms into immersive soundscapes. With the MC X series, Ortofon sets a new benchmark in MC cartridge design by taking premium moving coil technology to an unprecedented level of performance.

Exceptionally clear signal

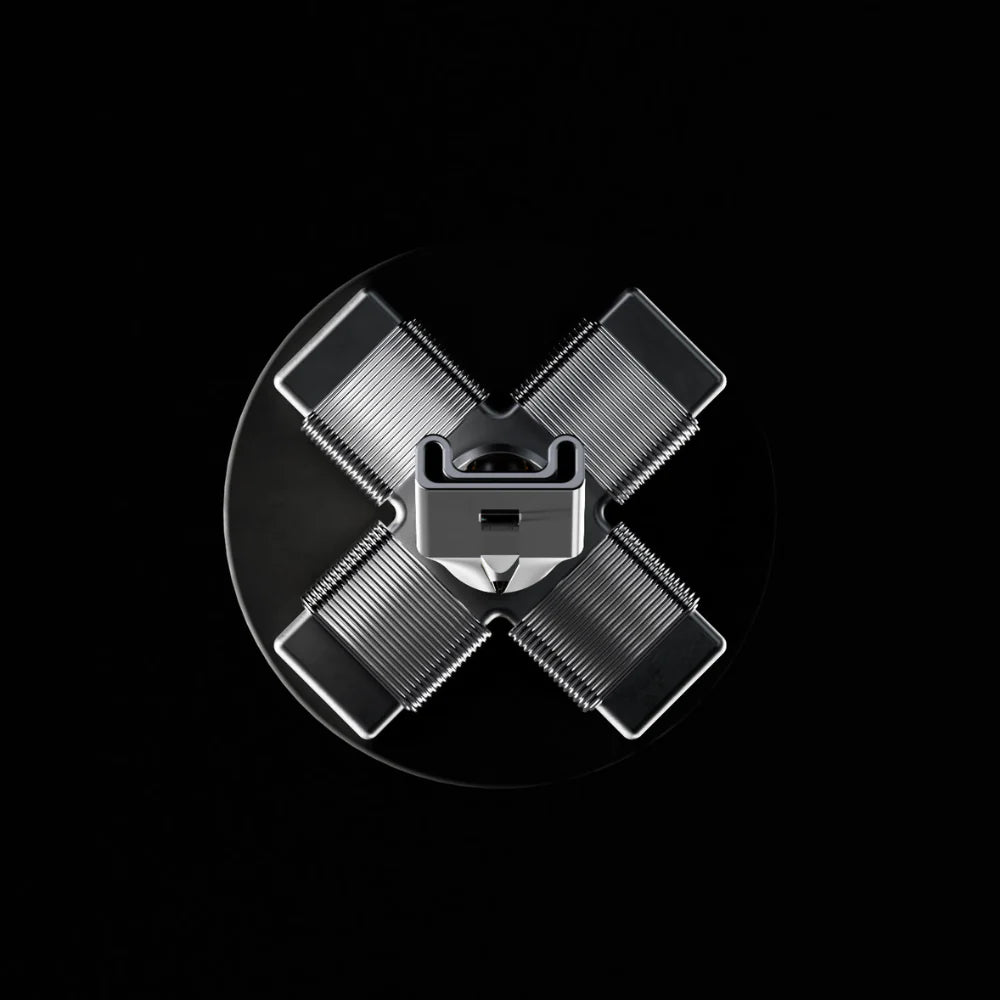

Coils made of pure silver

All MC X speakers feature high-purity silver wire wound voice coils. The use of premium materials ensures exceptional signal clarity, produces sound with unparalleled precision, and preserves every detail without distortion.

Maximum magnetic efficiency

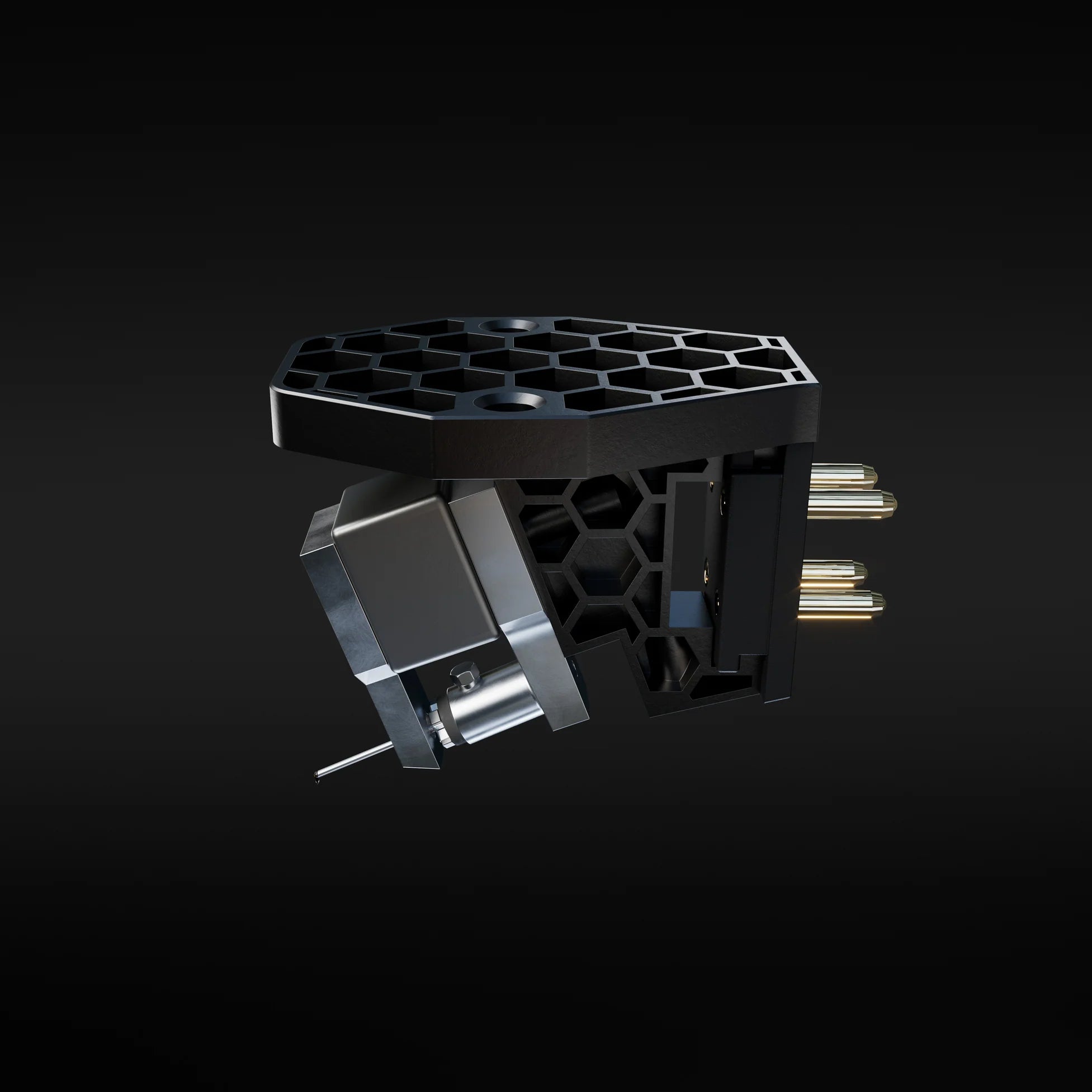

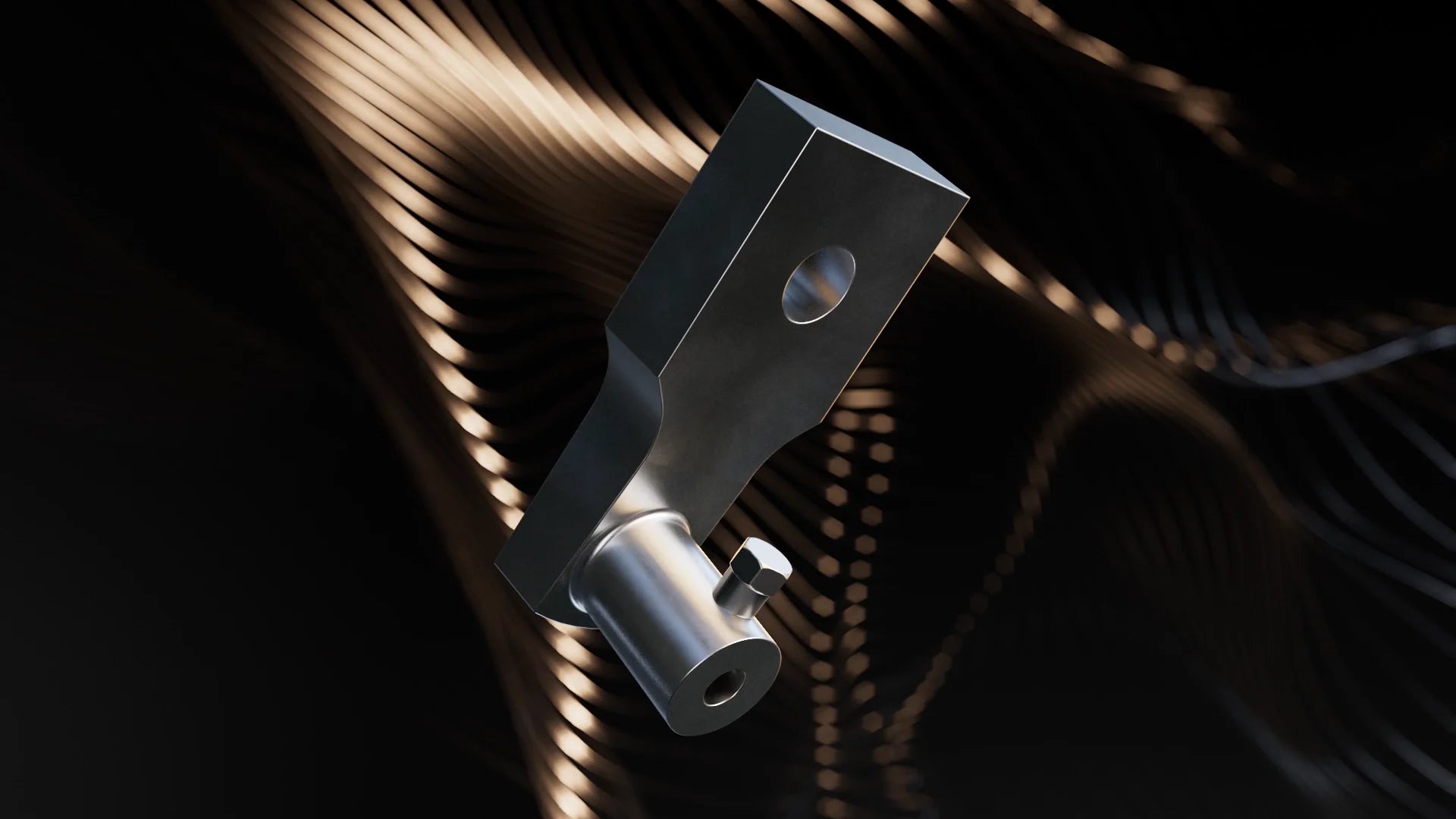

Magnetic system

The MC X series features a new magnet system, with a one-piece pole cylinder integrated into the rear magnet coil. This configuration is designed for maximum magnetic efficiency and combined with pure silver coils, ensuring clean and efficient signal flow, improving overall performance.

Precision technology for unparalleled stability

Customized rubber dampers

At the heart of the MC X Series mechanical damping system is a proprietary and developed rubber compound. Rubber dampers are essential to controlling the physical movement of the coils, maintaining stability, minimizing unwanted vibrations, and enabling precise coil movement. The result is excellent tracking, reduced distortion, and musical accuracy.

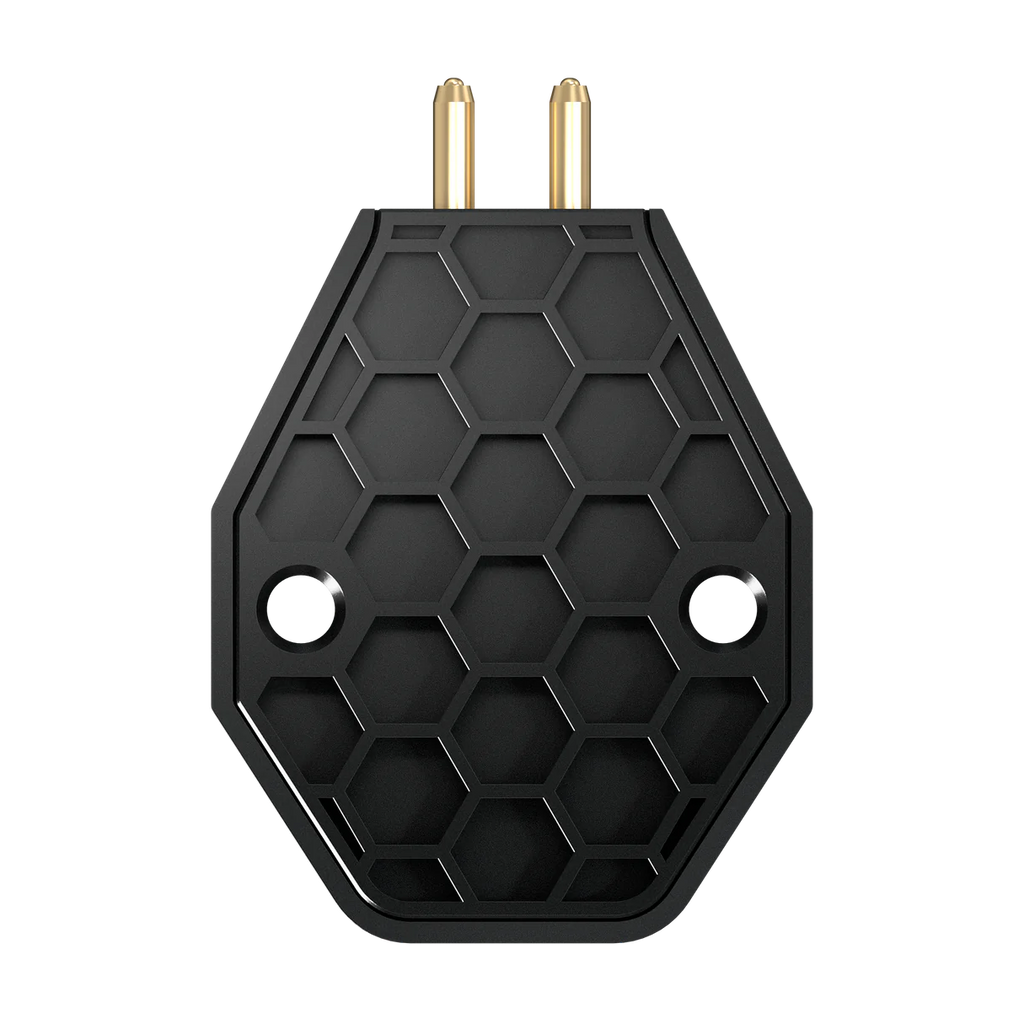

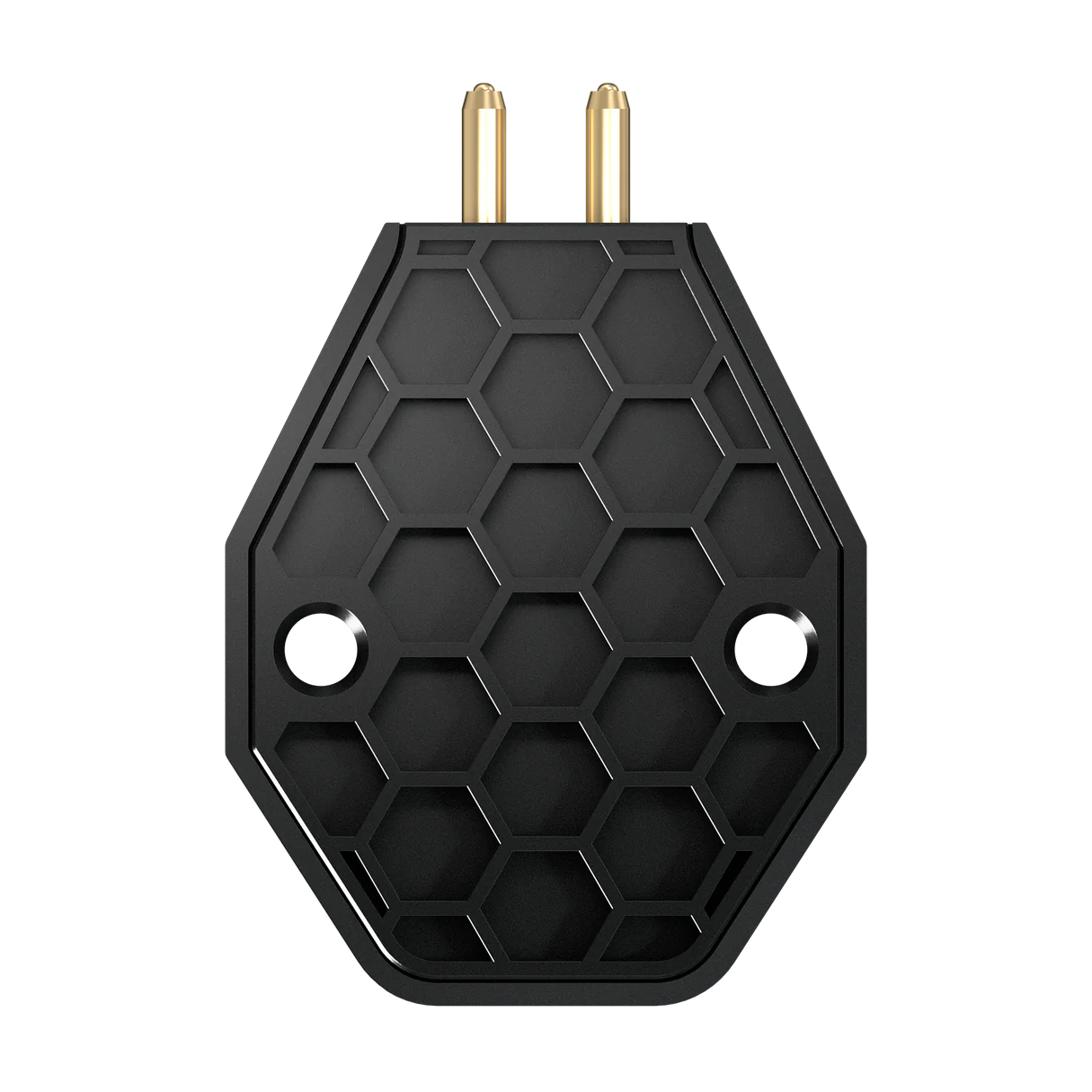

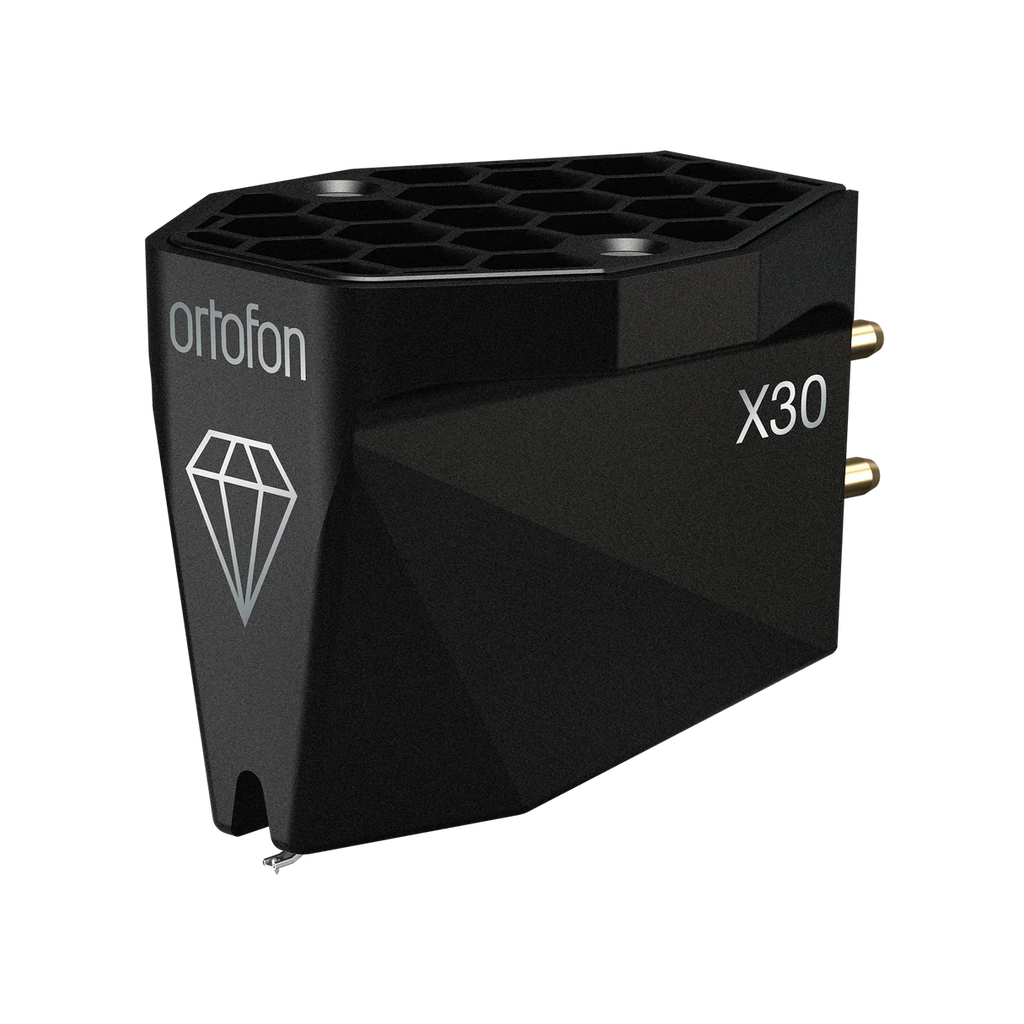

MIM-molded honeycomb core

Experience depth. Hear every detail.

At the heart of the MC X series is an advanced honeycomb stainless steel chassis, manufactured using metal injection molding (MIM) technology. This sophisticated construction ensures excellent mechanical stability and provides the ideal foundation for accurate and reliable audio reproduction.

After casting and sintering, surface treatment (PVD) improves the surface appearance and maintains the integrity of the material over time.

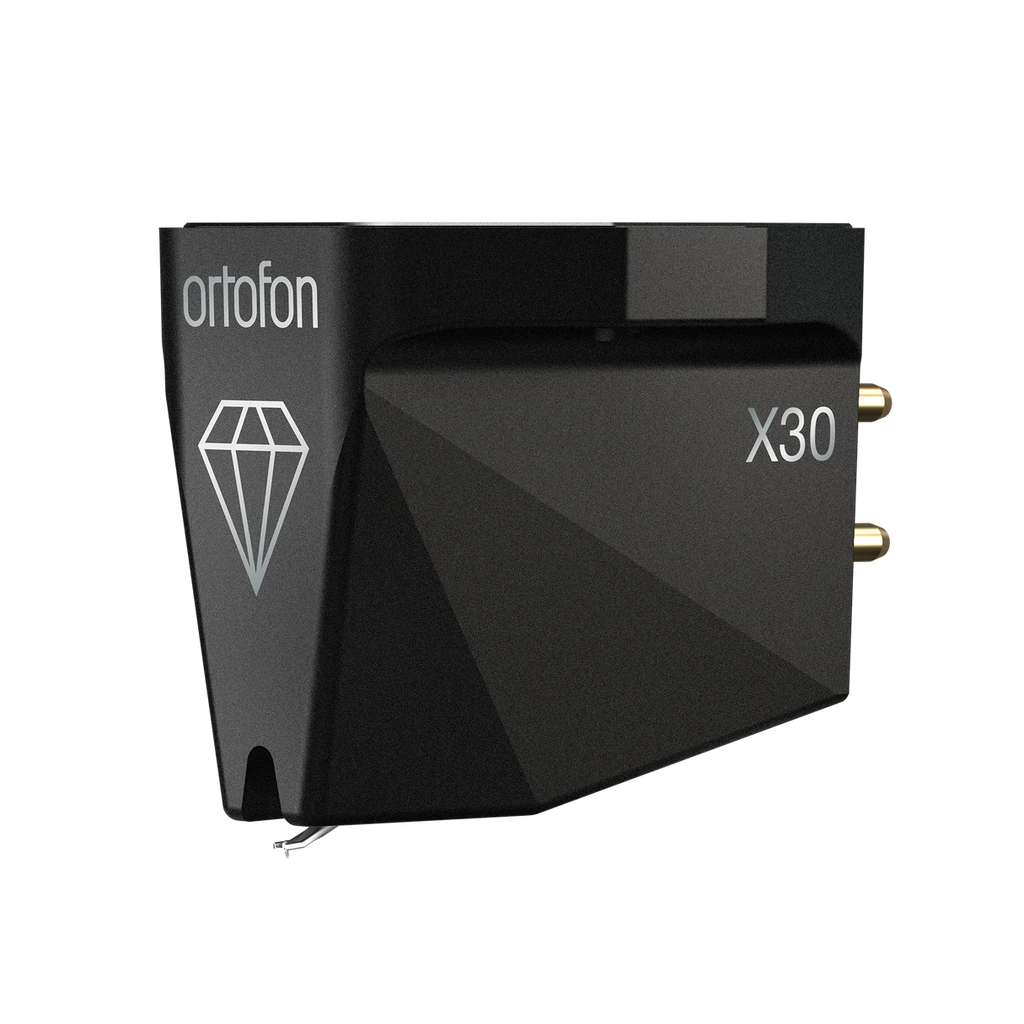

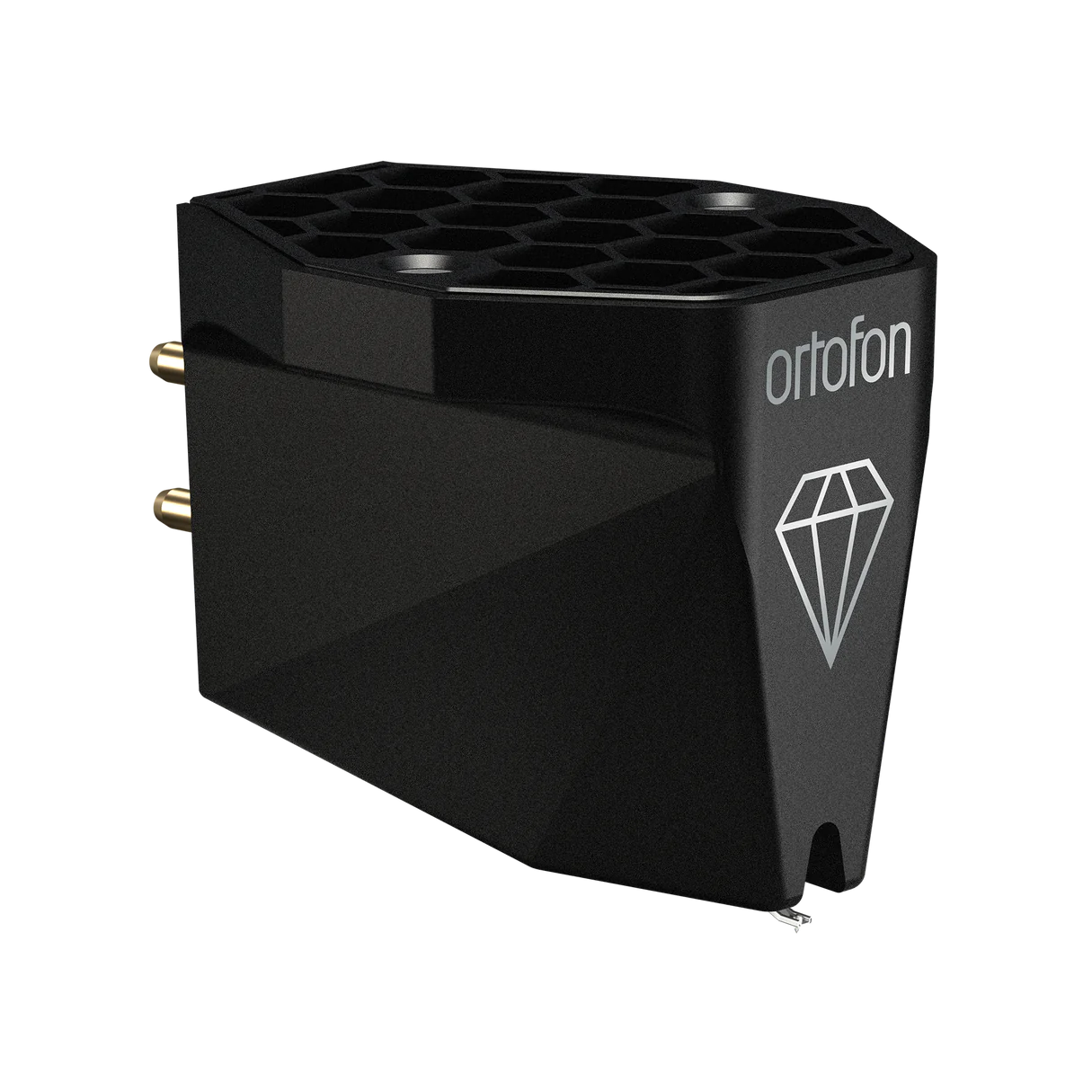

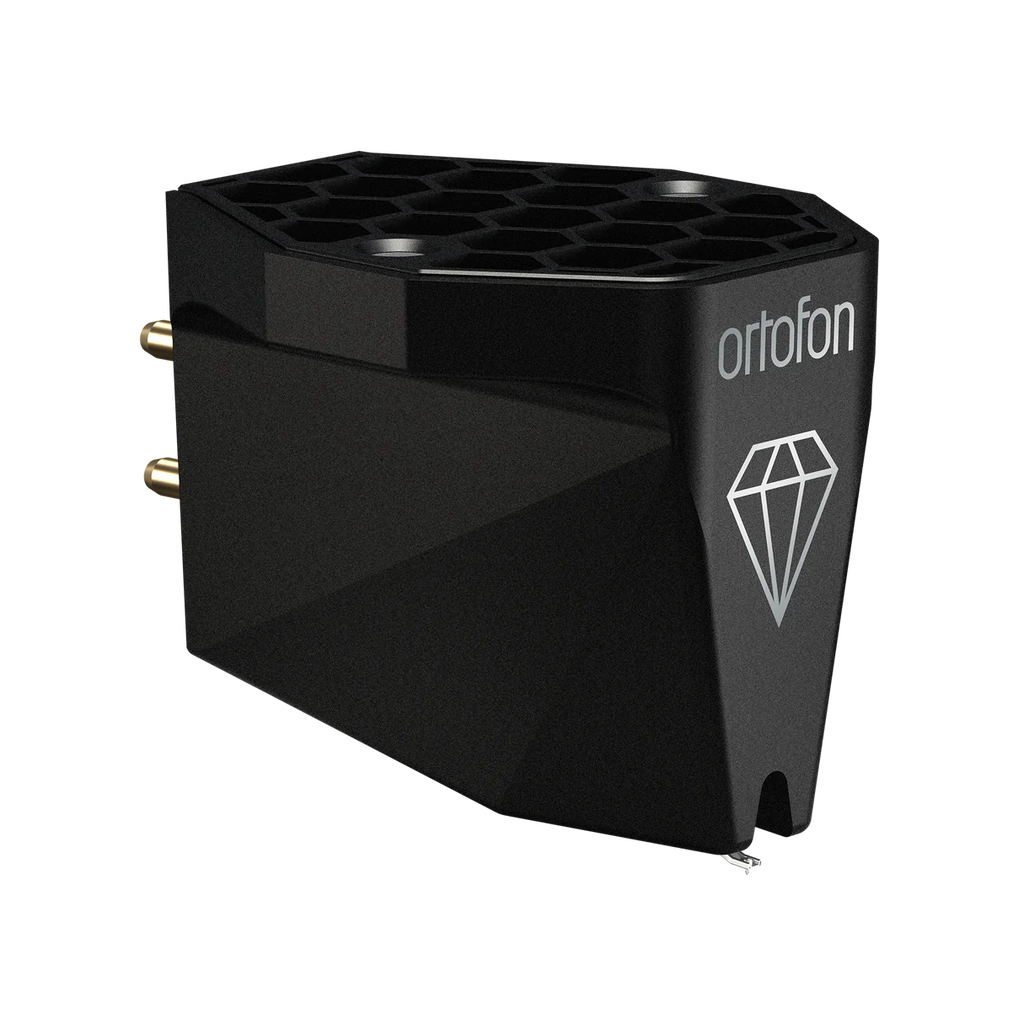

Modern elegance and distinctive design

Sound shape

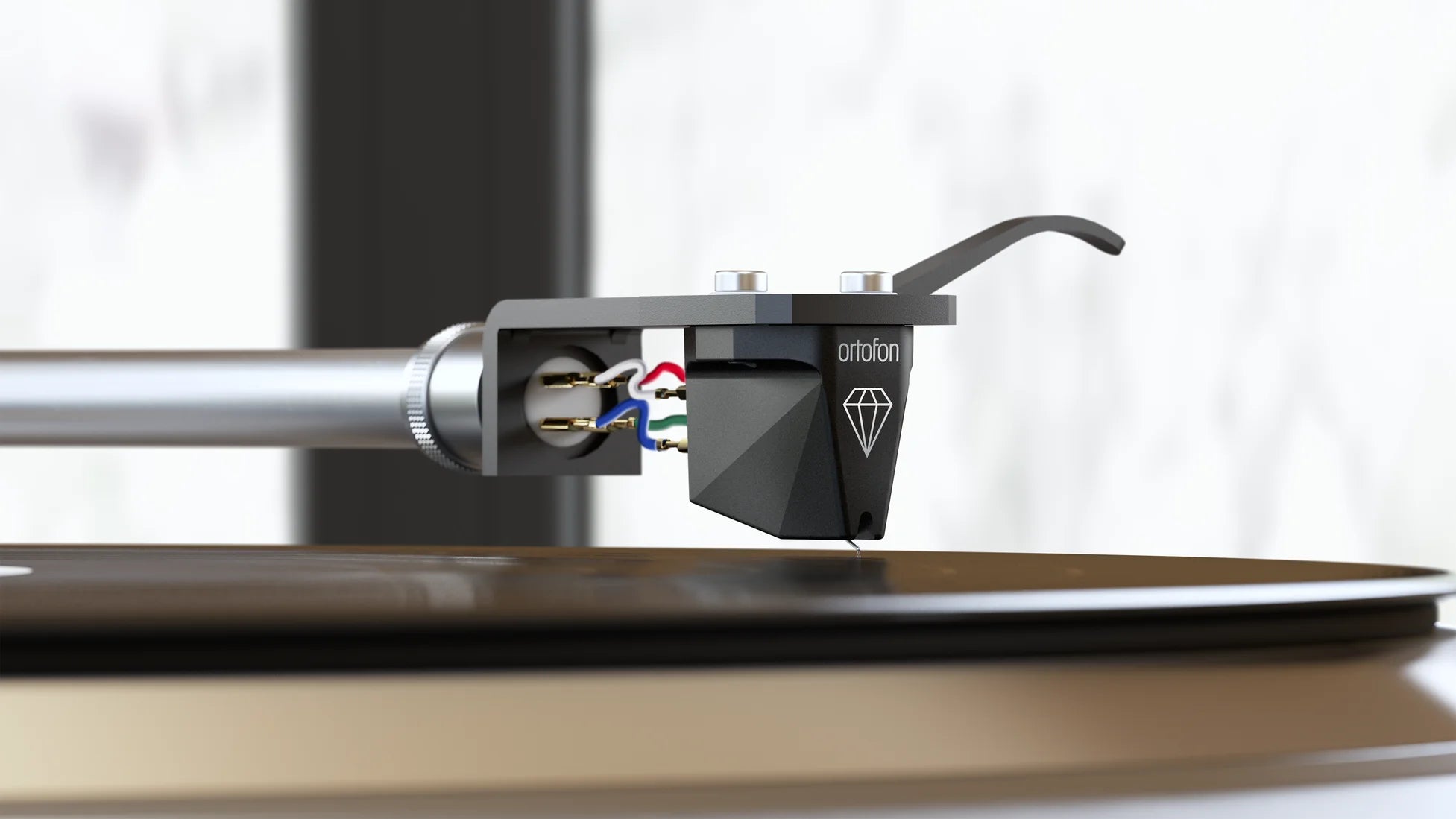

The MC X series embodies modern elegance and a distinctive design that seamlessly complements the tonearm. From a distance, its silhouette speaks of minimalist sophistication; up close, its intricate details reveal craftsmanship at every level. True to the Ortofon hallmark, it is a sophisticated combination of form and function.

Specifications

• Channel balance at 1 kHz 0.5 dB
• Output voltage at 1 kHz, 5 cm/s 0.4 mV
• Channel separation at 1 kHz 26 dB
• Frequency response 20 Hz - 20 kHz +/- 1 dB
• Compatibility, dynamic, lateral 15 um/mN
• Cantilever / needle arm material: aluminum
• Needle sanding: Nude Fine Line
• Needle tip radius: r/R 8/40 um
• Stylus suspensions: Ortofon Exclusive
• Reel system: Four reels
• Tracking force, recommended 2.0 grams
• Internal impedance, DC resistance 6 ohms
• Coil wire material: High purity silver
• Sound box weight: 8.6 grams
• Recommended load resistance > 50 ohms
