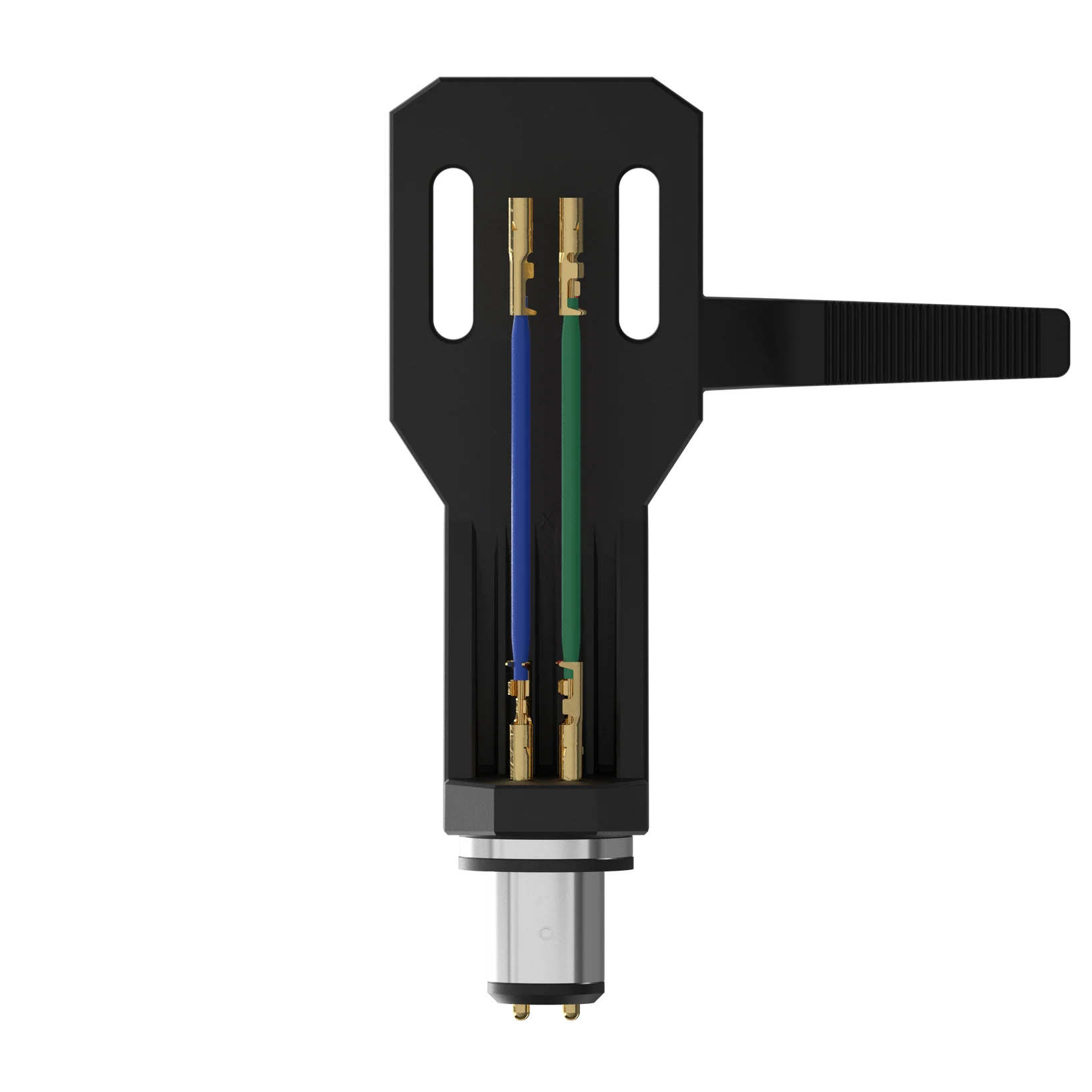

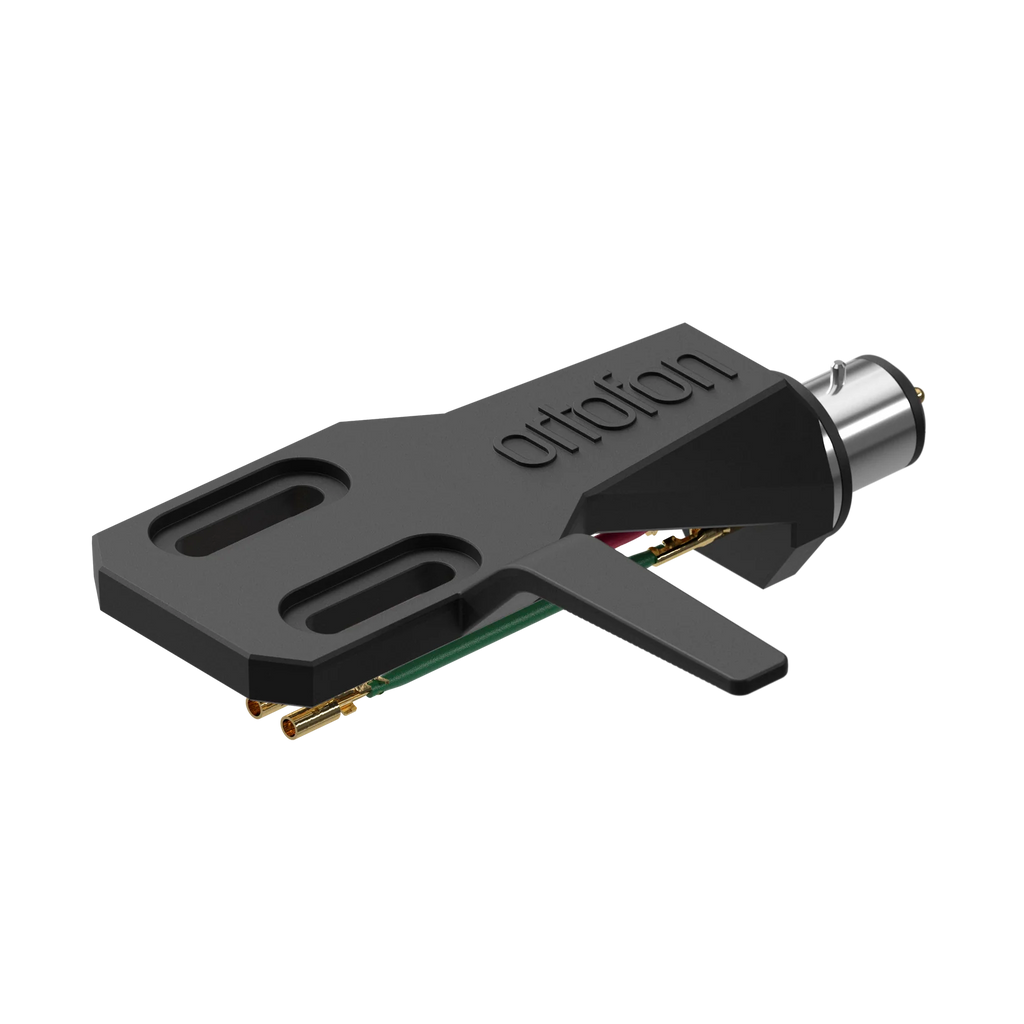

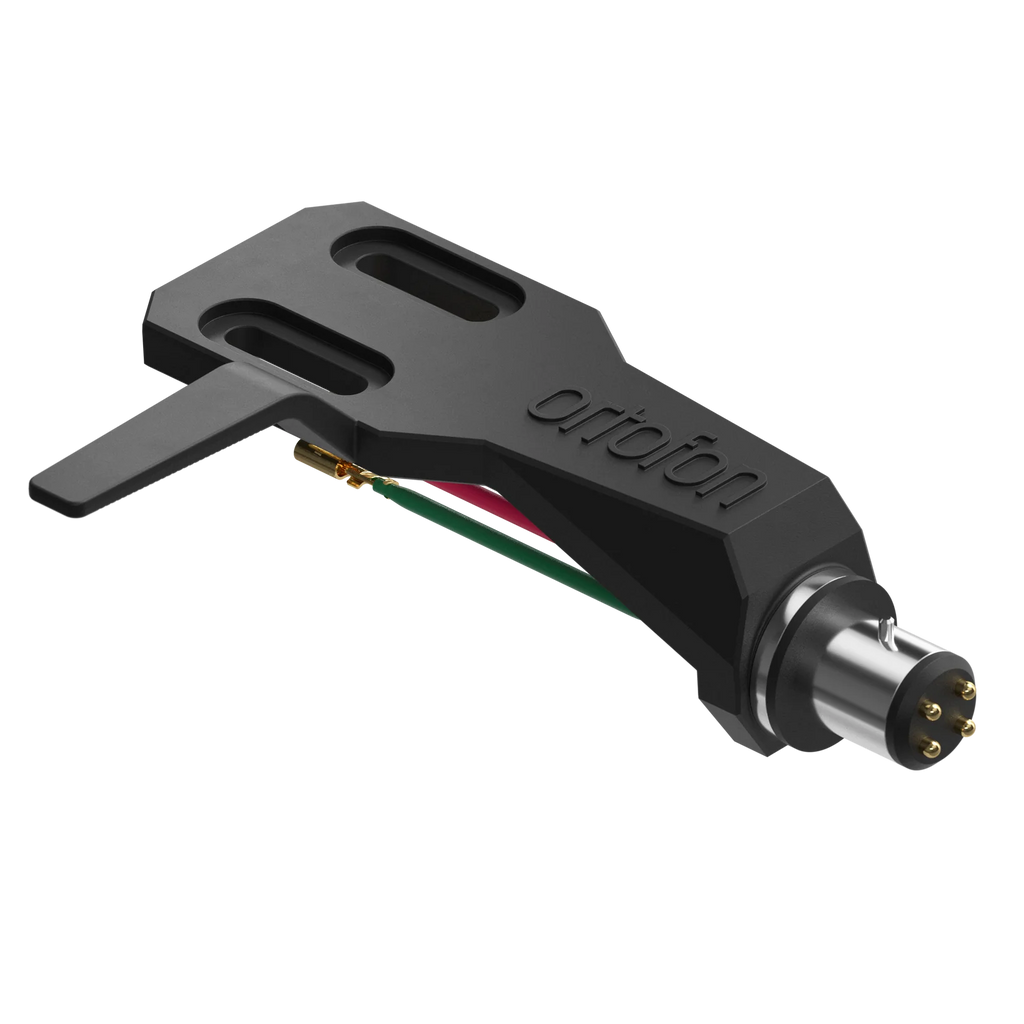

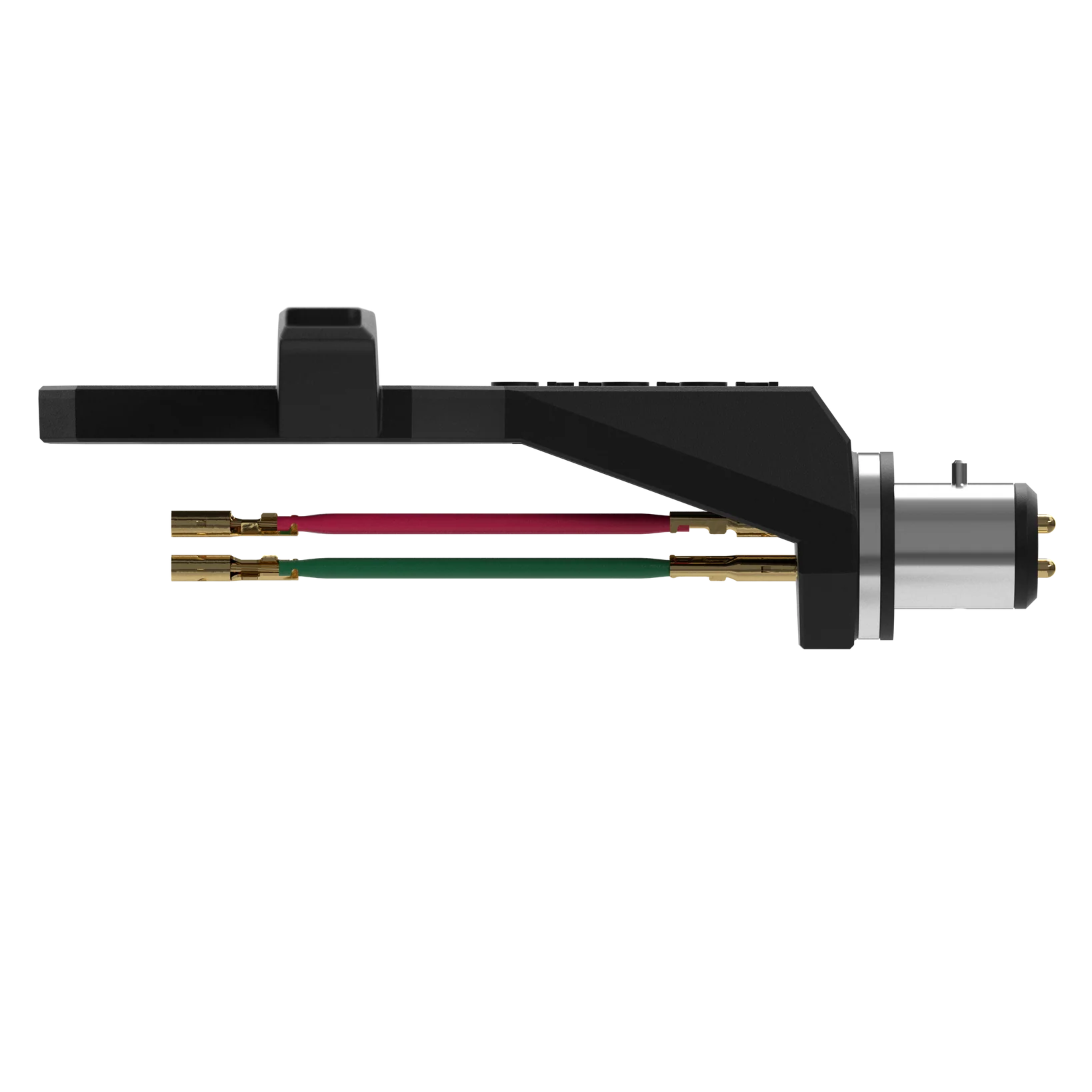

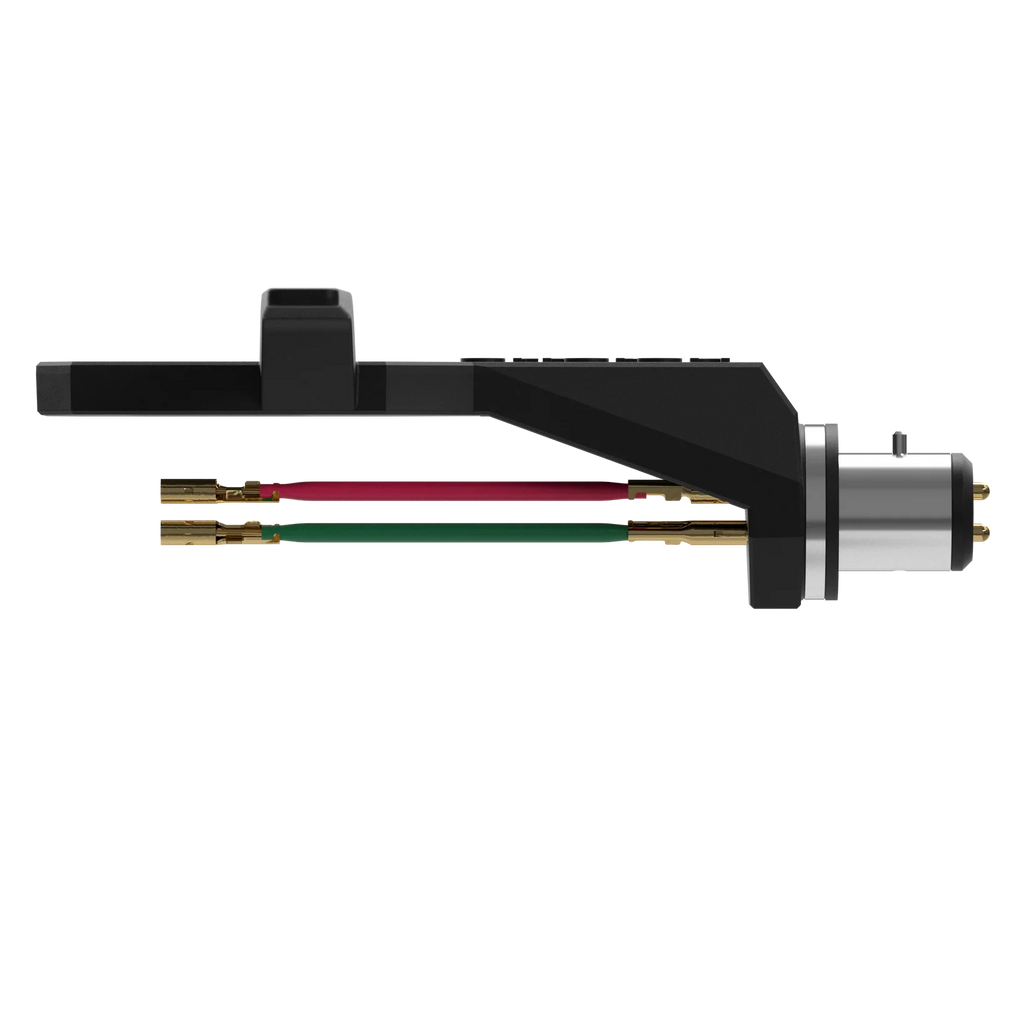

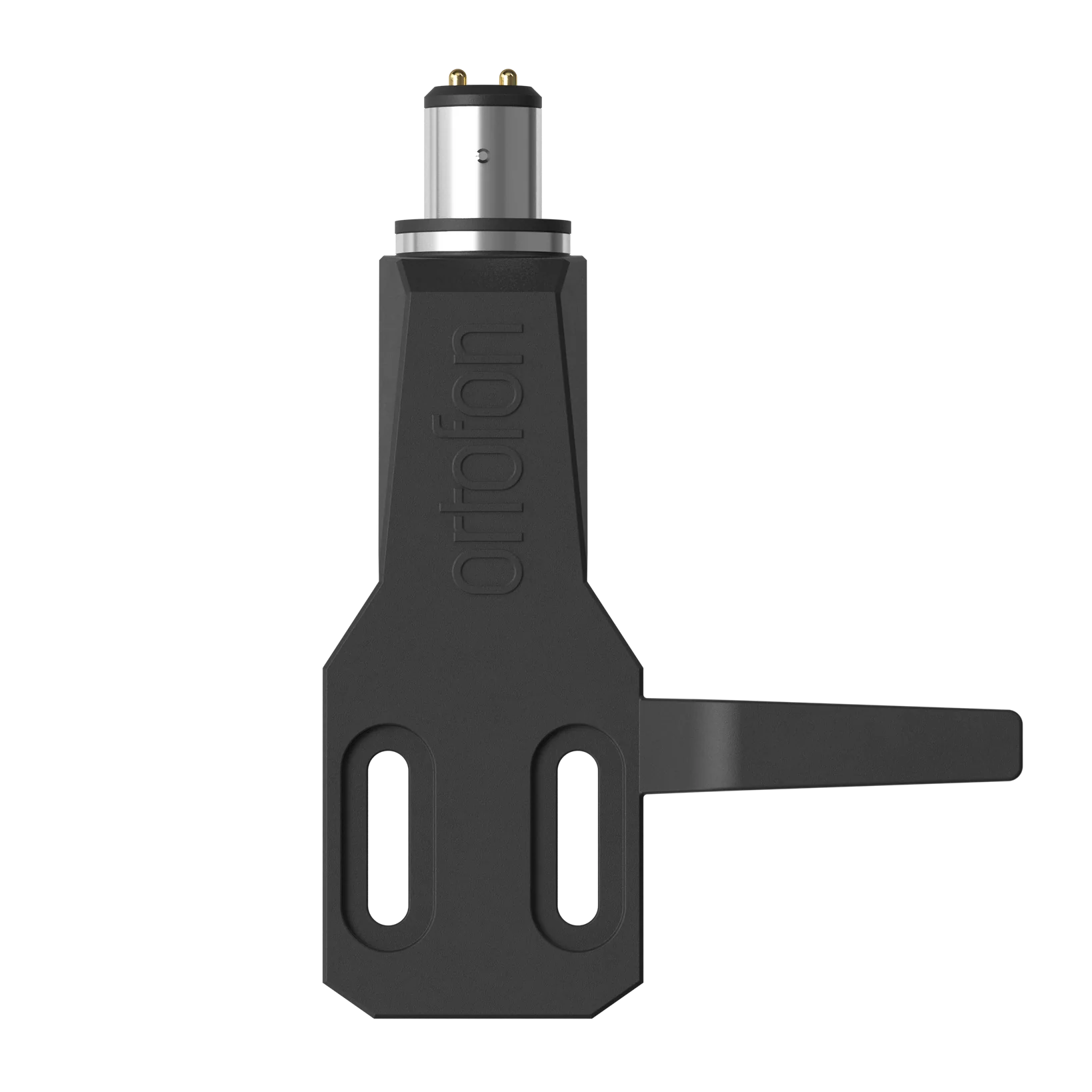

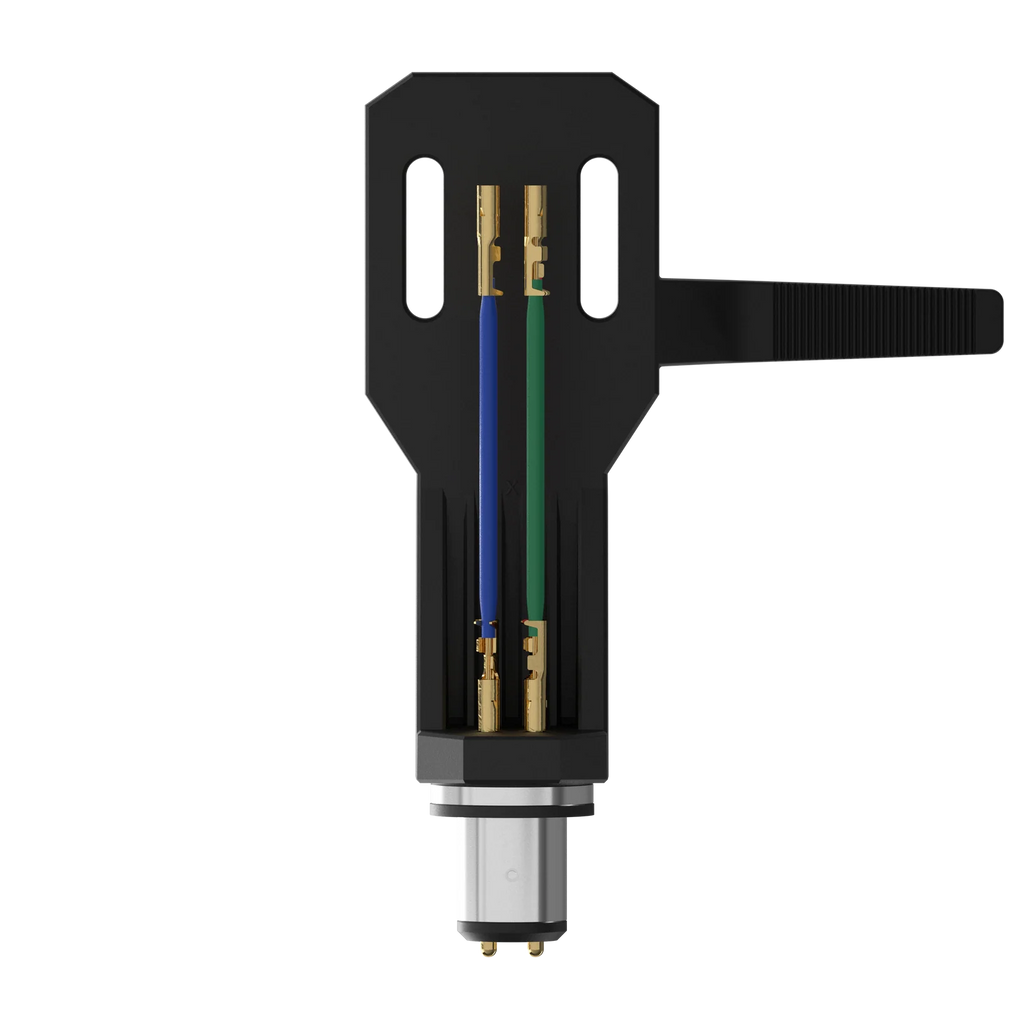

Ortofon SH-2 cartridge carriage

Tonearm carriage. High-quality budget-class tonearm carriage with 1/2" tonearm mount. SME mount for tonearms, S- or J-shaped tonearms.

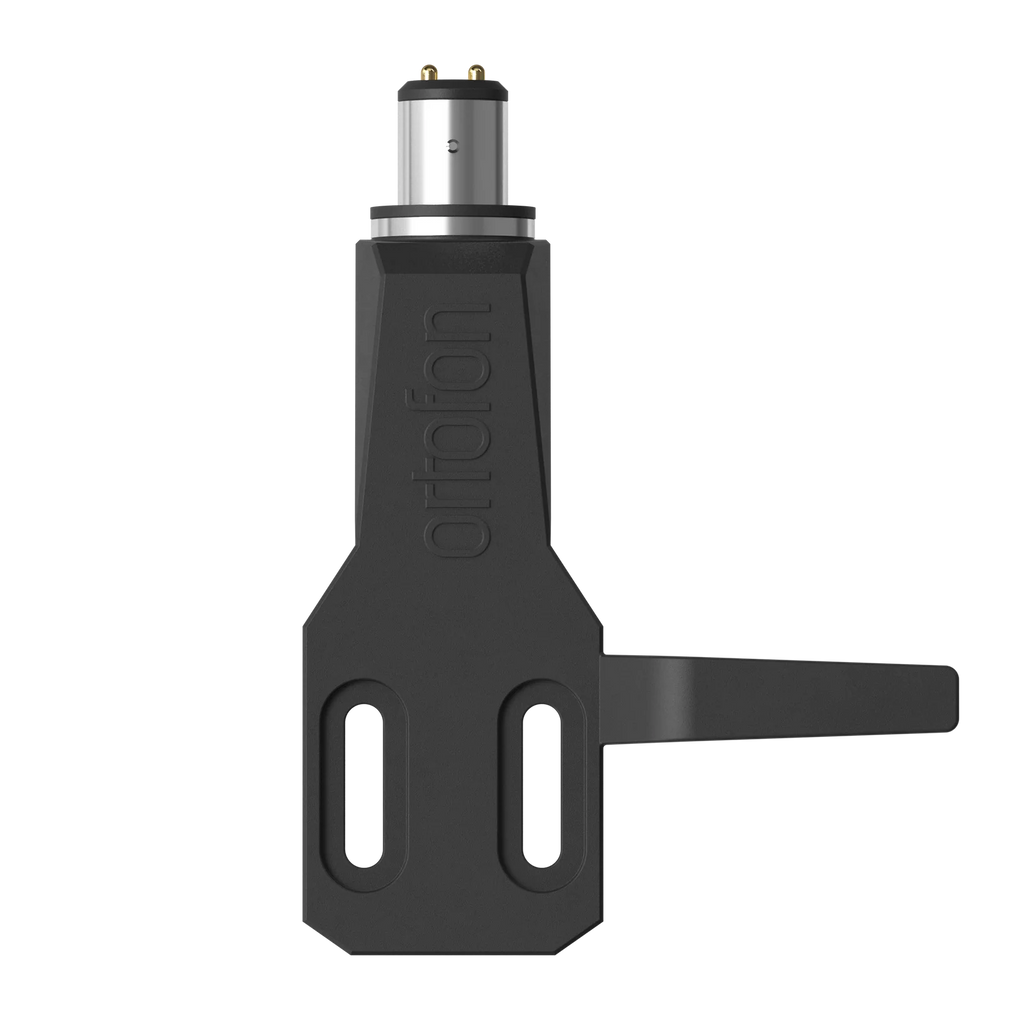

The SH-2 BLACK is a universal turntable carriage designed for stability, durability and seamless integration with a variety of turntables. Reliable and versatile, it is designed to perform equally well for everyday vinyl playback as well as special listening occasions.

Weighing just 9.3 grams, the SH-2 BLACK is optimized for turntables with an S- or J-shaped tonearm and a standard SME bayonet mount.

Whether you are upgrading your current system or building a new one, the Ortofon SH-2 BLACK offers a reliable and efficient solution for analog playback excellence.

Lightweight and durable, comfortable to use

The SH-2 BLACK features a finger hook mechanism designed in the same unique shape as Ortofon's latest Concorde cartridges, offering premium handling and a consistent design for users who value both aesthetics and quality.

Made from a glass-fiber reinforced copolymer, the SH-2 BLACK combines a lightweight construction with exceptional rigidity and the minimization of external vibrations. This durable material choice improves playback stability and preserves the integrity of vinyl sound.

MAIN FEATURES

- Compatibility – Fits most turntables with S- or J-shaped tonearms with bayonet mount.

- Stability – Glass fiber reinforced copolymer for durability and resonance control.

- Non-conductive – Prevents ground loops through the cartridge body.

- Improved control – Raised finger hook for easier and more precise handling of the tonearm.

- Pre-assembled cables – Color-coded gold-plated connectors for better signal transmission.

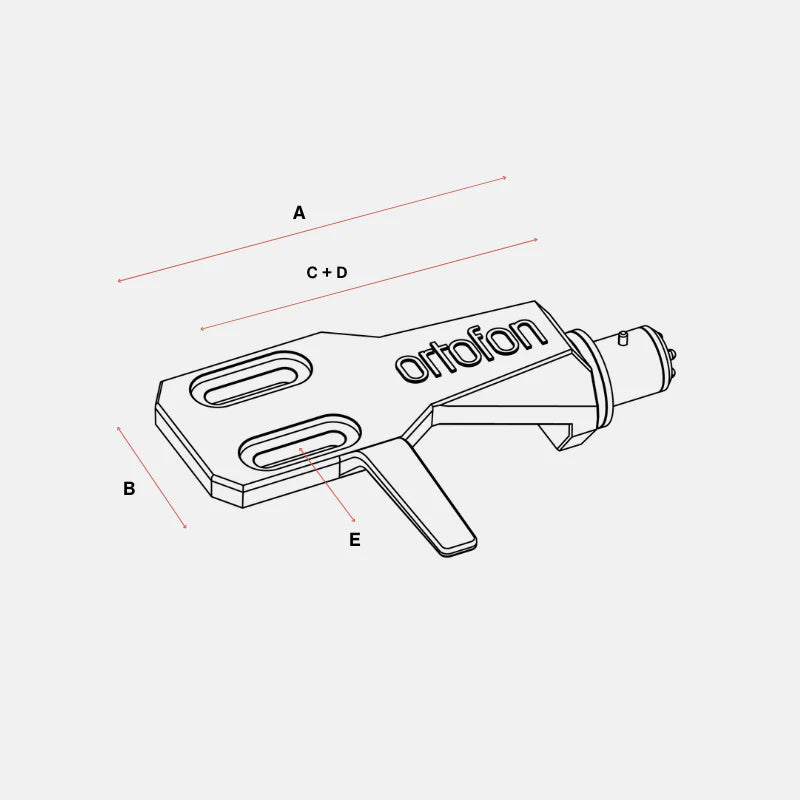

SH-2 box carriage mounting dimensions

A - Box carriage length = 51.41 mm.

B - Box carriage width = 21.31 mm.

C - Maximum mounting distance = 43.9 mm.

D - Minimum installation distance = 34.9 mm.

E - Maximum screw diameter = Ø 2.7 mm.
