Premium step-up mc transformer
With the ST-80 SE, Ortofon have expanded on their successful step-up transformer range in a great sounding, beautiful looking way.
This newly designed MC-transformer delivers a detailed reproduction with a touch of warmth, accompanied by a full-bodied sound quality. Compared with existing models, Ortofon's ST-80 SE has a larger bobbin, more layers in the permalloy core and more coil windings.

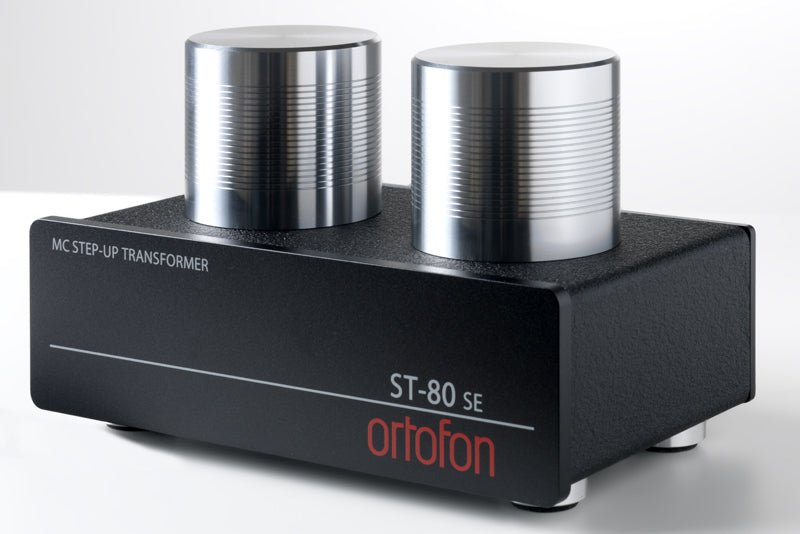

The transformer is magnetically shielded in a permalloy case, which in turn is inserted into a robust 10mm thick aluminum cylinder bored out of a solid aluminum block. Together with the heavy metal case, the transformer effectively isolates against environmental noise. The stability of the transformer is also superb, thanks to its substantial weight of 1.5kg, ensuring it stays in place even when cables are attached.
The ST-80 SE is built as a pure dual-mono model, which ensures maximum channel separation.

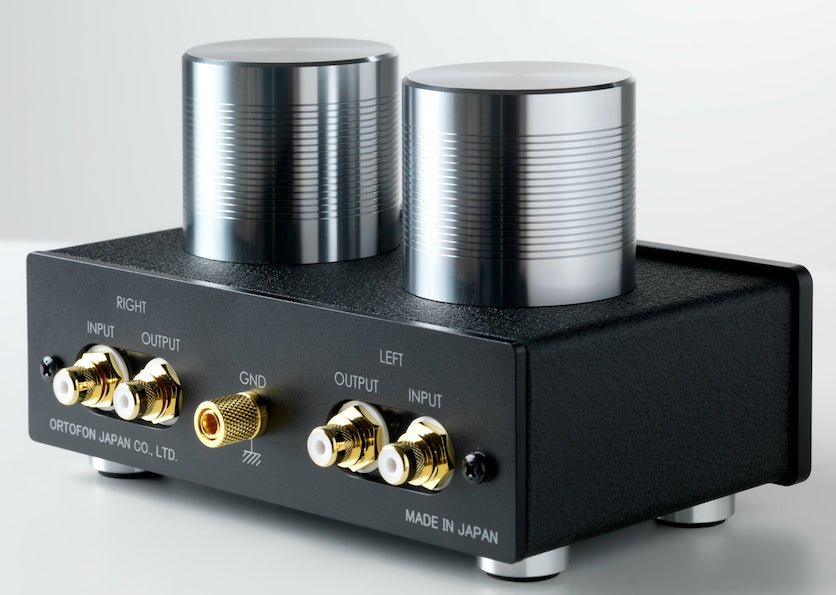

Internal point-to-point wiring is made by Teflon insulated, solid-core pure OFC copper-wire plated with gold. Together with high-quality gold-plated RCA jacks with Teflon insulation that ensures the optimum signal transmission and integrity.
The ST-80 SE will be a perfect match to most high-quality MC cartridges, such as Ortofon's Cadenza series, their range of SPUs, and Flagship MC Windfeld, Xpression and MC Anna models.
Technical data:
- Recommended cartridge impedance < 10 ohm
- Gain 27 dB at 1 kHz
- Frequency response: 10 Hz - 100 kHz (-2.5 dB +0.5 dB)
- Transformer output loading 47 kohm / 200 pF
- Dimensions (W x H x D): 95 x 153 x 100 mm
- Weight: 1.5 kg
