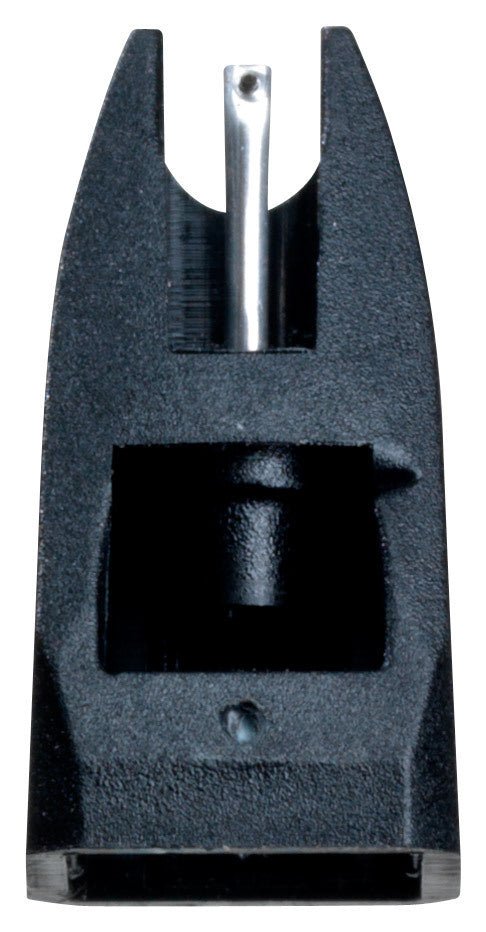

Ortofon Stylus 10 replacement needle
Replacement needle for Ortofon OM-10 sound box and all OM frames.
Original Ortofon replacement needle for the following Ortofon speakers:
- Super OM 10
- OM 10
- OMP 10
- OMB 10
- OMT 10
- LM 10
- Concorde 10
- Concorde EC 10
- TM 10H
- LMB 12
- SMB 12
- LMA 12
Please note that all OM series sound boxes have the same frame, so you can use the following needles in your OM sound box:
- Stylus 5
- Stylus 5E
- Stylus 10
- Stylus 20
- Stylus 30
- Stylus 40
- Stylus 78
Technical information:
- Frequency Range: 20 - 24,000 Hz
- Frequency Response: 20 - 20,000 Hz, +3 / -1 dB
- Tracking Ability at 315Hz: Typically 70 µm
- Compliance, Dynamic, Lateral: 25 µm
- Stylus Type: Elliptical
- Stylus Tip Radius r/R: 8/18 µm
- Equivalent Stylus Tip Mass: 0.5 mg
- Tracking Force Range: 1.25 - 1.75g (12.5 - 17.5 mN)
- Recommended Tracking Force: 1.5 g (15 mN)
- Tracking Angle: 20º
- Stylus Color: Black
