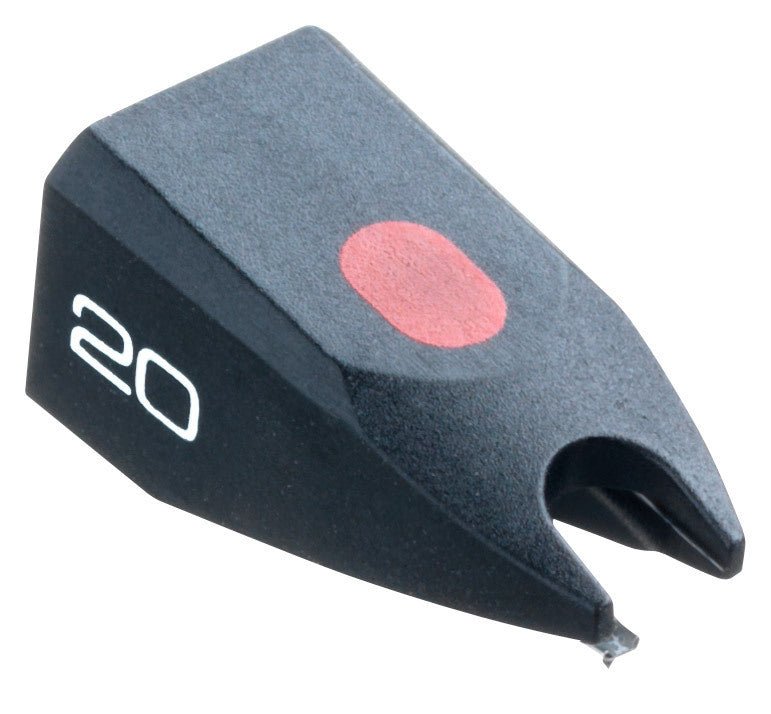

Ortofon Stylus 20
Replacement needle with Nude Elliptical grinding for OM speakers.
Original Ortofon replacement needle for the following Ortofon speakers:
Super OM 20, OM 20, OMP 20, OMB 20, LM 20, Concorde 20, LM 20H, TM 20U, TM 20H
Please note that all OM series sound boxes have the same frame, so you can use the following needles in your OM sound box:
Stylus 5, Stylus 5E, Stylus 10, Stylus 20, Stylus 30, Stylus 40 and Stylus 78.
Technical information:
- Frequency Range: 20 - 27,000 Hz
- Frequency Response 20 - 20,000 Hz: +2 / -3 dB
- Tracking Ability at 315 Hz: Typically 80 µm
- Compliance, Dynamic, Lateral: 25 µm
- Stylus Type: Nude Elliptical
- Stylus Tip Radius r / R: 8 / 18 µm
- Equivalent Stylus Tip Mass: 0.4 mg
- Tracking Force Range: 1.25 - 1.75 g (12.5 - 17.5 mN)
- Recommended Tracking Force: 1.5 g (15 mN)
- Tracking Angle: 20º
- Stylus Color: Black
