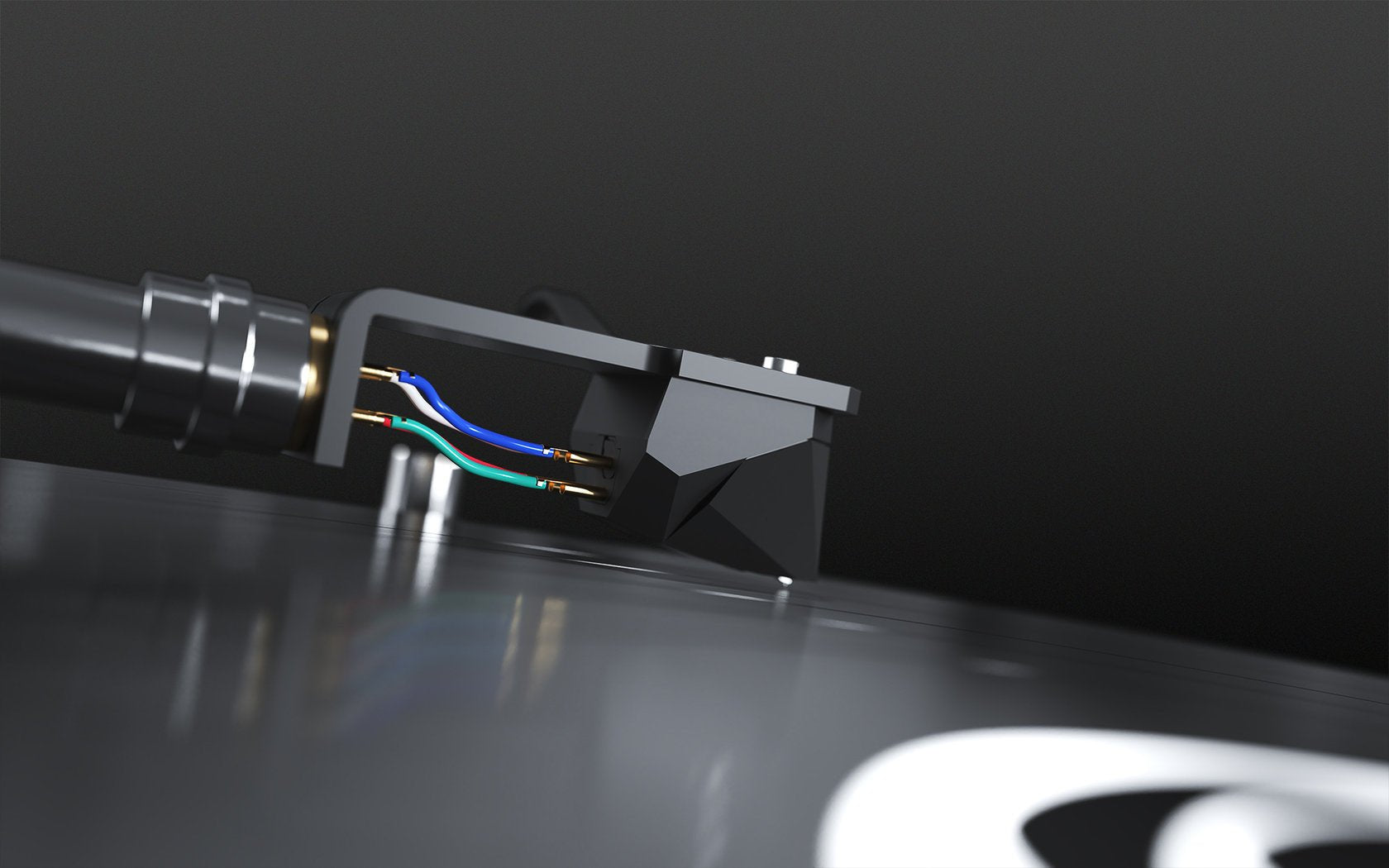

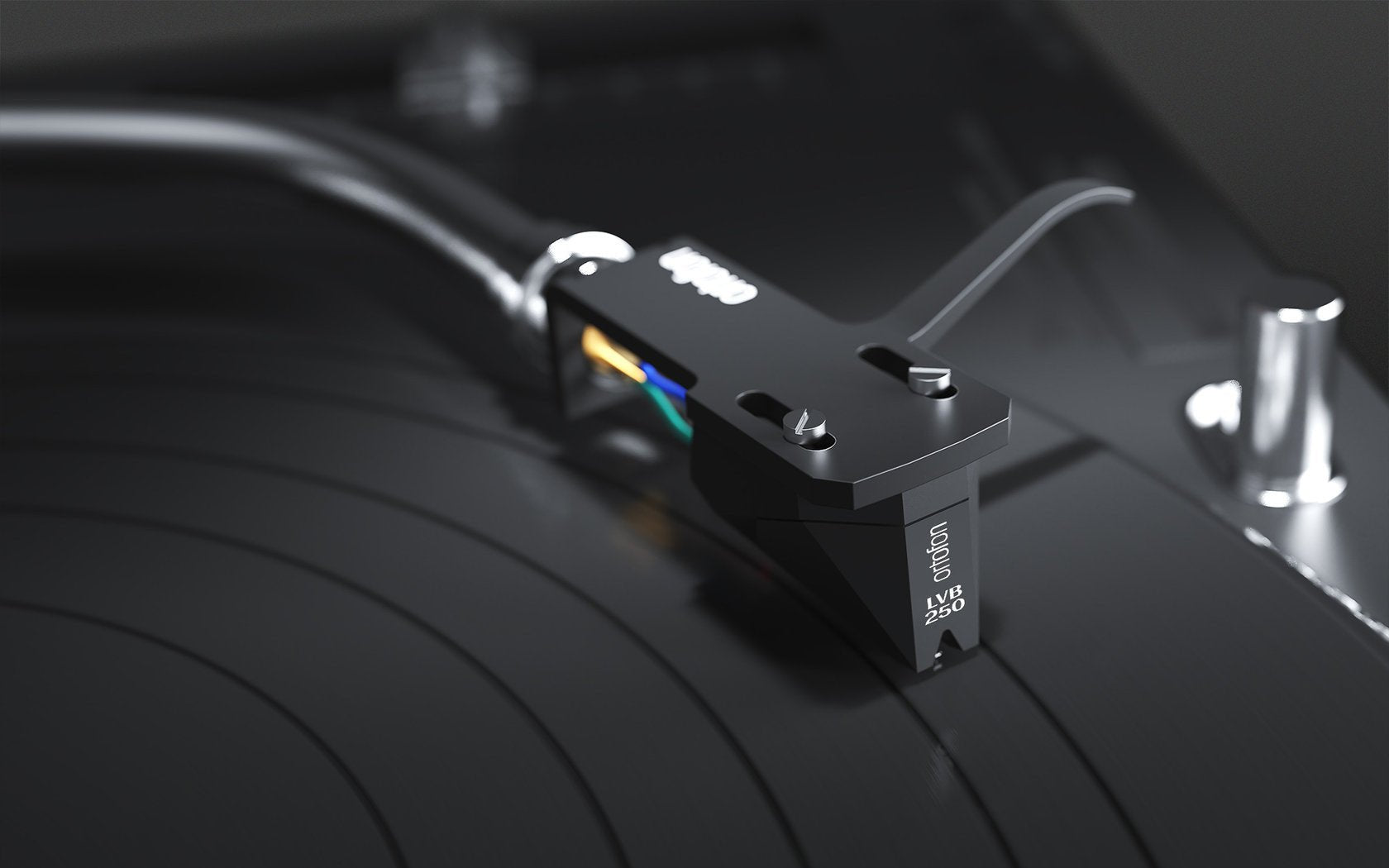

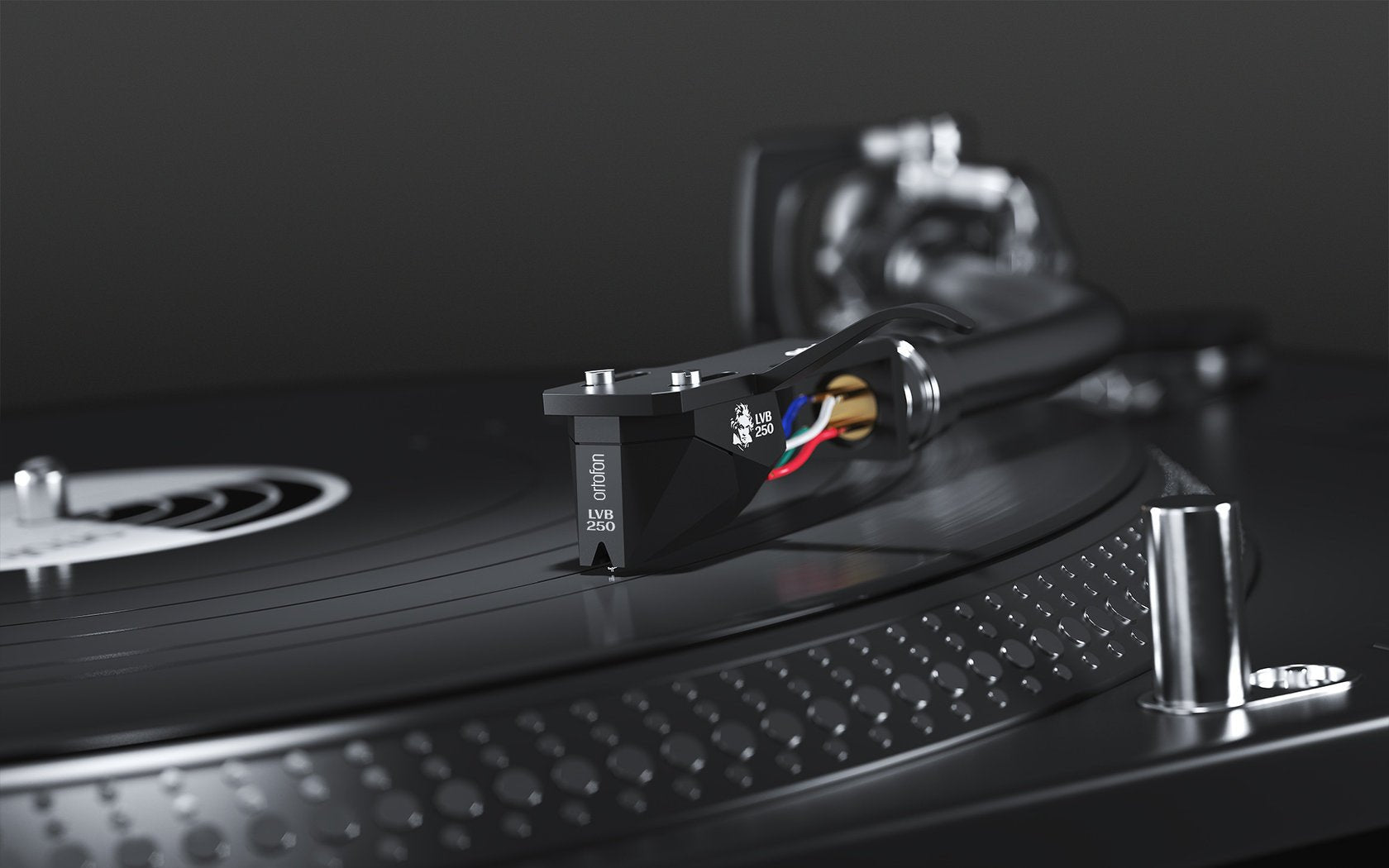

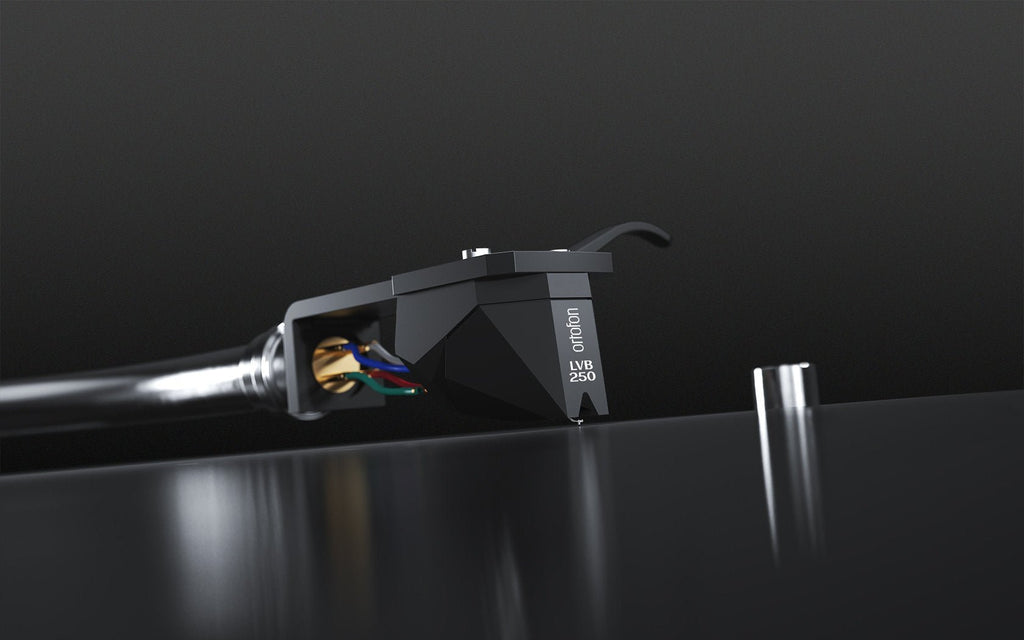

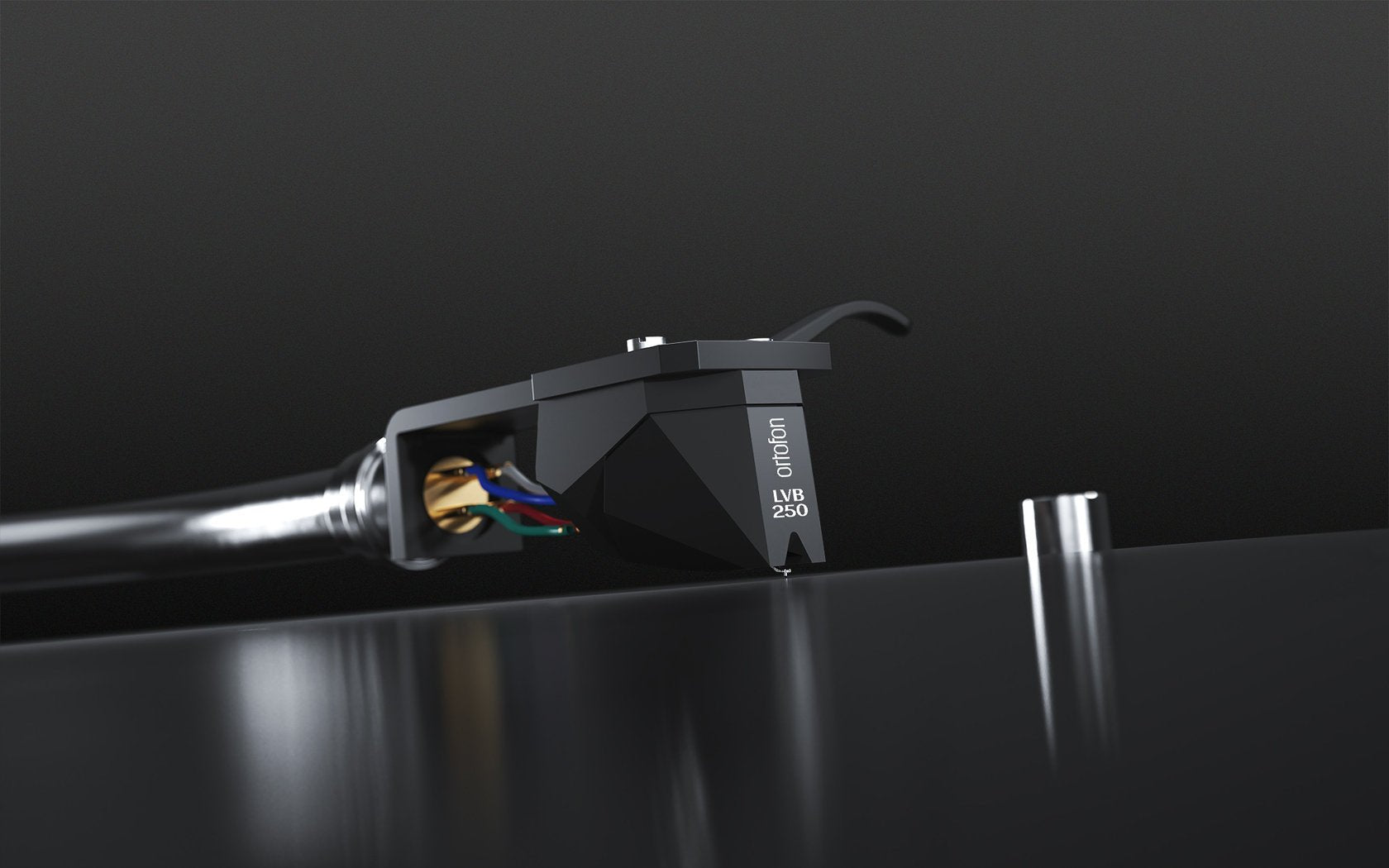

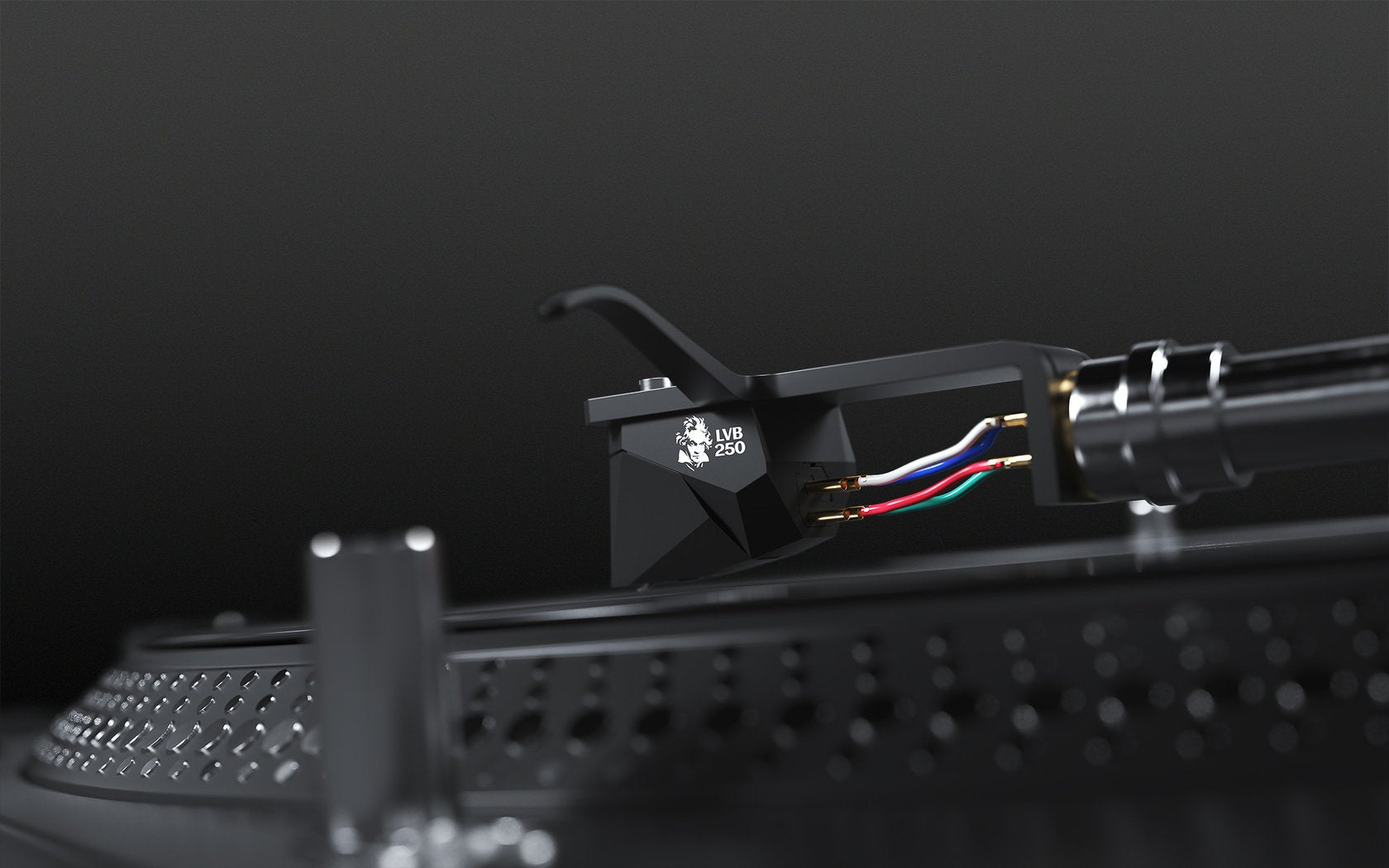

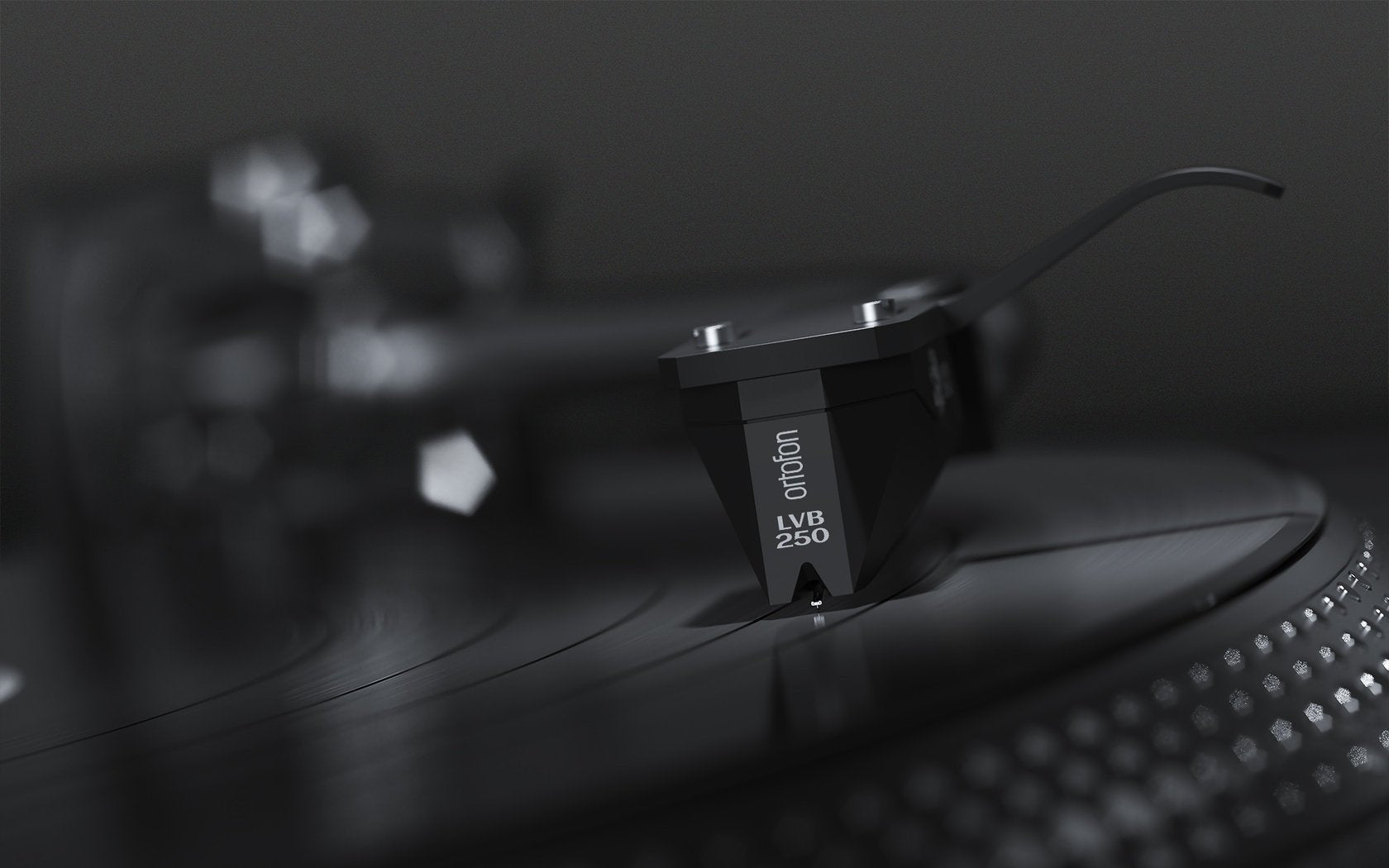

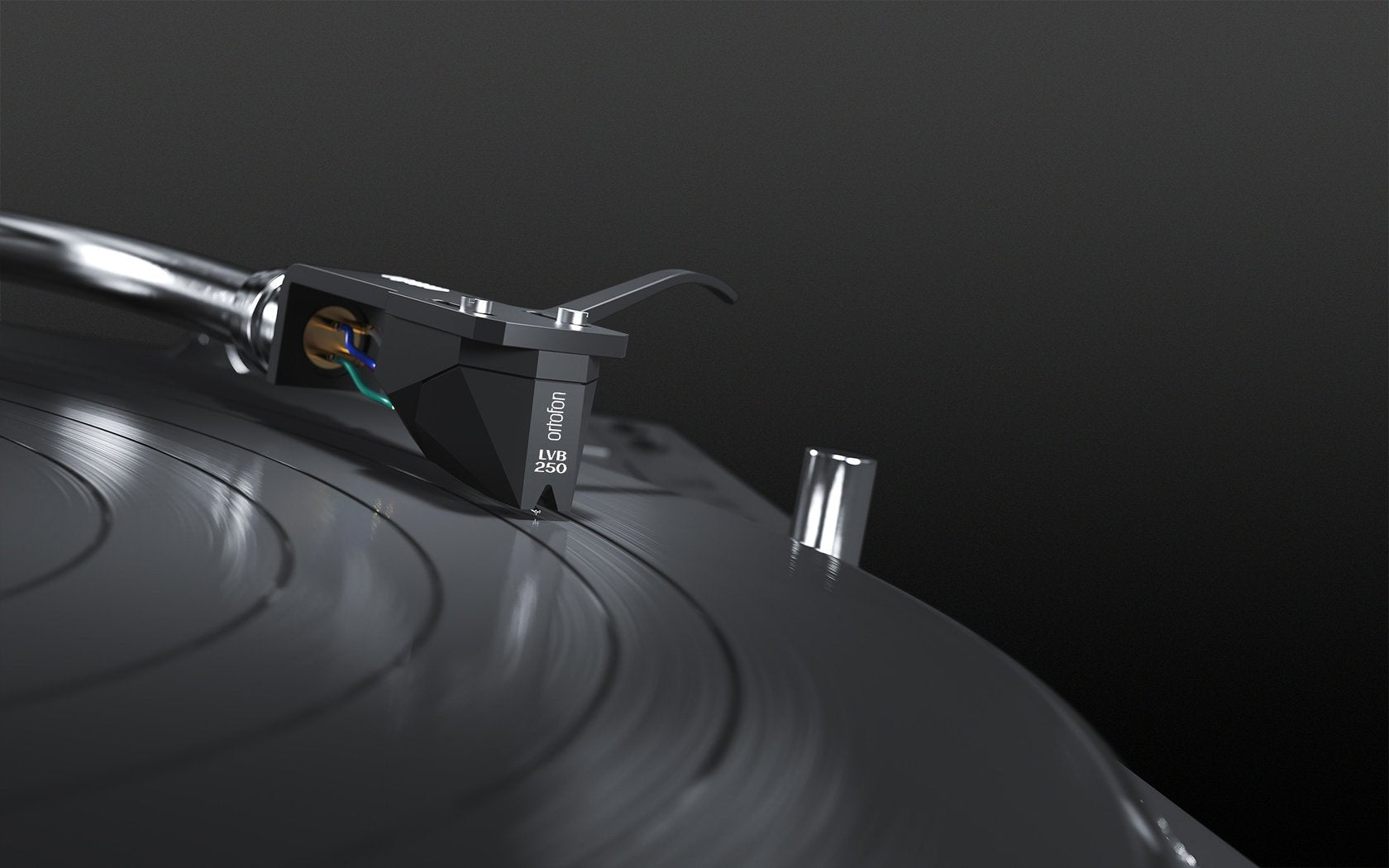

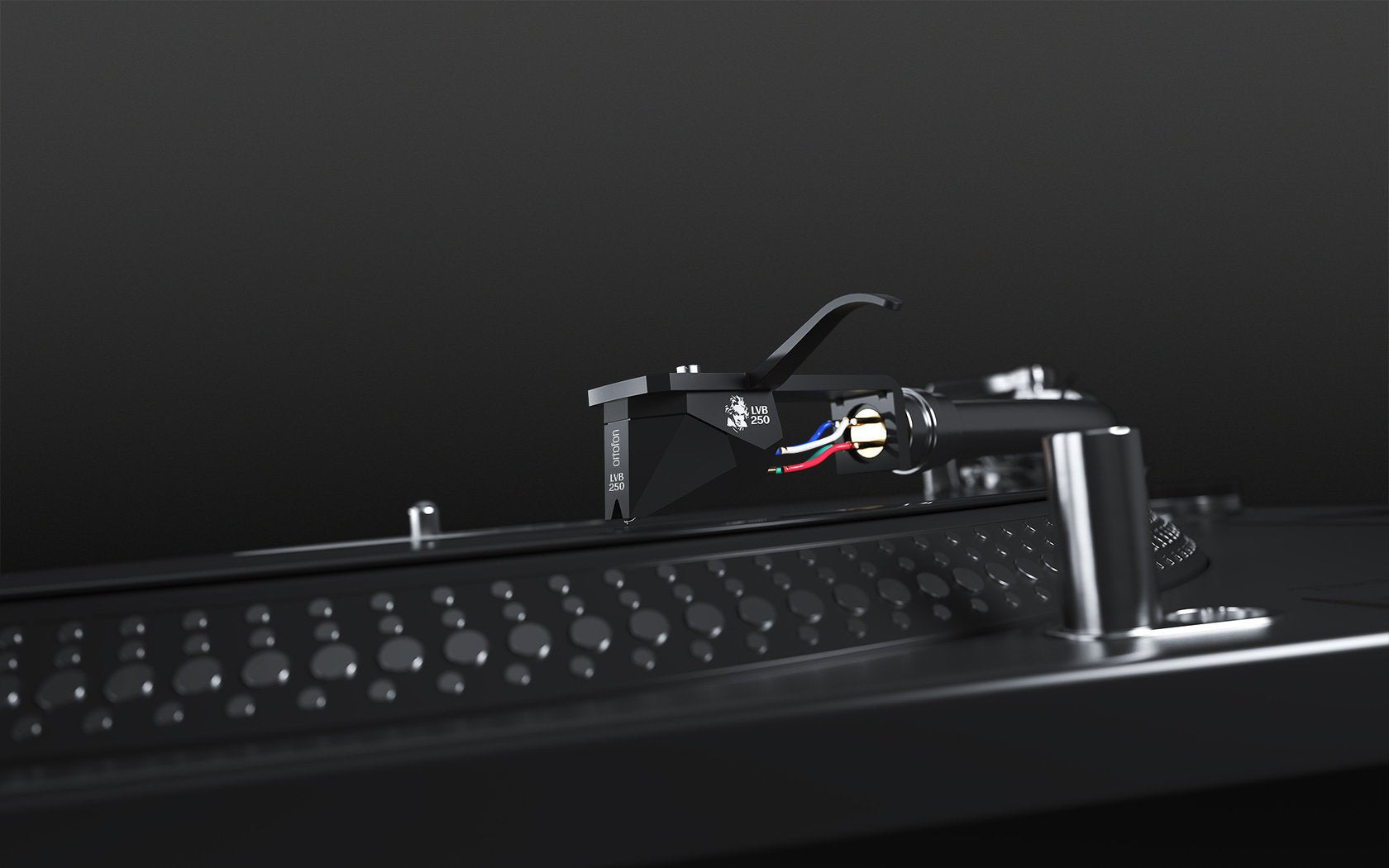

Ortofon 2M Black LVB cartridge
The Ortofon 2M Black LVB 250 Exclusive Model cartridge was released to celebrate the 250th anniversary of Ludwig van Beethoven's birth. Ortofon's flagship 2M Black is widely recognized as one of the best MM cartridges on the market, but at Ortofon, the best doesn't mean it can't be improved. The Ortofon 2M Black LVB has been selected as the EISA Phono Cartridge 2021-2022.
EISA 2021-2022:

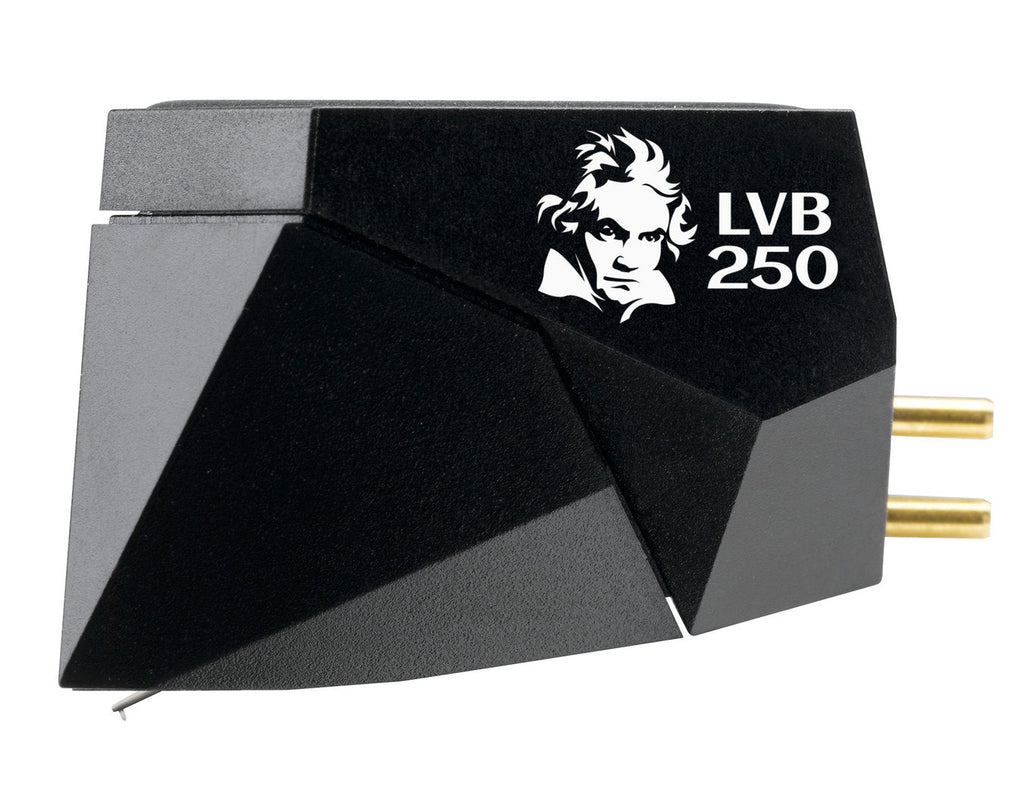

"The latest version of Ortofon's long-running 2M-mm cartridge pays tribute to Beethoven 250 years after his birth, as evidenced by the composer's image on the side of the cartridge. It offers a silky, refined sound that is particularly suitable for listening to classical, jazz and acoustic music. The refined, calm cartridge uses the same stylus and stylus arm as the manufacturer's Cadenza Black MC model. This, together with the new suspension, enables accurate sound with a precise stereo image and the soft richness desired by strings and other acoustic instruments."
Benefits of high-end materials
The 2M Black LVB 250 has been recreated from the concepts of its predecessor, the 2M Black, but the 2M Black LVB 250 performance takes one step further to enhance the cartridge's capabilities and technical excellence.
The 2M Black LVB 250 uses a Nude Shibata diamond on a Boron Cantilever , the combination known from the acclaimed MC Cadenza Black cartridge.
The Nude Shibata stylus's slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures remarkably detailed reproduction throughout the spectrum, including even the highest frequencies.
The use of an extremely stiff and lightweight Boron Cantilever adds remarkable transparency, speed and responsiveness.
The new rubber compound formula
To achieve an optimal interaction between compliance and damping, a new rubber compound for the suspension system has been developed.
The new rubber compound formula is based on the Multi Wall Carbon Nano Tubes (MWCNT) highly efficient nano filler. The new MWCNT-based compound offers desirable mechanical properties, which ensure better damping and improve the overall performance of the cartridge.
Also, the new MWCNT rubber compound allows for more environmentally-friendly production, adding further benefit. The MWCNT powder is applied in a rubber polymer matrix and not in a powdered form, which makes the production process more clean, non-polluting and energy saving.
Technical data
- Output voltage at 1000 Hz, 5 cm/sec.: 5 mV
- Channel balance at 1 kHz: < 1 dB
- Channel separation at 1 kHz: > 27 dB
- Channel separation at 15 kHz: 15 dB
- Frequency response: 20 - 20,000 + 2 / - 1 dB
- Tracking ability at 315Hz at recommended tracking force: 80 µm
- Compliance, dynamic, lateral: 22 µm/mN
- Stylus type: Nude Shibata
- Stylus tip radius: r/R 6/50 µm
- Cantilever material: Boron
- Tracking force range: 1.5-1.7 g (15-17 mN)
- Tracking force, recommended: 1.6 g (16 mN)
- Tracking angle:20°
- Internal impedance, DC resistance: 1.2 kOhm
- Internal inductance: 630 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 150 - 300 pF
- Cartridge colour, body/stylus: Black/Black
- Cartridge weight: 7.2 g

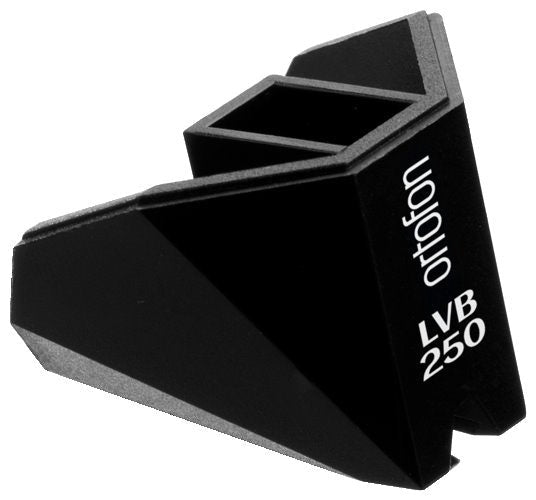

- Replacement stylus unit: 2M Black LVB 250
- Interchangeable style units: 2M Black and 2M Bronze
Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance. Please read about stylus care on our FAQ.
2M Series style interchangeability:
The 2M Series' engines, coils and Magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:
- 2M Red, 2M Blue and 2M Silver
- 2M Bronze, 2M Black and 2M Black LVB 250
- 2M Mono and 2M 78
